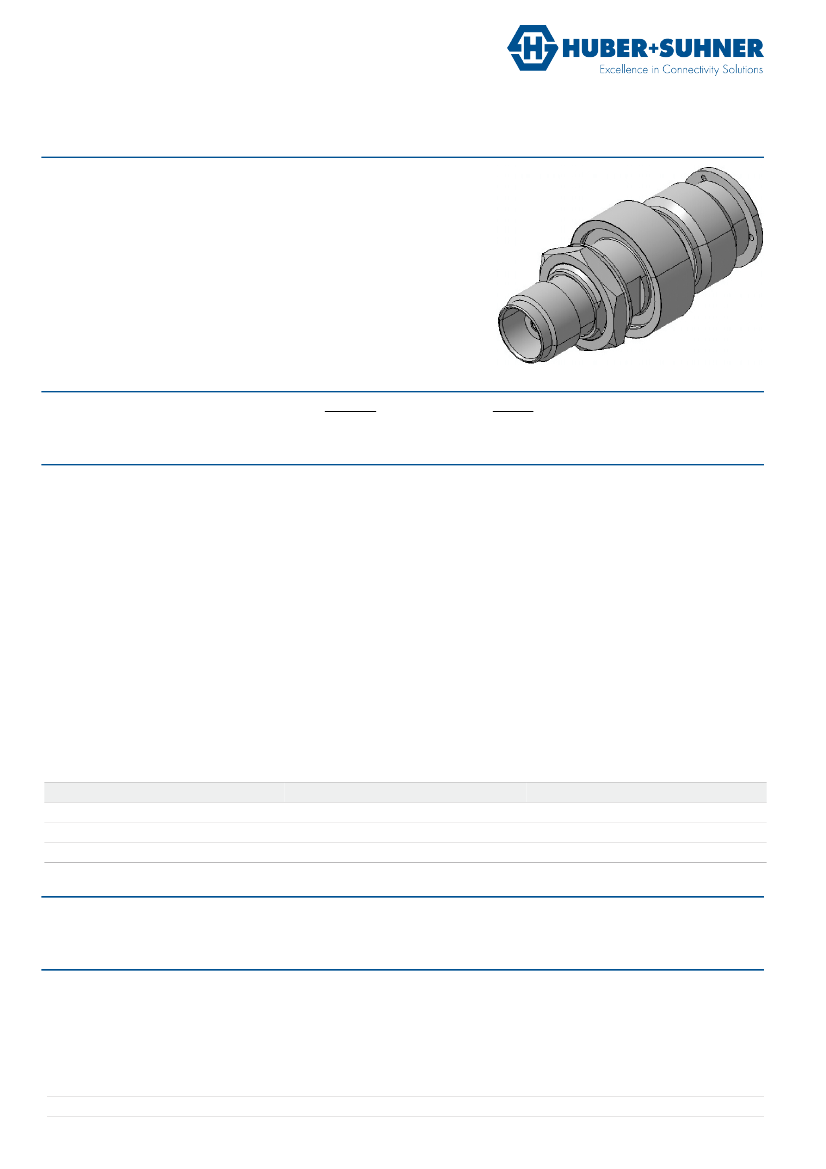

Data Sheet
EMP Protector
3406.26.0004
Description
Slim Line GDT technology
Benefits
Broad-band design
DC continuity for remote powering
The protector can also be installed reversely
Fix installed GDT, static sparkover-voltage nom. 200 V
Compliant to IEC 61643-21
Product Configuration
Main path connectors
Mounting and grounding
Port 1: unprotected, TNC plug (male) - Port 2: protected, TNC jack (female)
MH4 (bulkhead mounting), brk (bracket)
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
PIM 3rd order
Surge current handling capability
Residual pulse energy
50 Ω
0 - 5800 MHz
≥ 18.5 dB
≤ 0.2 dB
≤ 60 W
not specified
0 - 5600 MHz
≥ 20 dB
≤ 0.2 dB
5600 - 5800 MHz
≥ 18.5 dB
≤ 0.2 dB
10 single / 5 multiple kA (test pulse 8/20 µs)
250 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side
Mechanical Data
Number of matings
Weight
500
45 g
Environmental Data
Operating temperature
Waterproof degree
2011/65/EC (RoHS)
-40 °C to +85 °C
IP20 (according to IEC 60529, data refer to the coupled state)
compliant acc. Annex III
Material Data
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Material
Brass
Brass
Copper Beryllium Alloy
Surface Plating
Silver / Gold Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
Mounting instruction
DOU-00004290.1
DOC-0000176104
Remarks
Static spark-over voltage: 200V +/- 25%
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000177196 Z / PDO L / date of publication: 09.10.2017 18:59:57 / uncontrolled copy
Page 1/1
