3401.17.A Overview

Surge Suppressors GDT N jack(f) to N jack(f), 0-1000MHz

3401.17.A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
Reach Compliance Code	compliant
Adapter type	N-N
Other features	IEC61643-21
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	PTFE
MIL compliance	NO
Installation method	STRAIGHT
Installation type	PANEL
Maximum operating frequency	1 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	WATERPROOF
Panel mounting	YES
voltage standing wave ratio	1.1
Base Number Matches	1

Preview

Download Datasheet

View All

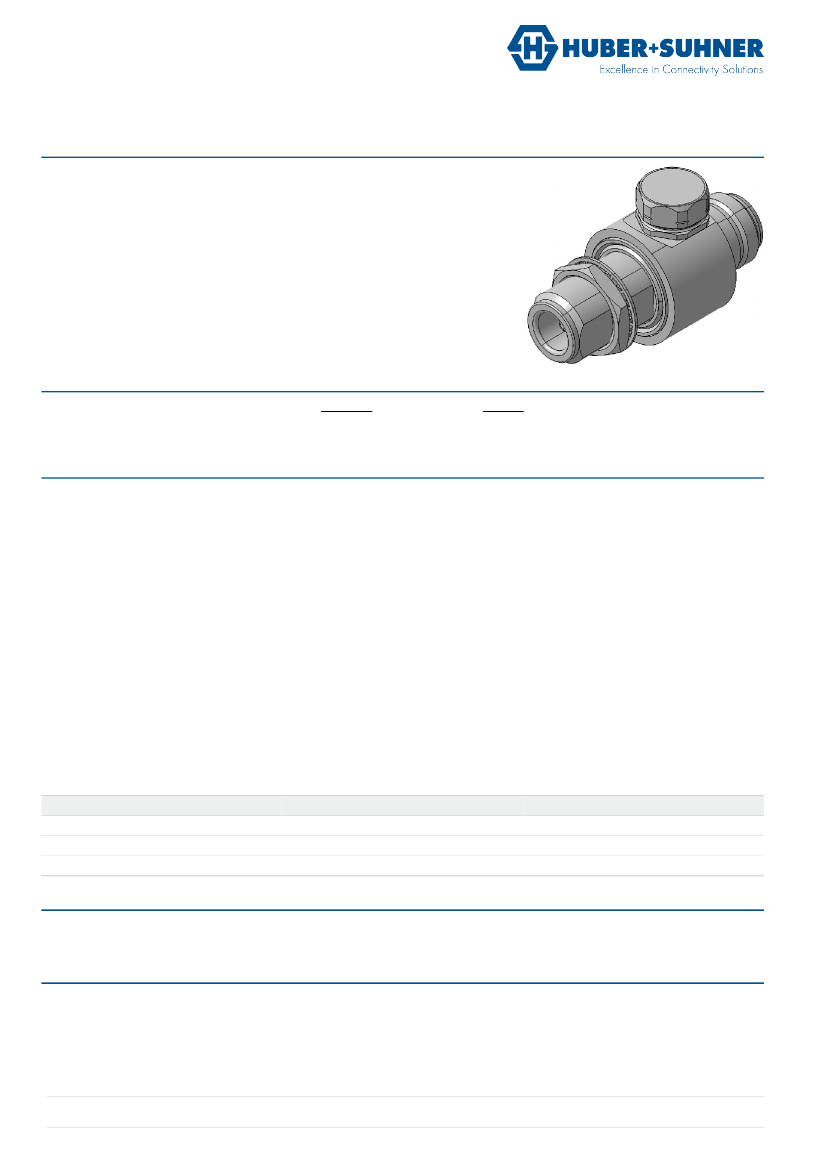

Data Sheet

EMP Protector

3401.17.A

Description

GDT technology up to 1.0 GHz

Benefits

Broad-band design

DC continuity for remote powering

The protector can also be installed reversely

Delivered without gas discharge tube

Data refer to GDT 9071.99.0547, 230 V

Compliant to IEC 61643-21

Product Configuration

Main path connectors

Mounting and grounding

Side of bulkhead

Port 1: unprotected, N jack (female) - Port 2: protected, N jack (female)

MH12 (bulkhead mounting), brk (bracket)

protected side

Technical Data

Electrical Data

Impedance

Frequency range

Return loss

Insertion loss

RF CW power

PIM 3rd order

Surge current handling capability

Residual pulse energy

50 Ω

0 - 1000 MHz

≥ 26.44 dB

≤ 0.1 dB

≤ 150 W

not specified

30 single / 20 multiple kA (test pulse 8/20 µs)

350 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side

Mechanical Data

Number of matings

Weight

500

110 g

Environmental Data

Operating temperature

Waterproof degree

2011/65/EU (RoHS)

-40 °C to +85 °C

IP65 (according to IEC 60529, data refer to the coupled state)

compliant

Material Data

Piece Parts

Housing

Port 1 center contact

Port 2 center contact

Material

Brass

Copper Beryllium Alloy

Surface Plating

SUCOPLATE (R) Plating

Gold Plating (without Nickel underplating)
