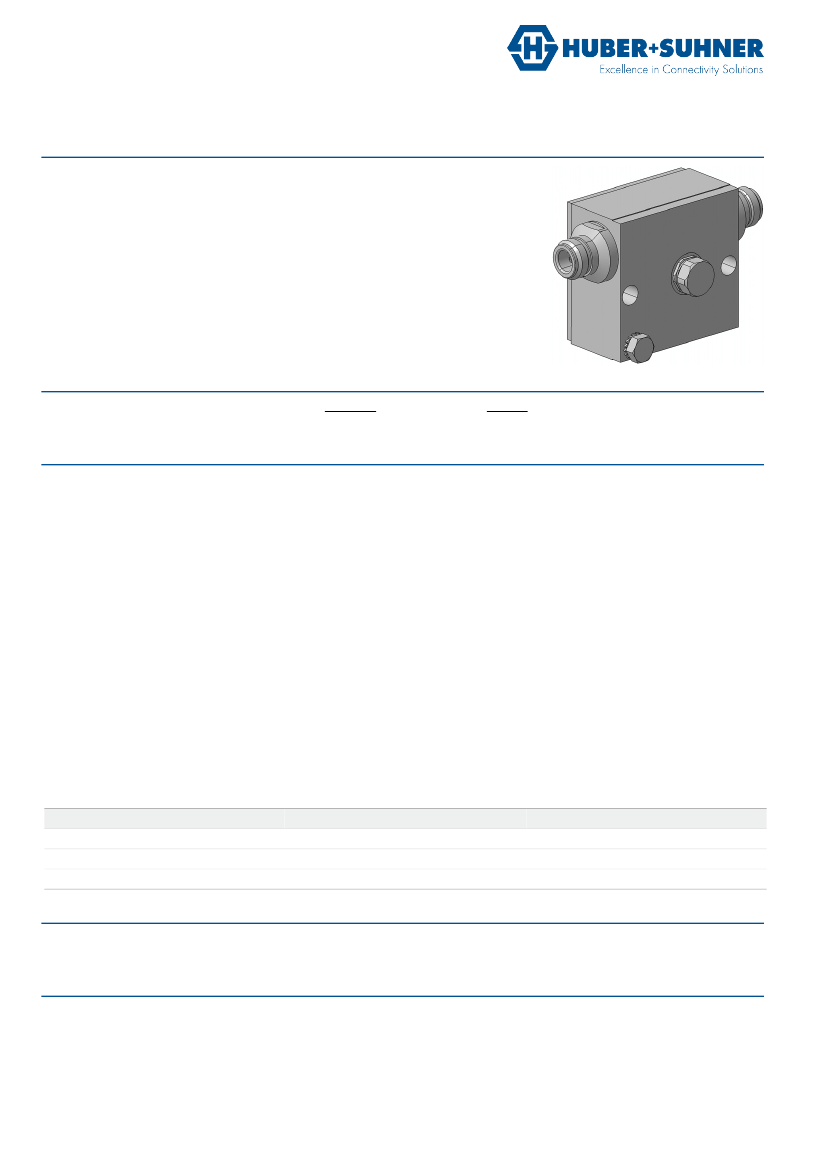

Data Sheet
EMP Protector
3403.17.0042
Description
Fine protector hybrid technology
Benefits
Broad-band design
DC continuity for remote powering
Replaceable GDT 9071.99.0548, (90 V) included
Compliant to IEC 61643-21
Product Configuration
Main path connectors
Mounting and grounding
Port 1: unprotected, N jack (female) - Port 2: protected, N jack (female)
M4 (screw), brk (bracket)
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
PIM 3rd order
DC supply voltage
DC current
Surge current handling capability
Residual pulse energy
50 Ω
650 - 2500 MHz
650 - 2300 MHz
≥ 20.8 dB
≤ 0.5 dB
2300 - 2500 MHz
≥ 18 dB
≤ 0.5 dB
≤ 50 W
not specified
≤ 15 V
≤3A
30 single / 20 multiple kA (test pulse 8/20 µs)
6 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side
Mechanical Data
Number of matings
Weight
500
330 g
Environmental Data
Operating temperature
Waterproof degree
2011/65/EC (RoHS)
-40 °C to +85 °C
IP65 (according to IEC 60529, data refer to the coupled state)
compliant acc. Annex III
Material Data
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Material
Aluminium
Copper Beryllium Alloy
Copper Beryllium Alloy
Surface Plating
Chromatized
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
Mounting instruction
DOU-00018472.1
DOC-0000176104
Remarks
Recommendation: if this protector is mated with connectors made of copper-alloy base material and trimetal or nickel plating the
connector area must be taped to improve long-term durability.
Document: DOC-0000177130 Y / PDO L / date of publication: 28.03.2017 18:47:11 / uncontrolled copy
Page 1/2
Data Sheet
EMP Protector
3403.17.0042
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000177130 Y / PDO L / date of publication: 28.03.2017 18:47:11 / uncontrolled copy
Page 2/2
