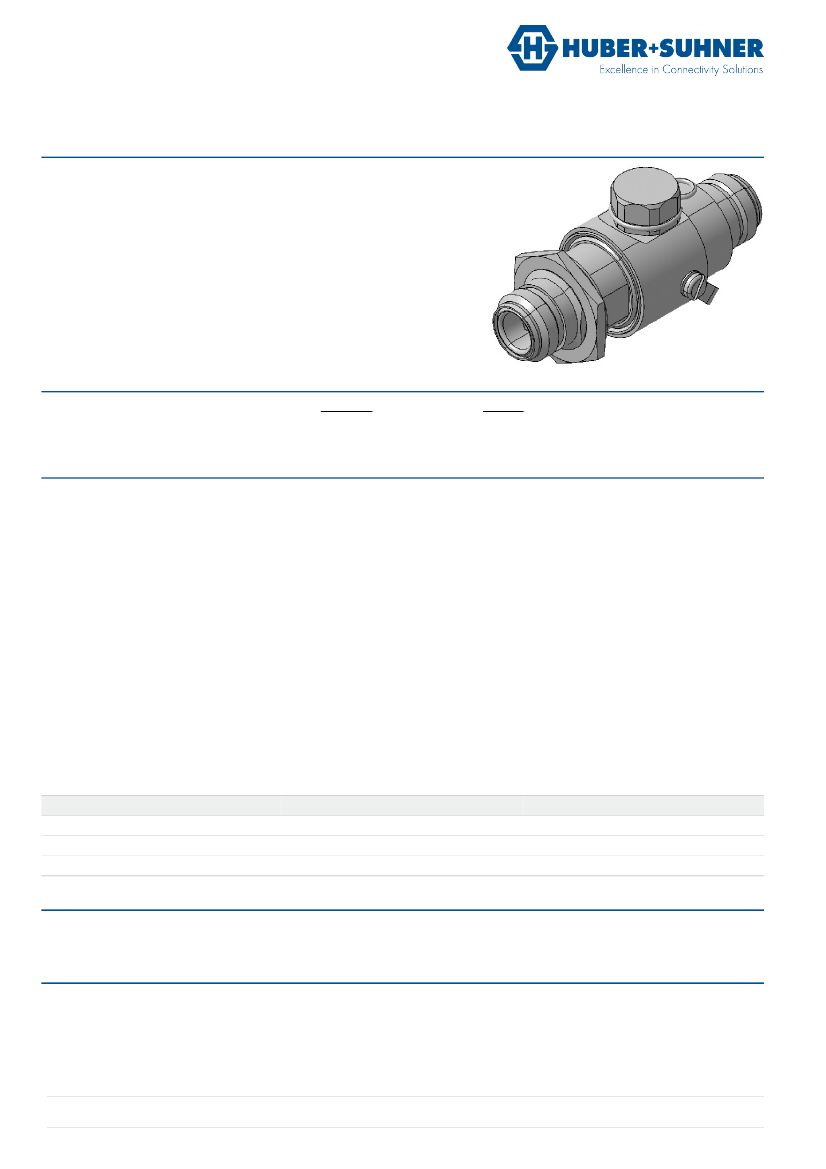

3402.17.K

Description
Surge Suppressors GDT N jack(f) to N jack(f), 0-2500MHz
CategoryThe connector    The connector
File Size166KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

3402.17.K Overview

Surge Suppressors GDT N jack(f) to N jack(f), 0-2500MHz

3402.17.K Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeN-N
Body/casing typeJACK-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationGOLD
Contact point genderFEMALE-FEMALE
Contact materialBERYLLIUM COPPER
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.2 dB
insulator materialPTFE
MIL complianceNO
Installation methodSTRAIGHT
Installation typePANEL
Maximum operating frequency2.5 GHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsWATERPROOF
Panel mountingYES
voltage standing wave ratio1.2
Base Number Matches1
Data Sheet
EMP Protector
3402.17.K
Description
GDT technology up to 2.5 GHz
Benefits
Broad-band design
DC continuity for remote powering
GDT holder with chain
The protector can also be installed reversely
Delivered without gas discharge tube
Data refer to GDT 9071.99.0547, 230 V
Compliant to IEC 61643-21
Product Configuration
Main path connectors
Mounting and grounding
Side of bulkhead
Port 1: unprotected, N jack (female) - Port 2: protected, N jack (female)
MH25 (bulkhead mounting), brk (bracket)
protected side
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
PIM 3rd order
Surge current handling capability
Residual pulse energy
50 Ω
0 - 2500 MHz
≥ 20 dB
≤ 0.2 dB
≤ 150 W
not specified
0 - 1000 MHz
≥ 26 dB
≤ 0.1 dB
≤ 150 W
not specified
30 single / 20 multiple kA (test pulse 8/20 µs)
350 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side
Mechanical Data
Number of matings
Weight
500
150 g
Environmental Data
Operating temperature
Waterproof degree
2011/65/EU (RoHS)
-40 °C to +85 °C
IP66 (according to IEC 60529, data refer to the coupled state)
compliant
Material Data
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Material
Brass
Copper Beryllium Alloy
Copper Beryllium Alloy
Surface Plating
SUCOPLATE (R) Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
Mounting instruction
DOU-00004083.1
DOC-0000176104
Remarks
Customer part number
NATO: NSN 5920-12-332-5482
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000177042 Y / PDO M / date of publication: 27.03.2015 17:12:37 / uncontrolled copy
Page 1/1
