HC2702JLCC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The power supply circuit> HC2702JLCC

HC2702JLCC: DescriptionThree Terminal Voltage Reference, 2 Output, 10V, Trim/Adjustable, Hybrid, LCC-28; CategoryThe power supply circuit; File Size63KB，2 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric View All

HC2702JLCC Overview

Three Terminal Voltage Reference, 2 Output, 10V, Trim/Adjustable, Hybrid, LCC-28

HC2702JLCC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	QLCC
package instruction	QCCN, LCC28,.45SQ
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	S-XQCC-N28
JESD-609 code	e0
length	11.379 mm
Number of functions	1
Output times	2
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output voltage	10.005 V
Minimum output voltage	9.995 V
Nominal output voltage	10 V
Package body material	UNSPECIFIED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	1.676 mm
surface mount	YES
technology	HYBRID
Maximum voltage temperature coefficient	10 ppm/°C
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.11%
width	11.379 mm
Base Number Matches	1

Preview

Download Datasheet

View All

H C2700 LCC Series

+10V, Ð0V, and ± 10V Leadless Chip

Carrier Precision V oltage References

JED EC- Compatible

FEA TURES

• 2700 Type Reference in

Standard LCC Packages

• JEDEC-Compatible 28 Pin

LCC Style Package

• +10, –10, + / –10V olt

Ranges

• New K elvin Sense

Connections

• Initial A ccuracy to 2.5mV

• Temp. Coefficients to 3ppm

• Short Circuit Protected

• Industrial and M il Temp.

Ranges

• Surface M ount and

RefIow-Solderable

DESCRIPTION

The new HC2700LCC Series packages the HC2700,

HC2701 and HC2702 in a 28 pin JEDEC compatible

leadless chip carrier. The HC2700LCC series com-

bines the standard features of the HC2700 series in

LCC packages with a new flexible pin out. This new

pin out offers, uncommitted feedback resistors and

zener ground points, which allows for K elvin sensing

at the output voltage and reference ground. This pro-

vides improved performance at greater distances

from the HC2700LCC. In addition, feedback resistors

and a resistor divider has been included in the LCC

substrate design, allowing any unique reference

voltage to be trimmed in accordance with your

specification. Piease contact the factory with your

special requirements.

STA NDA RD PA RT SELECTION GUIDE

Output

V oltage

+10

–10

+10,–10

+10.–10

+10,–10

Initial

A cc.M v

+/–5.0

+/–2.5

+/-5.0

+/-2.5

+/-5.0

+/-2.5

+/-5.0

+/-2.5

+/-5.0

+/-2.5

+/-5.0

+/-2.5

Temperature Range

TC ppm/C

in ºC

+/–10

–25 to 85

+/–3

–25 to 85

+/–3

–55 to 125

+/–3

–55 to 125

+/–10

–25 to 85

+/–3

–25 to 85

+/–3

–55 to 125

+/–3

–55 to 125

+/–10

–25 to 85

+/–3

–25 to 85

+/–3

–55 to 125

+/–3

–55 to 125

A PPLICA TIONS

• High A ccuracy

A /D and D/A

Converters

• Precision Test and

M easurement Systems

• Calibration Standards

• High Resolution

Servo Systems

• Co-fired Ceramic Substrate

M ounting

• Single and M ultilayer M other

Board M ounting System

• Harsh M ilitary/A erospace

Enviroments Requiring Full

M il Processing

• M IL-STD-883 Compliant

Part Number

HC2700JLCC

HC2700LLCC

HC2700SLCC

HC2700ULCC

HC2701JLCC

HC2701 LLCC

HC2701SLCC

HC2701 ULCC

HC2702JLCC

HC2702LLCC

HC2702SLCC

HC2702ULCC

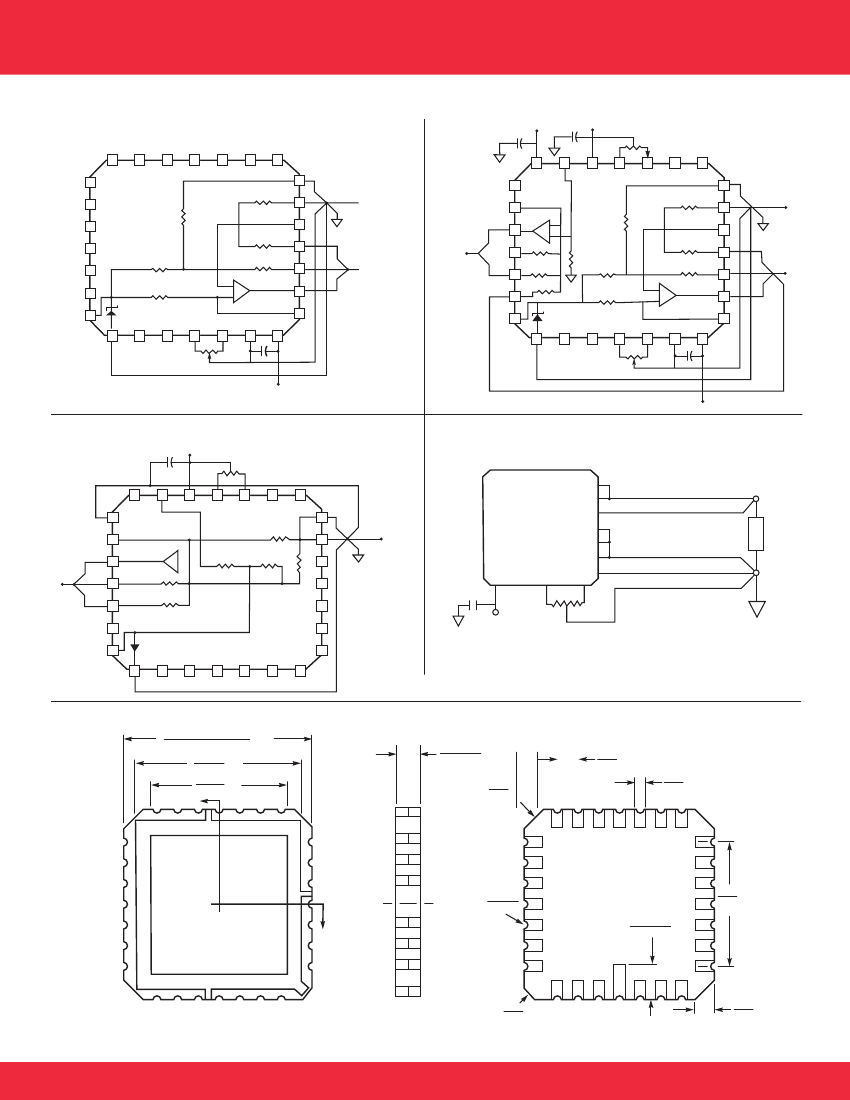

For detailed specifications refer to HC2700 series data sheet.

165 Cedar Hill Street, Marlborough, MA 01752 Tel: 508.485.6350

www.satconelectronics.com

Fax: 508.485.5168
