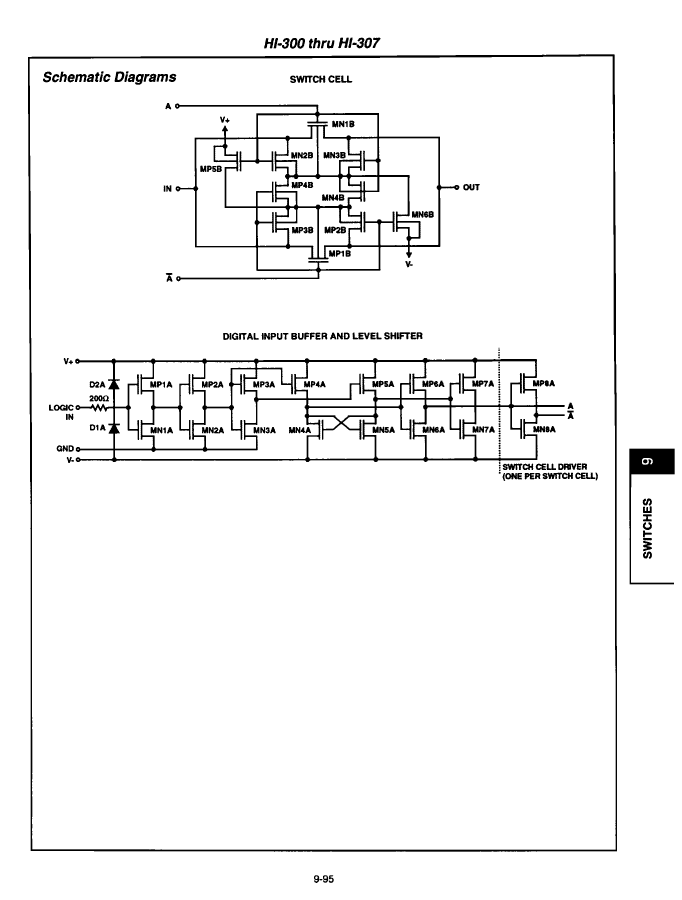

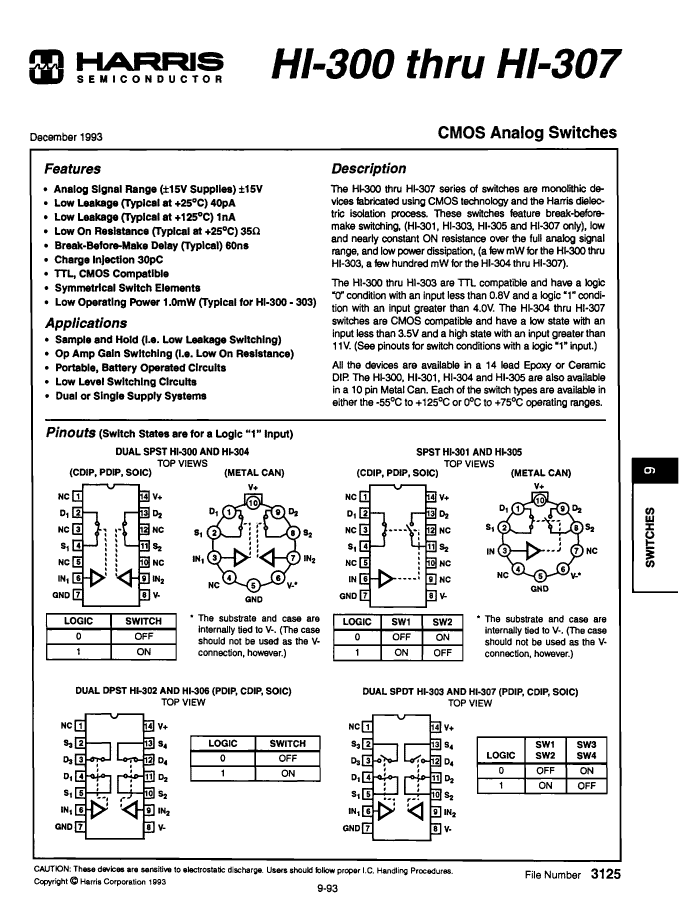

IC,ANALOG SWITCH,DUAL,SPST,CMOS,SOP,14PIN,PLASTIC

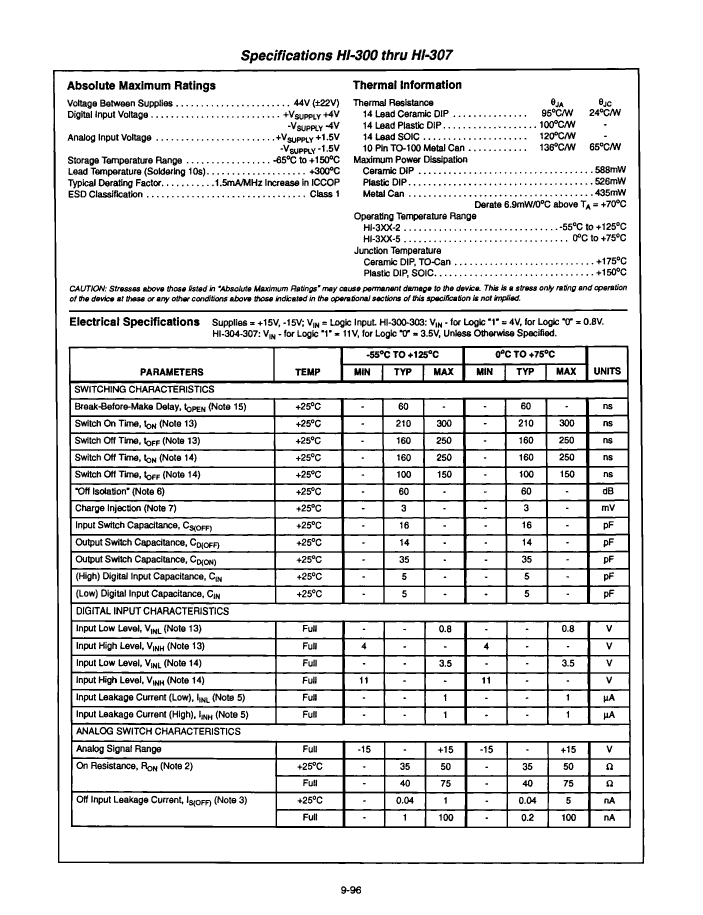

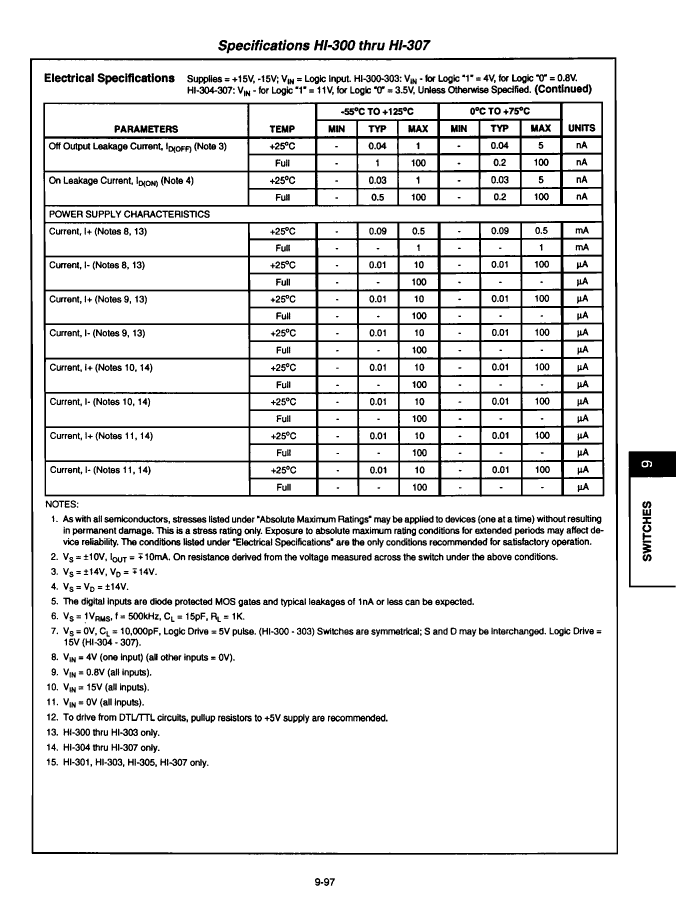

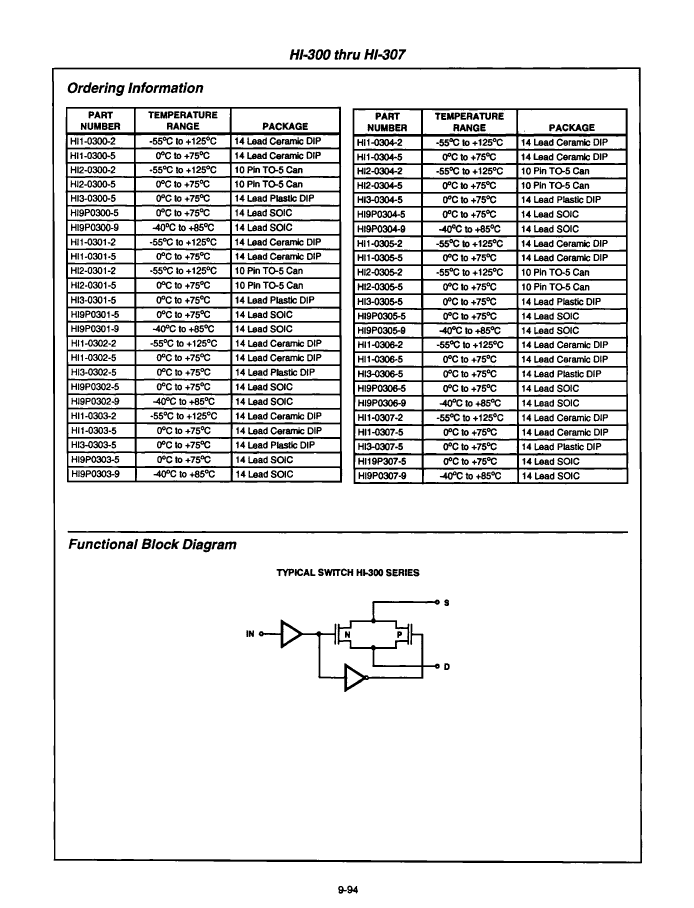

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Renesas Electronics Corporation |
| Reach Compliance Code | not_compliant |
| Is Samacsys | N |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| normal position | NO |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum on-state resistance (Ron) | 75 Ω |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| output | SEPARATE OUTPUT |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| Maximum connection time | 300 ns |
| switch | BREAK-BEFORE-MAKE |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| HI9P0300-9 | HI9P0304-9 | HI9P0300-5 | HI9P0306-5 | HI9P0304-5 | HI9P0306-9 | HI9P0302-9 | HI9P0305-9 | HI9P0307-9 | HI1-0306-2 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | IC,ANALOG SWITCH,DUAL,SPST,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,DUAL,SPST,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,DUAL,SPST,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,DUAL,DPST,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,DUAL,SPST,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,DUAL,DPST,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,DUAL,DPST,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,SINGLE,SPDT,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,DUAL,SPDT,CMOS,SOP,14PIN,PLASTIC | IC,ANALOG SWITCH,DUAL,DPST,CMOS,DIP,14PIN,CERAMIC |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | _compli |
| Maker | Renesas Electronics Corporation | - | - | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Analog Integrated Circuits - Other Types | SPST | SPST | SPST | DPST | - | DPST | DPST | SPDT | SPDT | DPST |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | - | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-XDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 | - | e0 | e0 | e0 | e0 | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | - | -15 V | -15 V | -15 V | -15 V | -15 V |
| normal position | NO | NO | NO | NO | - | NO | NO | - | - | NO |
| Number of functions | 2 | 2 | 2 | 2 | - | 2 | 2 | 1 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 | 14 | - | 14 | 14 | 14 | 14 | 14 |
| Maximum on-state resistance (Ron) | 75 Ω | 75 Ω | 75 Ω | 75 Ω | - | 75 Ω | 75 Ω | 75 Ω | 75 Ω | 75 Ω |
| Maximum operating temperature | 85 °C | 85 °C | 70 °C | 70 °C | - | 85 °C | 85 °C | 85 °C | 85 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | - | - | - | -40 °C | -40 °C | -40 °C | -40 °C | -55 °C |
| output | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | SEPARATE OUTPUT | - | SEPARATE OUTPUT | SEPARATE OUTPUT | - | SEPARATE OUTPUT | SEPARATE OUTPUT |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC |
| encapsulated code | SOP | SOP | SOP | SOP | - | SOP | SOP | SOP | SOP | DIP |
| Encapsulate equivalent code | SOP14,.25 | SOP14,.25 | SOP14,.25 | SOP14,.25 | - | SOP14,.25 | SOP14,.25 | SOP14,.25 | SOP14,.25 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | - | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| power supply | +-15 V | +-15 V | +-15 V | +-15 V | - | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | - | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | YES | YES | YES | YES | - | YES | YES | YES | YES | NO |
| Maximum connection time | 300 ns | 250 ns | 300 ns | 250 ns | - | 250 ns | 300 ns | 250 ns | 250 ns | 250 ns |
| switch | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | - | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE |
| technology | CMOS | CMOS | CMOS | CMOS | - | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | - | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | - | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | - | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | - | DUAL | DUAL | DUAL | DUAL | DUAL |
