DG384ACJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The signal circuit> DG384ACJ

DG384ACJ: DescriptionDUAL 2-CHANNEL, DBL POLE SGL THROW SWITCH, PDIP16, 0.300 INCH, PLASTIC, DIP-16; CategoryThe signal circuit; File Size1MB，12 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

DG384ACJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG384ACJ	-	-	View	Buy Now

DG384ACJ Overview

DUAL 2-CHANNEL, DBL POLE SGL THROW SWITCH, PDIP16, 0.300 INCH, PLASTIC, DIP-16

DG384ACJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	2
Number of functions	2
Number of terminals	16
Nominal off-state isolation	62 dB
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
Maximum seat height	4.572 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	250 ns
Maximum connection time	300 ns
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	7.62 mm
Base Number Matches	1

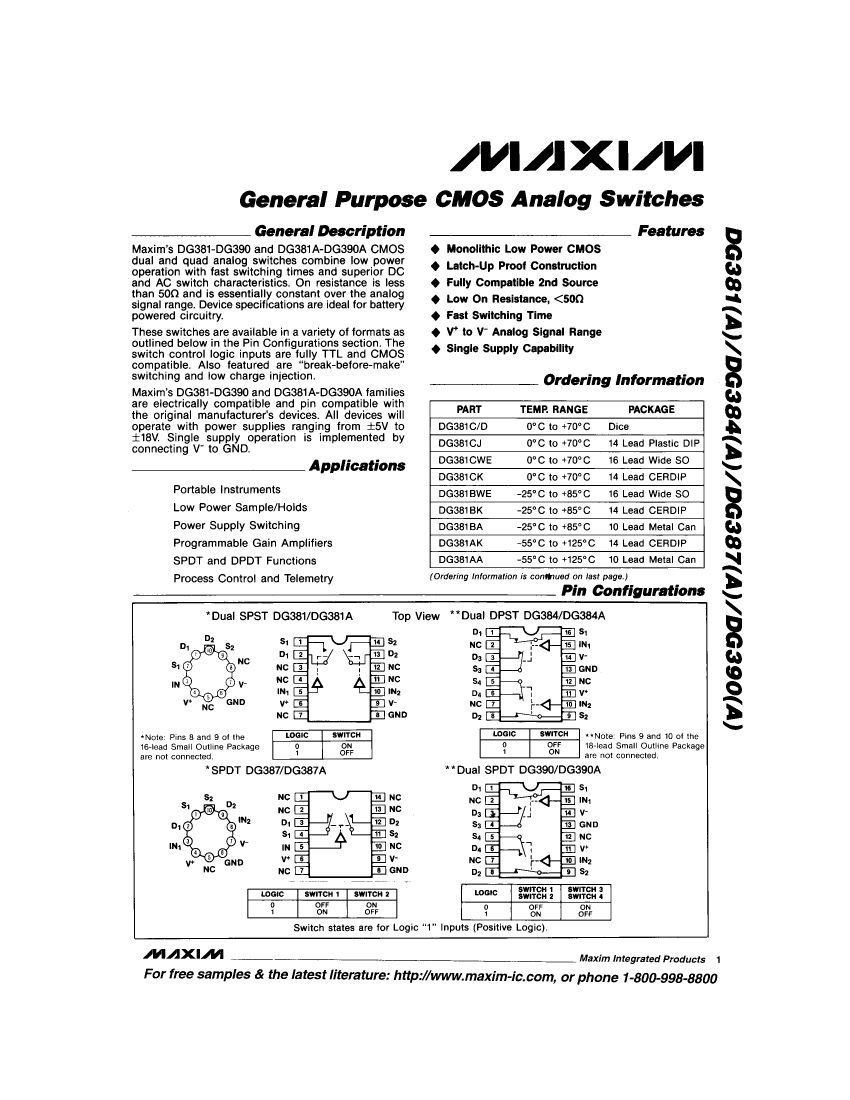

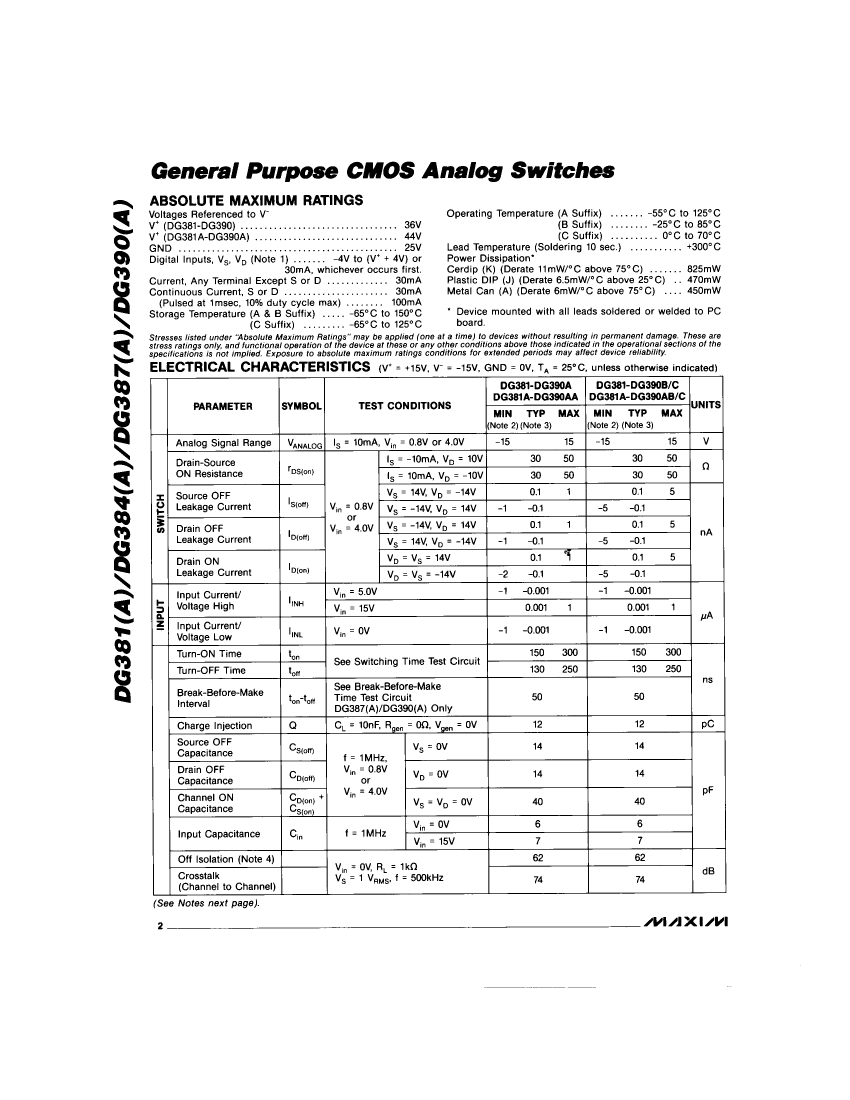

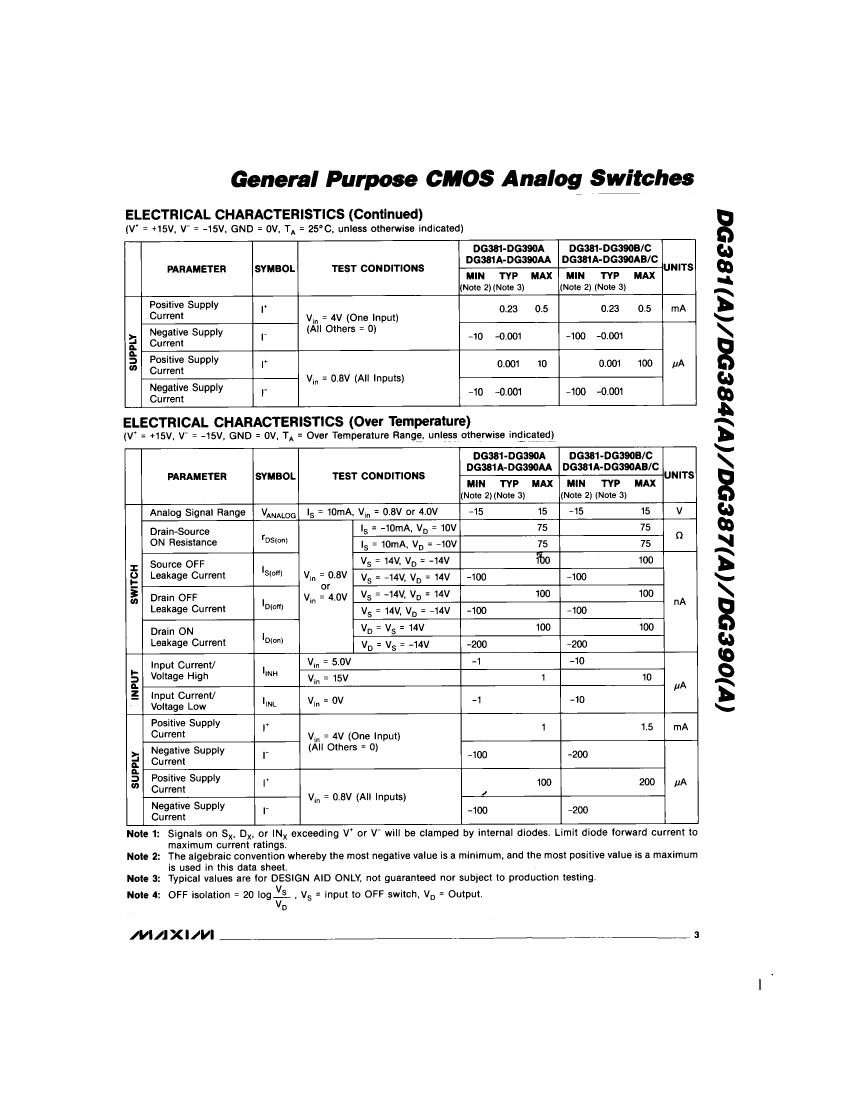

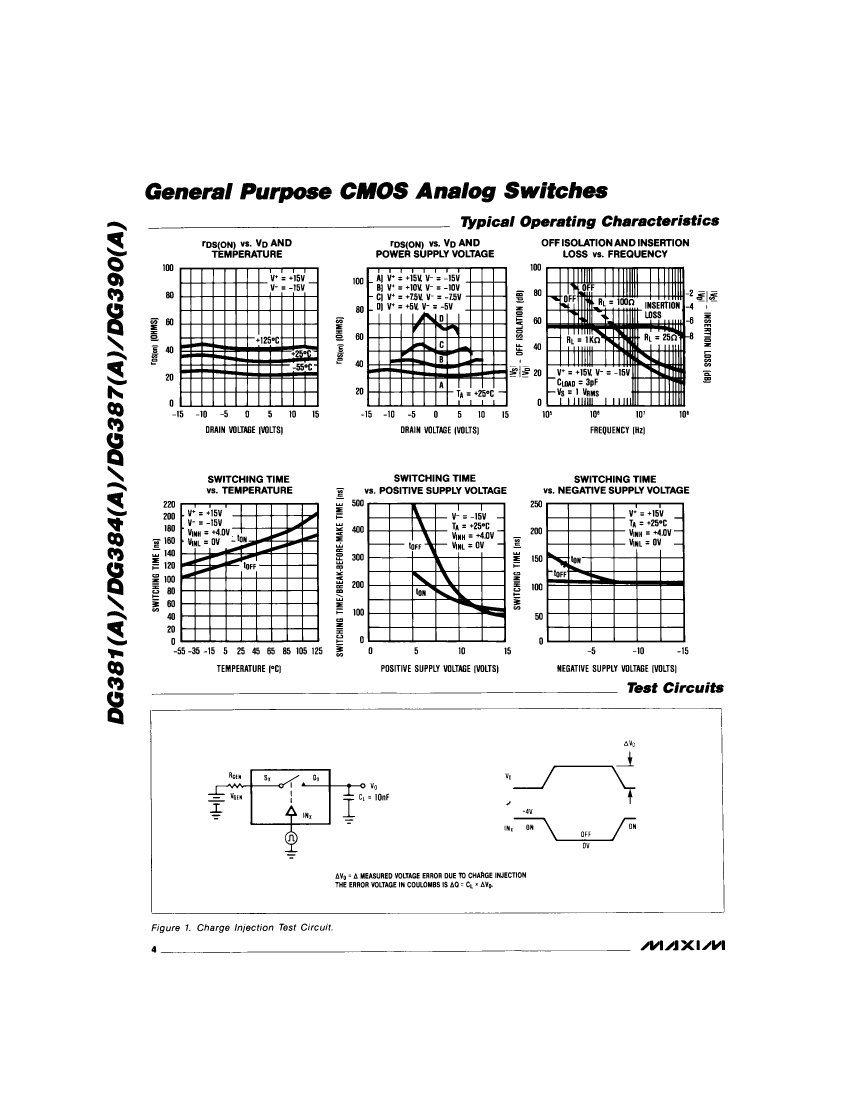

Preview

Download Datasheet

View All
