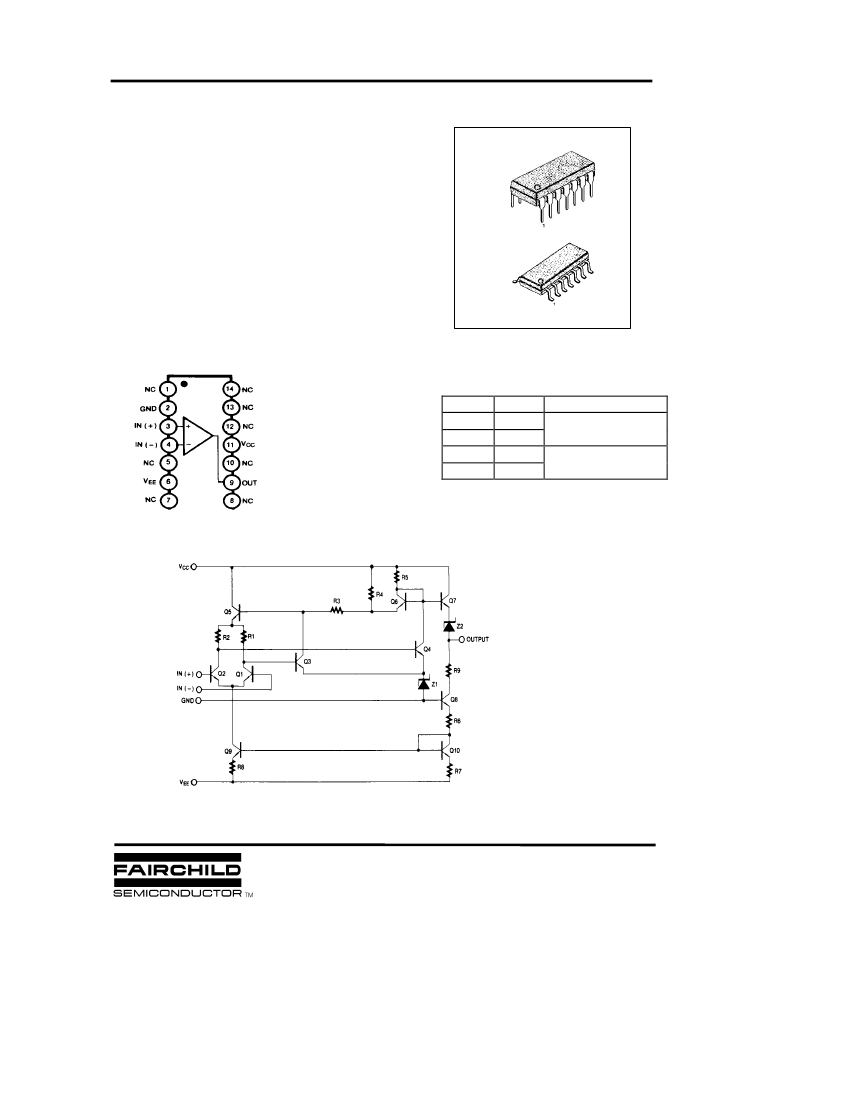

Basic information of LM710M amplifier:
LM710M is a COMPARATOR. Commonly used packaging methods are SOP, SOP14,.25

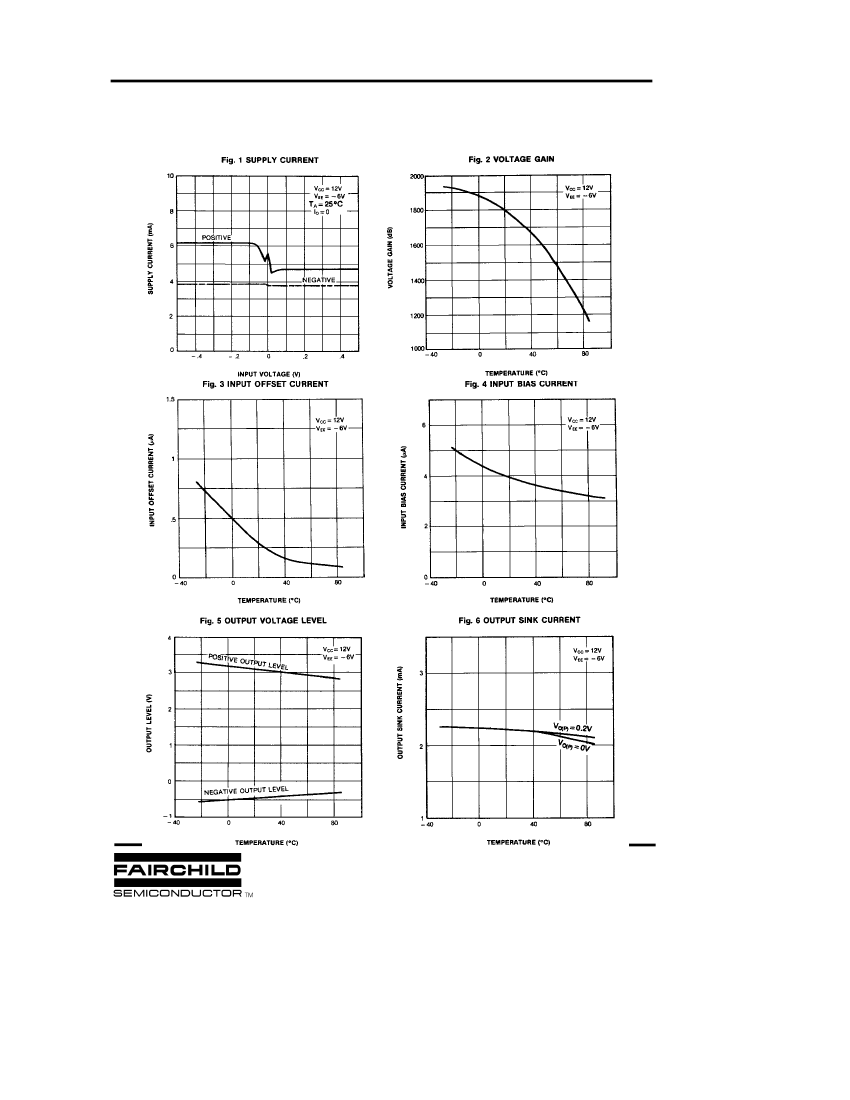

LM710M amplifier core information:
The minimum operating temperature of the LM710M is 70 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.025 µA Its maximum average bias current is 0.04 µA
When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM710M takes only 40 ns to respond.
The nominal supply voltage of the LM710M is 12 V, and its corresponding nominal negative supply voltage is -6 V. The input offset voltage of the LM710M is 6500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM710M:
The width of LM710M is: 3.95 mm and the length is 8.56 mm. LM710M has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14
LM710M amplifier additional information:
Its temperature grade is: COMMERCIAL. The LM710M is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e0. The package code of LM710M is: SOP.
The materials used in the LM710M package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM710M package pins are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.8 mm.
Basic information of LM710M amplifier:
LM710M is a COMPARATOR. Commonly used packaging methods are SOP, SOP14,.25
LM710M amplifier core information:
The minimum operating temperature of the LM710M is 70 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.025 µA Its maximum average bias current is 0.04 µA
When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM710M takes only 40 ns to respond.
The nominal supply voltage of the LM710M is 12 V, and its corresponding nominal negative supply voltage is -6 V. The input offset voltage of the LM710M is 6500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM710M:
The width of LM710M is: 3.95 mm and the length is 8.56 mm. LM710M has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14
LM710M amplifier additional information:
Its temperature grade is: COMMERCIAL. The LM710M is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e0. The package code of LM710M is: SOP.
The materials used in the LM710M package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM710M package pins are: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.8 mm.
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP14,.25 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | COMPARATOR |
| Maximum average bias current (IIB) | 0.04 µA |
| Maximum bias current (IIB) at 25C | 0.025 µA |
| Maximum input offset voltage | 6500 µV |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e0 |
| length | 8.56 mm |
| Negative supply voltage upper limit | -7 V |
| Nominal Negative Supply Voltage (Vsup) | -6 V |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output type | TOTEM POLE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 12,-6 V |
| Certification status | Not Qualified |
| Nominal response time | 40 ns |
| Maximum seat height | 1.8 mm |
| Supply voltage upper limit | 14 V |
| Nominal supply voltage (Vsup) | 12 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 3.95 mm |
| Base Number Matches | 1 |
| LM710M | LM710IM | LM710IN | |
|---|---|---|---|
| Description | Comparator, 1 Func, 6500uV Offset-Max, 40ns Response Time, BIPolar, PDSO14, SOP-14 | Comparator, 1 Func, 3000uV Offset-Max, 40ns Response Time, BIPolar, PDSO14, SOP-14 | Comparator, 1 Func, 3000uV Offset-Max, 40ns Response Time, BIPolar, PDIP14, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Fairchild | Fairchild | Fairchild |
| Parts packaging code | SOIC | SOIC | DIP |
| package instruction | SOP, SOP14,.25 | SOP, SOP14,.25 | DIP, DIP14,.3 |
| Contacts | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Is Samacsys | N | N | N |
| Amplifier type | COMPARATOR | COMPARATOR | COMPARATOR |
| Maximum average bias current (IIB) | 0.04 µA | 0.045 µA | 0.045 µA |
| Maximum bias current (IIB) at 25C | 0.025 µA | 0.02 µA | 0.02 µA |
| Maximum input offset voltage | 6500 µV | 3000 µV | 3000 µV |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDIP-T14 |
| JESD-609 code | e0 | e0 | e0 |
| length | 8.56 mm | 8.56 mm | 19.305 mm |
| Negative supply voltage upper limit | -7 V | -7 V | -7 V |
| Nominal Negative Supply Voltage (Vsup) | -6 V | -6 V | -6 V |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 70 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -25 °C | -25 °C |
| Output type | TOTEM POLE | TOTEM POLE | TOTEM POLE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | DIP |
| Encapsulate equivalent code | SOP14,.25 | SOP14,.25 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 12,-6 V | 12,-6 V | 12,-6 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Nominal response time | 40 ns | 40 ns | 40 ns |
| Maximum seat height | 1.8 mm | 1.8 mm | 5.33 mm |
| Supply voltage upper limit | 14 V | 14 V | 14 V |
| Nominal supply voltage (Vsup) | 12 V | 12 V | 12 V |
| surface mount | YES | YES | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | OTHER | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 3.95 mm | 3.95 mm | 7.62 mm |
| Base Number Matches | 1 | 1 | 1 |
