HEC4081BD datasheet, PDF - EEWORLD Datasheet

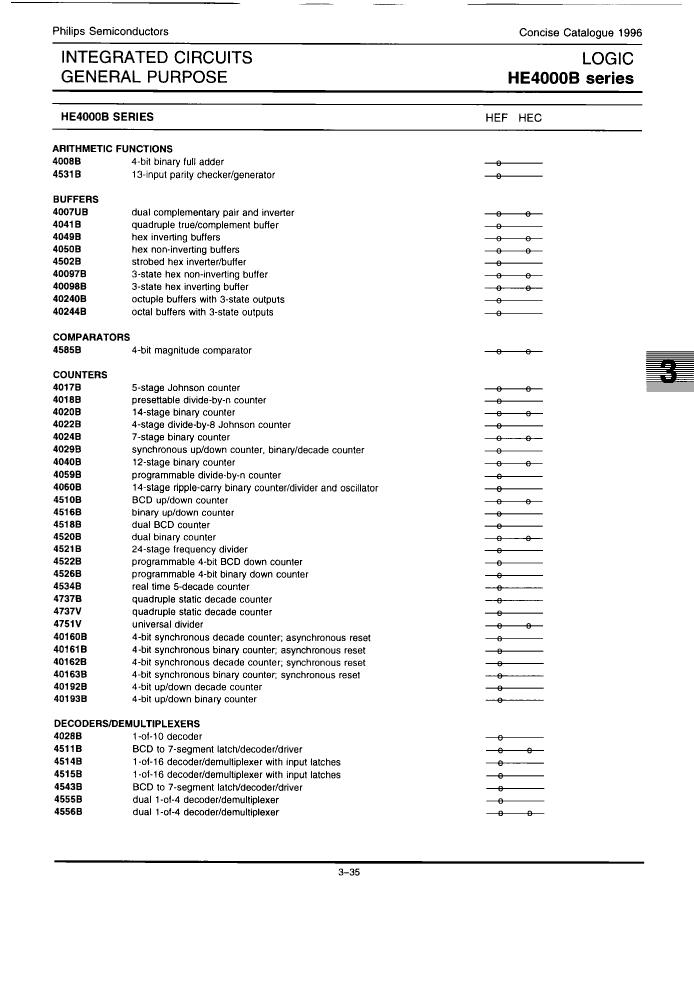

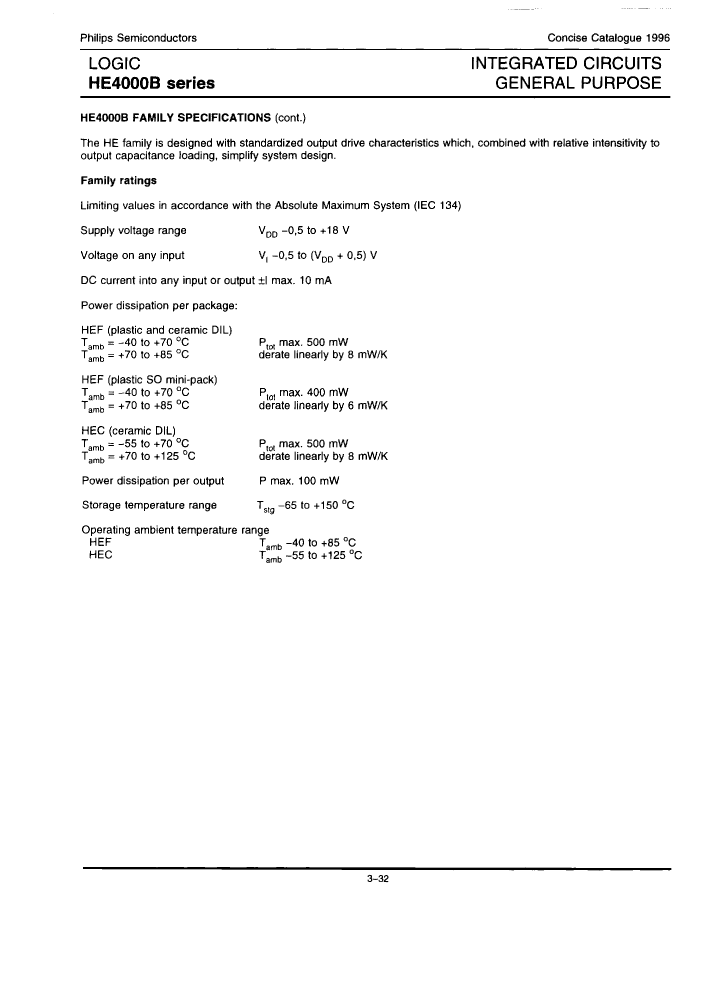

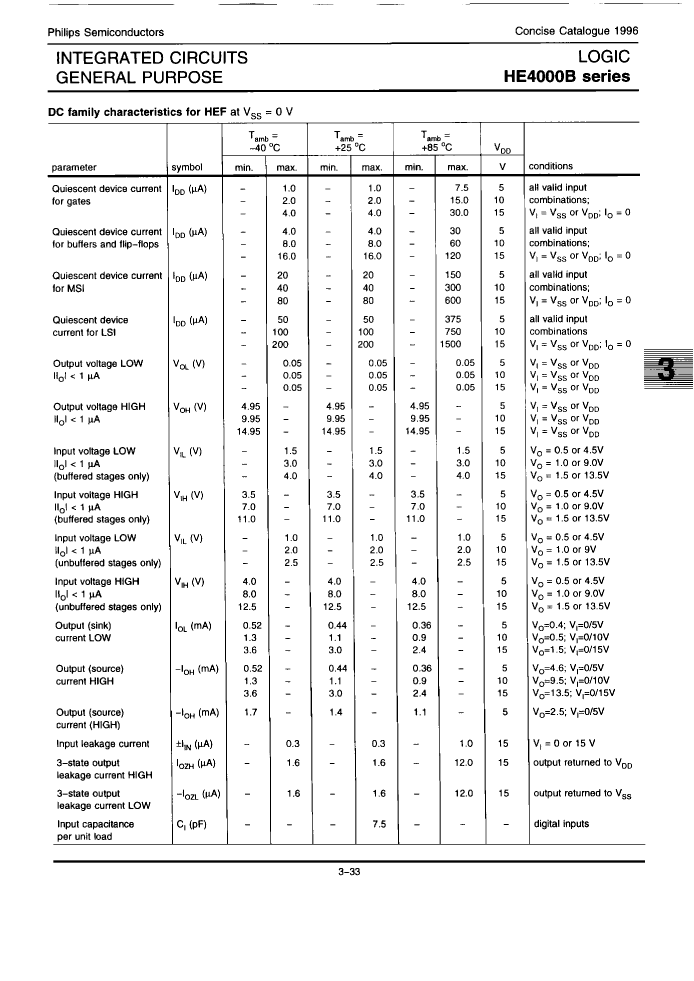

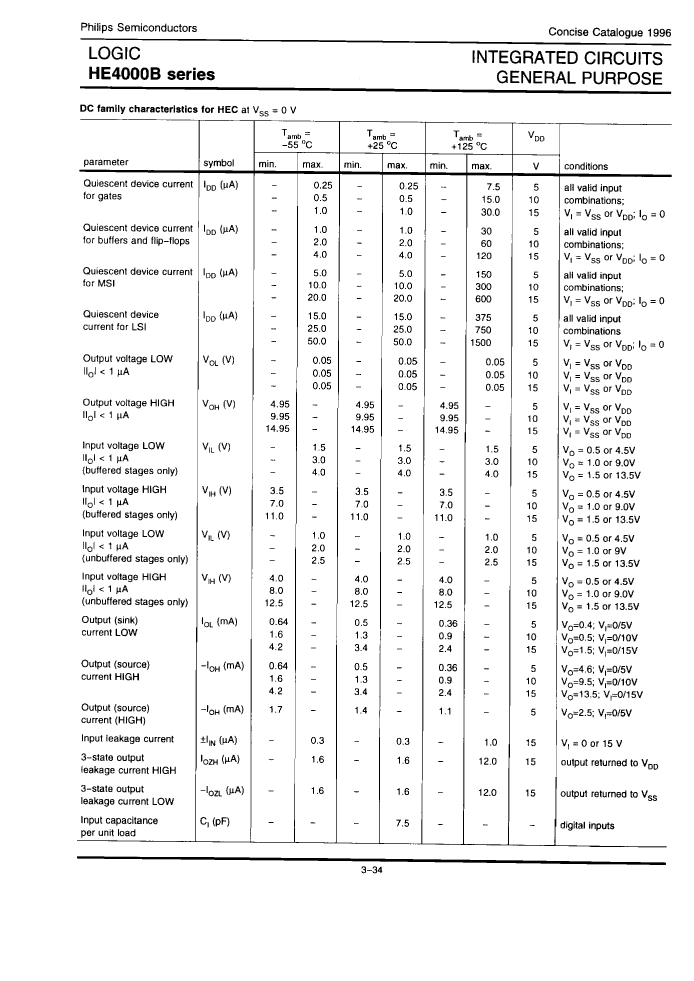

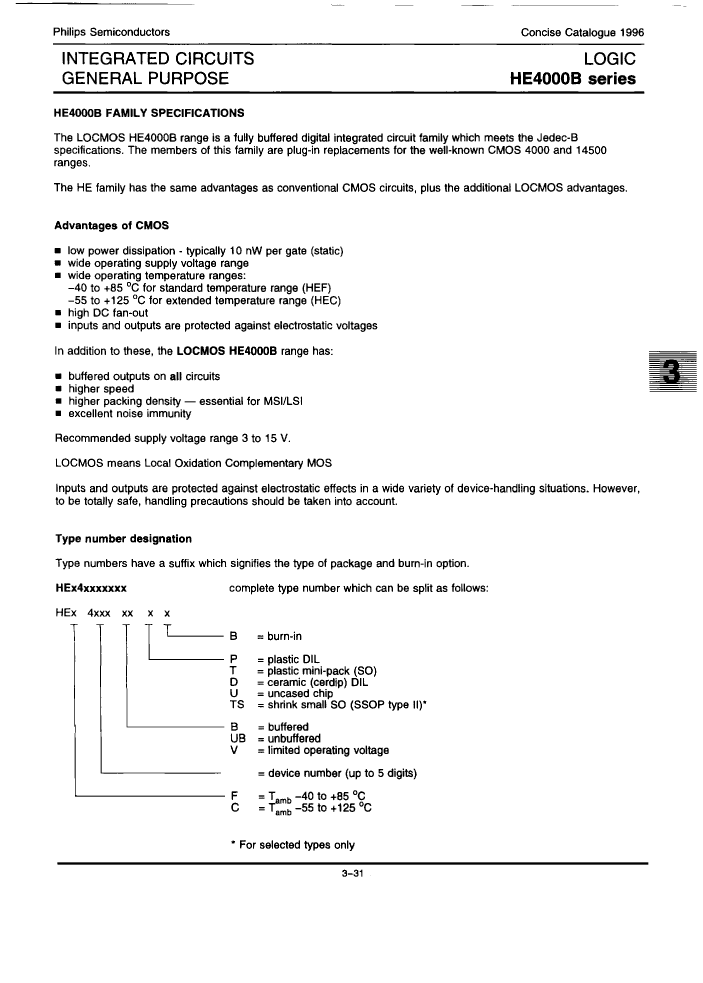

HEC4081BD: DescriptionIC 4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, CDIP14, Gate; Categorylogic; File Size221KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

HEC4081BD Overview

IC 4000/14000/40000 SERIES, QUAD 2-INPUT AND GATE, CDIP14, Gate

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
Is Samacsys	N
series	4000/14000/40000
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	110 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
