MC33880EK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The signal circuit> MC33880EK

MC33880EK: DescriptionBRUSH DC MOTOR CONTROLLER, 2A, PDSO32, 0.65 MM PITCH, LEAD FREE, PLASTIC, SOIC-32; CategoryThe signal circuit; File Size843KB，25 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MC33880EK Overview

BRUSH DC MOTOR CONTROLLER, 2A, PDSO32, 0.65 MM PITCH, LEAD FREE, PLASTIC, SOIC-32

MC33880EK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	SOIC
package instruction	0.65 MM PITCH, LEAD FREE, PLASTIC, SOIC-32
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G32
length	11 mm
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BCDMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Freescale Semiconductor

Advance Information

Document Number: MC33880

Rev. 4.0, 7/2006

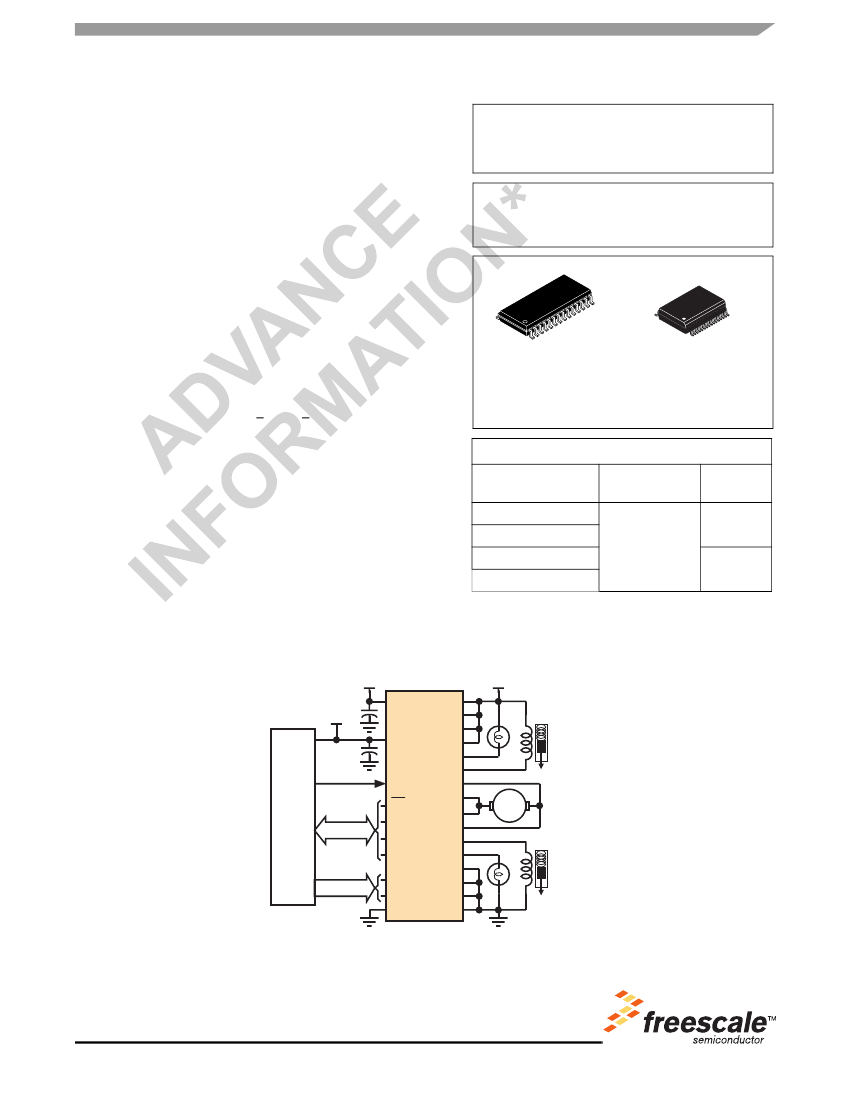

Configurable Octal Serial Switch

with Serial Peripheral Interface

I/O

The 33880 device is an eight-output hardware-configurable high-

side/low-side switch with 8-bit serial input control. Two of the outputs

can be controlled directly via microcontroller for Pulse Width

Modulation (PWM) applications.

The 33880 controls various inductive or incandescent loads by

directly interfacing with a microcontroller.

The circuit's innovative monitoring and protection features include

very low standby currents, “cascadable” fault reporting, internal 40 V

output clamping for low-side configurations, internal -20 V output

clamping for high-side configurations, output-specific diagnostics, and

independent shutdown of outputs.

Features

• Designed to Operate 5.5 V < V

PWR

< 24.5 V

• 8-Bit SPI for Control and Fault Reporting, 3.3 V/ 5.0 V Compatible

• Outputs Are Current Limited (0.8 A to 2.0 A) to Drive

Incandescent Lamps

• Output Voltage Clamp Is +45 V (Typical) (Low-Side Drive) and -

20 V (Typical) (High-Side Drive) During Inductive Switching

• Internal Reverse Battery Protection on V

PWR

• Loss of Ground or Supply Will Not Energize Loads or Damage IC

• Maximum 5.0

µA

PWR

Standby Current at 13 V V

PWR

up to 95°C

• R

DS(ON)

of 0.55

Ω

at 25°C Typical

• Short Circuit Detect and Current Limit with Automatic Retry

• Independent Overtemperature Protection

• 32-Pin SOICW Has Pins 8, 9, 24, and 25 Grounded for Thermal

Performance

• Pb-Free Packaging Designated by Suffix Code EG and EK

V PWR

5.0 V

33880

HIGH/LOW-SIDE SWITCH

DW SUFFIX

EG SUFFIX (PB-FREE)

98ASB42345B

28-PIN SOICW

DWB SUFFIX

EK SUFFIX (PB-FREE)

98ARH99137A

32-PIN SOICW

ORDERING INFORMATION

Device

MC33880DW/R2

MC33880EG/R2

MC33880DWB/R2

MC33880EK/R2

28 SOICW

-40

C to 125

32 SOICW

Temperature

Range (T

)

Package

33880

VPWR

VDD

High-Side

MCU

SPI I/O

SCLK

IN5

IN6

GND

MOT

H-Bridge

PWM

Low-Side

All Output Switches are High- or Low-Side Configurable

Figure 1. 33880 Simplified Application Diagram

* This document contains certain information on a new product.

Specifications and information herein are subject to change without notice.

MC33880EK Related Products

	MC33880EK	MC33880EKR2	MC33880EG	MC33880EGR2
Description	BRUSH DC MOTOR CONTROLLER, 2A, PDSO32, 0.65 MM PITCH, LEAD FREE, PLASTIC, SOIC-32	BRUSH DC MOTOR CONTROLLER, 2 A, PDSO32, 0.65 MM PITCH, LEAD FREE, PLASTIC, SOIC-32	BRUSH DC MOTOR CONTROLLER, 2 A, PDSO28, LEAD FREE, PLASTIC, MS-013AE, SOIC-28	BRUSH DC MOTOR CONTROLLER, 2A, PDSO28, LEAD FREE, PLASTIC, MS-013AE, SOIC-28
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	NXP	NXP	NXP	NXP
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	0.65 MM PITCH, LEAD FREE, PLASTIC, SOIC-32	0.65 MM PITCH, LEAD FREE, PLASTIC, SOIC-32	LEAD FREE, PLASTIC, MS-013AE, SOIC-28	LEAD FREE, PLASTIC, MS-013AE, SOIC-28
Contacts	32	32	28	28
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDSO-G28	R-PDSO-G28
length	11 mm	11 mm	17.925 mm	17.925 mm
Number of functions	1	1	1	1
Number of terminals	32	32	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	BCDMOS	BCDMOS	BCDMOS	BCDMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.5 mm	7.5 mm
