GA40-334K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > inductor> Fixed inductance> GA40-334K

GA40-334K: DescriptionGeneral Purpose Inductor, 3300uH, 10%, 1 Element, Ferrite-Core,; Categoryinductor Fixed inductance; File Size2MB，1 Pages; ManufacturerGowanda Electronics

Download Datasheet Parametric View All

GA40-334K Overview

General Purpose Inductor, 3300uH, 10%, 1 Element, Ferrite-Core,

GA40-334K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Gowanda Electronics
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
structure	Cylindrical
core material	FERRITE
DC Resistance	2.53 Ω
Nominal inductance(L)	3300 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Lead diameter	0.813 mm
Lead length	31.75 mm
Manufacturer's serial number	GA40
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	11.43 mm
Package length	22.86 mm
Package form	Axial
Maximum rated current	0.424 A
series	GA40
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

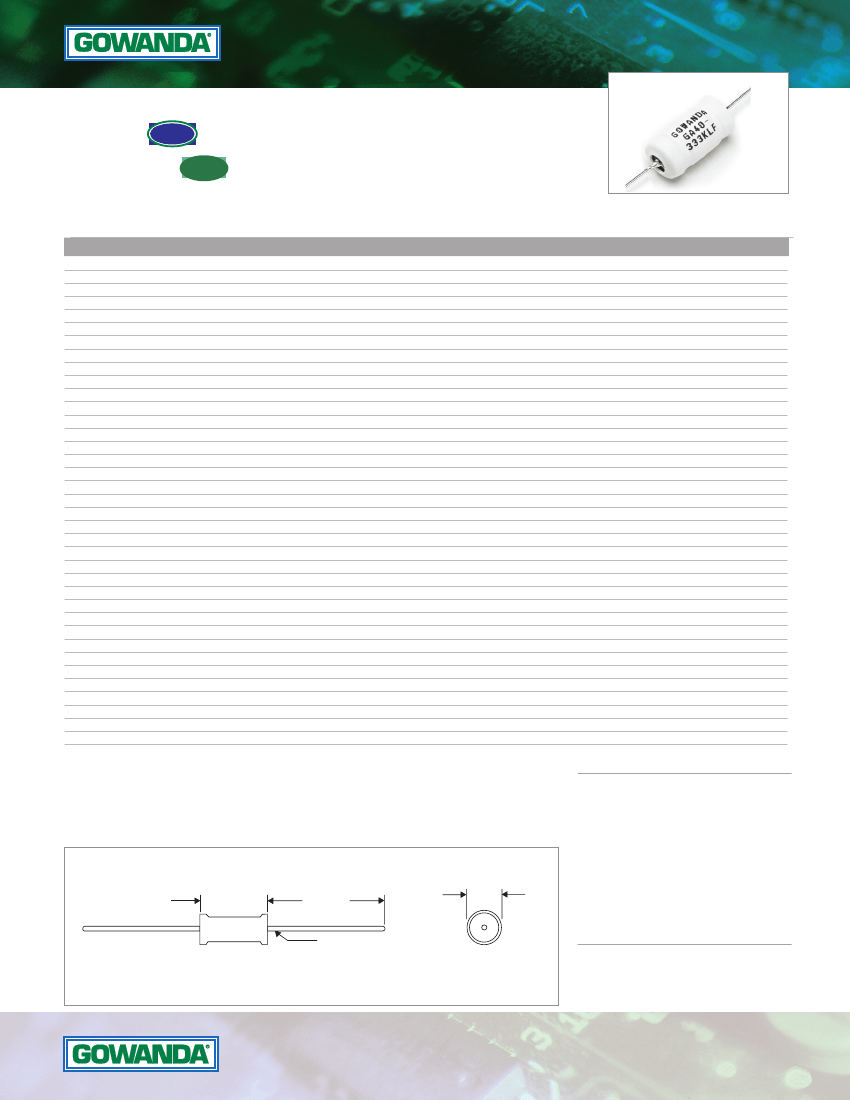

STANDARD POWER INDUCTORS - THRU HOLE

GA40

TRADITIONAL

GA40LF

PART

NUMBER

GA40-102K

GA40-122K

GA40-152K

GA40-182K

GA40-222K

GA40-272K

GA40-332K

GA40-392K

GA40-472K

GA40-562K

GA40-682K

GA40-822K

GA40-103K

GA40-123K

GA40-153K

GA40-183K

GA40-223K

GA40-273K

GA40-333K

GA40-393K

GA40-473K

GA40-563K

GA40-683K

GA40-823K

GA40-104K

GA40-124K

GA40-154K

GA40-184K

GA40-224K

GA40-274K

GA40-334K

GA40-394K

GA40-474K

GA40-564K

GA40-684K

GA40-824K

GA40-105K

COMPLIANT

RoHS

Wirewound, High Current

L µH

@ 1kHz

NOM

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

DCR

OHMS

MAX

FERRITE CORE

0.017

0.019

0.022

0.023

0.026

0.027

0.032

0.033

0.035

0.037

0.047

0.060

0.090

0.113

0.129

0.150

0.162

0.208

0.212

0.281

0.380

0.420

0.548

0.655

0.844

1.04

1.18

1.56

2.00

2.06

2.53

2.75

3.19

3.92

5.69

6.32

7.30

8.70

8.21

7.34

6.64

6.07

5.36

4.82

4.36

3.98

3.66

3.31

3.10

2.79

2.54

2.22

1.98

1.89

1.63

1.51

1.39

1.24

1.17

1.05

0.970

0.870

0.790

0.700

0.640

0.580

0.530

0.470

0.430

0.390

0.395

0.322

0.293

0.266

5.173

4.893

4.547

4.447

4.183

4.105

3.770

3.713

3.606

3.506

2.112

2.573

2.248

2.006

1.878

1.741

1.676

1.419

1.465

1.445

1.094

1.041

0.911

0.833

0.731

0.661

0.621

0.540

0.477

0.470

0.424

0.407

0.378

0.341

0.283

0.268

0.250

SATURATION

CURRENT

A DC

CURRENT

RATING

A DC

Suffix “K” for 10% tolerance

Custom designs are available to meet your specific requirements; please contact factory

*Add “LF” suffix for RoHS requirement. Example: GA40-102KLF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part

number. These LF components meet the ≤ .1% lead requirement and they are compatible

with 260°C soldering processes.

0.450

(11.43)

MAX

0.900

(22.86)

MAX

GOWANDA

GA40-102K

1.250

(31.75)

MIN TYP

#20 AWG

(0.032

0.002)

(0.813

0.051)

NOTES:

• Operating Temperature Range:

-55°C to +125°C

• Current Rating is based on a 35°C temperature

rise at an ambient temperature of 90°C

• Saturation current is the approximate value that

will reduce the initial inductance by 5%

• Parts are printed

• In order to obtain the highest possible saturation

(incremental) current, a low resistivity ferrite core

is used for this series; the core will appear as a

resistor of about 1,000 Ohms in parallel with the

winding and should be taken into consideration in

circuits with a high AC voltage (Ripple)

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Inside tape spacing:

Reel diameter:

Class:

1000

0.600 in.

2.500 in.

12 in.

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

122813
