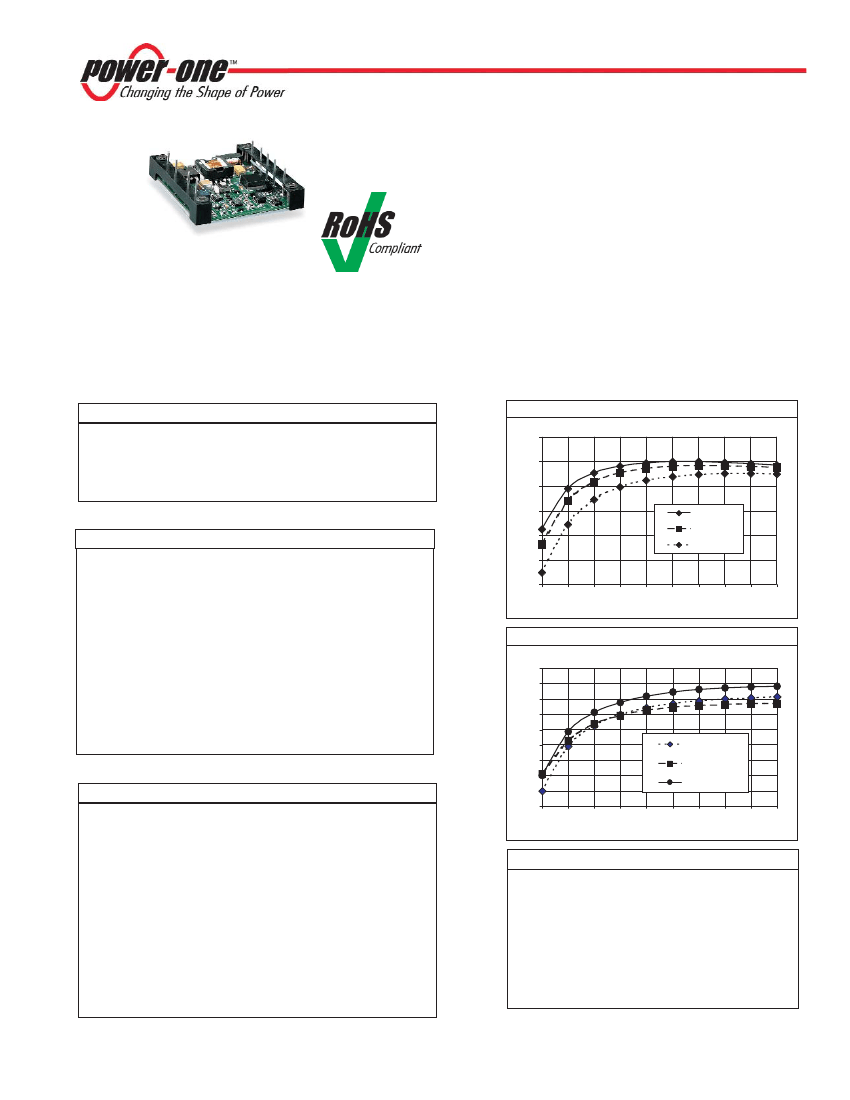

HAS30 DC-DC Series Data Sheet
Features
•
•
•
•
•
•
•
•
•
Description
HAS dc-dc converters provide up to 30 watts of output power in an industry-standard package and footprint. With a
maximum case temperature of 100 °C, the HAS is well suited for the most demanding telecom, networking, and
industrial applications. The HAS features 1500 VDC isolation, short circuit, and overtemperature protection, as well
as six-sided shielding. The HAS series is available with optional enable and voltage trim pins. Please see the HAD
Series for dual-output applications.
Technical Specifications
Input
Voltage Range
24 VDC Nominal
48 VDC Nominal
Transient
Reflected Ripple
90
RoHS lead solder exemption compliant
Industry standard half-brick
Low-cost design
100 °C baseplate operation
Open-frame packaging
24 V and 48 V input versions
Input Pi filter
Optional enable logic
1500 V isolation
Efficiency vs. Load (24V Input)
EFFICIENCY %
18 - 36 VDC
36 - 75 VDC
100V/100ms
50 mA
85
80
HAS030YG-A
EFF. (18v)
EFF. (24v)
EFF. (36v)
75
70
65
60
10
20
30
40
50
60
70
80
90
100
LOAD %
Output
Setpoint Accuracy
Line Regulation Vin Min. - Vin Max., Iout Rated
Load Regulation Iout Min. - Iout Max., Vin Nom.
Remote Sense Headroom
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Current Limit Threshold Range, % of Iout Rated
OVP Trip Range
Remote Shutdown Reference
Shutdown Pin Current, Sourced At Off
±1%
0.2% Vout
0.2% Vout
0.5 VDC
10 %
25% Iout
4% Vout
500 µs
±10%
Hiccup
110 - 140%
115 - 140% Vout Nom.
Vin Negative
10 mA Max.
Efficiency vs. Load (48V Input)
95
90
85
EFFICIENCY %
80
75
70
65
60
HAS030ZH-A
HAS030ZG-A
HAS030ZJ-A
General
Turn-On Time
Remote Shutdown
Switching Frequency
Isolation
Input - Output
Input - Case
Output - Case
Temperature Coefficient
Case Temperature
Operating Range
Storage Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF† (Bellcore TR-NWT-000332)
Safety
Weight (Approx.)
10 ms
Positive/Negative Logic
250 kHz
1500 VDC
1050 VDC
500 VDC
0.03%/°C
-40 To +100 °C
-40 To +125 °C
95%
5 g, 10 - 55 Hz
2.5 X 106 hrs
UL, cUL, TUV
1.4 oz
55
50
10
20
30
40
50
60
70
80
90
100
LOAD %
Notes
†
MTBF predictions may vary slightly from model to model.
Specifications typically at 25 °C, normal line, and full load, unless
otherwise stated.
Soldering Conditions: I/O pins, 260 °C, ten seconds; fully compatible
with commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please
consult factory for specific model information.
Units are water-washable and fully compatible with commercial spray
or immersion post wave-solder washing equipment.
REV. FEB 01, 2006
Page 1 of 3
www.power-one.com
HAS30 DC-DC Series Data Sheet
Model Selection
MODEL
INPUT VOLTAGE
(VOLTS)
INPUT VOLTAGE
RANGE (VOLTS)
MAXIMUM INPUT
CURRENT (AMPS)*
OUTPUT
VOLTAGE (VOLTS)
RATED OUTPUT
CURRENT (AMPS)
RIPPLE & NOISE
pk-pk (mV)
TYPICAL
EFFICIENCY**
HAS030YG-A
HAS030YH-A
HAS030YJ-A
HAS030ZE-AT
HAS030ZG-A
HAS030ZH-A
HAS030ZJ-A
NOTES:
24
24
24
48
48
48
48
18-36
18-36
18-36
36-75
36-75
36-75
36-75
2.2
2.2
2.2
1.0
1.3
1.3
1.3
5
12
15
3.3
5
12
15
6.0
2.5
2.0
6.0
6.0
2.5
2.0
100
150
150
100
100
150
150
83%
87%
86%
81%
83%
88%
88%
* Maximum input current at minimum input voltage, maximum rated output power.
** At nominal Vin, rated output.
Model numbers highlighted in yellow or shaded are not recommended for new designs.

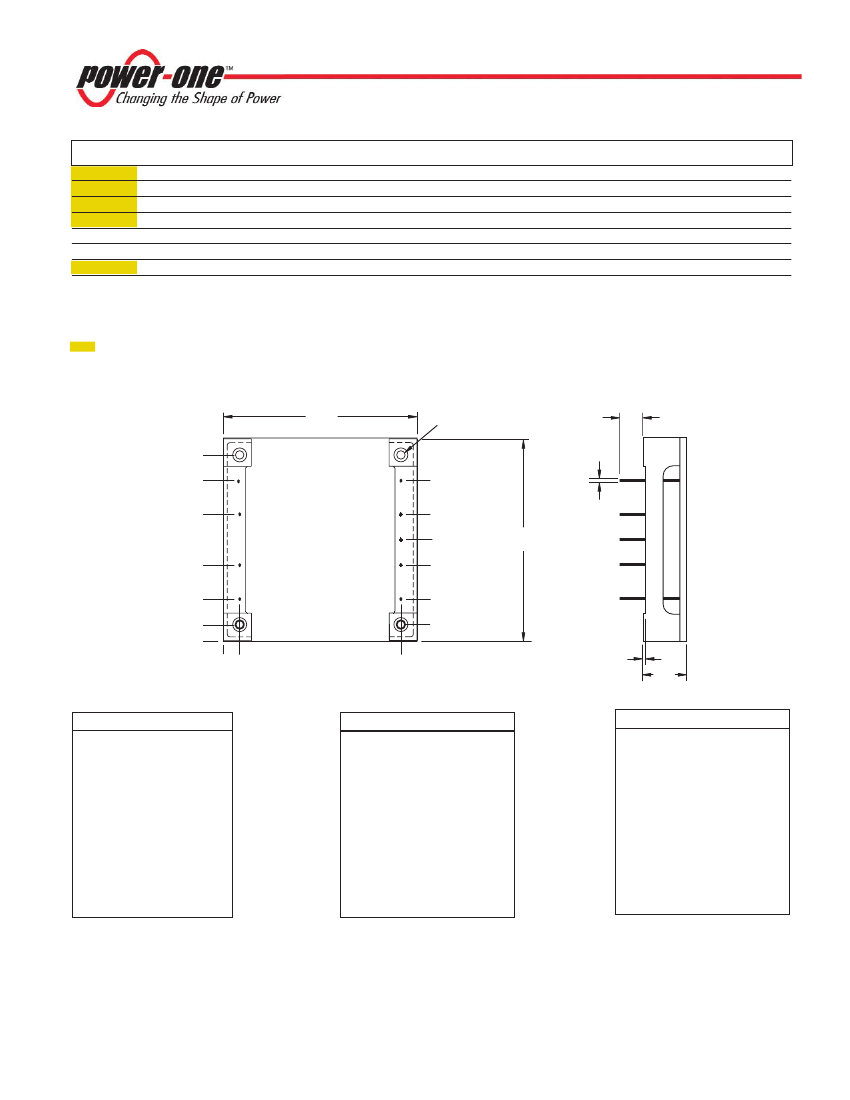

Mechanical Drawing
2.28"
(57.9mm)
MOUNTING INSERTS
M3X.5 THROUGH 4PL
0.18"
(4.6mm)
1.700"(43.2mm)
1.400"(35.6mm)
1
5
1.400"(35.6mm)
DIA 0.040"
(1.0mm)
2.40"
(61.0mm)
1.000"(25.4mm)
2
6
1.000"(25.4mm)
0.700"(17.8mm)
0.400"(10.2mm)
BOTTOM VIEW
0.400"(10.2mm)
3
7
8
0
-0.300"(-7.6mm)
-0.50"(-12.7mm)
-0.19"
(-4.8mm)
0
4
9
0
-0.300"(-7.6mm)
1.900"
(48.3mm)
0.025" REF.
(0.6mm)
0.50"
(12.7mm)
Thermal Impedance
Natural Convection
100 LFM
200 LFM
300 LFM
400 LFM
7.9 °C/W
6.8 °C/W
4.9 °C/W
3.6 °C/W
3.0 °C/W
Pin
1
2
3
4
5
6
7
8
9
Function
-Vin
Case
On/Off
+Vin
-Vout
-Sense
Trim
+Sense
+Vout
Tolerances
Inches:
.XX ± 0.020
.XXX ± 0.010
Pin:
± 0.002
(Millimeters)
.X ± 0.5
.XX ± 0.25
± 0.05
Note:
Thermal impedance data is
dependent on many environmental
factors. The exact thermal
performance should be validated
for specific application.
(Dimensions as listed unless
otherwise specified.)
NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not designed, intended for use in, or authorized for use as critical components
in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written consent of the respective
divisional president of Power-One, Inc.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
REV. FEB 01, 2006
Page 2 of 3
www.power-one.com
OPTIONS
Ordering Information
Suffix Code Identification:
Series Applicability:
Features & Options
Remote ON/OFF
Trim
Pin Length
HAS, HBD, HBS, HES, QBS, QES, TES, TQD
Descriptions
Positive Logic
Negative Logic
Standard Power-One (Negative)
Industry-standard (Positive)
Suffix Code
None
N
None
T
0.18” (4.6mm), standard model length None
0.145” (3.68mm)
7
0.110” (2.8mm)
8
Customer-specific models
S#
Special Options
NOTE: Contact factory for availability of specific options.
REV. FEB 01, 2006
Page 3 of 3
www.power-one.com
