D38999/23NE8PN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> D38999/23NE8PN

Preview

D38999/23NE8PN: DescriptionMIL Series Connector, 8 Contact(s), Stainless Steel, Male, Solder Terminal; CategoryThe connector; File Size493KB，1 Pages; ManufacturerHCC Industries

Download Datasheet Parametric View All

D38999/23NE8PN Overview

MIL Series Connector, 8 Contact(s), Stainless Steel, Male, Solder Terminal

D38999/23NE8PN Parametric

Parameter Name	Attribute value
Maker	HCC Industries
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARD: MIL-DTL-38999, POLARIZED,EMI/RFI SHIELDED TYPE
Back shell type	SOLID
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	NICKEL
Shell material	STAINLESS STEEL
Housing size	E
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

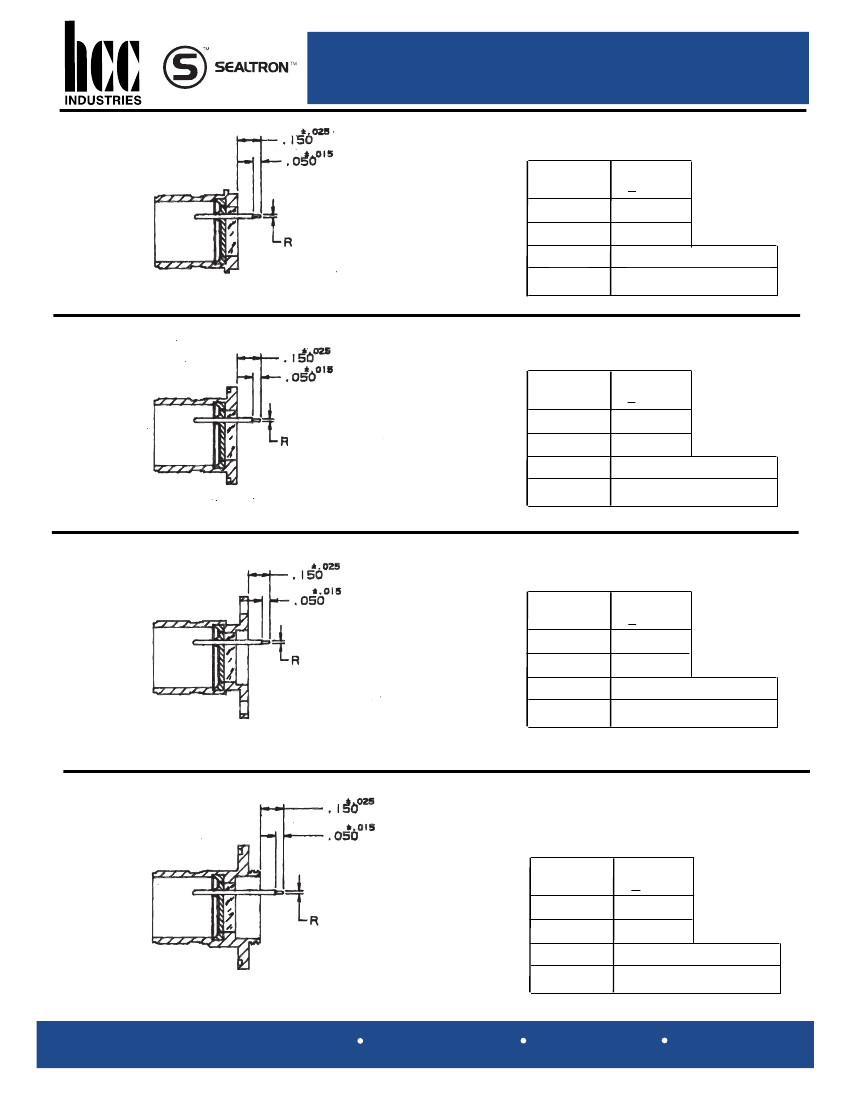

MIL-DTL-38999

SERIES III

D38999/25 Solder Flange

CONTACT

SIZE

#22

#20

#16

#12

R dia.

+.002

.013

.026

.0616/.0635

.093/.095

D38999/27 Weld Flange

CONTACT

SIZE

#22

#20

#16

#12

R dia.

+ .002

.013

.026

.0616/.0635

.093/.095

D38999/21 Square Flange

CONTACT

SIZE

#22

#20

#16

#12

R dia.

+ .002

.013

.026

.0616/.0635

.093/.095

D38999/23 Jam Nut

CONTACT

SIZE

#22

#20

#16

#12

R dia.

+ .002

.013

.026

.0616/.0635

.093/.095

9705 Reading Rd. Cincinnati, Ohio 45215

Phone(513) 733-8400

Fax(513)733-0131 www.sealtron.com
