MM1077XF

Description
Compander, 1 Func, BIPolar, PDSO24, SSOP-24
CategoryThe signal circuit
File Size205KB,7 Pages
ManufacturerMitsumi Electric Co., Ltd.
Download Datasheet Parametric View All

MM1077XF Overview

Compander, 1 Func, BIPolar, PDSO24, SSOP-24

MM1077XF Parametric

Parameter NameAttribute value
MakerMitsumi Electric Co., Ltd.
Parts packaging codeSSOP
package instructionSSOP, SSOP24,.3
Contacts24
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Analog Integrated Circuits - Other TypesCOMPANDER
JESD-30 codeR-PDSO-G24
length10.2 mm
Number of functions1
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSSOP
Encapsulate equivalent codeSSOP24,.3
Package shapeRECTANGULAR
Package formSMALL OUTLINE, SHRINK PITCH
power supply3 V
Certification statusNot Qualified
Maximum seat height2 mm
Maximum supply current (Isup)6 mA
Nominal supply voltage (Vsup)3 V
surface mountYES
technologyBIPOLAR
Temperature levelCOMMERCIAL
Terminal formGULL WING
Terminal pitch0.8 mm
Terminal locationDUAL
width5.4 mm
Base Number Matches1
MITSUMI
Compander IC MM1077
Compander IC
Monolithic IC MM1077

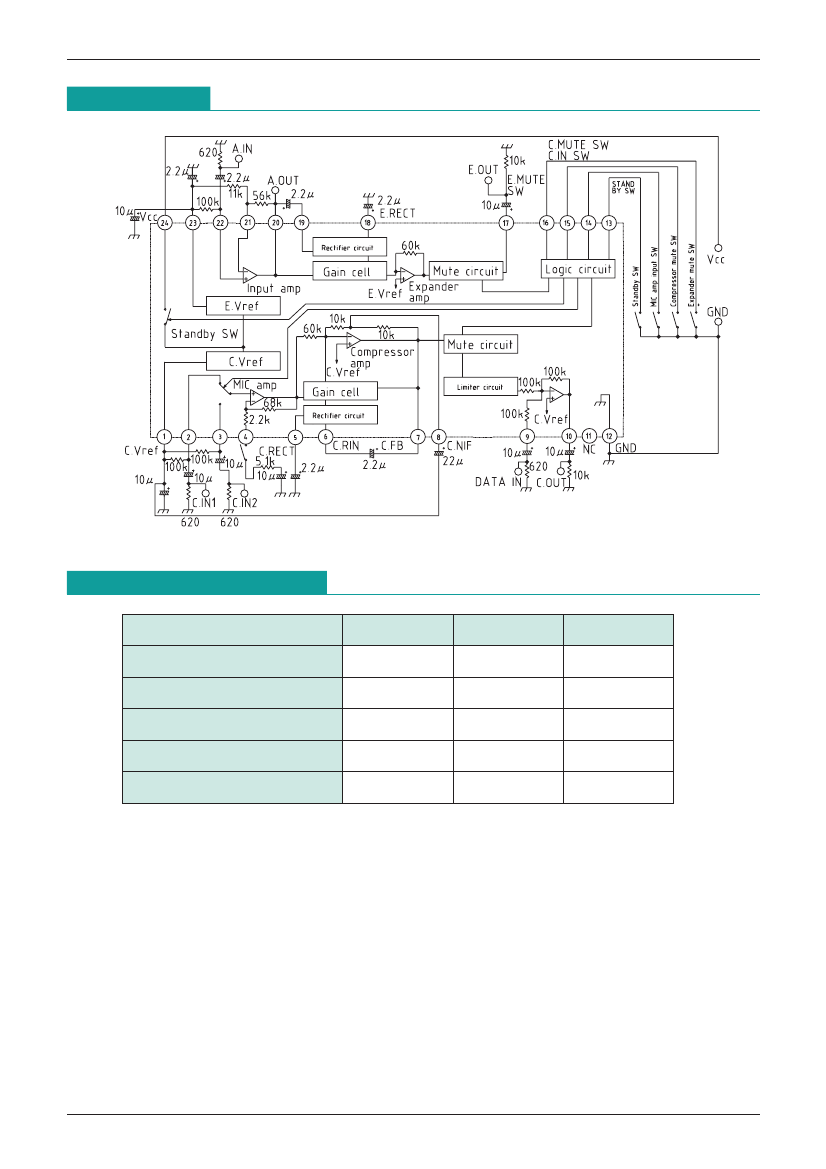

Outline
This IC was developed for use in cordless telephone equipment. It is a compander IC incorporating
compressor/expander circuits for a significant noise reduction effect without complicated external circuitry.
On the transmission side, the dynamic range of audio signals is compressed by the compressor circuit; on the
receiving side, the expander expands the signals. As a result the dynamic range over the transmission
channel is reduced logarithmically by one-half.
Features
1. Can be driven at low voltages (down to 2.0V)
2. Internal mute function
3. Internal limiter (IDC) function
4. Compressor input can be switched between MIC and LINE
5. Internal standby function
6. Data input, output pins
7. Independent mute circuit
Package
SSOP-24A (MM1077XF)
Applications
1. Cordless telephones
2. Various mobile communication devices

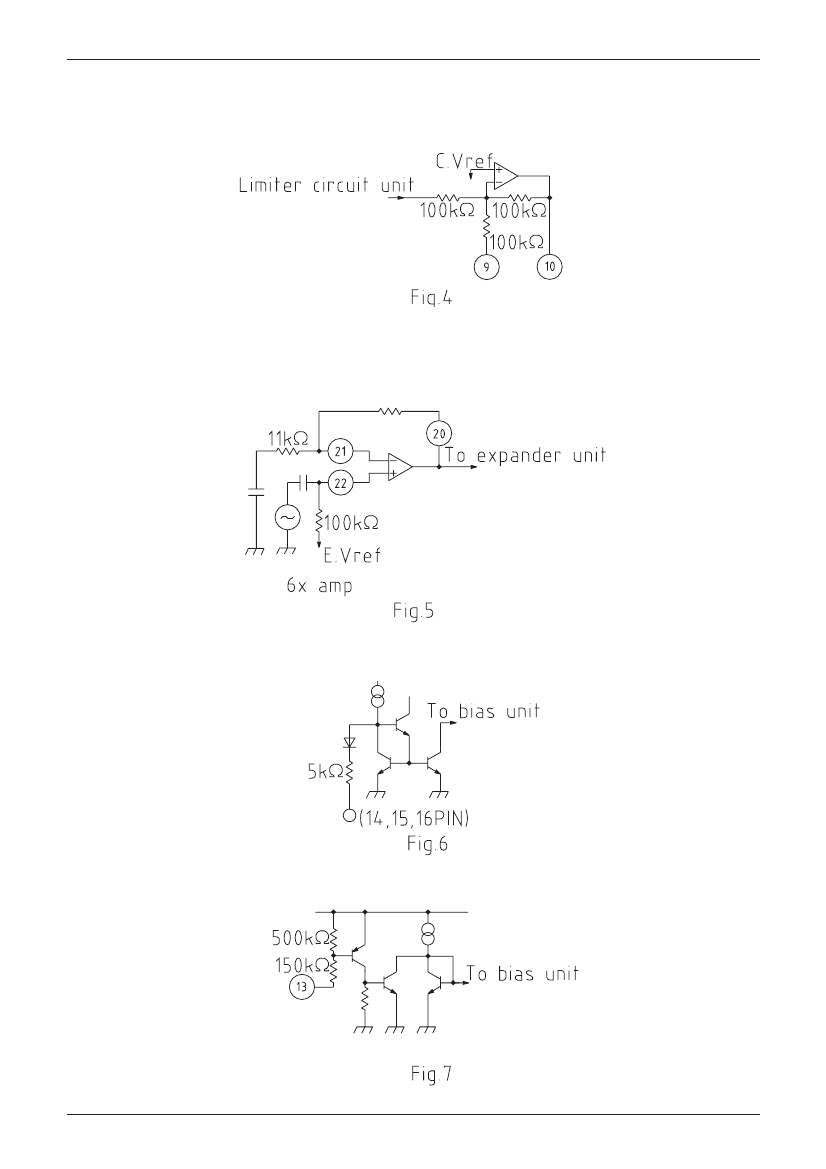

Pin Assignment
24 23 22 21 20 19 18 17 16 15 14 13
1 2 3 4 5 6 7 8 9 10 11 12
SSOP-24A
1
2
3
4
5
6
7
8
C.Vref
C.IN1
C.IN2
C.IN-
C.RECT
C.RIN
C.FB
C.NF
9
10
11
12
13
14
15
16
DATA. IN
C.CONT
N.C
GND
STANDBY SW
C.IN SW
C.MUTE SW
E.MUTE SW
17
18
19
20
21
22
23
24
E.RECT
E.OUT
E.RIN
A.OUT
A.IN-
A.IN+
E.Vref
Vcc
