Discontinued as of August 31, 2012

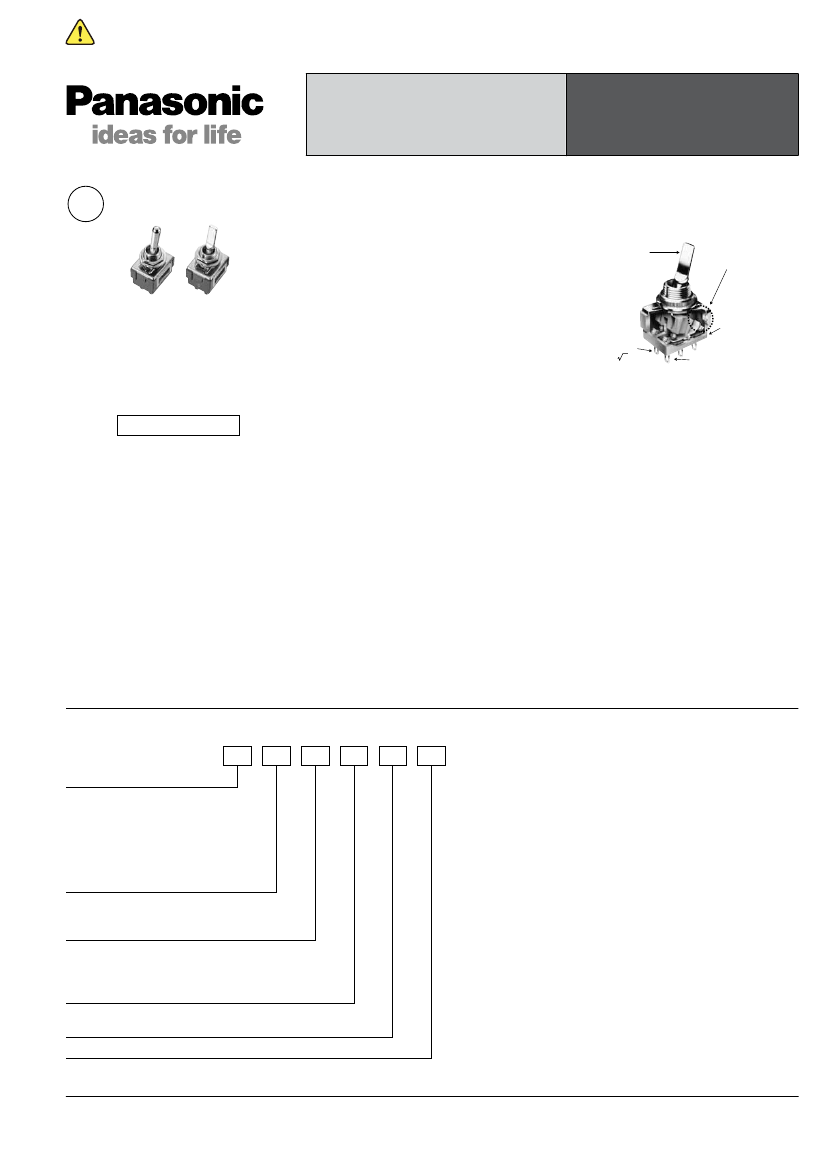

AJ4

TOGGLE SWITCHES WITH

HIGH INRUSH RESISTANCE

AJ4 (J4) TOGGLE

SWITCHES

CONSTRUCTION

• Wedge mechanism

Handle

with nice feel

Oxide Ag alloy contact

Superior anti-corrosiveness

Superior anti-weld

12 dia.

RoHS compliant

FEATURES

1. Excellent anti-inrush properties

allow it to handle large inrush

currents.

With a wedge mechanism that increases

contact efﬁciency by

M2

times and

through use of an oxide Ag alloy for

superior anti-weld properties, this

compact switch is capable of high-

capacity switching.

This makes it ideal for circuits with high

inrush currents such as those in motor

load and lamp load.

2. High level of safety with at least 3

mm between contacts.

Compliant with overseas safety

standards.

(ON-OFF and ON-ON type)

Insulation distance between recharge

part and ground is at least 6 mm and

between poles it is at least 3 mm.

Compliant with the Electrical Appliance

and Material Control Law and EN (Class

1) standard.

3. Structure prevents ﬂux from ﬂowing

in.

A sealant used around the terminals

completely prevents ﬂux from ﬂowing in.

4. Fire retardant molding material

used in body.

Excels in anti-arcing (180 s) and anti-

tracking (600 V) through use of UL94V-0

ﬁre retardant electric-use molding

material.

Wedge mechanism

increases contact

efficiency by 2 times

so temperature rises are

controlled and high capacity

switching is made possible.

UL94V-0 molded

body material

Superior anti-

arcing and fire

retardant properties

Sealant completely

prevents flux from flowing in

from around the terminals.

PRECAUTIONS WHEN

USING CADMIUM-FREE

CONTACT TYPE

Models with cadmium-free contacts have

been introduced in order to reduce

environmentally harmful substances.

(“F” is afﬁxed to the end of the part

number.)

We ask customers who are currently

using products with cadmium-containing

contacts (no “F” at the end of the part

number) to please make the switch to

models with cadmium-free contacts.

When switching, operating life may differ

depending on the load. Please be sure to

verify this by conducting an evaluation

using actual equipment.

ORDERING INFORMATION

AJ 4

4: AJ4 type toggle switch

Number of poles and shape of terminal:

1: 1-pole, Solder terminal

2: 2-pole, Solder terminal

4: 4-pole, Solder terminal

5: 1-pole, .110 Quick-connect terminal

6: 2-pole, .110 Quick-connect terminal

8: 4-pole, .110 Quick-connect terminal

Shape of handle:

1: Standard toggle

3: Flat lever

Kind of operation:

0: ON–OFF

1: ON–ON

2: ON–OFF–ON

Shape of nut:

0: Hexagonal nut

F: Cadmium-free product

3: ON–OFF–<ON>

4: <ON>–OFF–<ON>

5: ON–OFF–<ON>

F

AECTB23E 201201-T

Panasonic Corporation

Automation Controls Business Unit

industrial.panasonic.com/ac/e

AJ4

PRODUCT TYPES

1. Standard toggle

Discontinued as of August 31, 2012

Number of poles

Kind of operation

< >: Momentary position

ON-OFF

ON-ON

ON-OFF-ON

ON-<ON>

ON-OFF-<ON>

ON-OFF

ON-ON

ON-OFF-ON

ON-<ON>

ON-OFF-<ON>

ON-OFF

ON-ON

ON-OFF-ON

ON-<ON>

ON-OFF-<ON>

Solder terminal

Part No.

AJ41100F

AJ41110F

AJ41120F

AJ41130F

AJ41140F

AJ41150F

AJ42100F

AJ42110F

AJ42120F

AJ42130F

AJ42140F

AJ42150F

AJ44100F

AJ44110F

AJ44120F

AJ44130F

AJ44140F

AJ44150F

.110 Quick-connect terminal

Part No.

AJ45100F

AJ45110F

AJ45120F

AJ45130F

AJ45140F

AJ45150F

AJ46100F

AJ46110F

AJ46120F

AJ46130F

AJ46140F

AJ46150F

AJ48100F

AJ48110F

AJ48120F

AJ48130F

AJ48140F

AJ48150F

1-pole

2-pole

4-pole

Remark: Standard installation accessories are included with the product.

2. Flat lever

Number of poles

Kind of operation

< >: Momentary position

ON-OFF

ON-ON

Solder terminal

Part No.

AJ41300F

AJ41310F

AJ41320F

AJ41330F

AJ41340F

AJ41350F

AJ42300F

AJ42310F

AJ42320F

AJ42330F

AJ42340F

AJ42350F

AJ44300F

AJ44310F

AJ44320F

AJ44330F

AJ44340F

AJ44350F

.110 Quick-connect terminal

Part No.

AJ45300F

AJ45310F

AJ45320F

AJ45330F

AJ45340F

AJ45350F

AJ46300F

AJ46310F

AJ46320F

AJ46330F

AJ46340F

AJ46350F

AJ48300F

AJ48310F

AJ48320F

AJ48330F

AJ48340F

AJ48350F

1-pole

ON-OFF-ON

ON-<ON>

ON-OFF-<ON>

ON-OFF

ON-ON

2-pole

ON-OFF-ON

ON-<ON>

ON-OFF-<ON>

ON-OFF

ON-ON

4-pole

ON-OFF-ON

ON-<ON>

ON-OFF-<ON>

Remark: Standard installation accessories are included with the product.

Panasonic Corporation

Automation Controls Business Unit

industrial.panasonic.com/ac/e

AECTB23E 201201-T

Discontinued as of August 31, 2012

AJ4

Standard installation accessories

Optional installation

accessories

Front Knurl nut

(Nickel plated)

M12 x 1

3. Accessories

1) Installation accessories (Repair parts)

Product name

Front hex nut

(Nickel plated)

M12 x 1

Back hex nut

(Uni-chrome plated)

M12 x 1

Keying washer

18.2 dia.

12.3 dia.

1

Lock washer

Dimensions

(mm)

(16.17)

9.7

14

2.3

14

2.3

2.8

2.4

12.3 dia.

15.6 dia.

0.5

1

15 dia.

2.4

Part No.

AJ3081

AJ3082

AJ3083

AJ3084

AJ3080

Remark: A selling unit of each accessory is 10 pieces.

2) Accessories (Option)

Product name

Indication plate (aluminum)*

3

ON-OFF

ON-ON

12.3 dia.

10 dia.

Rubber cap*

1, 2, 4

EP rubber type

Silicone rubber type

8 dia.

Dimensions

(mm)

30

0.8

1.3

1.5

30

0.8

1.3

1.5

16

17

M12

21 dia.

24.5

7

18 dia.

24.5

8.6

M12

0.8

16

17

0.8

Part No.

WD1901

WD1902

WD1911

WD1811*

Remarks: 1. The asterisk in the part number WD1811* for the silicon rubber type rubber cap is where the letter representing the color should be inserted.

(Standard models: B: black; R: red; Z: grey. Made to order: Y: yellow; G: green.)

2. Rubber and EP rubber caps are only available in black.

3. Letters on the display panel are aluminum colored and the area surrounding the letters is black.

4. Rubber caps are compatible with the J4 switch, T-15 series switch, T-10 series switch, and T-03/T-06 series switches (when plate thickness is 2.7 mm or less).

SPECIFICATIONS

1. Contact rating

AJ4 type

Kind of load

ON-OFF

ON-ON

1-pole and 2-pole

10A 125V AC

10A 250V AC

10A 30V DC

10A 250V AC

300W 100V AC

4-pole

6A 250V AC

6A 30V DC

6A 250V AC

200W 100V AC

Min. 3×10

4

Min. 3×10

4

Min. 3×10

4

ON-OFF-ON

ON-<ON>

ON-OFF-<ON>

1-pole and 2-pole

10A 125V AC

10A 250V AC

10A 30V DC

10A 250V AC

300W 100V AC

200W 100V AC

200W 125V AC

400W 250V AC

100W 125V AC

200W 250V AC

4-pole

6A 250V AC

6A 30V DC

6A 250V AC

200W 100V AC

100W 100V AC

—

50W 125V AC

100W 250V AC

Min. 3×10

4

Min. 3×10

4

Min. 10

4

Min. 3×10

4

Min. 10

4

Min. 3×10

4

Electrical life

Resistive load

Inductive load

(pf = 0.6)

Lamp load

(incandescent)

Motor load

(single phase)

200W 125V AC

400W 250V AC

50W 125V AC

100W 250V AC

Min. 3×10

4

Remark: The rating displayed on the product is 10 A, 250 V AC only.

AECTB23E 201201-T

Panasonic Corporation

Automation Controls Business Unit

industrial.panasonic.com/ac/e

AJ4

2. Characteristics

Mechanical life

Electrical life

Insulation distance

Insulation resistance

Breakdown voltage

Contact resistance

Vibration resistance

Shock resistance

Actuator strength (static load)

Terminal strength (static load)

Ambient temperature

Contact material

Min. 10

5

(20 cpm)

Discontinued as of August 31, 2012

See above. (10 cpm)

Between grounds: Min. 6 mm, Between poles: Min. 3 mm,

Between contacts: Min. 3 mm (ON-OFF and ON-ON type only)

Min. 100 MΩ (at 500 V DC measured by insulation resistive meter)

ON-OFF and ON-ON type: 2000 Vrms, Other types: 1500 Vrms (at detection current: 10mA)

Initial, Max. 10 mΩ (By voltage drop at 1 A, 2 to 4 V DC)

10 to 55 Hz at double amplitude of 1.5 mm (contact opening Max. 10µs)

Min. 490 m/s

2

(contact opening Max. 10µs)

112.7N for 1 min.

24.5N for 1 min.

–25°C to +85°C (Not freezing below 0°C)

AgZnO alloy

CIRCUIT DIAGRAM

1-pole

2-pole

4-pole

Terminal arrangement

(As seen from terminal side)

Keyway

2-3

—

2-3

1-2

2-3

—

1-2

ON-OFF type does not have

a terminal No. 1.

2-3, 5-6

—

2-3, 5-6

1-2, 4-5

2-3, 5-6

—

1-2, 4-5

ON-OFF type does not have

terminal No. 1 and No. 4.

1-3, 4-6, 7-9, 10-12

—

2-3, 5-6, 8-9, 11-12

1-2, 4-5, 7-8, 10-11

2-3, 5-6, 8-9, 11-12

—

1-2, 4-5, 7-8, 10-11

ON-OFF type does not have

terminal No. 2, 5, 8 and 11.

ON-OFF

Keyway

Handle position

and contact

terminal number

ON-ON

ON-<ON>

Keyway

ON-OFF-<ON>

ON-OFF-<ON>

Keyway

Remark

Remark: For ON-<ON>, ON-OFF-<ON> type, the lever springs back (momentary position) when pushed toward the keyway side.

MOUNTING DIMENSIONS

12.5 dia.

12.3 dia.

Front hex nut

11.5

9.2

±0.1

3

+0.2

dia.

0

1.5

Keying washer

Lock washer

Back hex nut

Panel cutout

(mm)

Panel thickness

Max. 3.5 mm

Max. 4.0 mm

(without keying washer) (without keying washer)

Remark: For panel installations, be sure to use the back hex nut.

HANDLE SHAPE

(mm)

Standard toggle

6.1 dia

.

Turn angle:

24°

±4°

Flat lever

2.5 dia

.

Turn angle:

24°

±4°

M12 x 1

17.5

±0.4

Keyway

10.9

±0.4

18

±0.4

M12 x 1

Keyway

10.9

±0.4

Panasonic Corporation

Automation Controls Business Unit

industrial.panasonic.com/ac/e

AECTB23E 201201-T

Discontinued as of August 31, 2012

AJ4

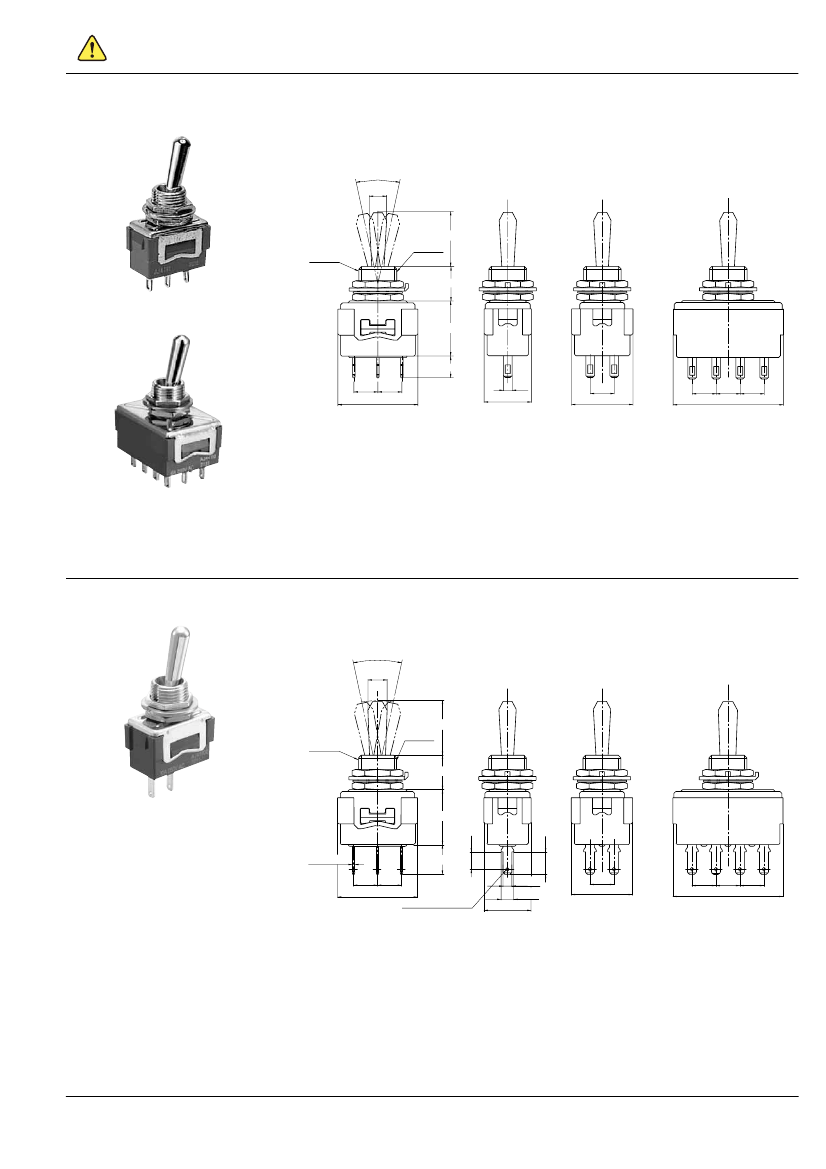

DIMENSIONS

(mm) body and terminal shape (For standard toggle) (General tolerance:

±0.5)

1. Solder terminal

1-pole type

1-pole

Turn angle:

24°

±4°

6.1 dia.

2-pole

4-pole

17.5

±0.4

Keyway

M12 x 1

10.9

±0.4

4-pole type

17.6

6.9

7.62 7.62

25.4

15

2.8

7.62

19.5

7.62 7.62 7.62

35

Remarks: For 1-pole, ON-OFF type does not have a terminal No. 1.

For 2-pole, ON-OFF type does not have terminal No. 1 and No. 4.

For 4-pole, ON-OFF type does not have terminal No. 1, 4, 7 and 10.

2. .110 Quick-connect terminal

1-pole

Turn angle:

24°

±4°

6.1 dia.

2-pole

4-pole

17.5

±0.4

Keyway

M12 x 1

10.9

±0.4

17.6

5.5

±0.1

t = 0.8

±0.025

7.62 7.62

25.4

3-1.2

±0.05

dia. Hole

15

9.4

2.8

±0.1

4

+0

–0.15

7.62

19.5

7.62 7.62 7.62

35

7.1

±0.15

Remarks: For 1-pole, ON-OFF type does not have a terminal No. 1.

For 2-pole, ON-OFF type does not have terminal No. 1 and No. 4.

For 4-pole, ON-OFF type does not have terminal No. 1, 4, 7 and 10.

AECTB23E 201201-T

Panasonic Corporation

Automation Controls Business Unit

industrial.panasonic.com/ac/e

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Actuator type	FLAT LEVER
body width	19.5 mm
body height	17.6 mm
Body length or diameter	25.4 mm
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Electrical life	30000 Cycle(s)
Manufacturer's serial number	AJ4
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	SOLDER
Base Number Matches	1

AJ42340F

AJ42340F Overview

AJ42340F Parametric

Preview

Recommended Resources
