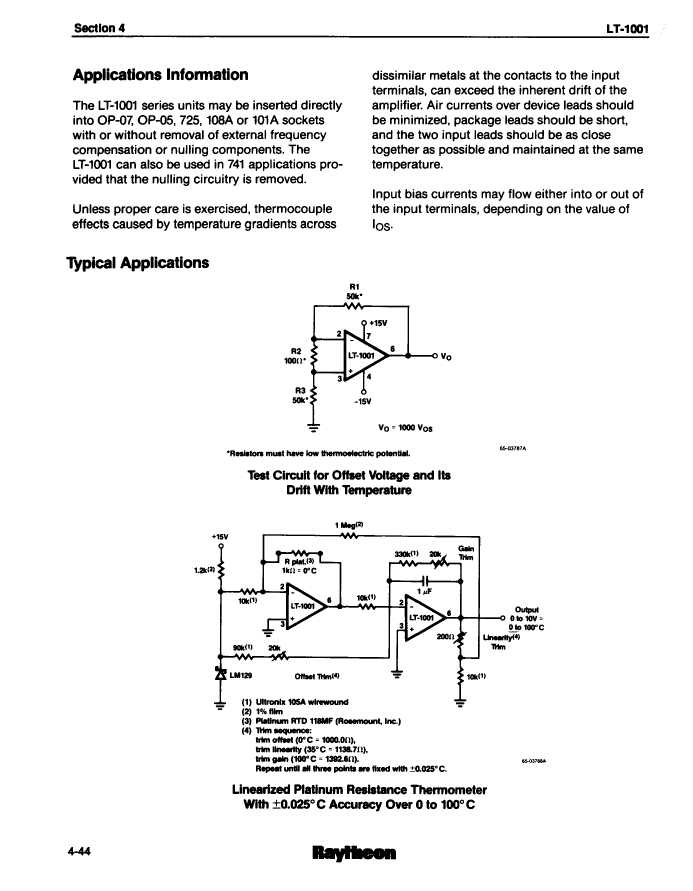

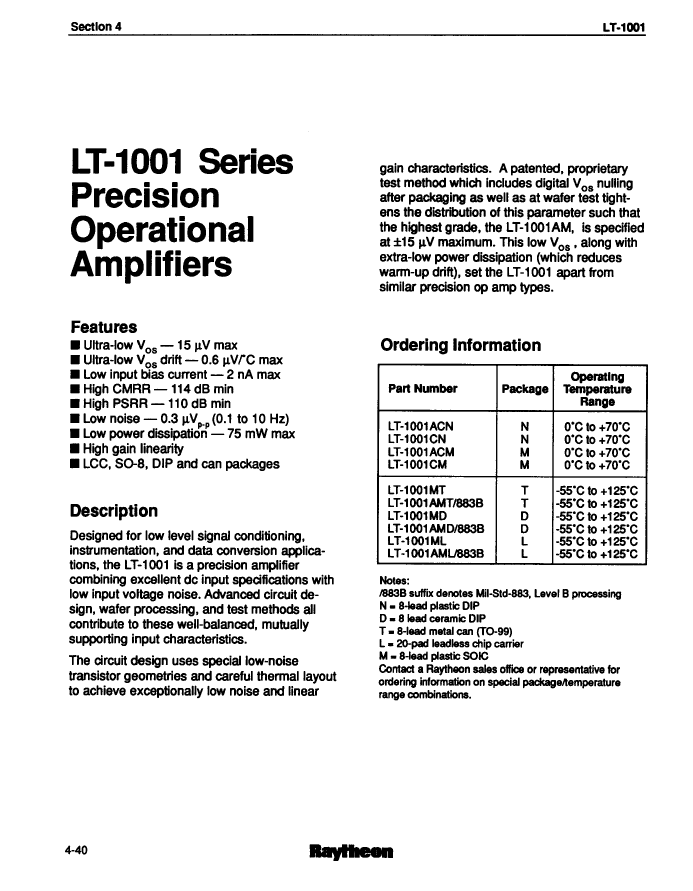

Basic information of LT-1001AMD/883B amplifier:
LT-1001AMD/883B is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are CERAMIC, DIP-8
LT-1001AMD/883B amplifier core information:
The minimum operating temperature of LT-1001AMD/883B is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.002 µA Maximum average bias current is 0.004 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of LT-1001AMD/883B is 0.3 V/us. The manufacturer specifies a maximum slew rate of 6 mA for the LT-1001AMD/883B and a minimum slew rate of 0.1 V/us. Its minimum voltage gain is 300000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LT-1001AMD/883B gain becomes 0.707 times the low-frequency gain is 800 kHz.
The nominal supply voltage of LT-1001AMD/883B is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of LT-1001AMD/883B is 60 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

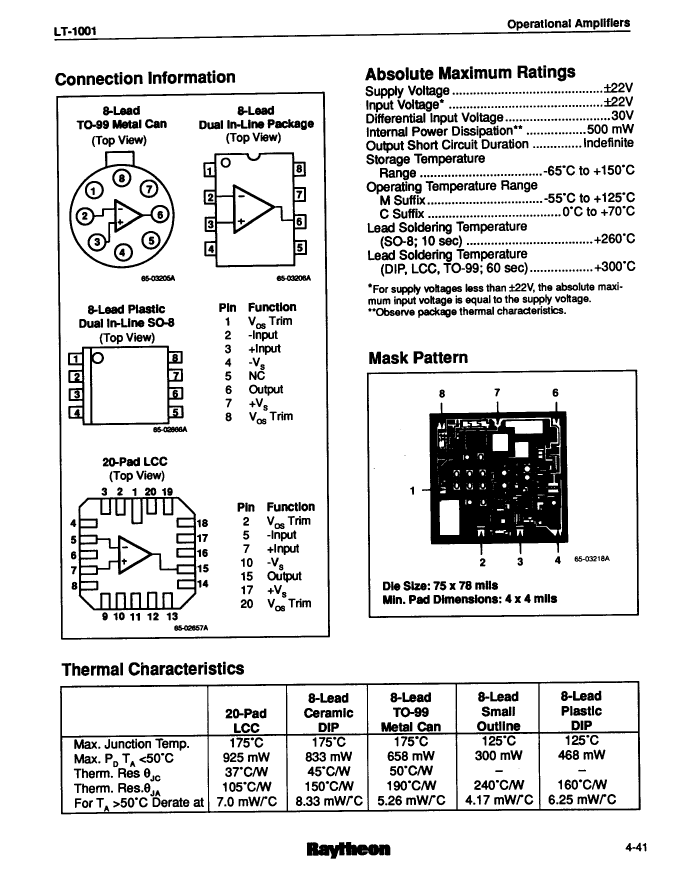

Related dimensions of LT-1001AMD/883B:
LT-1001AMD/883B has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
LT-1001AMD/883B amplifier other information:
LT-1001AMD/883B adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low offset class of amplifiers. The frequency compensation status of LT-1001AMD/883B is: YES. Its temperature grade is: MILITARY. LT-1001AMD/883B does not comply with Rohs certification.
The corresponding JESD-30 code is: R-CDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of LT-1001AMD/883B is: DIP. The materials used in the LT-1001AMD/883B package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR.
The LT-1001AMD/883B package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.
Basic information of LT-1001AMD/883B amplifier:
LT-1001AMD/883B is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are CERAMIC, DIP-8
LT-1001AMD/883B amplifier core information:
The minimum operating temperature of LT-1001AMD/883B is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.002 µA Maximum average bias current is 0.004 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of LT-1001AMD/883B is 0.3 V/us. The manufacturer specifies a maximum slew rate of 6 mA for the LT-1001AMD/883B and a minimum slew rate of 0.1 V/us. Its minimum voltage gain is 300000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LT-1001AMD/883B gain becomes 0.707 times the low-frequency gain is 800 kHz.
The nominal supply voltage of LT-1001AMD/883B is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of LT-1001AMD/883B is 60 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LT-1001AMD/883B:
LT-1001AMD/883B has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
LT-1001AMD/883B amplifier other information:
LT-1001AMD/883B adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low offset class of amplifiers. The frequency compensation status of LT-1001AMD/883B is: YES. Its temperature grade is: MILITARY. LT-1001AMD/883B does not comply with Rohs certification.
The corresponding JESD-30 code is: R-CDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of LT-1001AMD/883B is: DIP. The materials used in the LT-1001AMD/883B package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR.
The LT-1001AMD/883B package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

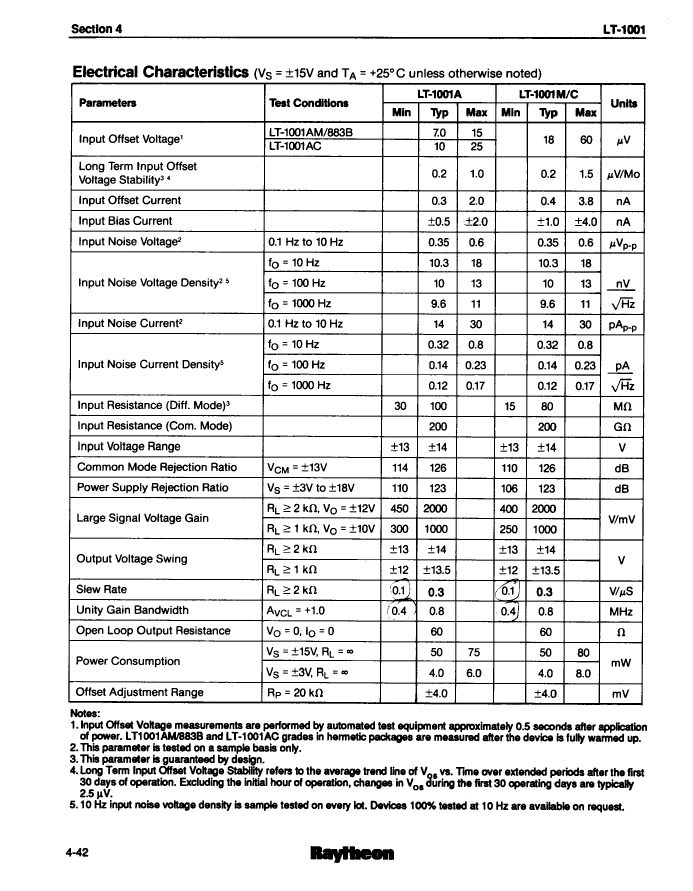

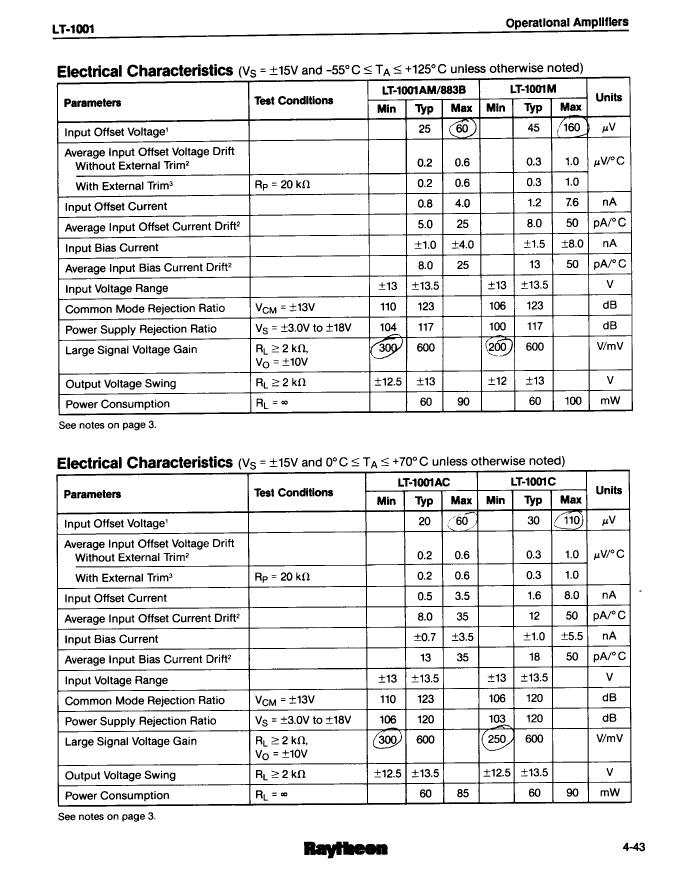

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Raytheon Company |
| package instruction | CERAMIC, DIP-8 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.004 µA |
| Maximum bias current (IIB) at 25C | 0.002 µA |
| Nominal Common Mode Rejection Ratio | 123 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 60 µV |
| JESD-30 code | R-CDIP-T8 |
| JESD-609 code | e0 |
| low-dissonance | YES |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| minimum slew rate | 0.1 V/us |
| Nominal slew rate | 0.3 V/us |
| Maximum slew rate | 6 mA |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 800 kHz |
| Minimum voltage gain | 300000 |
| Base Number Matches | 1 |
