851850

Description
SAW Filter, 1 Function(s), 70MHz,
Categoryfilter
File Size30KB,1 Pages
ManufacturerSawtek Inc.
Download Datasheet Parametric Compare View All

851850 Overview

SAW Filter, 1 Function(s), 70MHz,

851850 Parametric

Parameter NameAttribute value
MakerSawtek Inc.
Reach Compliance Codeunknown
Is SamacsysN
Center frequency or cutoff frequency (fo/fc)70 MHz
filter typeSAW FILTER
high5.33 mm
input resistance50 OHM
Maximum insertion loss24 dB
length22.1 mm
Manufacturer's serial number851850
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Output impedance50 OHM Ω
physical sizeL22.1XB12.65XH5.33 (mm)/L0.87XB0.498XH0.21 (inch)
width12.65 mm
Base Number Matches1

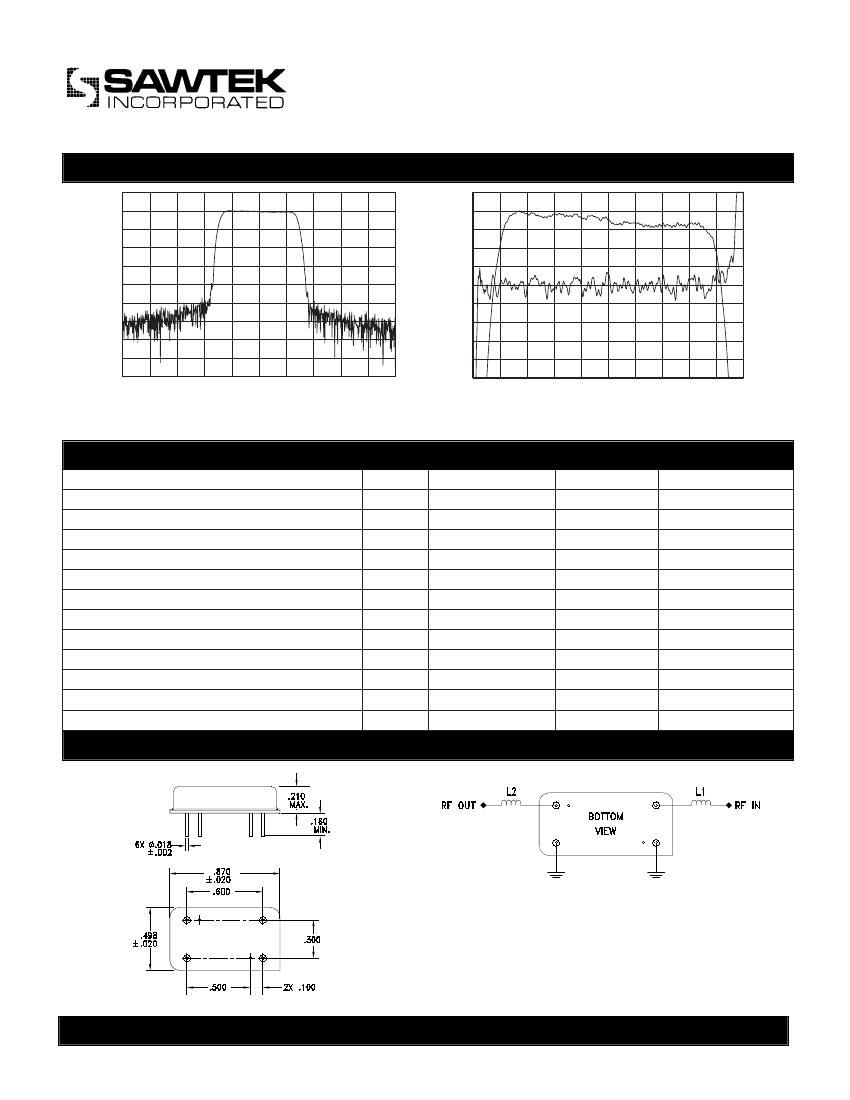

70 MHz Bandpass Filter
Data Sheet
Typical Performance
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
Horizontal:
79 88
25 34 43 52 61 70
9 MHz/Div
97 106 115
Vertical: 10 dB/Div
1
75
0
60
-1
45
-2
30
-3
15
-4
0
-5
-15
-6
-30
-7
-45
-8
-60
-9
-75
55 58 61
Horizontal: 3 MHz/Div
79 82 85
64 67 70 73 76
Vertical: 1 dB/Div
Vertical: 15 nsec/Div
24 MHz Bandwidth
Part Number 851850
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Passband Variation
Phase Linearity
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Specifications
Unit
Minimum
MHz
dB
MHz
MHz
MHz
dB
deg
nsec
µsec
dB
-
°C
69.8
-
22.7
24
-
-
-
-
-
50
-
-
Typical
70
22.8
23.1
24.8
30.8
0.55
4.1
25
1.27
55
128 LiNbO
3
25
Maximum
70.2
24
-
-
31.7
1
6
40
-
-
-
-
Package Outline
Matching Configuration
L1 = 270nH, L2 = 385nH
Nominal Source/Load Impedance = 50Ω
Package Style I
11/17/99
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061

851850 Related Products

851850
Description SAW Filter, 1 Function(s), 70MHz,
Maker Sawtek Inc.
Reach Compliance Code unknown
Is Samacsys N
Center frequency or cutoff frequency (fo/fc) 70 MHz
filter type SAW FILTER
high 5.33 mm
input resistance 50 OHM
Maximum insertion loss 24 dB
length 22.1 mm
Manufacturer's serial number 851850
Installation type THROUGH HOLE MOUNT
Number of functions 1
Output impedance 50 OHM Ω
physical size L22.1XB12.65XH5.33 (mm)/L0.87XB0.498XH0.21 (inch)
width 12.65 mm
Base Number Matches 1
