LM219H: DescriptionBasic information of LM219H amplifier: LM219H is a COMPARATOR. Commonly used packaging methods are METAL CAN, TO-100, 10 PIN LM219H amplifier core information: The minimum operating temperature of the LM219H is -40 °C and the maximum operating temperature is 105 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.5 µA Its maximum average bias current is 1 µA When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM219H takes only 80 ns to respond. The maximum slew rate of the LM219H given by the manufacturer is 11.5 mA. The nominal supply voltage of the LM219H is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of LM219H is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of LM219H: LM219H has 10 terminals. Its terminal position type is: BOTTOM. Total pins: 10 LM219H amplifier additional information: Its temperature grade is: INDUSTRIAL. The LM219H is not Rohs certified. It contains lead. The corresponding JESD-30 code is: O-MBCY-W10. The corresponding JESD-609 code is: e0. The package code of LM219H is: TO-100. The material of LM219H package is mostly METAL. And its package shape is ROUND. The LM219H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.; CategoryAmplifier circuit The comparator; File Size464KB，10 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Alternative parts：LM219H

Download Datasheet Parametric Compare View All

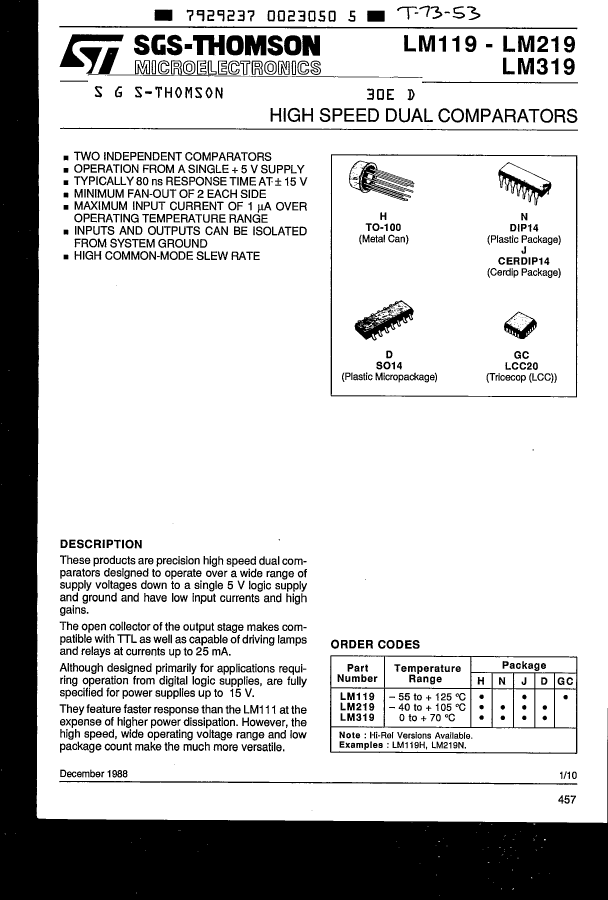

LM219H Overview

Basic information of LM219H amplifier:

LM219H is a COMPARATOR. Commonly used packaging methods are METAL CAN, TO-100, 10 PIN

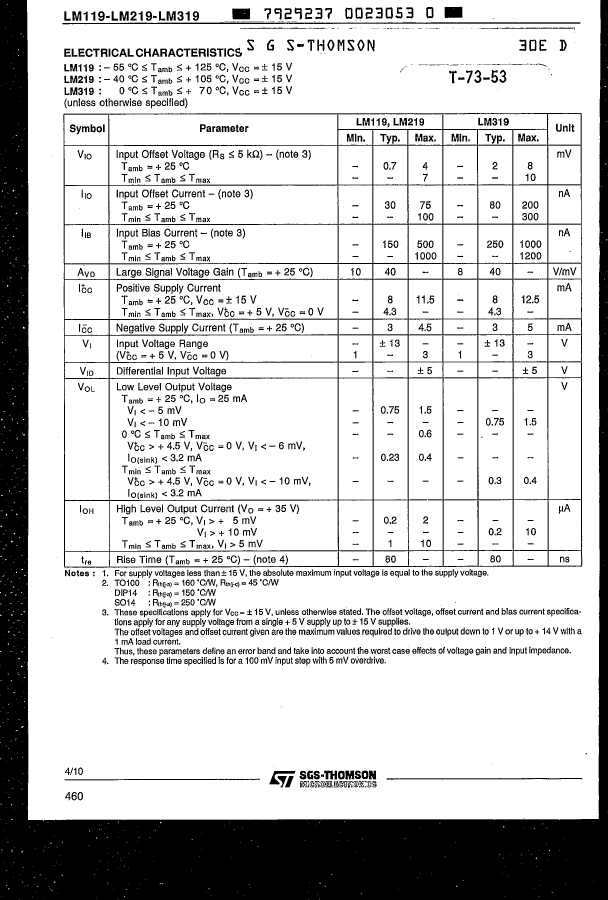

LM219H amplifier core information:

The minimum operating temperature of the LM219H is -40 °C and the maximum operating temperature is 105 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.5 µA Its maximum average bias current is 1 µA

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM219H takes only 80 ns to respond. The maximum slew rate of the LM219H given by the manufacturer is 11.5 mA.

The nominal supply voltage of the LM219H is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of LM219H is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

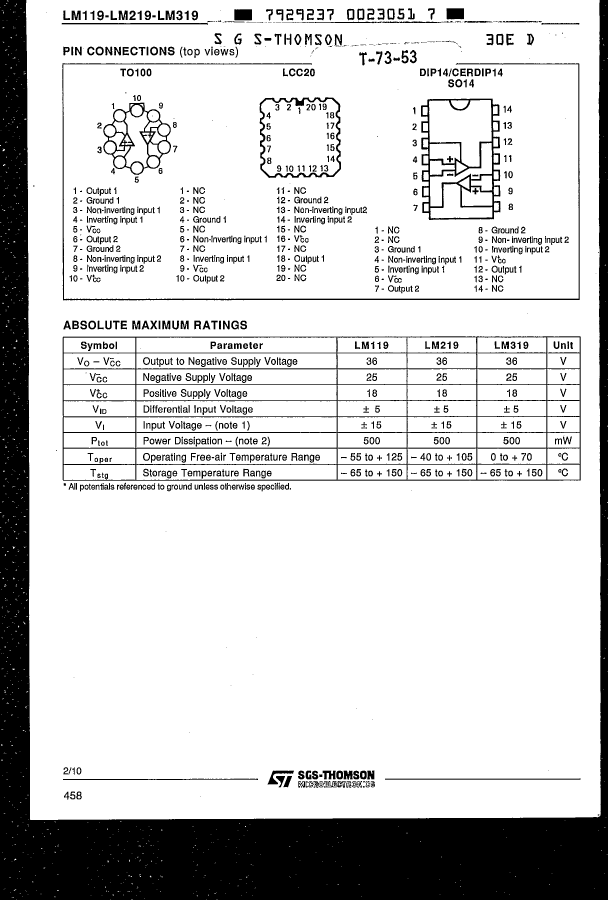

Related dimensions of LM219H:

LM219H has 10 terminals. Its terminal position type is: BOTTOM. Total pins: 10

LM219H amplifier additional information:

Its temperature grade is: INDUSTRIAL. The LM219H is not Rohs certified. It contains lead. The corresponding JESD-30 code is: O-MBCY-W10. The corresponding JESD-609 code is: e0.

The package code of LM219H is: TO-100. The material of LM219H package is mostly METAL. And its package shape is ROUND. The LM219H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

LM219H Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SMT
package instruction	METAL CAN, TO-100, 10 PIN
Contacts	10
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	1 µA
Maximum bias current (IIB) at 25C	0.5 µA
Maximum input offset voltage	7000 µV
JESD-30 code	O-MBCY-W10
JESD-609 code	e0
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	10
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	METAL
encapsulated code	TO-100
Encapsulate equivalent code	CAN10,.23
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Nominal response time	80 ns
Maximum slew rate	11.5 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

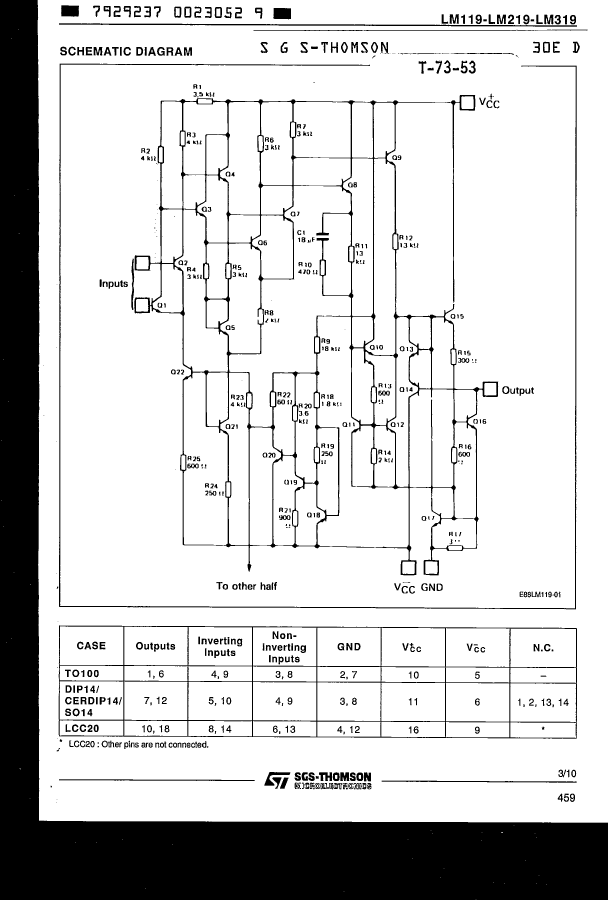

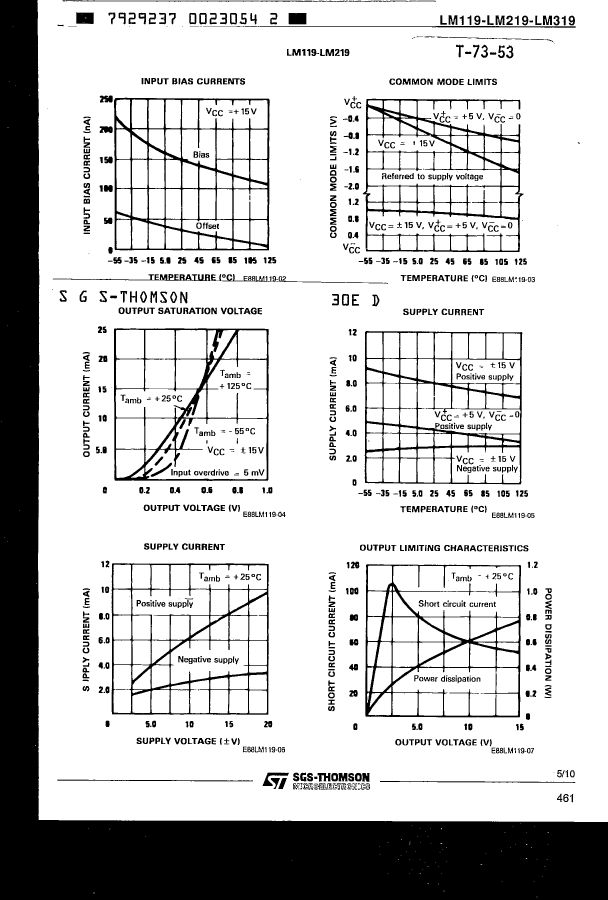

Preview

Download Datasheet

View All

LM219H Related Products

	LM219H	LM319H	LM119H	LM119GC	LM319J	LM119J	LM219J
Description	DUAL COMPARATOR, 7000uV OFFSET-MAX, 80ns RESPONSE TIME, MBCY10, METAL CAN, TO-100, 10 PIN	DUAL COMPARATOR, 10000uV OFFSET-MAX, 80ns RESPONSE TIME, MBCY10, METAL CAN, TO-100, 10 PIN	DUAL COMPARATOR, 7000uV OFFSET-MAX, 80ns RESPONSE TIME, MBCY10, METAL CAN, TO-100, 10 PIN	DUAL COMPARATOR, 7000uV OFFSET-MAX, 80ns RESPONSE TIME, CQCC20, LCC-20	DUAL COMPARATOR, 10000uV OFFSET-MAX, 80ns RESPONSE TIME, CDIP14, CERDIP-14	DUAL COMPARATOR, 7000uV OFFSET-MAX, 80ns RESPONSE TIME, CDIP14, CERDIP-14	DUAL COMPARATOR, 7000uV OFFSET-MAX, 80ns RESPONSE TIME, CDIP14, CERDIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SMT	SMT	SMT	QLCC	DIP	DIP	DIP
package instruction	METAL CAN, TO-100, 10 PIN	METAL CAN, TO-100, 10 PIN	METAL CAN, TO-100, 10 PIN	LCC-20	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	10	10	10	20	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	1 µA	1.2 µA	1 µA	1 µA	1.2 µA	1 µA	1 µA
Maximum bias current (IIB) at 25C	0.5 µA	1 µA	0.5 µA	0.5 µA	1 µA	0.5 µA	0.5 µA
Maximum input offset voltage	7000 µV	10000 µV	7000 µV	7000 µV	10000 µV	7000 µV	7000 µV
JESD-30 code	O-MBCY-W10	O-MBCY-W10	O-MBCY-W10	S-CQCC-N20	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-25 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2	2	2	2
Number of terminals	10	10	10	20	14	14	14
Maximum operating temperature	105 °C	70 °C	125 °C	125 °C	70 °C	125 °C	105 °C
Minimum operating temperature	-40 °C	-	-55 °C	-55 °C	-	-55 °C	-40 °C
Package body material	METAL	METAL	METAL	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	TO-100	TO-100	TO-100	QCCN	DIP	DIP	DIP
Encapsulate equivalent code	CAN10,.23	CAN10,.23	CAN10,.23	LCC20,.35SQ	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	ROUND	ROUND	ROUND	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	80 ns	80 ns	80 ns	80 ns	80 ns	80 ns	80 ns
Maximum slew rate	11.5 mA	12.5 mA	11.5 mA	11.5 mA	12.5 mA	11.5 mA	11.5 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	QUAD	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Is it lead-free?	Contains lead	Contains lead	-	-	-	Contains lead	Contains lead
Maker	STMicroelectronics	-	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
Base Number Matches	1	1	1	1	-	-	-
Maximum seat height	-	-	-	1.86 mm	5.08 mm	5.08 mm	5.08 mm
Terminal pitch	-	-	-	1.27 mm	2.54 mm	2.54 mm	2.54 mm
width	-	-	-	8.89 mm	7.62 mm	7.62 mm	7.62 mm
