834-13-021-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> 834-13-021-10-001000

834-13-021-10-001000: DescriptionBoard Connector, 21 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector; File Size167KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

834-13-021-10-001000 Overview

Board Connector, 21 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

834-13-021-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	834
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

® Pass Thru Sockets for Ø 0,76 &



0,64 pins

OFP

Single and Double Row

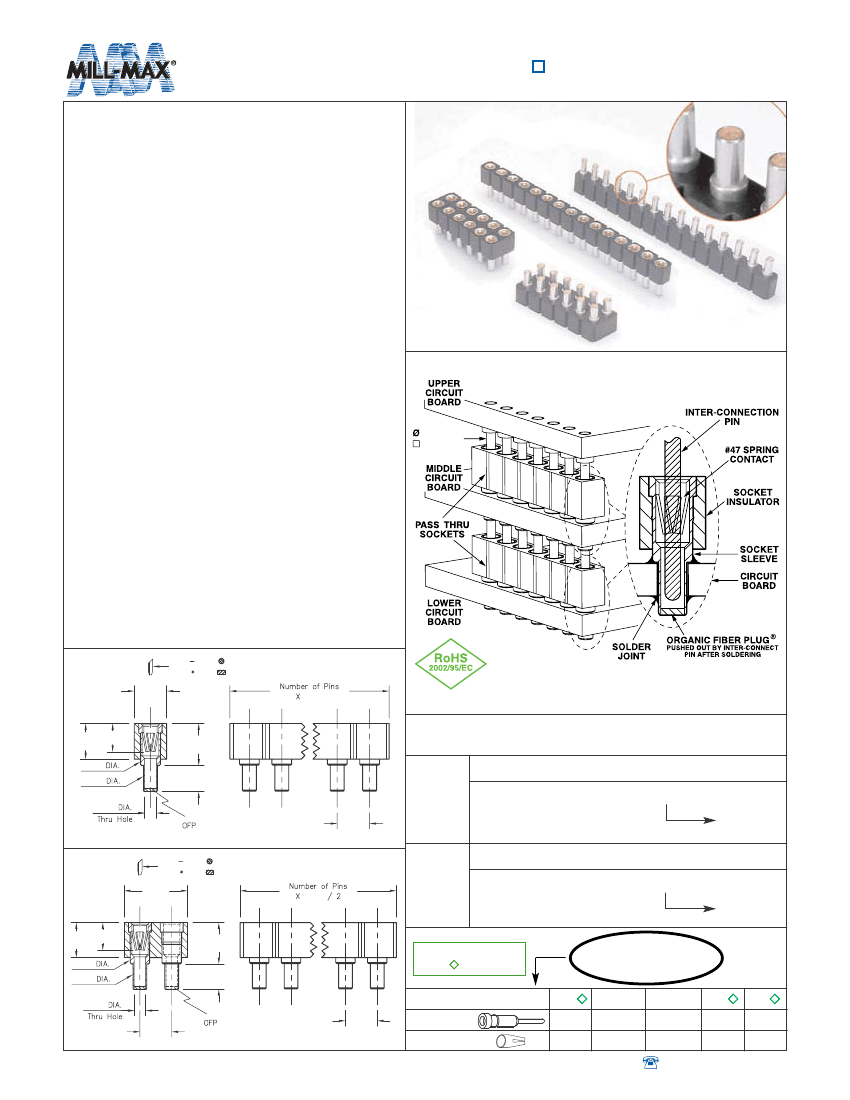

834/835 Series Pass Thru Sockets have a low

3,3 profile and will accept Ø 0,76 round pin,

as well as industry standard 0,64 square pin

headers.

●

They are typically used to interconnect two or

more parallel circuit boards.

●

Sockets are designed for hand, wave or reflow*

soldering. The high temp. insulator is compati-

ble with all solder processes.

●

Unique

ORGANIC FIBRE PLUG®

barriers pre-

vent solder, paste or flux from contaminating

the internal spring contacts. After soldering, the

OFP®

barriers are pushed out of the socket

when the mating header is inserted.

●

Mill-Max sockets use a precision machined

brass sleeve with a press-fit beryllium copper

“multi-finger” spring contact.

●

Recommended mounting holes are Ø 1,17

±0,08 PTH (1,2 drilled prior to plating).

●

Series 834, 835

Typical Application

0,76 or

0,64 PINS

*Intrusive reflow (also called "pin-in-paste") is a tech-

nique of using conventional thru-hole components

in a reflow soldering process. The pass thru socket

is placed into plated-thru-holes in the circuit board

(solder paste has previously been screen printed on

pads adjacent to the holes) and the board is

reflowed in the same pass as other SMT compo-

nents. Solder will fill the plated-thru-holes and

achieve solder joints as reliable as wave soldering.

The OFP® barrier prevents solder paste from being

picked-up inside the contact during assembly.

0,64

2,54

0,91

0,64

2,54

US Patent #7,086,870

Ordering Information

Single Row

OFP® Pass Thru Socket

834-XX-0 _ _-10-001000

01-64

2,79

1,55

1,09

2,24

3,3

2,03

0,91

Fig. 1

2,54

Specify # of pins

0,64

5,08

0,91

0,64

2,54

Double Row OFP® Pass Thru Socket

835-XX-0 _ _-10-001000

Fig. 2

Specify # of pins

For RoHS compliance

select plating code.

SPECIFY PLATING CODE XX=

02-72

2,79

1,55

1,09

2,24

3,3

2,03

XX= Plating Code

See Below

0,91

2,54

Sleeve (Pin)

Contact (Clip)

0,25µm Au 5,08µm Sn/Pb 5,08µm Sn/Pb 5,08µm Sn 5,08µm Sn

0,76µm Au 0,76µm Au

5,08µm Sn/Pb 0,76µm Au 5,08µm Sn

Fig. 2

w w w. m i l l - m a x . c o m



516-922-6000
