DAC8143AQ/883

Description
IC SERIAL INPUT LOADING, 0.38 us SETTLING TIME, 12-BIT DAC, CDIP16, CERDIP-16, Digital to Analog Converter
Categoryconverter
File Size181KB,12 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric Compare View All

DAC8143AQ/883 Overview

IC SERIAL INPUT LOADING, 0.38 us SETTLING TIME, 12-BIT DAC, CDIP16, CERDIP-16, Digital to Analog Converter

DAC8143AQ/883 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerADI
Parts packaging codeDIP
package instructionCERDIP-16
Contacts16
Reach Compliance Codenot_compliant
Is SamacsysN
Maximum analog output voltage15 V
Minimum analog output voltage
Converter typeD/A CONVERTER
Enter bit codeBINARY, OFFSET BINARY
Input formatSERIAL
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.05 mm
Maximum linear error (EL)0.012%
Number of digits12
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height5.08 mm
Maximum stabilization time1 µs
Nominal settling time (tstl)0.38 µs
Maximum slew rate2 mA
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1
a

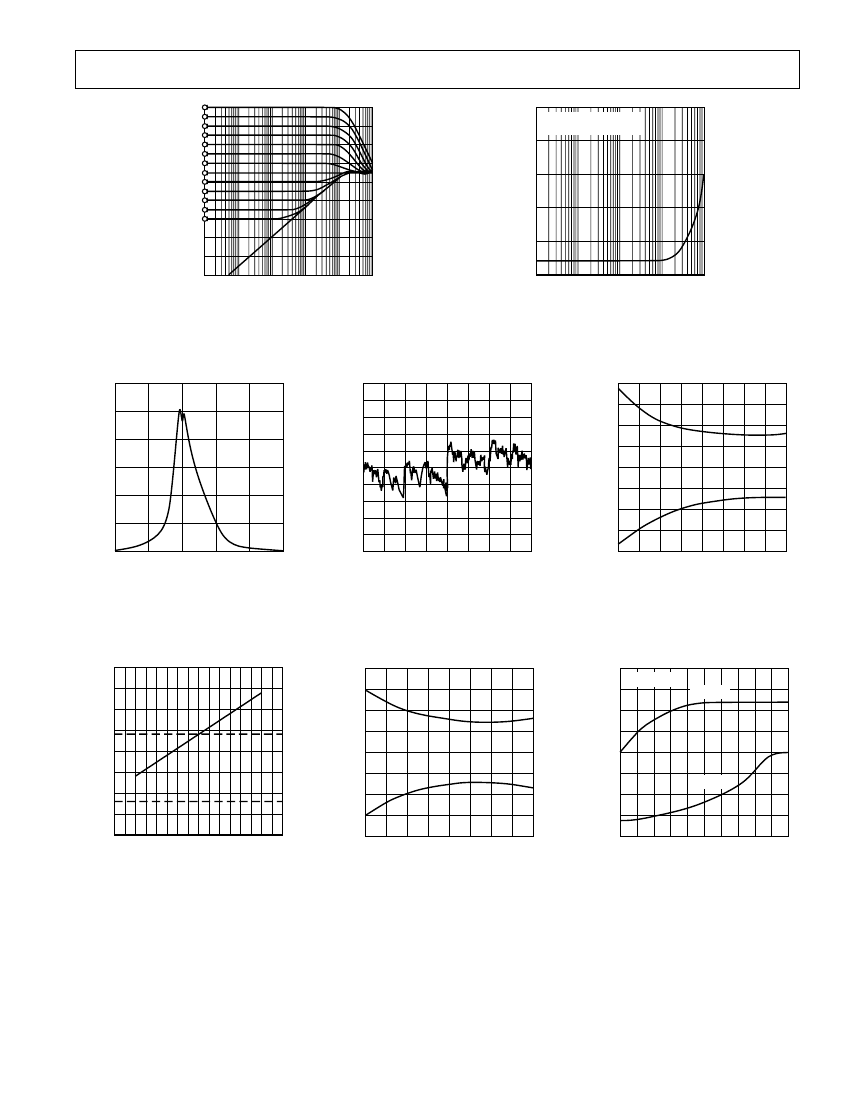

FEATURES
Fast, Flexible, Microprocessor Interfacing in Serially
Controlled Systems
Buffered Digital Output Pin for Daisy-Chaining
Multiple DACs
Minimizes Address-Decoding in Multiple DAC
Systems—Three-Wire Interface for Any Number of DACs
One Data Line
One CLK Line
One Load Line
Improved Resistance to ESD
–40 C to +85 C for the Extended Industrial Temperature
Range
APPLICATIONS
Multiple-Channel Data Acquisition Systems
Process Control and Industrial Automation
Test Equipment
Remote Microprocessor-Controlled Systems
GENERAL INFORMATION
12-Bit Serial Daisy-Chain
CMOS D/A Converter
DAC8143
FUNCTIONAL BLOCK DIAGRAM
V
DD
R
FB
DAC8143
V
REF
12-BIT
D/A CONVERTER
I
OUT1
I
OUT2
CLR
LD
1
LD
2
STB
1
STB
4
STB
3
STB
2
SRI
IN
CLK
INPUT 12-BIT
SHIFT REGISTER
OUT
SRO
AGND
DAC REGISTER
LOAD
DGND
The DAC8143 is a 12-bit serial-input daisy-chain CMOS D/A
converter that features serial data input and buffered serial data
output. It was designed for multiple serial DAC systems, where
serially daisy-chaining one DAC after another is greatly simplified.
The DAC8143 also minimizes address decoding lines enabling
simpler logic interfacing. It allows three-wire interface for any
number of DACs: one data line, one CLK line and one load line.
Serial data in the input register (MSB first) is sequentially
clocked out to the SRO pin as the new data word (MSB first) is
simultaneously clocked in from the SRI pin. The strobe inputs
are used to clock in/out data on the rising or falling (user
selected) strobe edges (STB
1
, STB
2
,
STB3,
STB
4
).
When the shift register’s data has been updated, the new data
word is transferred to the DAC register with use of
LD1
and
LD2
inputs.
Separate LOAD control inputs allow simultaneous output up-
dating of multiple DACs. An asynchronous CLEAR input
resets the DAC register without altering data in the input
register.
Improved linearity and gain error performance permits reduced
circuit parts count through the elimination of trimming compo-
nents. Fast interface timing reduces timing design considerations
while minimizing microprocessor wait states.
The DAC8143 is available in plastic packages that are compat-
ible with autoinsertion equipment.
Plastic packaged devices come in the extended industrial tem-
perature range of –40°C to +85°C.
REV. C
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
World Wide Web Site: http://www.analog.com
Fax: 781/326-8703
© Analog Devices, Inc., 1999
WR
ADDRESS BUS
ADDRESS
DECODER
DB
X
SRI
STROBE
SRO LOAD
P
SRI
DAC8143
STROBE
SRO LOAD
DAC8143
SRI
STROBE
SRO LOAD
DAC8143
SRI
STROBE
SRO LOAD
DAC8143
Figure 1. Multiple DAC8143s with Three-Wire Interface

DAC8143AQ/883 Related Products

DAC8143AQ/883 DAC8143AQ DAC8143BIEQ DAC8143BIFP DAC8143FS-REEL DAC8143G
Description IC SERIAL INPUT LOADING, 0.38 us SETTLING TIME, 12-BIT DAC, CDIP16, CERDIP-16, Digital to Analog Converter IC SERIAL INPUT LOADING, 0.38 us SETTLING TIME, 12-BIT DAC, CDIP16, CERDIP-16, Digital to Analog Converter IC SERIAL INPUT LOADING, 12-BIT DAC, CDIP16, CERDIP-16, Digital to Analog Converter IC SERIAL INPUT LOADING, 12-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter IC SERIAL INPUT LOADING, 0.38 us SETTLING TIME, 12-BIT DAC, PDSO16, SOIC-16, Digital to Analog Converter IC SERIAL INPUT LOADING, 0.38 us SETTLING TIME, 12-BIT DAC, UUC16, 0.099 X 0.107 INCH, DIE-16, Digital to Analog Converter
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
Maker ADI ADI ADI ADI ADI ADI
Parts packaging code DIP DIP DIP DIP SOIC DIE
package instruction CERDIP-16 CERDIP-16 CERDIP-16 PLASTIC, DIP-16 SOIC-16 0.099 X 0.107 INCH, DIE-16
Contacts 16 16 16 16 16 16
Reach Compliance Code not_compliant unknown not_compliant not_compliant not_compliant compliant
Converter type D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER
Enter bit code BINARY, OFFSET BINARY BINARY BINARY BINARY OFFSET BINARY BINARY, OFFSET BINARY
Input format SERIAL SERIAL SERIAL SERIAL SERIAL SERIAL
JESD-30 code R-GDIP-T16 R-GDIP-T16 R-GDIP-T16 R-PDIP-T16 R-PDSO-G16 R-XUUC-N16
JESD-609 code e0 e0 e0 e0 e0 e0
Maximum linear error (EL) 0.012% 0.0122% 0.0122% 0.0244% 0.0244% 0.024%
Number of digits 12 12 12 12 12 12
Number of functions 1 1 1 1 1 1
Number of terminals 16 16 16 16 16 16
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED PLASTIC/EPOXY PLASTIC/EPOXY UNSPECIFIED
encapsulated code DIP DIP DIP DIP SOP DIE
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE SMALL OUTLINE UNCASED CHIP
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 220 NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage 5 V 5 V 5 V 5 V 5 V 5 V
surface mount NO NO NO NO YES YES
technology CMOS CMOS CMOS CMOS CMOS CMOS
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) TIN LEAD
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE GULL WING NO LEAD
Terminal location DUAL DUAL DUAL DUAL DUAL UPPER
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 30 NOT SPECIFIED
Base Number Matches 1 1 1 1 1 1
Maximum analog output voltage 15 V 15 V - - 15 V 15 V
length 19.05 mm 19.05 mm 19.05 mm 20.13 mm 10.3 mm -
Maximum operating temperature 125 °C 125 °C 85 °C 85 °C 85 °C -
Minimum operating temperature -55 °C -55 °C -40 °C -40 °C -40 °C -
Maximum seat height 5.08 mm 5.08 mm 5.08 mm 5.33 mm 2.65 mm -
Maximum stabilization time 1 µs 1 µs - - 1 µs 1 µs
Nominal settling time (tstl) 0.38 µs 0.38 µs - - 0.38 µs 0.38 µs
Temperature level MILITARY MILITARY INDUSTRIAL INDUSTRIAL INDUSTRIAL -
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 1.27 mm -
width 7.62 mm 7.62 mm 7.62 mm 7.62 mm 7.5 mm -
