851560 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > filter> 851560

Preview

851560: DescriptionSAW Filter, 1 Function(s), 70MHz,; Categoryfilter; File Size25KB，1 Pages; ManufacturerSawtek Inc.

Download Datasheet Parametric View All

851560 Overview

SAW Filter, 1 Function(s), 70MHz,

851560 Parametric

Parameter Name	Attribute value
Maker	Sawtek Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Center frequency or cutoff frequency (fo/fc)	70 MHz
filter type	SAW FILTER
high	5.33 mm
input resistance	50 OHM
Maximum insertion loss	26 dB
length	22.1 mm
Manufacturer's serial number	851560
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L22.1XB12.65XH5.33 (mm)/L0.87XB0.498XH0.21 (inch)
width	12.65 mm
Base Number Matches	1

Preview

Download Datasheet

View All

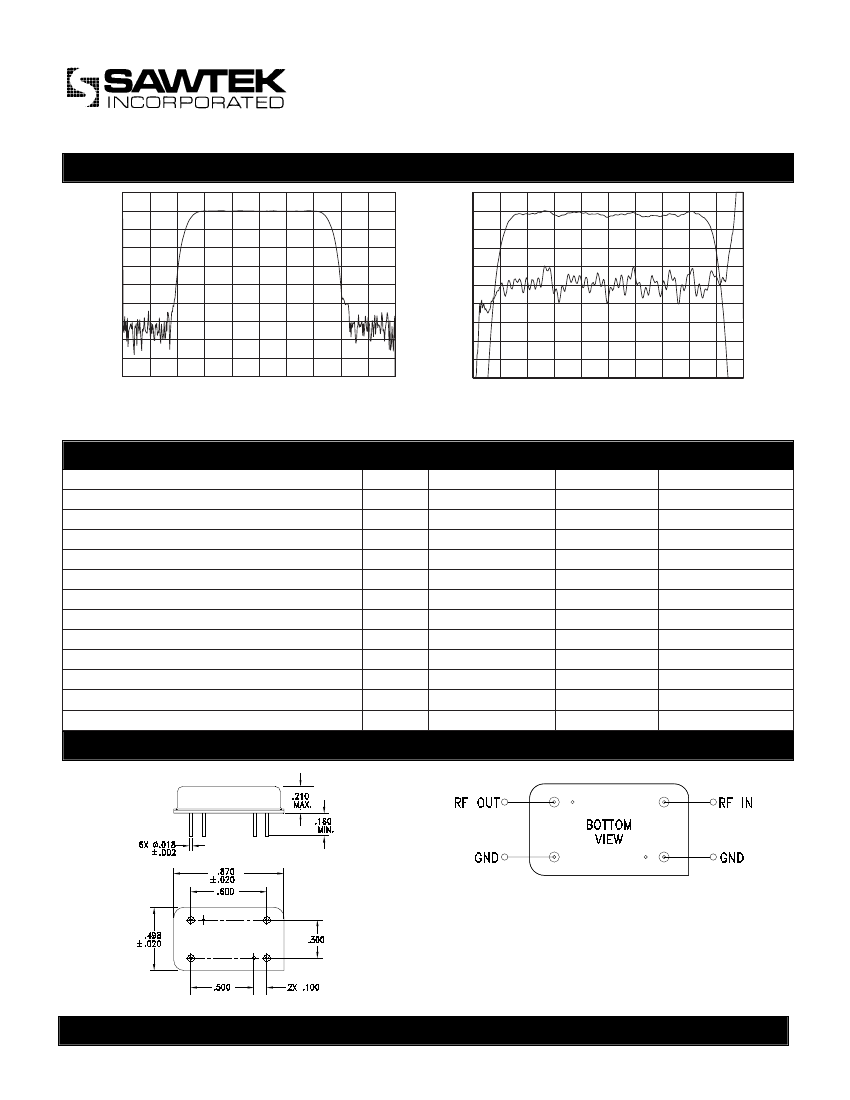

70 MHz Bandpass Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

Horizontal:

72 74

60 62 64 66 68 70

2 MHz/Div

76 78 80

Vertical: 10 dB/Div

1

75

0

60

-1

45

-2

30

-3

15

-4

0

-5

-15

-6

-30

-7

-45

-8

-60

-9

-75

Horizontal: 1.2 MHz/Div

64 65.266.467.6 68.8 70 71.2 72.4 73.6 74.8 76

Vertical: 1 dB/Div

Vertical: 15 nsec/Div

9.5 MHz Bandwidth

Part Number 851560

Parameter

Center Frequency

Insertion Loss at f

o

1 dB Bandwidth

3 dB Bandwidth

40 dB Bandwidth

Passband Variation

Phase Linearity

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Specifications

Unit

Minimum

MHz

dB

MHz

dB

deg

nsec

µsec

dB

-

°C

69.88

-

9.1

9.5

-

50

-

Typical

70

24

9.24

9.58

12.11

0.29

2

30

1.9

60

YZ LiNbO

3

25

Maximum

70.12

26

-

12.3

0.8

4

60

-

Package Outline

Matching Configuration

No Matching Required

Nominal Source/Load Impedance = 50Ω

Package Style I

11/17/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
