D8288 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Microcontrollers and processors> D8288

D8288: DescriptionControl/Command Signal Generator, 10MHz, CMOS, CDIP20,; CategoryMicrocontrollers and processors; File Size209KB，7 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

D8288 Overview

Control/Command Signal Generator, 10MHz, CMOS, CDIP20,

D8288 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Is Samacsys	N
Bus compatibility	IAPX 86; IAPX 88
maximum clock frequency	10 MHz
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	24.825 mm
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	230 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
Base Number Matches	1

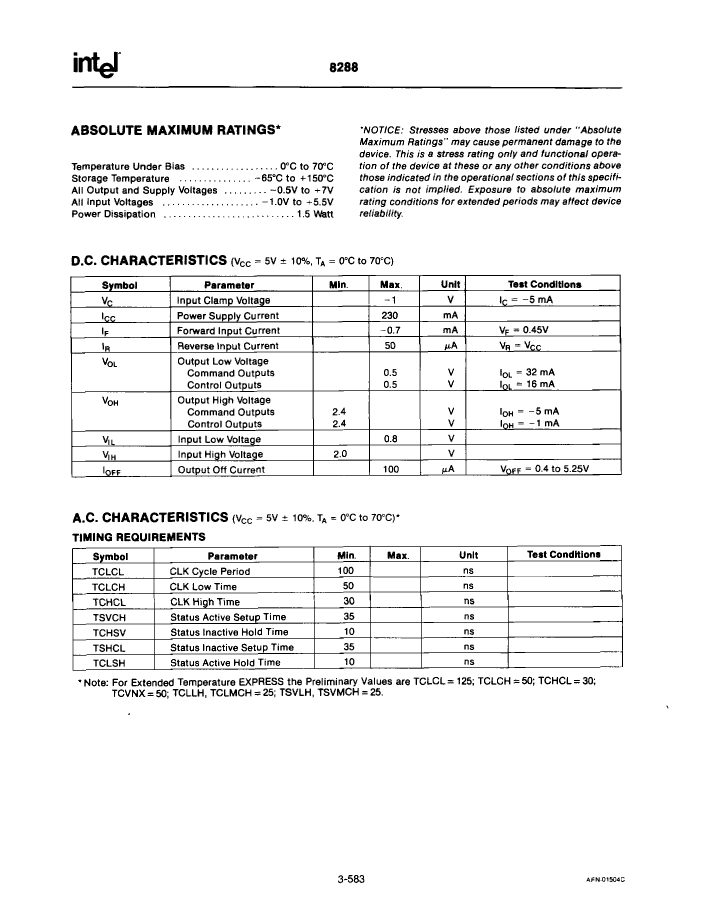

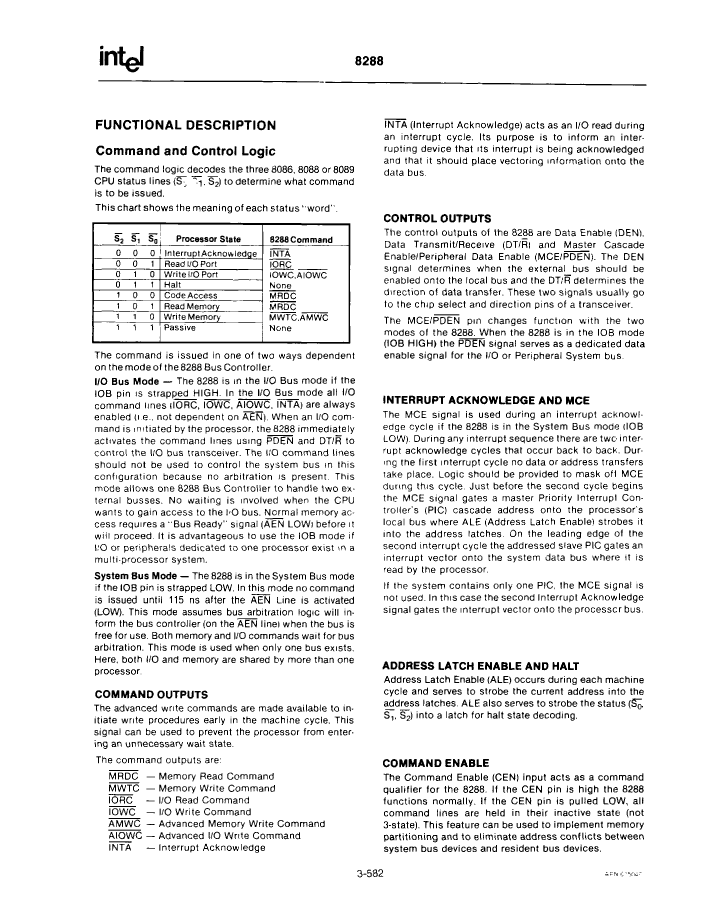

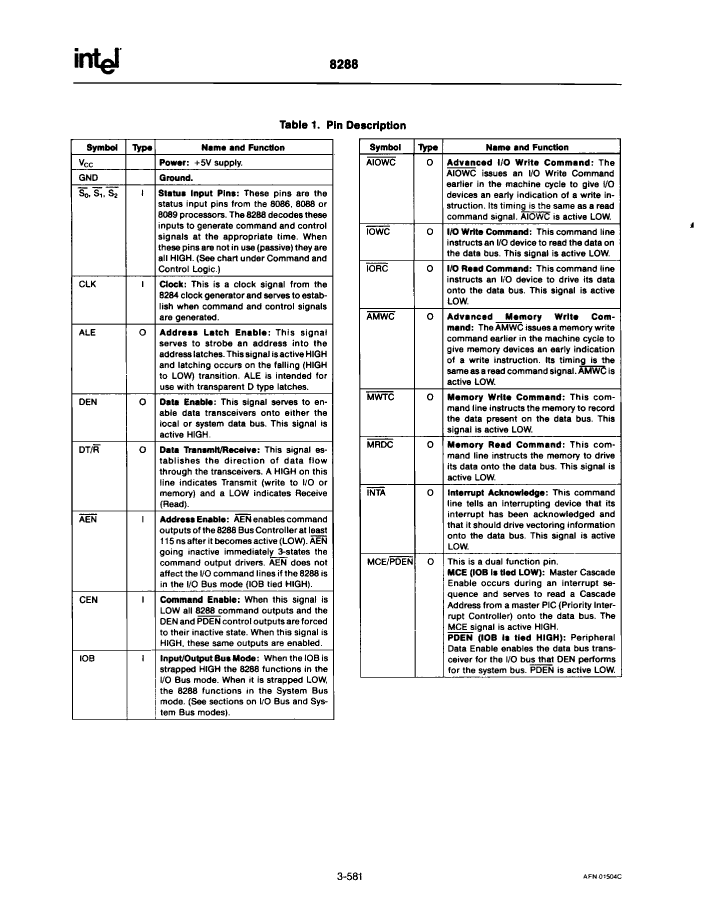

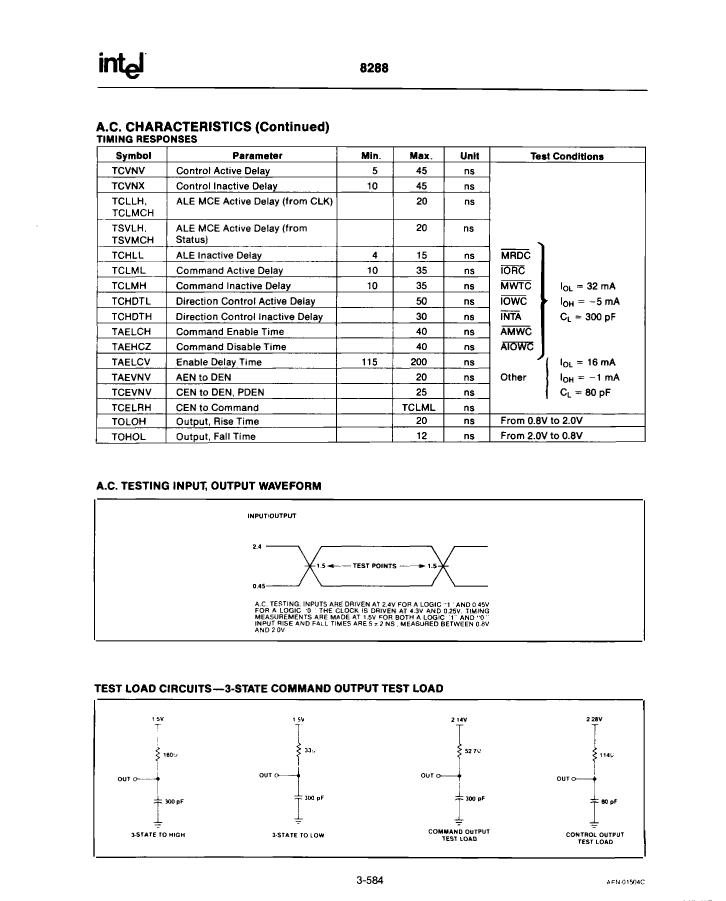

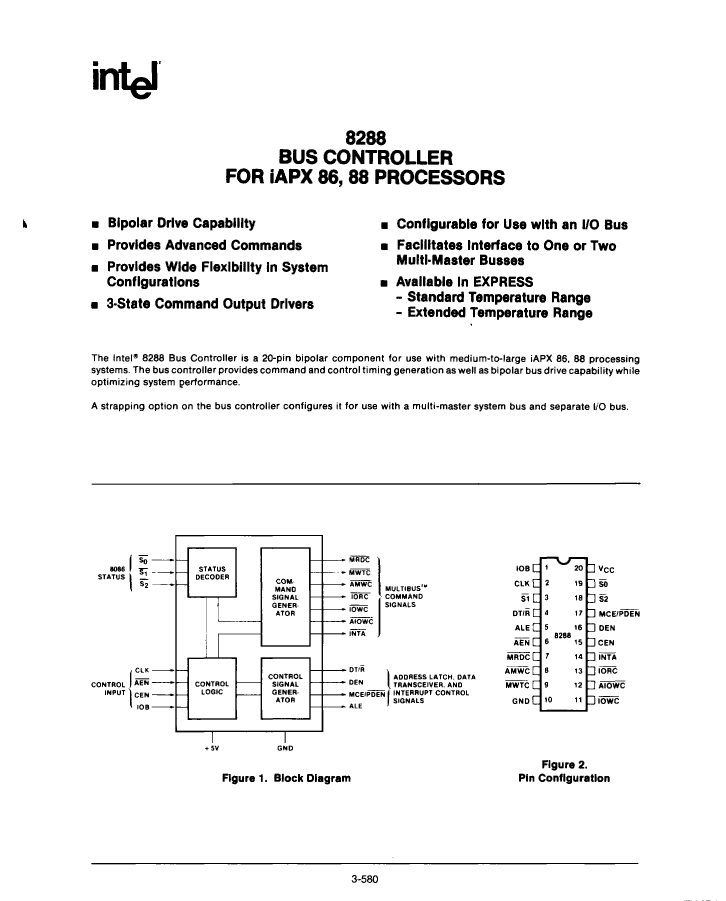

Preview

Download Datasheet

View All

D8288 Related Products

	D8288	LD8288	TD8288	QD8288	P8288	TP8288	QP8288
Description	Control/Command Signal Generator, 10MHz, CMOS, CDIP20,	Control/Command Signal Generator, 10MHz, CMOS, CDIP20	Control/Command Signal Generator, 10MHz, CMOS, CDIP20	Control/Command Signal Generator, 10MHz, CMOS, CDIP20	Control/Command Signal Generator, 10MHz, CMOS, PDIP20	Control/Command Signal Generator, 10MHz, CMOS, PDIP20	Control/Command Signal Generator, 10MHz, CMOS, PDIP20
Maker	Intel	Intel	Intel	Intel	Intel	Intel	Intel
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Bus compatibility	IAPX 86; IAPX 88	IAPX 86; IAPX 88	IAPX 86; IAPX 88	IAPX 86; IAPX 88	IAPX 86; IAPX 88	IAPX 86; IAPX 88	IAPX 86; IAPX 88
maximum clock frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
JESD-30 code	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20
length	24.825 mm	24.825 mm	24.825 mm	24.825 mm	25.55 mm	25.55 mm	25.55 mm
Number of terminals	20	20	20	20	20	20	20
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	-
JESD-609 code	e0	e0	e0	e0	e0	-	-
Maximum operating temperature	70 °C	85 °C	85 °C	70 °C	70 °C	-	70 °C
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	-	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
power supply	5 V	5 V	5 V	5 V	5 V	-	-
Maximum slew rate	230 mA	230 mA	230 mA	230 mA	230 mA	-	230 mA
Maximum supply voltage	5.5 V	-	-	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage	4.5 V	-	-	4.5 V	4.5 V	-	4.5 V
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
