MBR2535CT-006 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > diode> Rectifier diode> MBR2535CT-006

Preview

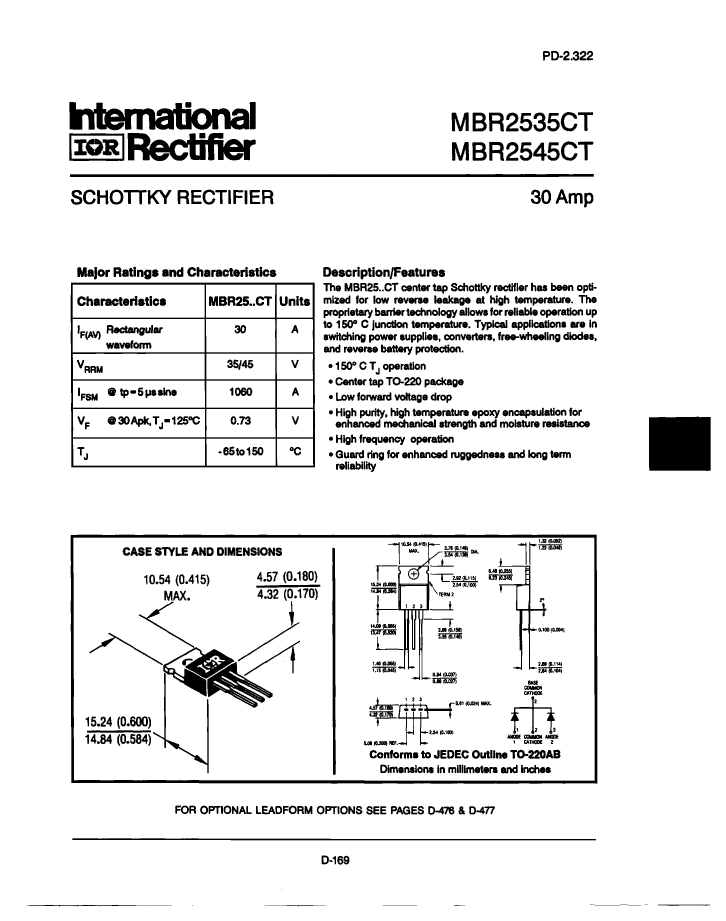

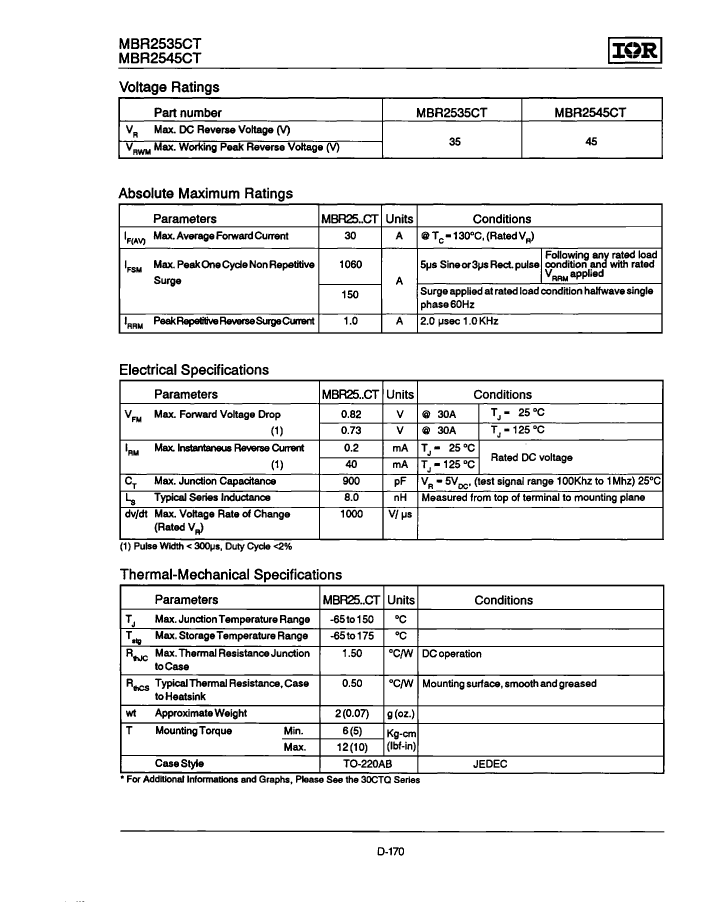

MBR2535CT-006: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon; Categorydiode Rectifier diode; File Size58KB，2 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

MBR2535CT-006 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon

MBR2535CT-006 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	R-PSFM-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	FREE WHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.82 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum non-repetitive peak forward current	1060 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	200 µA
surface mount	NO
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

MBR2535CT-006 Related Products

	MBR2535CT-006	MBR2535CT-006PBF	MBR2545CT-006PBF	MBR2545CT-006
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon
Is it Rohs certified?	incompatible	conform to	conform to	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.82 V	0.82 V	0.82 V	0.82 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
JESD-609 code	e0	e3	e3	e0
Maximum non-repetitive peak forward current	1060 A	1060 A	1060 A	1060 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	225	250	250	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	35 V	45 V	45 V
Maximum reverse current	200 µA	200 µA	200 µA	200 µA
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	30	30	30	30
