AR16-HGL-TT-R: DescriptionIC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; Categorysocket; File Size327KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

AR16-HGL-TT-R Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

AR16-HGL-TT-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ASSMANN
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.4 inch
body length	0.8 inch
Contact to complete cooperation	NOT APPLICABLE
Contact material	NOT APPLICABLE
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP16
Manufacturer's serial number	AR16
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

20.32MM±0.35MM

17.78MM±0.25MM

3

4

5

6

7

A

B

C

D

20.32MM±0.35MM

17.78MM±0.25MM

D

E

F

Scale

1:1

Drawn

Approved

11.01.11

Name

Chappell

Item No.

G

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

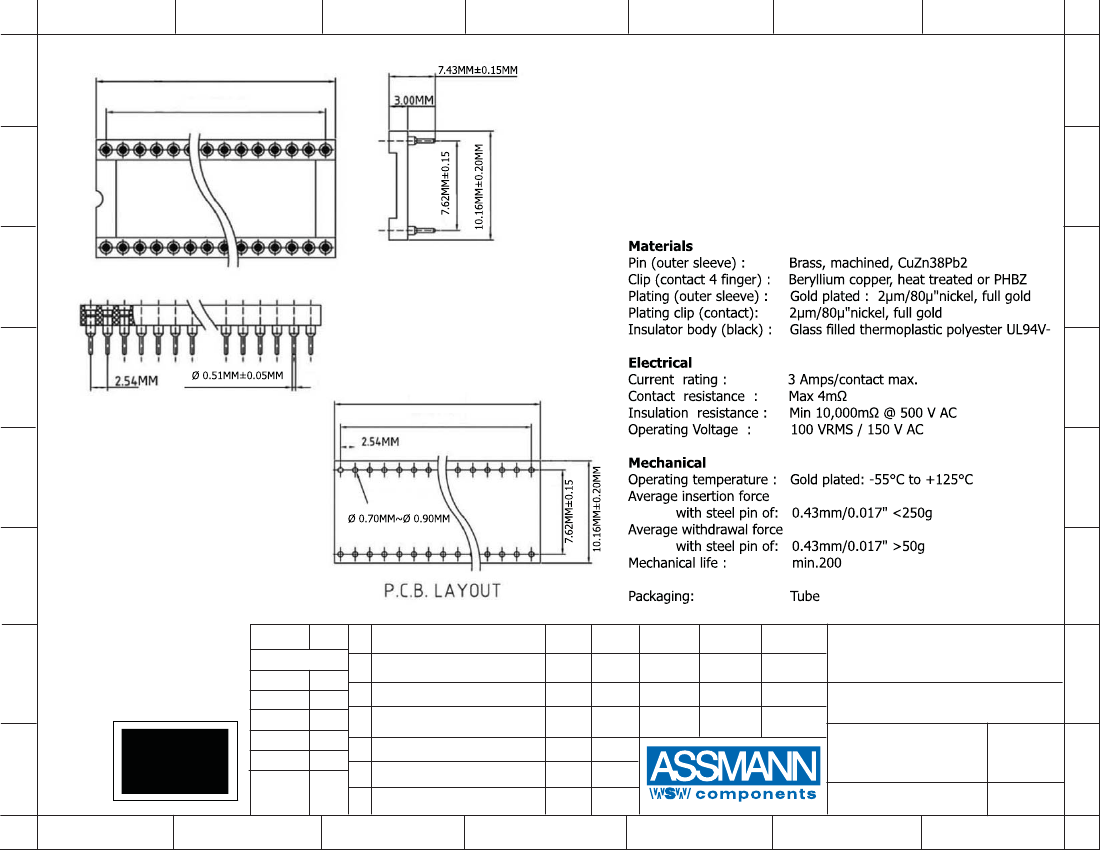

AR16-HGL-TT-R

Title

G

IC-Socket, 16 Pin, Machined Contact

Pitch: 2.54MM, Pin Length: 7.43 MM

H

RoHS

Complaint

1

2

Angle

Drawing No.

rev00

Sheet

H

Modification

Date

Name

Replace

3

4

5

6

7
