AR16-HZL/01-TT-R

Description
IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder
Categorysocket
File Size308KB,1 Pages
ManufacturerASSMANN
Websitehttps://www.assmann.com/en/about-assmann/
Environmental Compliance
Download Datasheet Parametric View All

AR16-HZL/01-TT-R Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

AR16-HZL/01-TT-R Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerASSMANN
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresROHS COMPLIANT
body width0.4 inch
body length0.8 inch
Contact to complete cooperationGOLD OVER NICKEL (80)
Contact completed and terminatedGOLD OVER NICKEL (80)
Contact materialNOT SPECIFIED
Contact styleRND PIN-SKT
current rating3 A
Device slot typeIC SOCKET
Type of equipment usedDIP16
Manufacturer's serial numberAR16
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of contacts16
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing0.3 mm
Terminal pitch2.54 mm
Termination typeSOLDER
Base Number Matches1
1
2
20.32MM±0.35MM
17.78MM±0.25MM
3
4
5
6
7
A
A
B
B
20.32MM±0.35MM
C
17.78MM±0.25MM
C
D
D
E
E
F
F
Scale
1:1
Drawn
Approved
11.02.11
Name
Chappell
Item No.
G
TOLERANCE
X.X
X.XX
X.XXX
±0.40
±0.25
±0.15
±3°

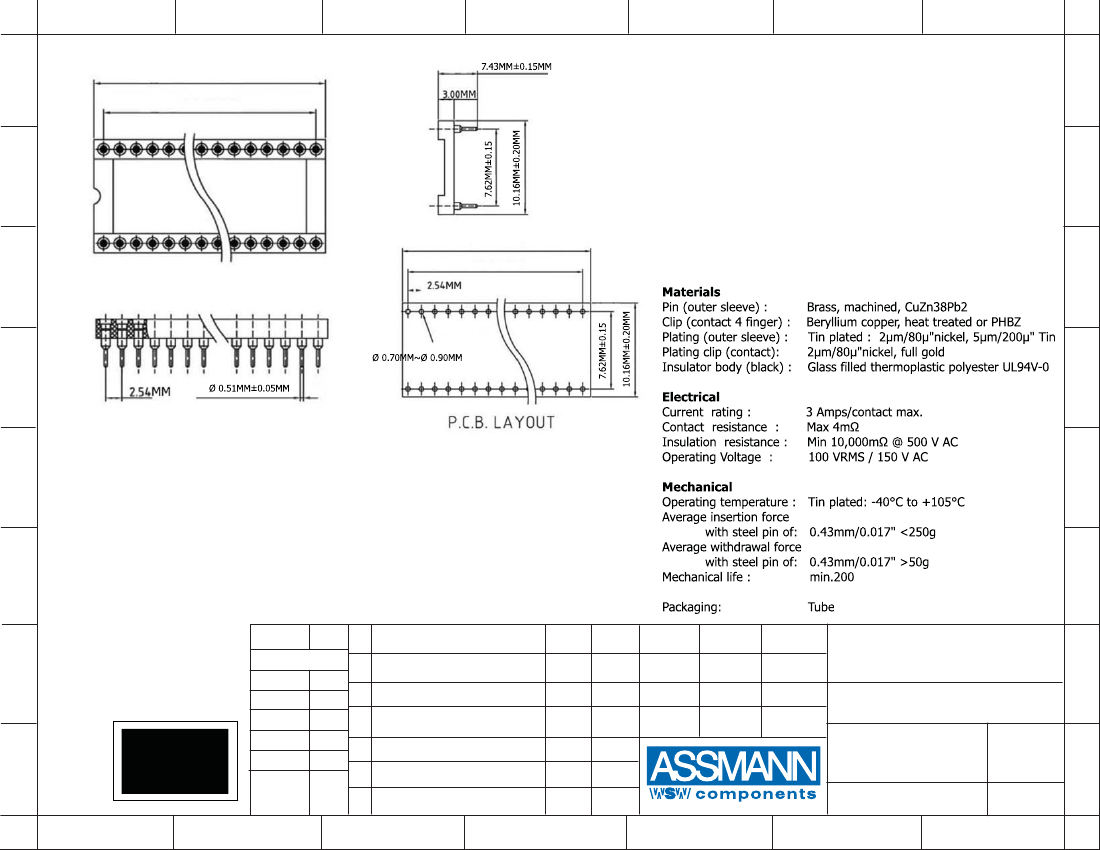

AR16-HZL/01-TT-R
Title
IC-Socke, 16 Pin, Machined Contact,
10—” Gold Plating, Pitch: 2.54MM,
Pin Length: 7.43MM
Drawing No.
G
H
RoHS
Complaint
1
2
Angle
rev00
H
Modification
Date
Name
Replace
Sheet
3
4
5
6
7
