BYG23M
Taiwan Semiconductor
CREAT BY ART

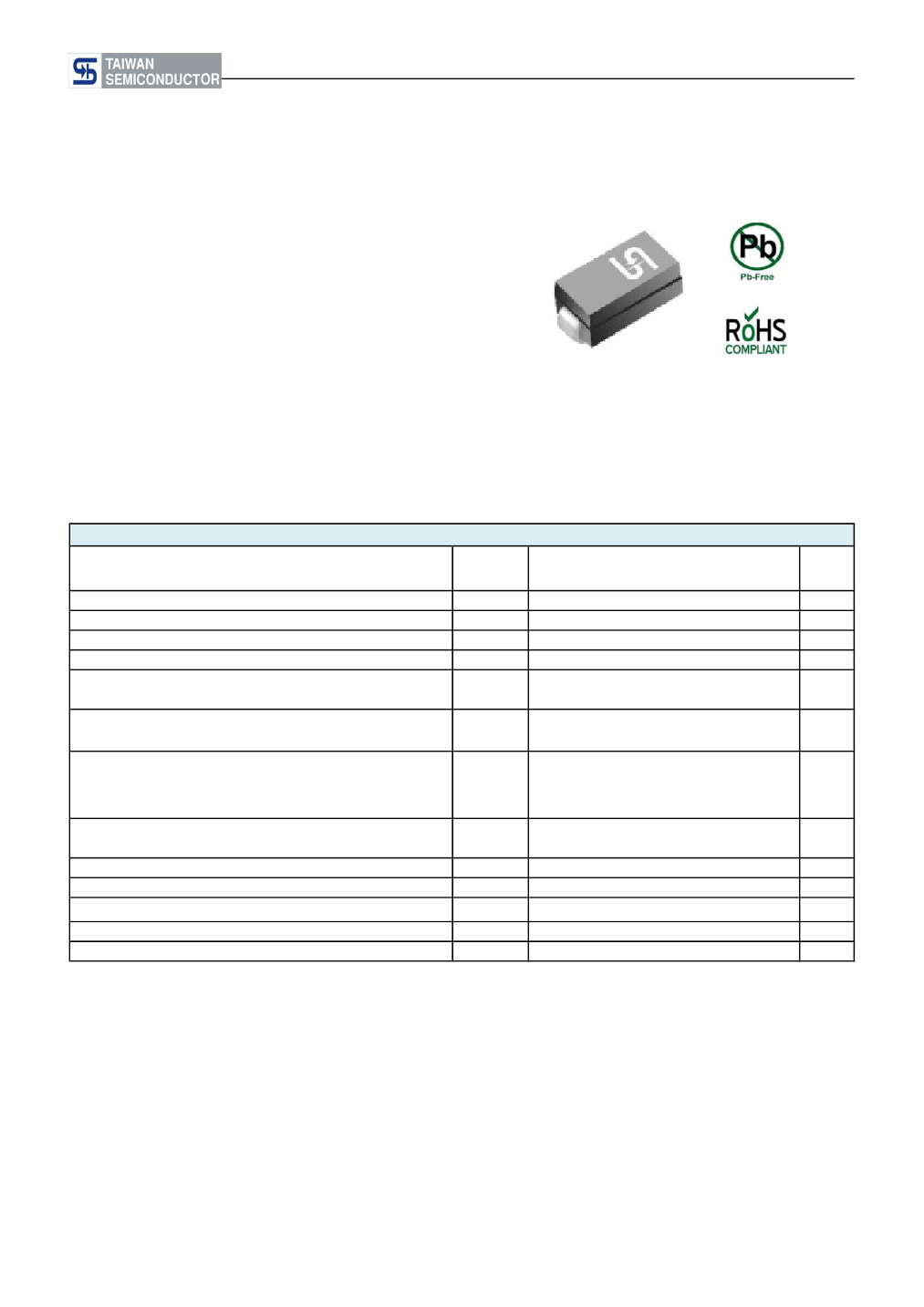

FEATURES
- Glass passivated junction chip.
- Ideal for automated placement
- Fast switching for high efficiency
- High surge current capability
- Moisture sensitivity level: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
High Efficient Surface Mount Rectifiers
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
Indicated by cathode band
Weight:
0.064 g (approximately)
DO-214AC (SMA)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 1.5 A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=100℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
BYG23M
1000
700
1000
1
30
1.7
5
I
R
50
150
E
RSM
Trr
Cj
R
θJA
T
J
T
STG
20
75
15
70
- 55 to +150
- 55 to +150
O
UNIT
V
V
V
A
A
V
μA
Pulse energy in avalanche mode, non repetitive
(Inductive load switch off ) T
A
=25℃, L=120mH
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs, 1% Duty Cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0Volts.
mJ
ns
pF
C/W
O
O
C
C
Document Number: DS_D1309034
Version: A13
BYG23M
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PACKING CODE
E2
E3
GREEN COMPOUND
CODE
BYG23M
Suffix "G"
Clip SMA
Clip SMA
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
PACKAGE
PACKING
EXAMPLE
PREFERRED P/N
BYG23M E2
BYG23M E2G
PART NO.
BYG23M
BYG23M
PACKING CODE
E2
E2
GREEN COMPOUND
CODE
DESCRIPTION
G
Green compound

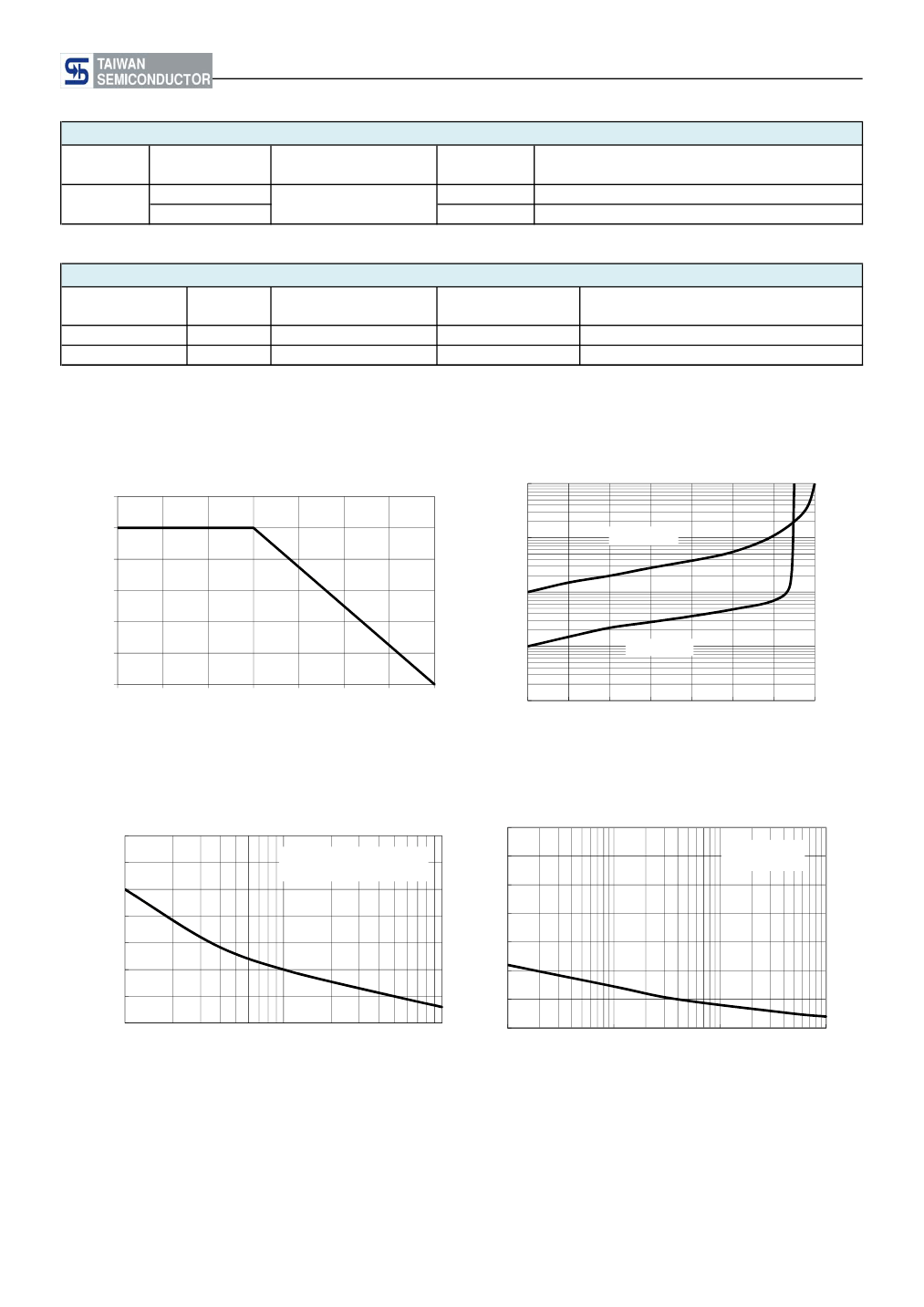

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- MAXIMUM AVERAGE FORWARD CURRENT
DERATING
1.2
AVERAGE FORWARD CURRENT (A)
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
INSTANTANEOUS REVERSE CURRENT
(μA)
1
0.8
0.6
0.4
0.2
0
80
90
100
110
120
130
140
150
LEAD TEMPERATURE (
o
C)
100
TJ=125℃
10
1
TJ=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
PEAK FORWARD SURGE URRENT (A)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
40
JUNCTION CAPACITANCE (pF)
35
30
25
20
15
10
5
1
10
100
8.3ms Single Half Sine Wave
JEDEC Method
FIG. 4- TYPICAL JUNCTION CAPACITANCE
70
60
50
40
30
20
10
0
0.1
1
10
100
REVERSE VOLTAGE (V)
f=1.0MHz
Vslg=50mVp-p

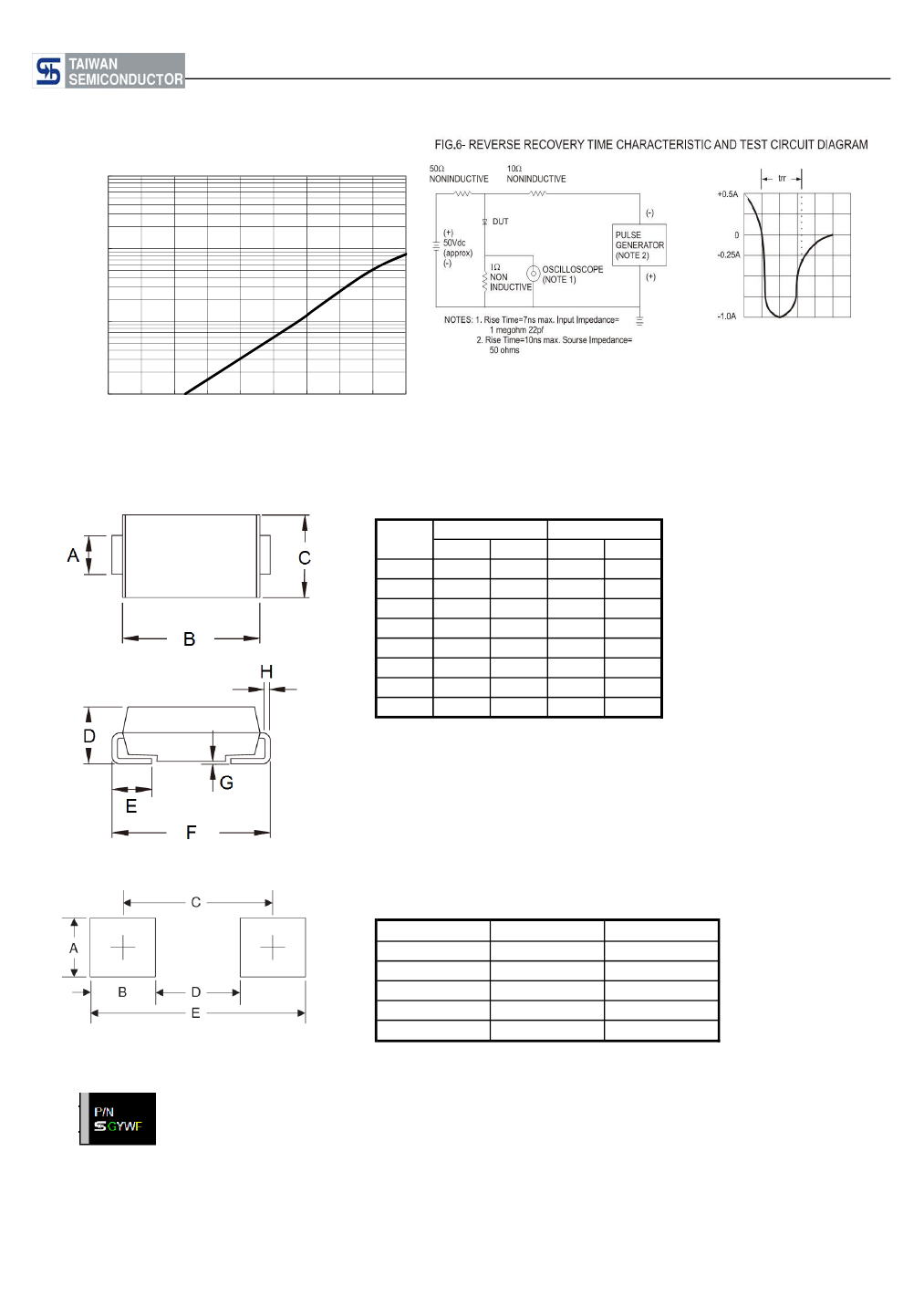

NUMBER OF CYCLES AT 60 Hz
