DM74AS10 Triple 3-Input NAND Gate
May 2007
DM74AS10
Triple 3-Input NAND Gate
Features
■
Switching specifications at 50pF
■
Switching specifications guaranteed over full
tm
General Description
This device contains three independent gates, each of
which performs the logic NAND function.
temperature and V
CC
range
■
Advanced oxide-isolated, ion-implanted Schottky
TTL process
■
Functionally and pin for pin compatible with Schottky,
low power Schottky, and advanced low power
Schottky TTL counterpart
■
Improved AC performance over Schottky, low power
Schottky, and advanced low power Schottky
counterparts
Ordering Information
Order
Number
DM74AS10M
Package
Number
M14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering number.
Connection Diagram
Function Table
Y
=
ABC
Inputs
A
X
X
L
H
Output
C
L
X
X
H
B
X
L
X
H
Y
H
H
H
L
H
=
HIGH Logic Level
L
=
LOW Logic Level
X
=
Either LOW or HIGH Logic Level
©1984 Fairchild Semiconductor Corporation
DM74AS10 Rev. 1.2
www.fairchildsemi.com
DM74AS10 Triple 3-Input NAND Gate
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only.
Symbol
V
CC
V
I
T
A
T
STG
θ
JA
Supply Voltage
Input Voltage
Parameter
Rating
7V
7V
0°C to +70°C
–65°C to +150°C
114.0°C/W
Operating Free Air Temperature Range
Storage Temperature Range
Typical Thermal Resistance
Recommended Operating Conditions
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to absolute maximum ratings.
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Parameter
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Current
LOW Level Output Current
Free Air Operating Temperature
Min.
4.5
2
Nom.
5
Max.
5.5
0.8
–2
20
Units
V
V
V
mA
mA
°C
0
70
Electrical Characteristics
Over recommended operating free air temperature range. All typical values are measured at V
CC
=
5V, T
A
=
25°C.
Symbol
V
IK
V
OH
V
OL
I
I
I
IH
I
IL
I
O
I
CC
Parameter
Input Clamp Voltage
HIGH Level Output Voltage
LOW Level Output Voltage
HIGH Level Input Current
LOW Level Input Current
Output Drive Current
Supply Current
Conditions
V
CC
=
4.5V, I
I
=
–18mA
Min.
Typ.
Max. Units
–1.2
V
V
V
mA
µA
mA
mA
mA
I
OH
=
–2mA, V
CC
=
4.5V to 5.5V V
CC
– 2
V
CC
=
4.5V, I
OL
=
20 mA
V
CC
=
5.5V, V
IH
=
2.7V
V
CC
=
5.5V, V
IL
=
0.4V
V
CC
=
5.5V, V
O
=
2.25V
V
CC
=
5.5V
Outputs HIGH
Outputs LOW
–30
1.5
8.1
0.35
0.5
0.1
20
–0.5
–112
2.4
13
Input Current @ Max Input Voltage V
CC
=
5.5V, V
IH
=
7V
Switching Characteristics
Over recommended operating free air temperature range.
Symbol
t
PLH
t
PHL
Parameter
Propagation Delay Time, LOW-to-HIGH
Level Output
Propagation Delay Time, HIGH-to-LOW
Level Output
Conditions
V
CC
=
4.5V to 5.5V
R
L
=
500
Ω
, C
L
=
50pF
Min
1
1
Max
4.5
4.5
Units
ns
ns
©1984 Fairchild Semiconductor Corporation
DM74AS10 Rev. 1.2
www.fairchildsemi.com
2
DM74AS10 Triple 3-Input NAND Gate
Physical Dimensions
Dimensions are in millimeters unless otherwise noted.

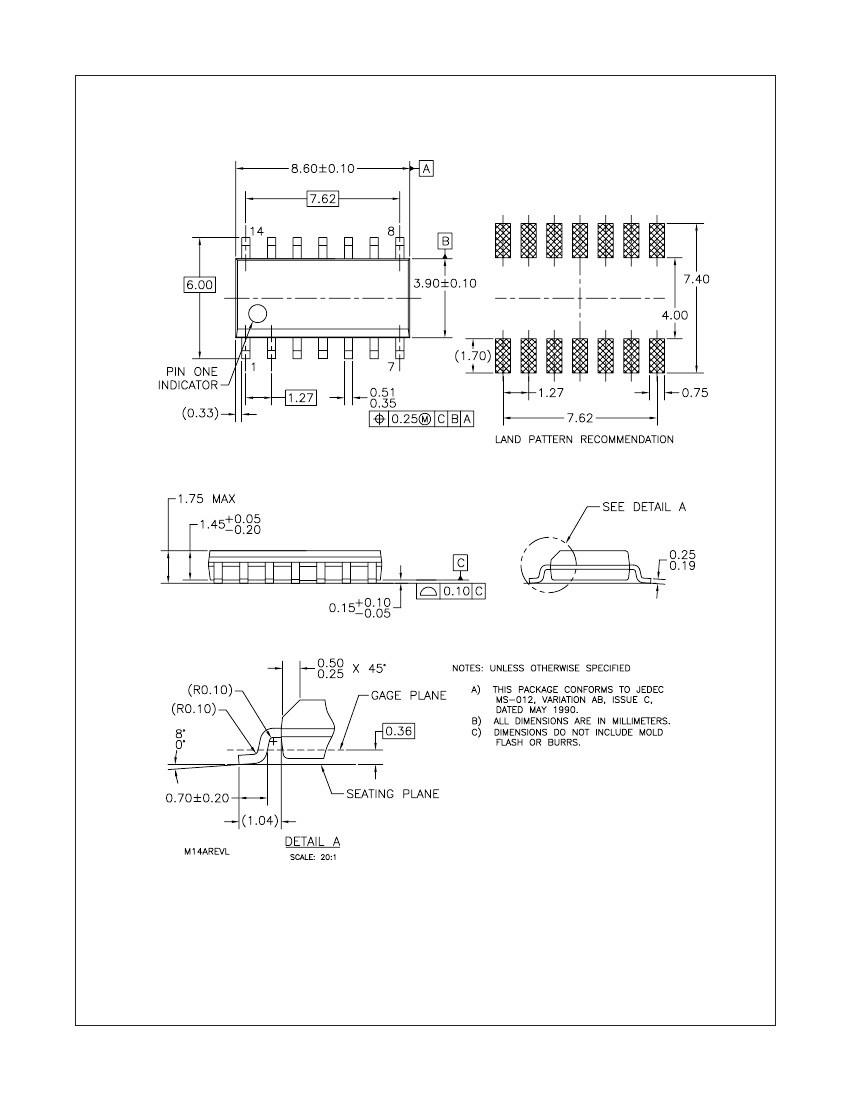

Figure 1. 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
Package Number M14A
©1984 Fairchild Semiconductor Corporation
DM74AS10 Rev. 1.2
www.fairchildsemi.com
3
DM74AS10 Triple 3-Input NAND Gate
