DDMN24H7SNK126 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DDMN24H7SNK126

DDMN24H7SNK126: DescriptionD Subminiature Connector, 24 Contact(s), Female, Solder Terminal, #4-40, Receptacle,; CategoryThe connector; File Size119KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DDMN24H7SNK126 Overview

D Subminiature Connector, 24 Contact(s), Female, Solder Terminal, #4-40, Receptacle,

DDMN24H7SNK126 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ITT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	SHIELDED
body width	0.605 inch
subject depth	0.186 inch
body length	2.635 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S17C7
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1250VAC V
Durability	50 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.11 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 1	#4-40
Installation option 2	SCREWLOCKS
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	7.5 A
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Terminal length	0.178 inch
Terminal pitch	2.8 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

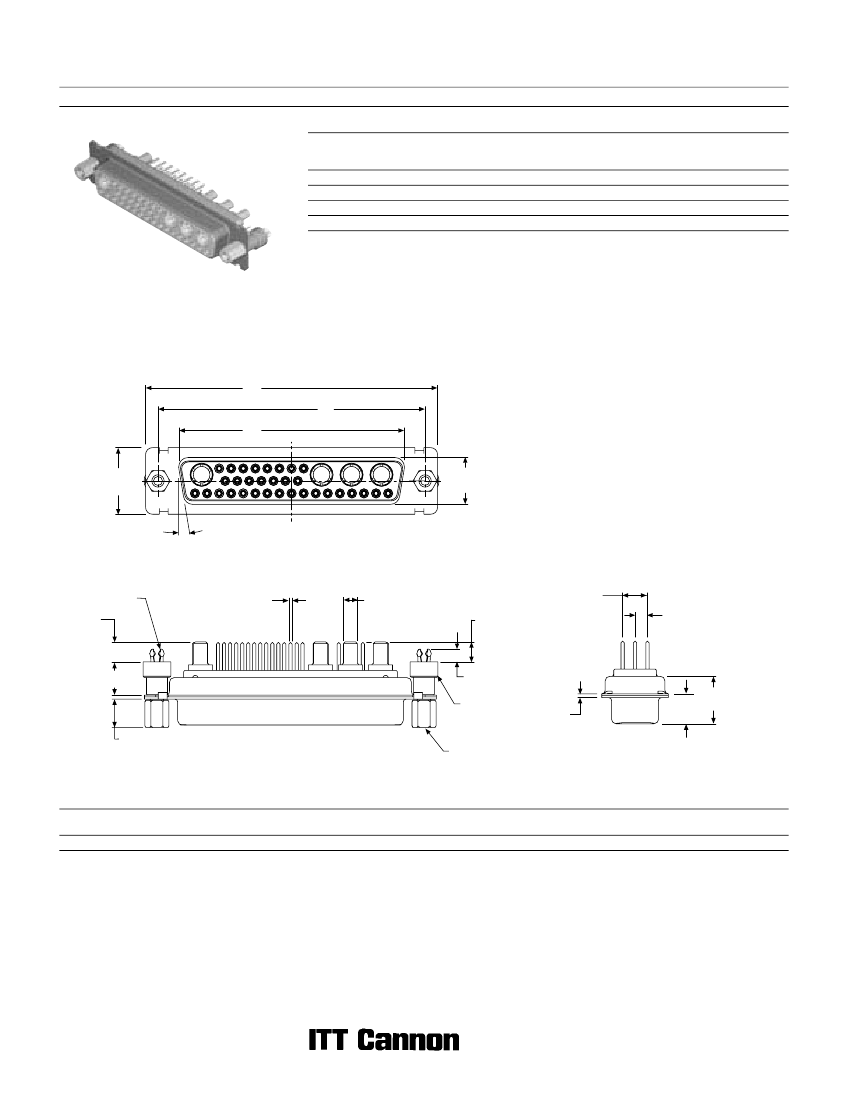

D Subminiature

40 A High Power Straight — Standard PC Tails (Size DD)

Receptacle

Part Numbers with Standoff #4-40 UNC

Shell Size

Layout

24W7

36W4

43W2

47W1

Part Number

Without Screw Locks

Without Boardlocks

DDMV24H7SNA197

DDMV36H4SNA197

DDMV43H2SNA197

DDMV47H1SNA197

Part Number

Without Screw Locks

With Boardlocks

DDMZ24H7SNA197

DDMZ36H4SNA197

DDMZ43H2SNA197

DDMZ47H1SNA197

Combo D



Part Number

With Screw Locks

With Boardlocks

DDMN24H7SNA197

DDMN36H4SNA197

DDMN43H2SNA197

DDMN47H1SNA197

Note: For contacts with 30 microinches gold substitute K126 for A197. Example: DDMV24H7SNK126

Reader’s Resource

For contact cavity arrangements,

see page 223.

For P.C. hole patterns, see page 259.

For panel cutouts, see page 221.

Engaging Face

10°

BOARDLOCK

4,65

(.183)

Ø 0,76

(.030)

Ø 3,18

(.125)

4,52 (.178)

5,69

(.224)

2,84

(.112)

7,62

0,25

(.300

.010)

2,92

(.115)

STANDOFF

#4-40 UNC

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Screw lock, boardlock and high power contact

removed for clarity

Dimensions

Shell Size

±0,38

(.015)

66,93 (2.635)

±0,13

(.005)

52,42 (2.064)

±0,13

(.005)

61,11 (2.406)

±0,13

(.005)

10,74 (.423)

±0,38

(.015)

15,37 (.605)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change

DDMN24H7SNK126 Related Products

	DDMN24H7SNK126	DDMZ36H4SNA197	DDMZ43H2SNA197	DDMZ24H7SNA197
Description	D Subminiature Connector, 24 Contact(s), Female, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 36 Contact(s), Female, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 43 Contact(s), Female, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 24 Contact(s), Female, Solder Terminal, #4-40, Receptacle,
Is it Rohs certified?	incompatible	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	SHIELDED	COMPATIBLE CONTACT: DM53744-98, EMI/RFI SHIELDED, PANEL MOUNT	COMPATIBLE CONTACT: DM53744-98, EMI/RFI SHIELDED, PANEL MOUNT	COMPATIBLE CONTACT: DM53744-98, EMI/RFI SHIELDED, PANEL MOUNT
body width	0.605 inch	0.187 inch	0.187 inch	0.187 inch
subject depth	0.186 inch	0.605 inch	0.605 inch	0.605 inch
body length	2.635 inch	2.635 inch	2.635 inch	2.635 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact arrangement	S17C7	S32C4	S41C2	S17C7
Contact to complete cooperation	NOT SPECIFIED	AU ON NI	AU ON NI	GOLD FLASH
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	10 mΩ	7.5 mΩ	7.5 mΩ	7.5 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	1250VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	50 Cycles	500 Cycles	500 Cycles	500 Cycles
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES	YES
Installation option 1	#4-40	#4-40	#4-40	#4-40
Installation option 2	SCREWLOCKS	CLINCH NUT	CLINCH NUT	CLINCH NUT
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD AND PANEL	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
Maximum operating temperature	125 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	7.5 A	5 A	5 A	5 A
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	5/D	5/D	5/D	5/D
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	36	43	24
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	-
Insulation resistance	-	5000000000 Ω	5000000000 Ω	5000000000 Ω
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	-	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
