61-236/MK2C-B5063AE6FB2/ET datasheet, PDF

Datasheet> All Categories > photoelectric> 61-236/MK2C-B5063AE6FB2/ET

61-236/MK2C-B5063AE6FB2/ET: DescriptionSingle Color LED, Cool White, Water Clear, T-1, 3mm, ROHS COMPLIANT, SMT, 6 PIN; Categoryphotoelectric; File Size237KB，15 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

61-236/MK2C-B5063AE6FB2/ET Overview

Single Color LED, Cool White, Water Clear, T-1, 3mm, ROHS COMPLIANT, SMT, 6 PIN

61-236/MK2C-B5063AE6FB2/ET Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT, SMT, 6 PIN
Reach Compliance Code	compliant
Is Samacsys	N
Other features	SUPPORTS INFRARED
color	COOL WHITE
Configuration	SEPARATE, 3 ELEMENTS
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	4700.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL
shape	ROUND
size	3 mm
surface mount	YES
T code	T-1
Terminal pitch	4.2 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

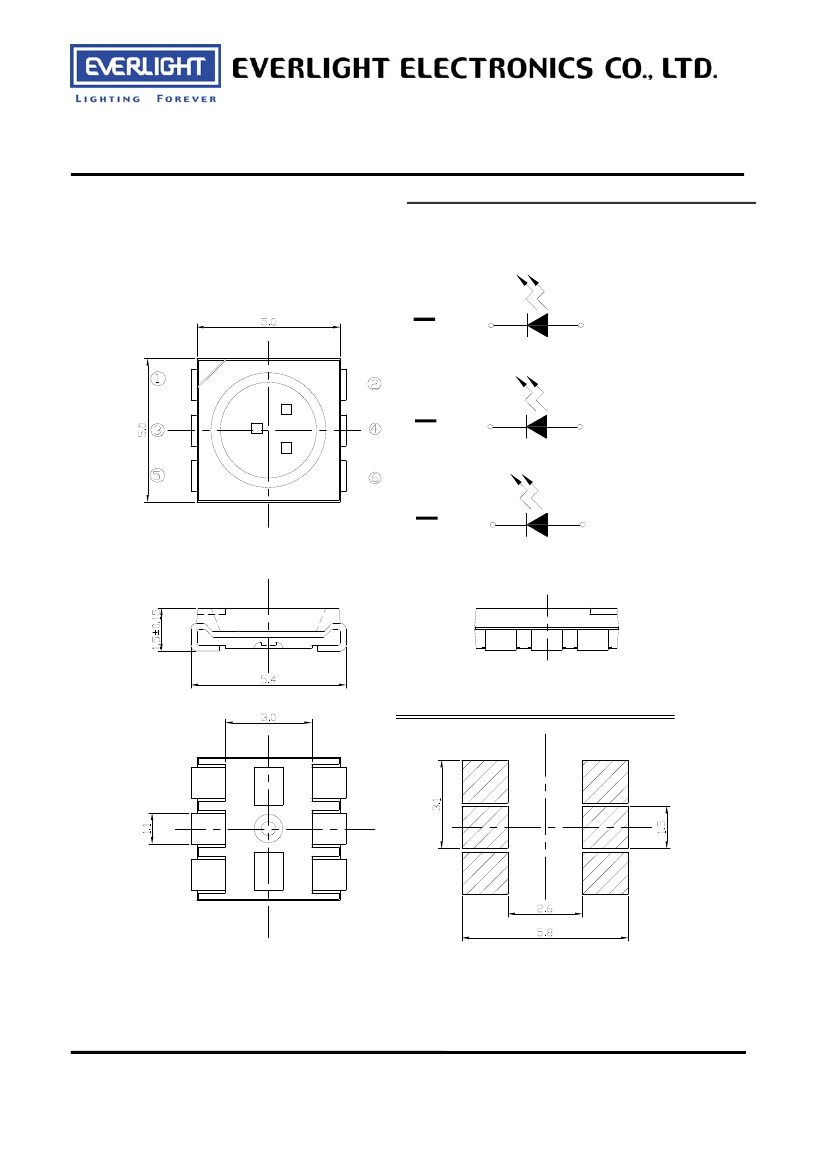

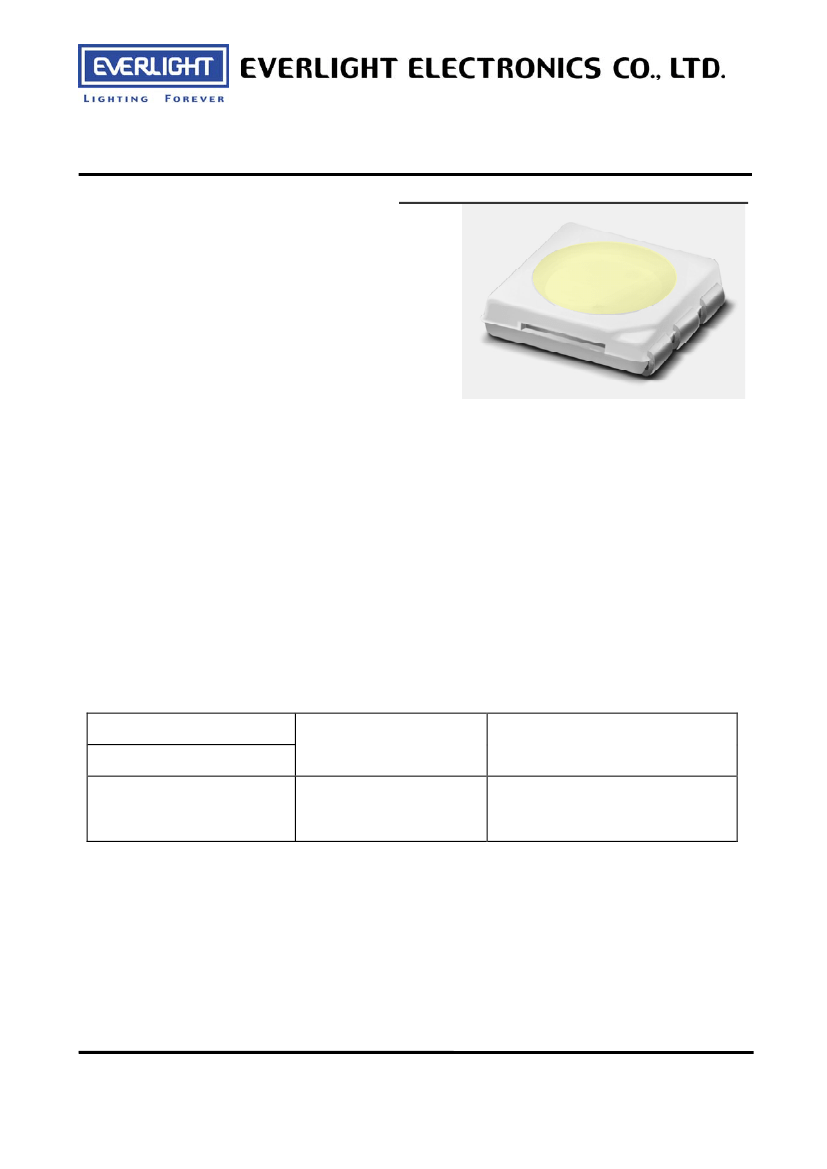

Technical Data Sheet

Luminosity White color LED

61-236/XK2C-BXXXXXXXXXX/ET

Features

․Super-luminosity

chip LED.

․White

SMT package.

․Lead

frame package with individual 6 pins.

․Wide

viewing angle.

․Soldering

methods: IR reflow soldering.

․Pb-free.

․The

product itself will remain within RoHS

compliant version.

Descriptions

․Due

to the package design, 61-236 has wide viewing angle, low power consumption and

white LEDs are devices which are materialized by combing Blue LEDs and special

phosphors. This feature makes the LED ideal for light guide application.

Applications

․General

lighting

․Decorative

and Entertainment Lighting.

․Indicators.

․Illuminations.

Device Selection Guide

Chip

Emitted Color

Material

InGaN

Cool White

Warm White

Water Clear

Resin Color

Everlight Electronics Co., Ltd.

Device No. : DSE-0003415

http://www.everlight.com

Prepared date: 20-Apr.-2010

Rev. 2

Page: 1 of 15

Prepared by: Ryan Chen
