D38999/20KJ20AN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> D38999/20KJ20AN

Preview

D38999/20KJ20AN: DescriptionMIL Series Connector, 30 Contact(s), Stainless Steel, Male, Crimp Terminal, Receptacle; CategoryThe connector; File Size193KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

D38999/20KJ20AN Overview

MIL Series Connector, 30 Contact(s), Stainless Steel, Male, Crimp Terminal, Receptacle

D38999/20KJ20AN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: MIL-DTL-38999, POLARIZED, COMPATIBLE CONTACTS: M39029/58-363; M39029/58-364; M39029/28-211; M39029/90-529
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	J
Termination type	CRIMP
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

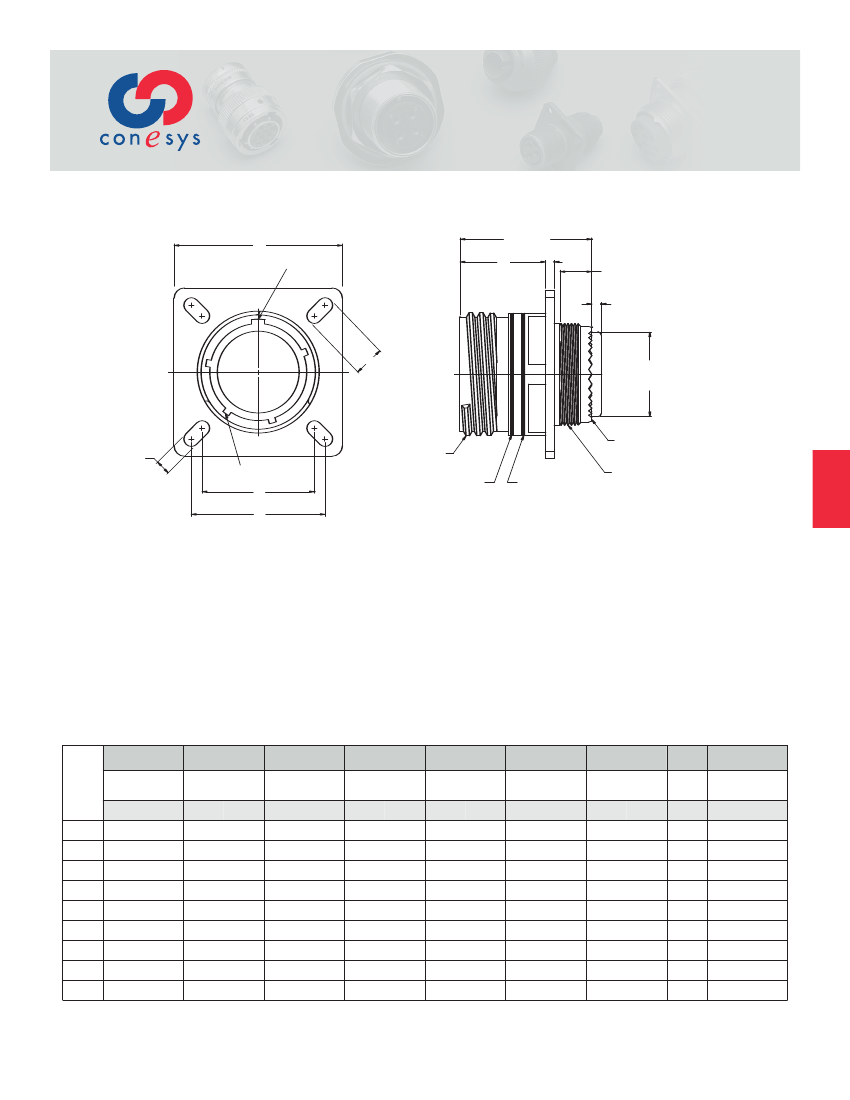

D38999/20

Wall Mounting Receptacle

AE320

Triple Start Threaded Coupling, Crimp Removable, Rear Release, Scoop-Proof

A

MASTER KEYWAY

31.50(1.240)

MAX

G

MAX

H

MAX

7.11(.280)

MIN FULL THREAD

2.16(.085) MAX

GROMMET EXTENSION

D

L

MAX

GROMMET

MIL–DTL–

38999 S III

J

NUMBER OF TEETH

E

4 MINOR KEYWAYS

F

MATING THREAD

C

B

LOCKING INDICATOR BAND

COLOR: RED

BLUE COLOR BAND

(REAR RELEASE)

K

ACCESSORY THREAD

Page 38

Page 44

Pages 17–19

Page 37

Pages 15, 16

Page 42

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

Note 1:

“K” Accessory Thread for AE320 is same as AE326

(“D” Accessory Thread) on page 41.

Note 2:

“F” Mating Thread for AE320 is same as AE326

(“E” Mating Thread) on page 41 except it is Class 2A.

Note 3:

Maximum Grommet Extension for insert layouts

incorporating size 8 and 10 contacts =

5.95(.234).

A

Shell

Size

A

B

C

D

E

F

G

H

J

±.012

inch

.937

1.031

1.126

1.220

1.311

1.437

1.563

1.689

1.811

±.30

mm

23.80

26.20

28.60

31.00

33.30

36.50

39.70

42.90

46.00

inch

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.500

B

(TP)

mm

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

38.10

inch

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

C

(TP)

mm

15.09

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

±.008

inch

.216

.194

.173

.194

.242

D

±.20

mm

5.49

4.93

4.39

4.93

6.15

±.008

inch

.128

.154

E

±.20

mm

3.25

3.91

G

Maximum

inch

.820

.790

mm

20.83

20.07

H

Maximum

inch

.098

.126

mm

2.50

3.20

J

No. of

Teeth

12

16

20

24

28

32

36

40

44

L

Maximum

inch

.299

.427

.541

.666

.791

.897

1.022

1.147

1.272

mm

7.59

10.85

13.74

16.92

20.09

22.78

25.96

29.13

32.31

www.conesys.com

– 39 –

sales

@

aero-electric.com
