BQ2005S

Description
Battery Charge Controller, CMOS, PDSO20,
CategoryThe power supply circuit
File Size652KB,15 Pages
ManufacturerBenchmarq Microelectronics Inc
Download Datasheet Parametric Compare View All

BQ2005S Online Shopping

Suppliers Part Number Price MOQ In stock
BQ2005S - - View Buy Now

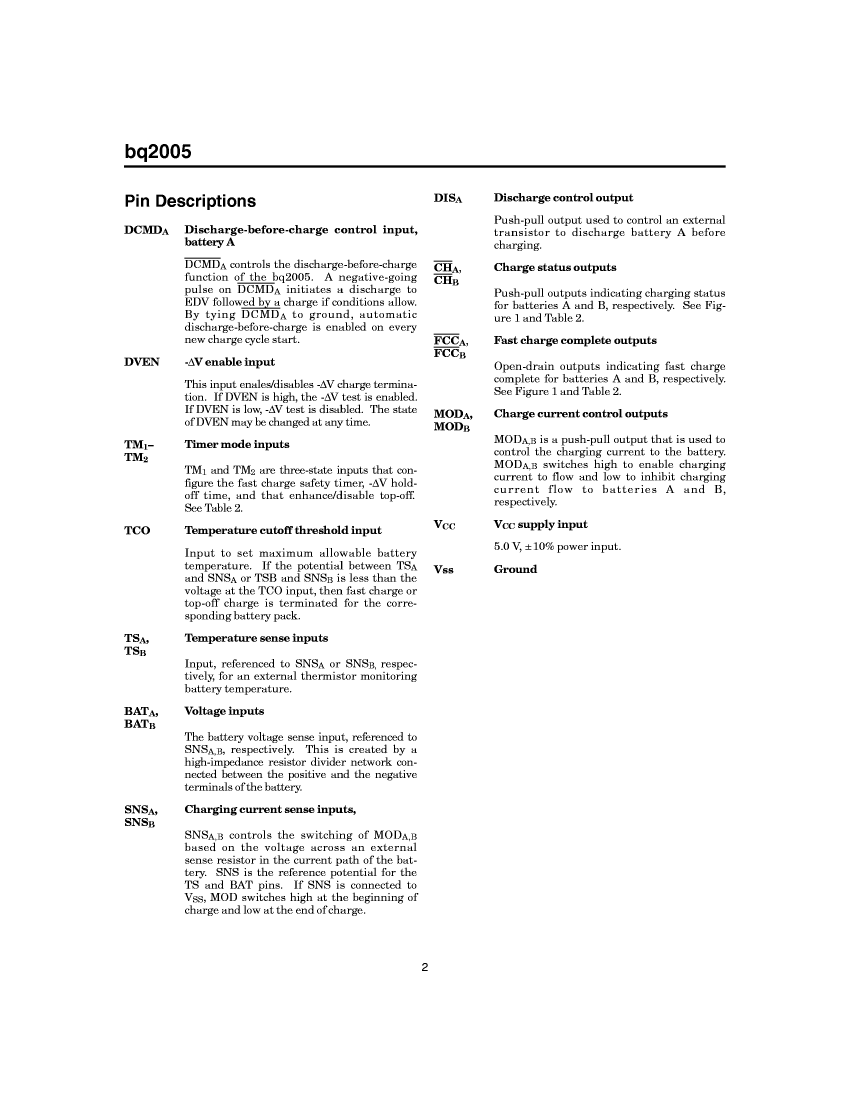

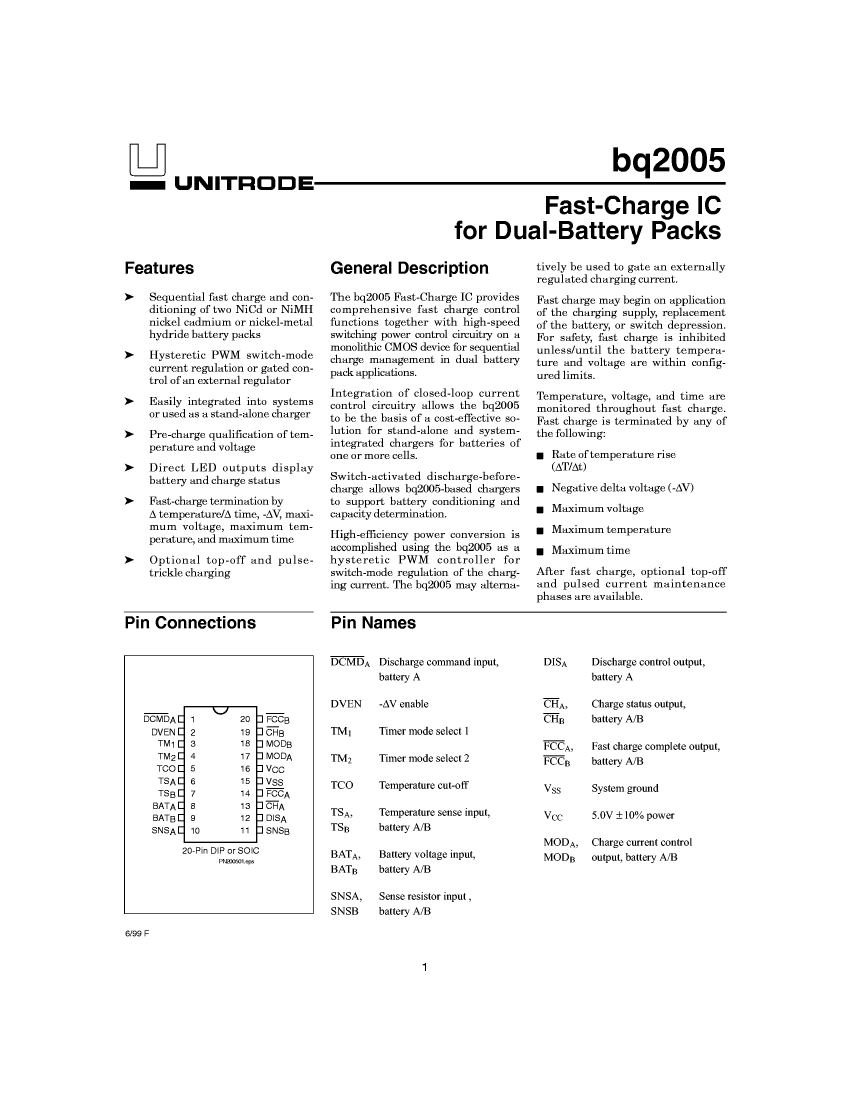

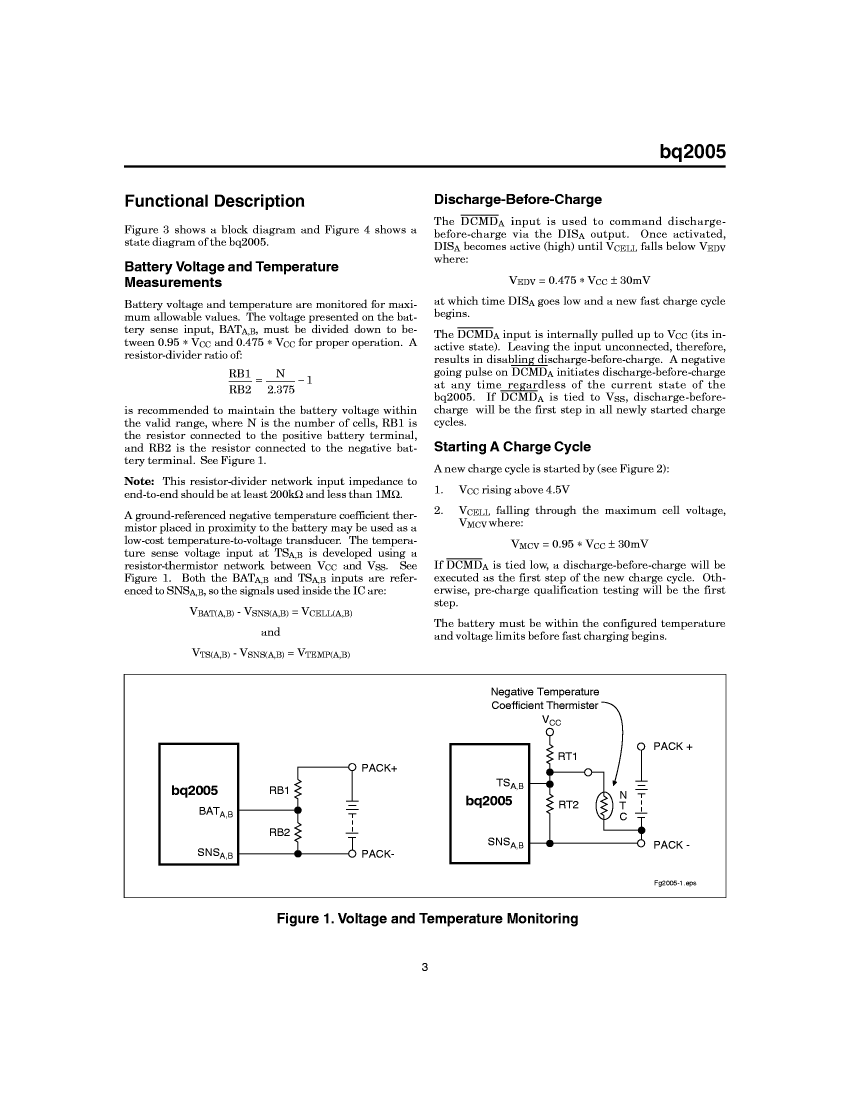

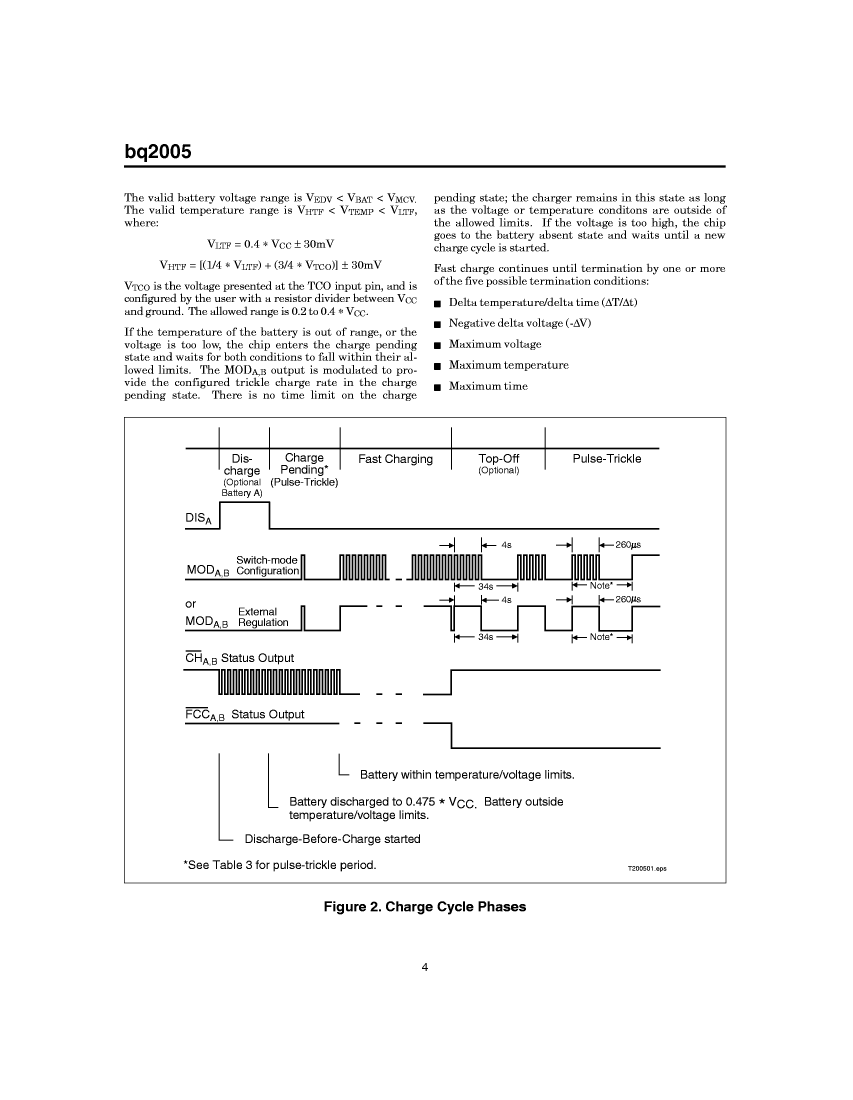

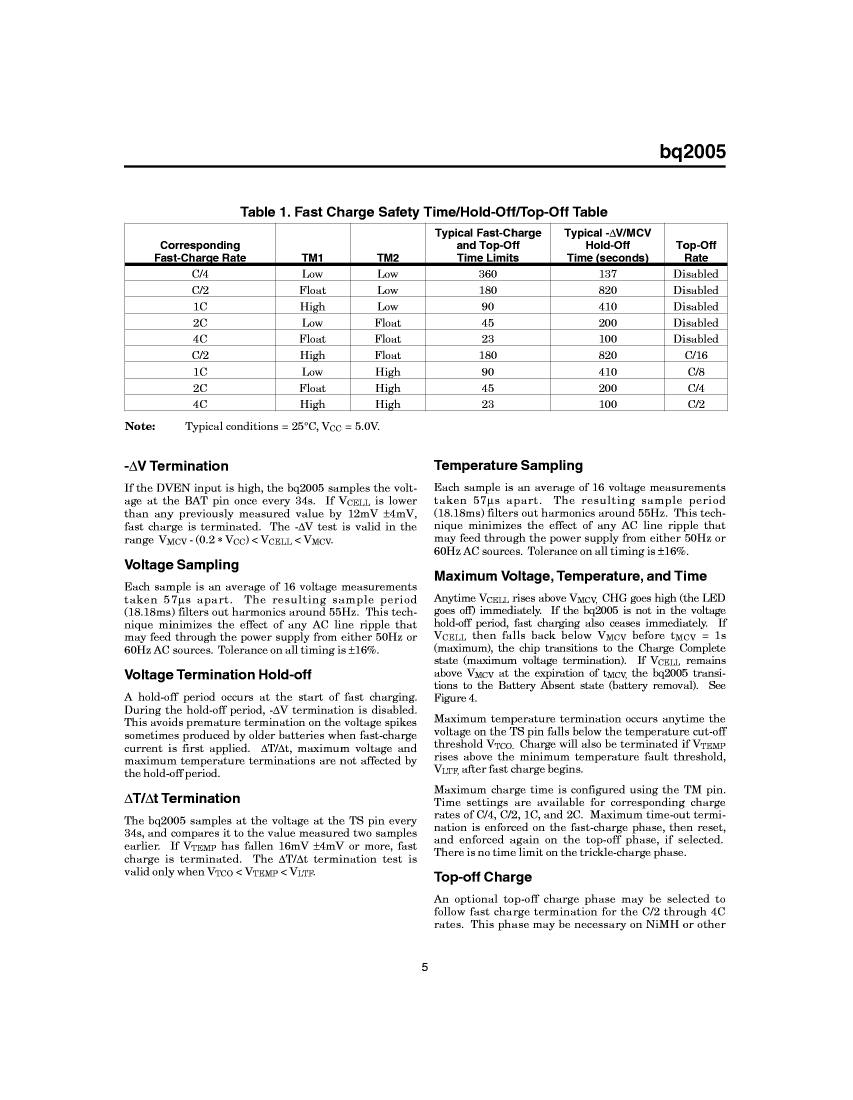

BQ2005S Overview

Battery Charge Controller, CMOS, PDSO20,

BQ2005S Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerBenchmarq Microelectronics Inc
Reach Compliance Codeunknown
Is SamacsysN
Other featuresDUAL BATTERY FAST CHARGER
Analog Integrated Circuits - Other TypesBATTERY CHARGE CONTROLLER
control modeCURRENT-MODE
Control TechnologyFREQUENCY MODULATION
Maximum input voltage5.5 V
Minimum input voltage4.5 V
Nominal input voltage5 V
JESD-30 codeR-PDSO-G20
JESD-609 codee0
Number of functions1
Number of terminals20
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum supply current (Isup)3 mA
surface mountYES
Switch configurationSINGLE
Maximum switching frequency300 kHz
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

BQ2005S Related Products

BQ2005S BQ2005PN
Description Battery Charge Controller, CMOS, PDSO20, Battery Charge Controller, CMOS, PDIP20,
Is it Rohs certified? incompatible incompatible
Reach Compliance Code unknown unknown
Other features DUAL BATTERY FAST CHARGER DUAL BATTERY FAST CHARGER
Analog Integrated Circuits - Other Types BATTERY CHARGE CONTROLLER BATTERY CHARGE CONTROLLER
control mode CURRENT-MODE CURRENT-MODE
Control Technology FREQUENCY MODULATION FREQUENCY MODULATION
Maximum input voltage 5.5 V 5.5 V
Minimum input voltage 4.5 V 4.5 V
Nominal input voltage 5 V 5 V
JESD-30 code R-PDSO-G20 R-PDIP-T20
JESD-609 code e0 e0
Number of functions 1 1
Number of terminals 20 20
Maximum operating temperature 70 °C 70 °C
Minimum operating temperature -20 °C -20 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified
Maximum supply current (Isup) 3 mA 3 mA
surface mount YES NO
Switch configuration SINGLE SINGLE
Maximum switching frequency 300 kHz 300 kHz
technology CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING THROUGH-HOLE
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Base Number Matches 1 1
