LC7432 datasheet, PDF - EEWORLD Datasheet

LC7432: DescriptionConsumer Circuit, CMOS, PZIP16, SEP-16; CategoryConsumption circuit; File Size268KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

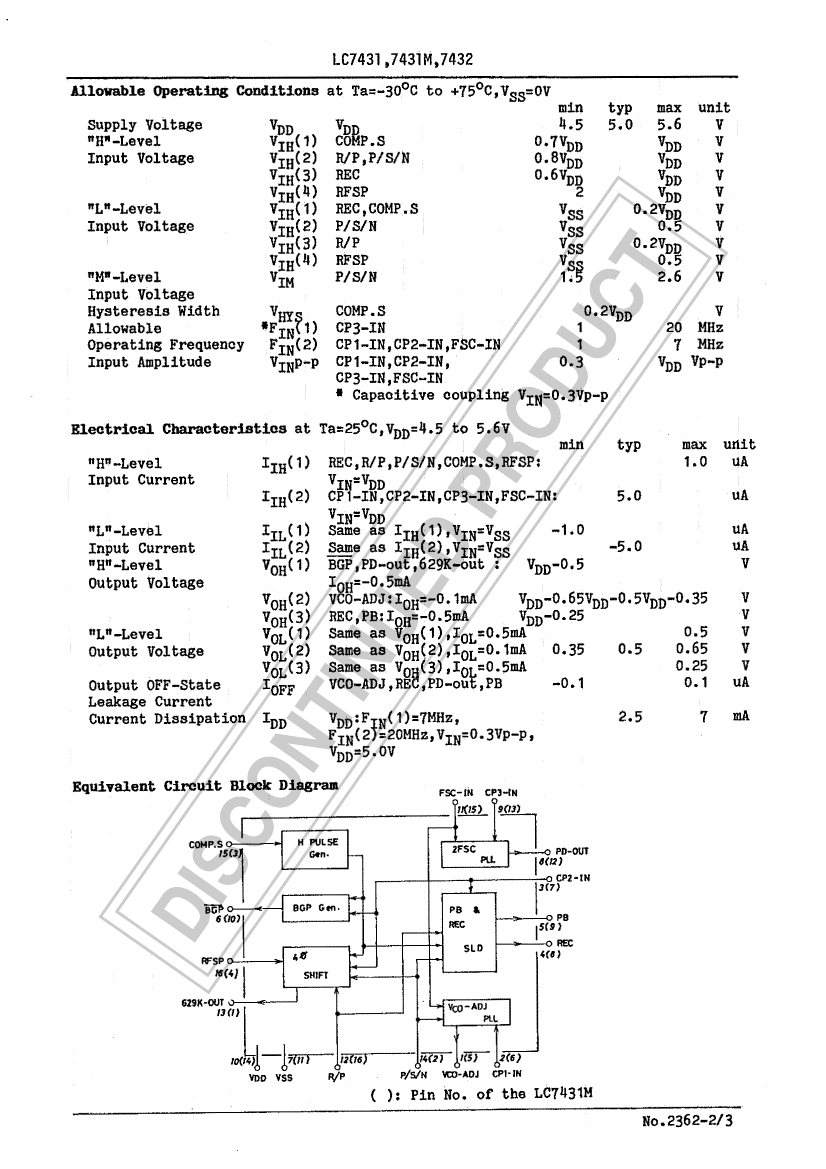

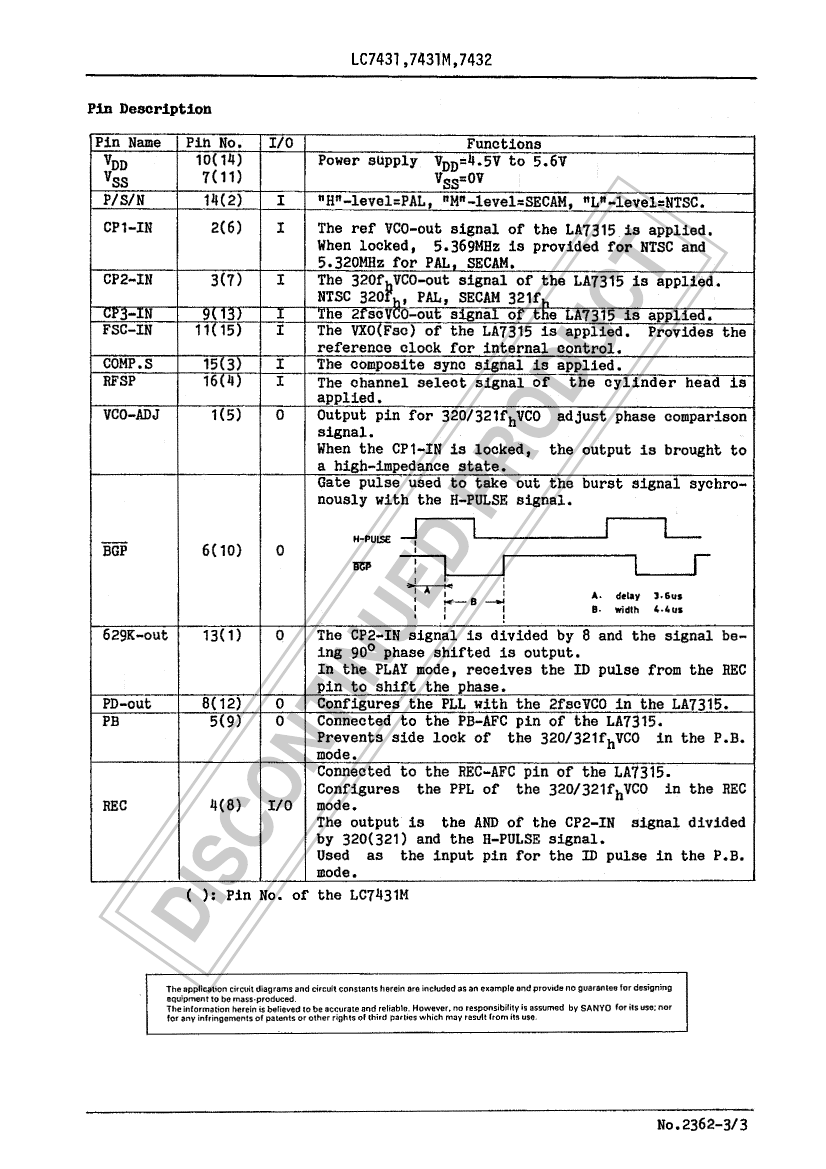

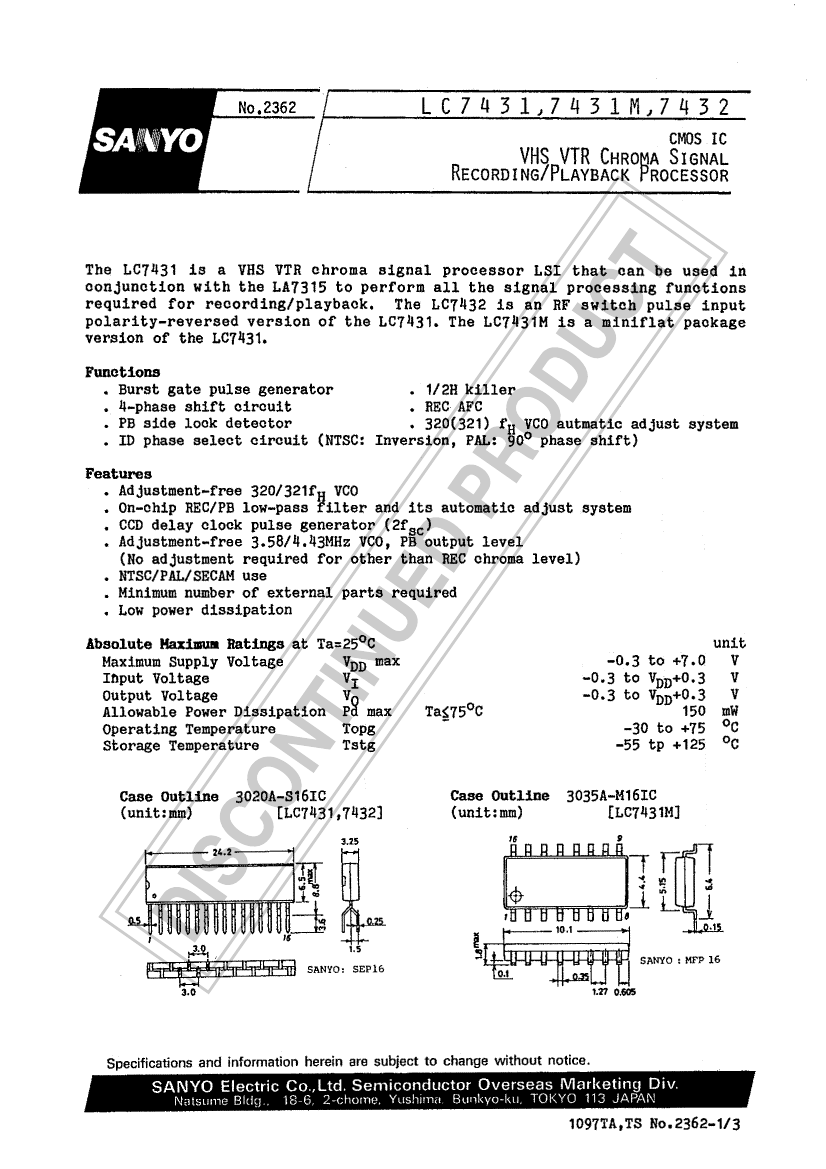

LC7432 Overview

Consumer Circuit, CMOS, PZIP16, SEP-16

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	ZIP
package instruction	ZIP,
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PZIP-T16
length	24.2 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	8.8 mm
Maximum slew rate	7 mA
Maximum supply voltage (Vsup)	5.6 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	1.5 mm
Terminal location	ZIG-ZAG
width	3.25 mm
Base Number Matches	1

	LC7432	LC7431M	LC7431
Description	Consumer Circuit, CMOS, PZIP16, SEP-16	Consumer Circuit, CMOS, PDSO16, MINI, FP-16	Consumer Circuit, CMOS, PZIP16, SEP-16
Maker	SANYO	SANYO	SANYO
Parts packaging code	ZIP	SOIC	ZIP
package instruction	ZIP,	SOP,	ZIP,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PZIP-T16	R-PDSO-G16	R-PZIP-T16
length	24.2 mm	10.1 mm	24.2 mm
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ZIP	SOP	ZIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	8.8 mm	1.8 mm	8.8 mm
Maximum slew rate	7 mA	7 mA	7 mA
Maximum supply voltage (Vsup)	5.6 V	5.6 V	5.6 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
surface mount	NO	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.5 mm	1.27 mm	1.5 mm
Terminal location	ZIG-ZAG	DUAL	ZIG-ZAG
width	3.25 mm	4.4 mm	3.25 mm
