HDSP-740x Series
7.6 mm (0.3 inch) Micro Bright
Seven Segment Displays
Data Sheet
HDSP-740x Series, HDSP-750x Series, HDSP-780x Series,
HDSP-A15x Series, HDSP-A40x Series
Description
The 7.6 mm (0.3 inch) LED seven segment displays
are designed for viewing distances up to 3 metres (10 feet).
These devices use an industry standard size package and
pinout. Both the numeric and ±1. overflow devices feature
a right hand decimal point. All devices are available as
either common anode or common cathode.
These displays are ideal for most applications. Pin for pin
equivalent displays are also available in a low current
design. The low current displays are ideal for portable
applications. For additional information see the Low
Current Seven Segment Displays.
Features
x
Available with colon for clock display
x
Compact package
– 0.300 x 0.500 inches
– Leads on 2.54 mm (0.1 inch) centers
x
Choice of colors
– AlGaAs Red, High Efficiency Red, Yellow, Green, Orange
x
Excellent appearance
– Evenly lighted segments
– Mitered corners on segments
– Surface color gives optimum contrast
– ±50° viewing angle
x
Design flexibility
– Common anode or common cathode
– Right hand decimal point
– ±1. Overflow Character
x
Categorized for luminous intensity
– Yellow and Green categorized for color
– Use of like categories yields a uniform display
x
High light output
x
High peak current
x
Excellent for long digit string multiplexing
x
Intensity and color selection available
– See Intensity and Color Selected Displays Data Sheet
x
Sunlight viewable AlGaAs
Devices
Orange
HDSP-
A401
A403
AlGaAs
[1]
HDSP-
A151
A153
HER
[1]
HDSP-
7501
7502
7503
7504
7507
7508
Yellow
[1]
HDSP-
7401
7403
Green
[1]
HDSP-
7801
7802
7803
7804
7807
7808
Description
Common Anode Right Hand Decimal
Common Anode Right Hand Decimal, Colon
Common Cathode Right Hand Decimal
Common Cathode Right Hand Decimal, Colon
CommonAnode ±1. Overfolw
Common Cathode ±1. Overfolw
Package
Drawing
A
B
C
D
E
F
Note:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-A10X AlGaAs, HDSP-335X HER, HDSP-A80X Yellow, and
HDSP-A90X Green data sheet for low current operation.
Part Numbering System
5082 – X X X X – X X X X X
HDS P – X X X X – X X X X X
Mechanical Option
[1]
00: No Mechanical Option
Color Bin Options
[1, 2]
0: No Color Bin Limitation
3: Color Bins 3- and 3+ only (applicable for Yellow devices only)
Z: Color Bins 2- and 3+ only (applicable for Yellow devices only)
Maximum Intensity Bin
[1, 2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1, 2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
1: Common Anode
2: Common Anode
3: Common Cathode
4: Common Cathode
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
A: 7.6 mm (0.3 inch) Single Digit Seven Segment Display
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Avago
representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1 bin per tube
(exceptions may apply). Please refer to respective datasheet for specific bin limit information.
2

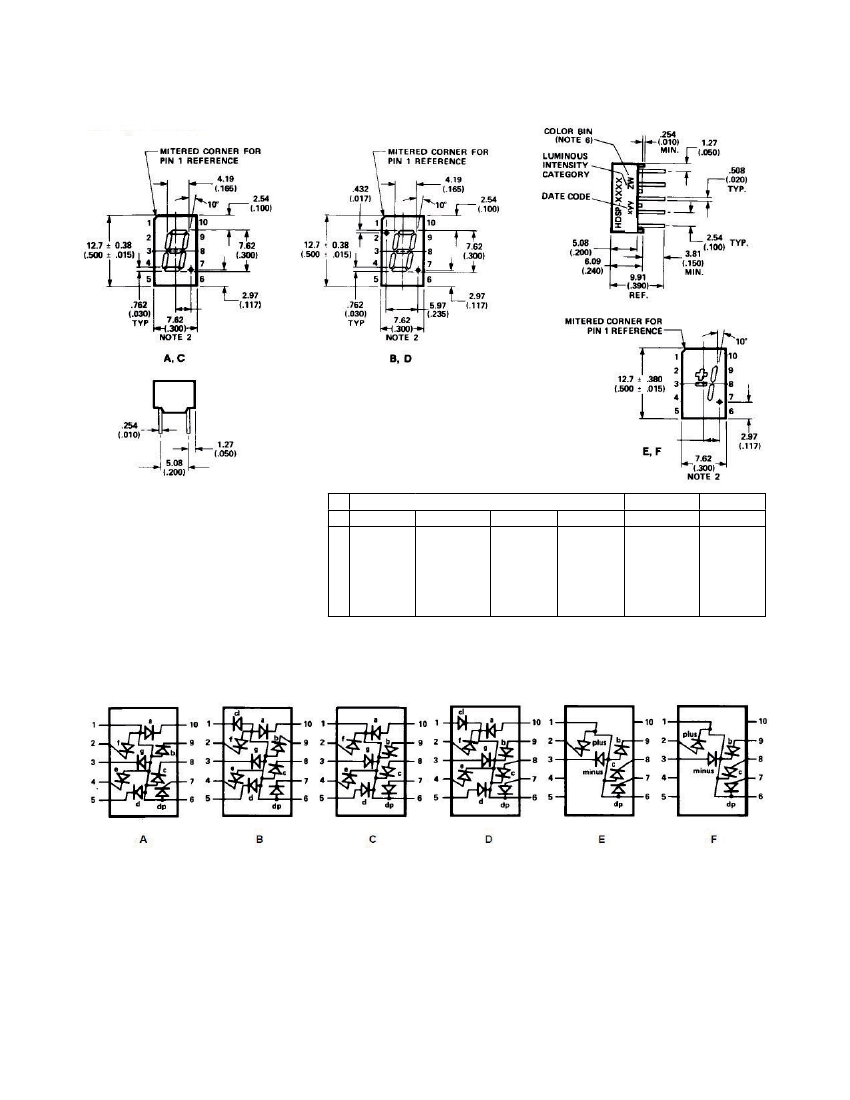

Package Dimensions
Notes:
1. All dimensions in millimetres (inches).
2. Maximum.
3. All untoleranced dimensions are
for reference only.
4. Redundant anodes.
5. Redundant cathodes.
6. For hdsp-7400/-7800 series product only.
FUNCTION
Pin
1
2
3
4
5
6
7
8
9
10
A
ANODE
[4]
CATHODE f
CATHODE g
CATHODE e
CATHODE d
ANODE
[4]
CATHODE DP
CATHODE c
CATHODE b
CATHODE a
B
CATHODE COLON
CATHODE f
CATHODE g
CATHODE e
CATHODE d
ANODE
CATHODE DP
CATHODE c
CATHODE b
CATHODE a
C
CATHODE
[5]
ANODE f
ANODE g
ANODE e
ANODE d
CATHODE
[5]
CATHODE DP
CATHODE c
CATHODE b
CATHODE a
D
ANODE COLON
ANODE f
ANODE g
ANODE e
ANODE d
CATHODE
ANODE DP
ANODE c
ANODE b
ANODE a
E
ANODE
[4]
CATHODE PLUS
CATHODE MINUS
NC
NC
ANODE
[4]
CATHODE DP
CATHODE c
CATHODE b
NC
F
CATHODE
[6]
ANODE PLUS
ANODE MINUS
NC
NC
CATHODE
[5]
ANODE DP
ANODE c
ANODE b
NC
Internal Circuit Diagram
3
Absolute Maximum Ratings
AlGaAs Red
HDSP-A150
Series
96
160
[1]
40
[2]
–
20 to +100
[9]
Description
Average Power per Segment or DP
Peak Forward Current per Segment or DP
DC Forward Current per Segment or DP
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per segment or DP
Wave Soldering Temperature for 3 Seconds
(1.59mm [0.063 in.] below Body)
HER/Orange
HDSP-7500/
-A40X
Series
105
90
[3]
30
[4]
Yellow
HDSP-7400
Series
80
60
[5]
20
[6]
–
40 to +100
Green
HDSP-7800
Series
105
90
[7]
30
[8]
Units
mW
mA
mA
°C
°C
V
°C
–
55 to +100
3.0
250
Notes:
1. See Figure 1 to establish pulsed conditions.
2. Derate above 46°C at 0.54 mA/°C.
3. See Figure 6 to establish pulsed conditions.
4. Derate above 53°C at 0.45 mA/°C.
5. See Figure 7 to establish pulsed conditions.
6. Derate above 81°C at 0.52 mA/°C.
7. See Figure 8 to establish pulsed conditions.
8. Derate above 39°C at 0.37 mA/°C.
9. For operation below –20°C, contact your local Avago components sales office or an authorized distributor.
Electrical/Optical Characteristics at T
A
= 25°C
AlGaAs Red
Device Series
HDSP-
Parameter
Luminous Intensity/Segment
[1,2,5]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/
Segment or DP
Thermal Resistance LED Junction-to-Pin
Symbol
I
V
V
F
O
PEAK
O
d
V
R
'V
F
/°C
RT
J-PIN
Min.
6.9
Typ.
14.0
1.8
2.0
Max.
Units
mcd
V
Test Conditions
I
F
= 20 mA
I
F
= 20 mA
I
F
= 100 mA
3.0
V
nm
nm
V
mV/°C
°C/W/Seg
A15x
645
637
3.0
15.0
-2
255
I
R
= 100
PA
4
High Efficiency Red
Device Series
HDSP-
Parameter
Luminous Intensity/Segment
[1,2,6]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
750x
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/
Segment or DP
Thermal Resistance LED Junction-to-Pin
Symbol
I
V
V
F
O
PEAK
O
d
V
R
'V
F
/°C
RT
J-PIN
Min.
360
Typ.
980
5390
2.0
635
626
Max.
Units
Pcd
Test Conditions
I
F
= 5 mA
I
F
= 20 mA
I
F
= 20 mA
2.5
V
nm
nm
V
mV/°C
°C/W/Seg
3.0
30
-2
200
I
R
= 100
PA
Orange
Device Series
HDSP-
Parameter
Luminous Intensity/Segment
[1,2,6]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
A40x
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/
Segment or DP
Thermal Resistance LED Junction-to-Pin
Symbol
I
V
V
F
O
PEAK
O
d
V
R
'V
F
/°C
RT
J-PIN
Min.
Typ.
0.70
2.0
600
603
Max.
Units
mcd
Test Conditions
I
F
= 5 mA
I
F
= 20 mA
2.5
V
nm
nm
V
mV/°C
°C/W/Seg
3.0
30
-2
200
I
R
= 100
PA
5
