87906-0000T: DescriptionHEADER CONNECTOR,CABLE MNT,6 CONTACTS,0.079 PITCH,IDC TERMINAL,GRAY; CategoryThe connector; File Size129KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

87906-0000T Overview

HEADER CONNECTOR,CABLE MNT,6 CONTACTS,0.079 PITCH,IDC TERMINAL,GRAY

87906-0000T Parametric

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.15 inch
subject depth	0.142 inch
body length	0.272 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	NICKEL
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	879
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	6
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

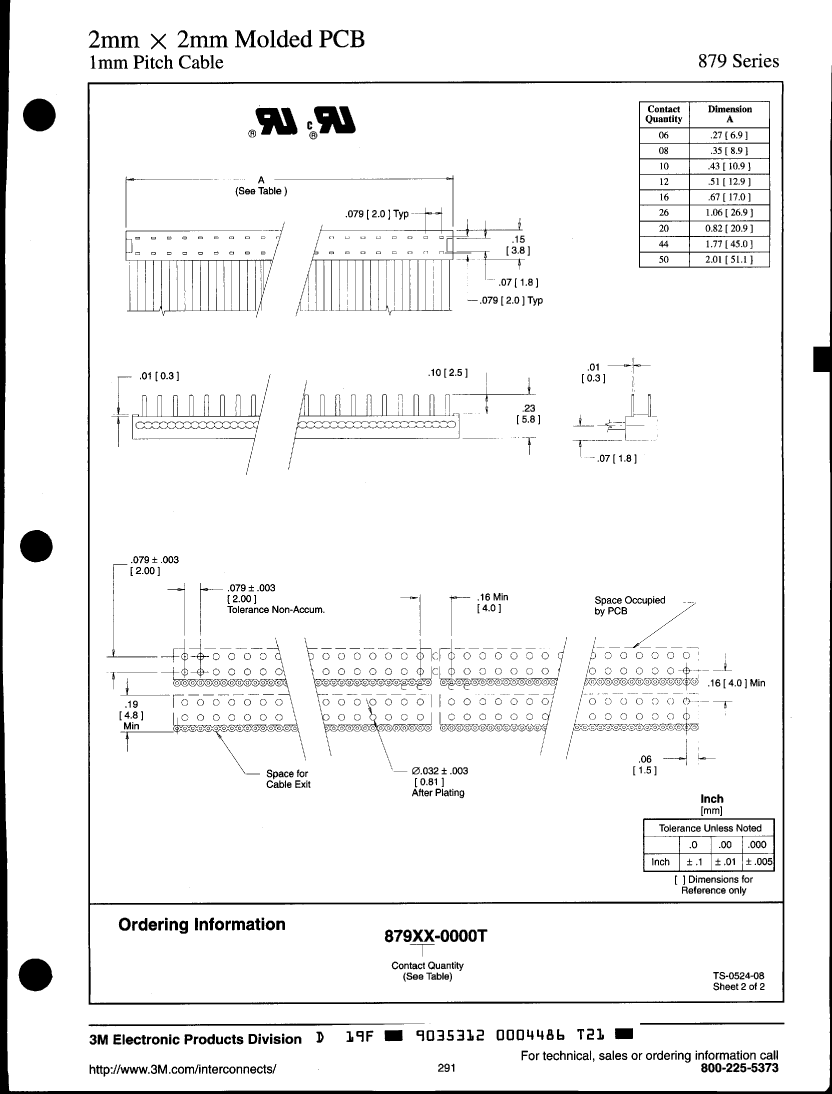

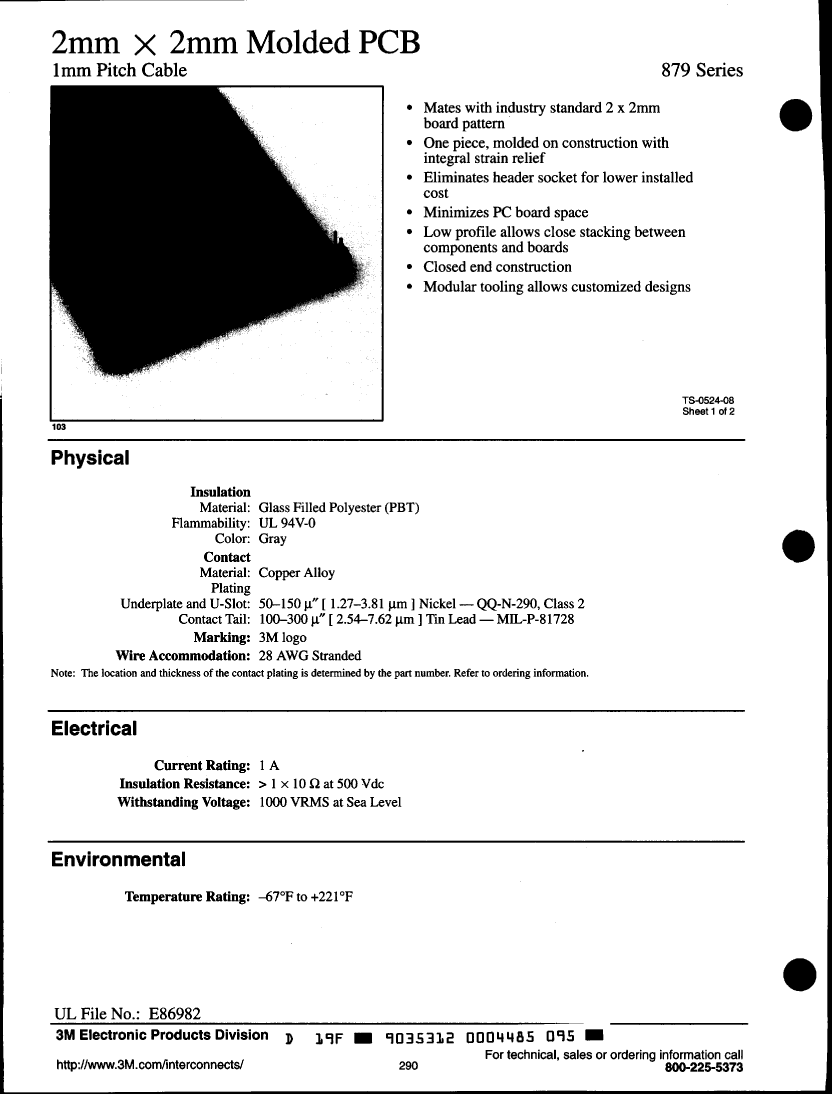

Preview

Download Datasheet

View All

87906-0000T Related Products

	87906-0000T	87944-0000T	87916-0000T	87910-0000T	87950-0000T
Description	HEADER CONNECTOR,CABLE MNT,6 CONTACTS,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,44 CONTACTS,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,16 CONTACTS,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,10 CONTACTS,0.079 PITCH,IDC TERMINAL,GRAY	HEADER CONNECTOR,CABLE MNT,50 CONTACTS,0.079 PITCH,IDC TERMINAL,GRAY
Maker	3M	3M	3M	3M	3M
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
body width	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch
subject depth	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch
body length	0.272 inch	1.772 inch	0.669 inch	0.429 inch	2.012 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI
Contact completed and terminated	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	879	879	879	879	879
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	100u inch	100u inch	100u inch	100u inch	100u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC
Total number of contacts	6	44	16	10	50
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
