MJ14003 datasheet, PDF - EEWORLD Datasheet

MJ14003: DescriptionPower Bipolar Transistor, 60A I(C), 1-Element, PNP, Silicon, Metal, 2 Pin, MODIFIED TO-3, 2 PIN; CategoryThe transistor; File Size131KB，2 Pages; ManufacturerAdvanced Semiconductor, Inc.

Download Datasheet Parametric Compare View All

MJ14003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MJ14003	-	-	View	Buy Now

Power Bipolar Transistor, 60A I(C), 1-Element, PNP, Silicon, Metal, 2 Pin, MODIFIED TO-3, 2 PIN

Parameter Name	Attribute value
Maker	Advanced Semiconductor, Inc.
Parts packaging code	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2
Contacts	2
Reach Compliance Code	unknown
Is Samacsys	N
Shell connection	COLLECTOR
Maximum collector current (IC)	60 A
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JESD-30 code	O-MBFM-P2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power dissipation(Abs)	300 W
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM
Transistor component materials	SILICON
Nominal transition frequency (fT)	1 MHz
Base Number Matches	1

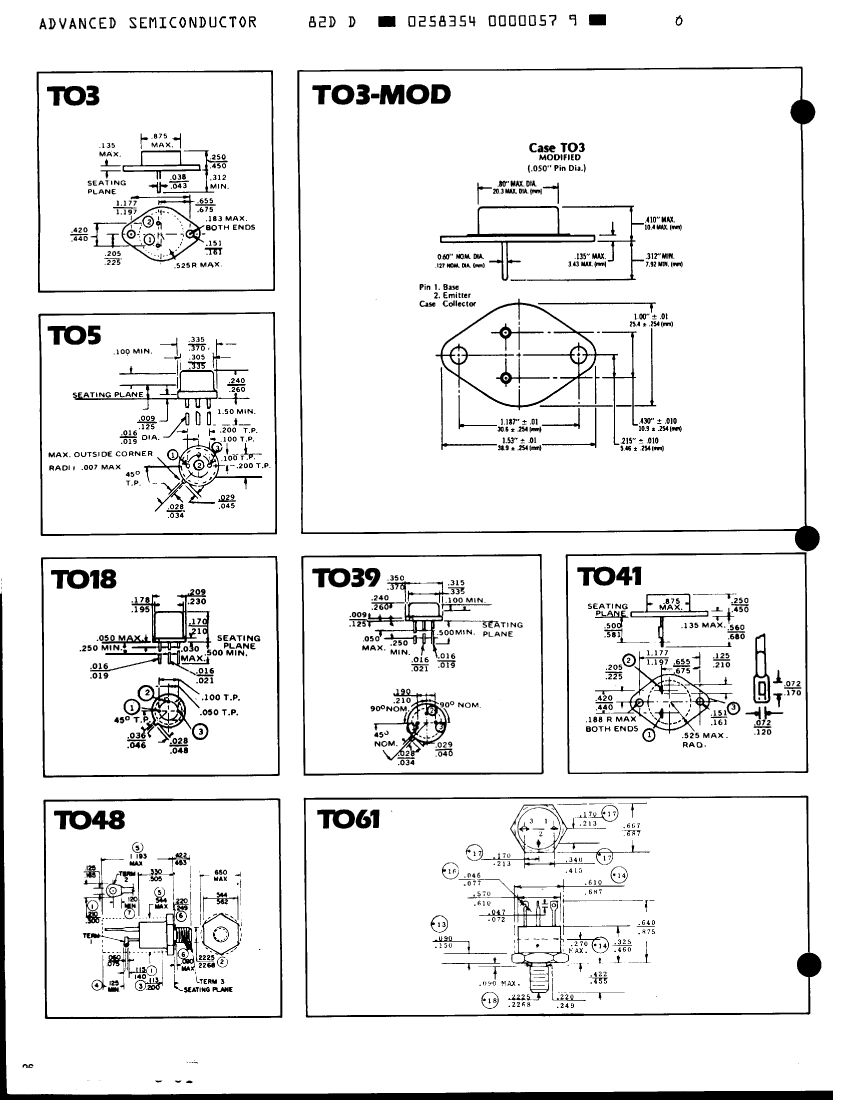

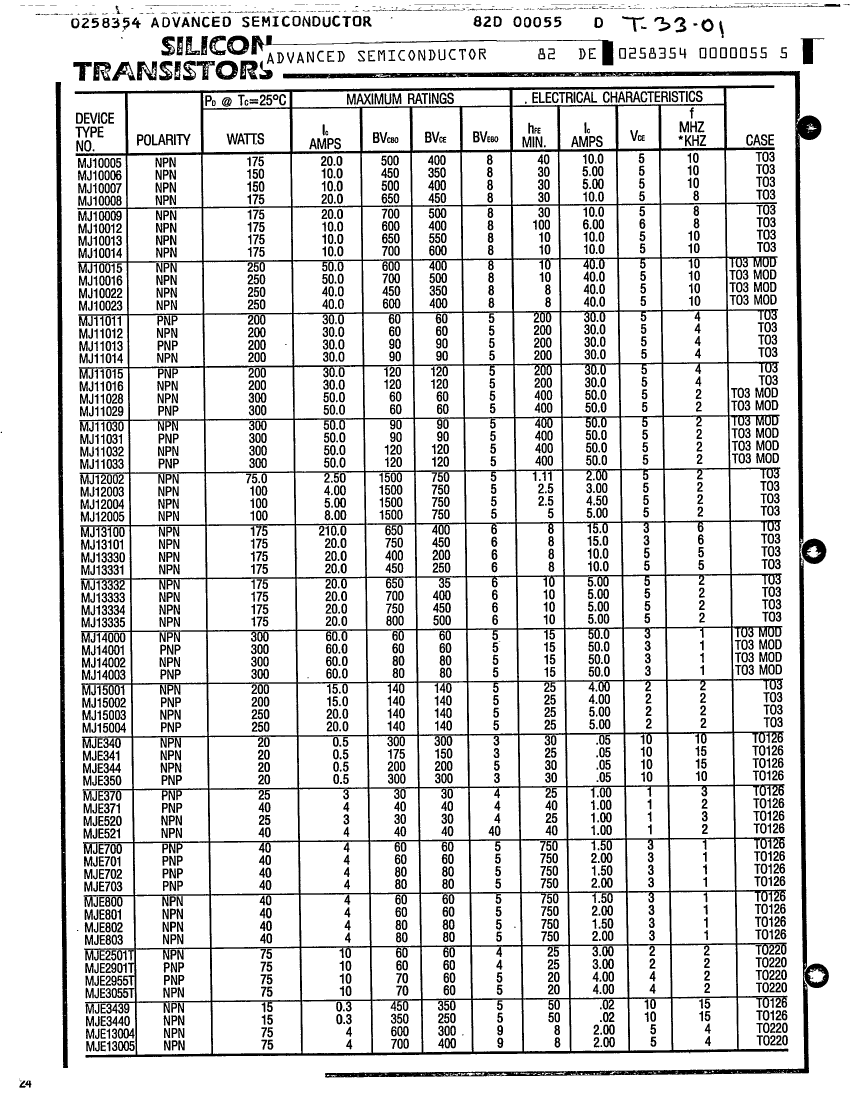

IPN= 0258354 0000056 631

	MJ14003	MJ14002	MJ10016
Description	Power Bipolar Transistor, 60A I(C), 1-Element, PNP, Silicon, Metal, 2 Pin, MODIFIED TO-3, 2 PIN	Power Bipolar Transistor, 60A I(C), 1-Element, NPN, Silicon, Metal, 2 Pin, MODIFIED TO-3, 2 PIN	Power Bipolar Transistor, 50A I(C), 1-Element, NPN, Silicon, Metal, 2 Pin, MODIFIED TO-3, 2 PIN
Maker	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.	Advanced Semiconductor, Inc.
Parts packaging code	TO-204AA	TO-204AA	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2
Contacts	2	2	2
Reach Compliance Code	unknown	unknown	unknown
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	60 A	60 A	50 A
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	15	15	10
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C
Package body material	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	NPN	NPN
Maximum power dissipation(Abs)	300 W	300 W	250 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	1 MHz	1 MHz	10 MHz
Is Samacsys	N	N	-
Base Number Matches	1	1	-
