DL5249-TP: DescriptionZener Diode, 19V V(Z), 20%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, GLASS, MINIMELF-2; CategoryDiscrete semiconductor diode; File Size622KB，5 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

DL5249-TP Overview

Zener Diode, 19V V(Z), 20%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, GLASS, MINIMELF-2

DL5249-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	MELF
package instruction	ROHS COMPLIANT, GLASS, MINIMELF-2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-LELF-R2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	19 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	20%
Working test current	6.6 mA
Base Number Matches	1

Preview

Download Datasheet

View All

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

DL5221

THRU

DL5267

500 mW

Zener Diode

2.4 to

Volts

MINIMELF

Cathode Mark

Features

•

Wide Voltage Range Available

Glass Package

High Temp Soldering: 260°C for 10 Seconds At Terminals

Surface Mount Package

Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates

Compliant. See ordering information)

Marking

Cathode band denotes polarity

Maximum Ratings

•

Operating Temperature: -65°C to +175°C

Storage Temperature: -65°C to +175°C

500 mWatt DC Power Dissipation

Power Derating: 4.0mW/°C above 50°C

Forward Voltage @ 200mA: 1.1 Volts

Moisture Sensitivity Level 1

Figure 1 - Typical Capacitance

100

At zero volts

At –2 Volts V

INCHES

MIN

.130

.008

.055

DIMENSIONS

MIN

3.30

.20

1.40

100

Typical Capacitance (pf) –

versus

– Zener voltage (V

)

Figure 2 - Derating Curve

200

DIM

MAX

.146

.016

.059

MAX

3.70

.40

1.50

NOTE

∅

SUGGESTED SOLDER

PAD LAYOUT

400

0.105

200

0.075”

0.030”

150 175 225

Temperature

°C

Power Dissipation (mW) -

Versus

- Ambient Temperature

°C

Note:1.Lead in Glass Exemption Applied, see EU Directive Annex 5.

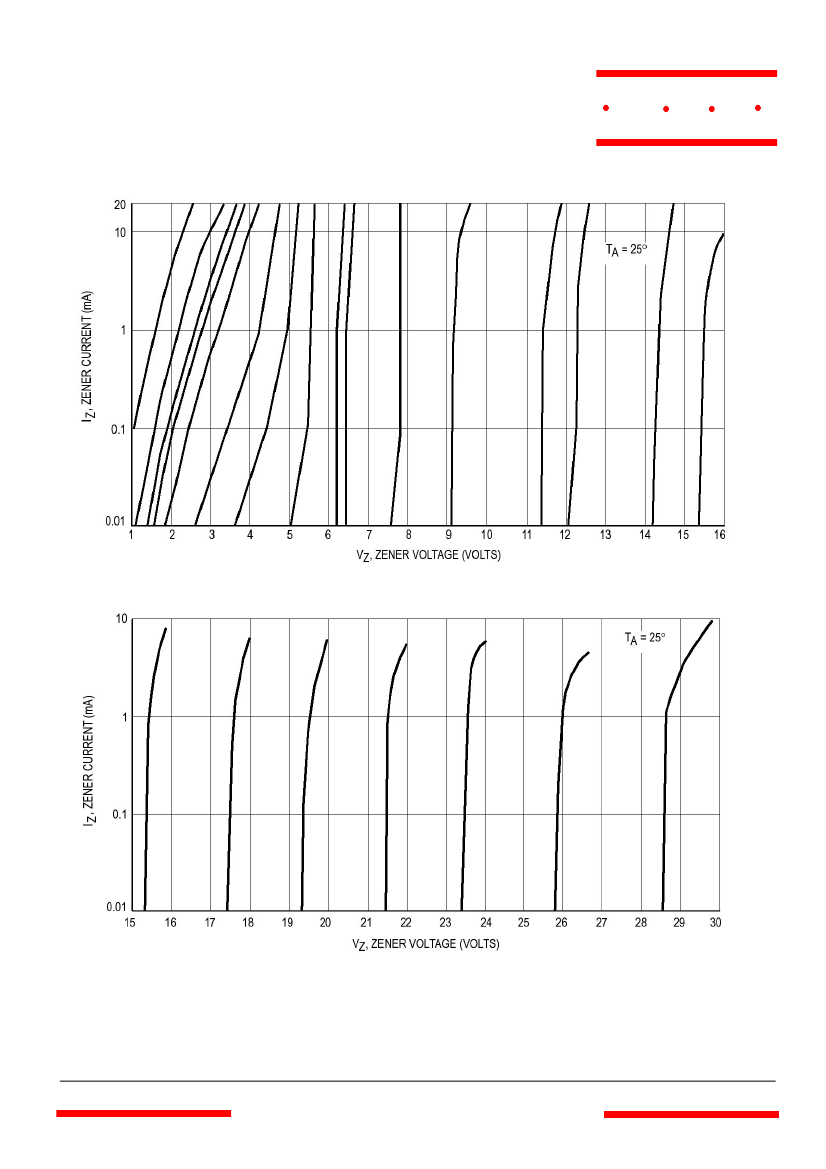

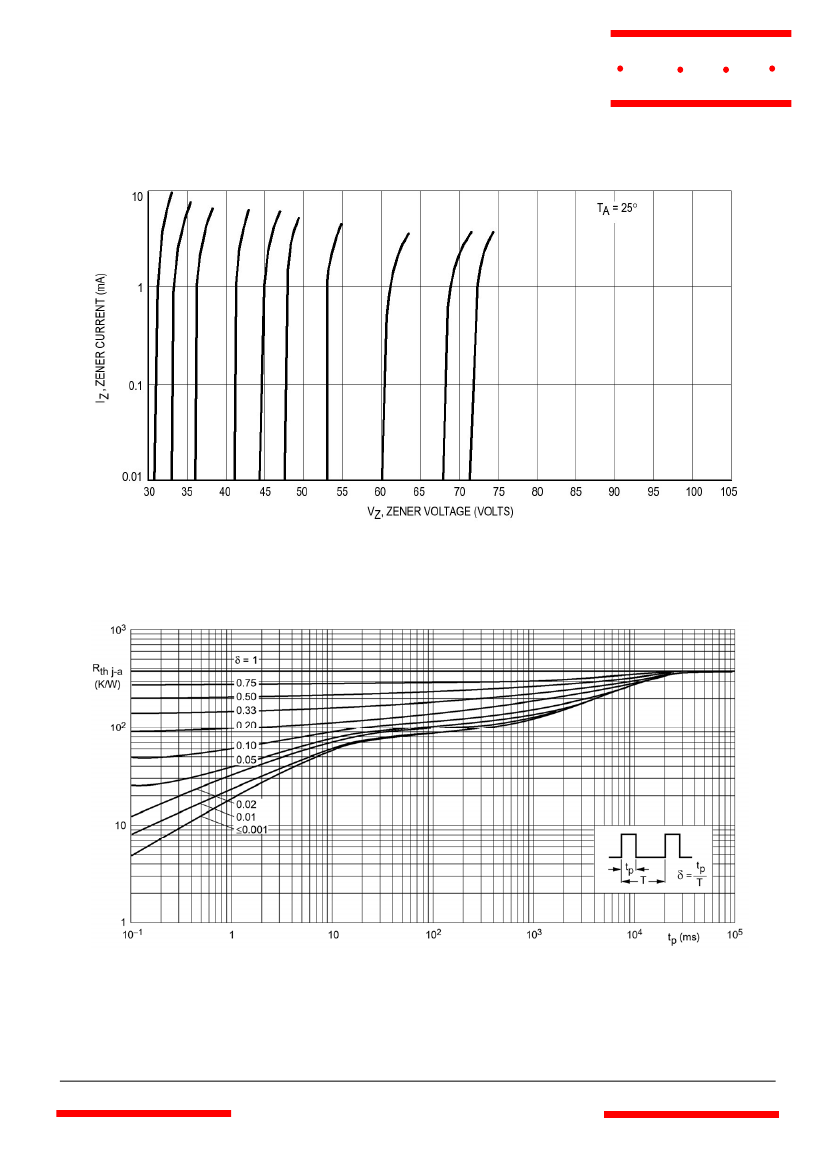

Revision:

www

mccsemi

com

1 of

2011/01/01
