54LS114FM datasheet, PDF - EEWORLD Datasheet

54LS114FM: DescriptionJbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14,; Categorylogic; File Size64KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS114FM Overview

Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
Is Samacsys	N
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP
Humidity sensitivity level	2A
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	NEGATIVE EDGE
Base Number Matches	1

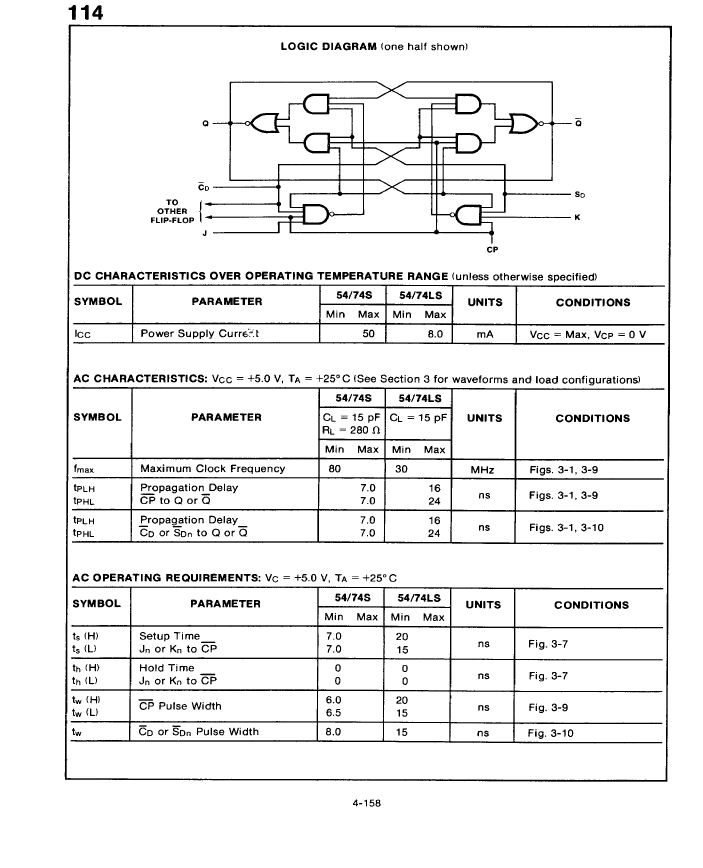

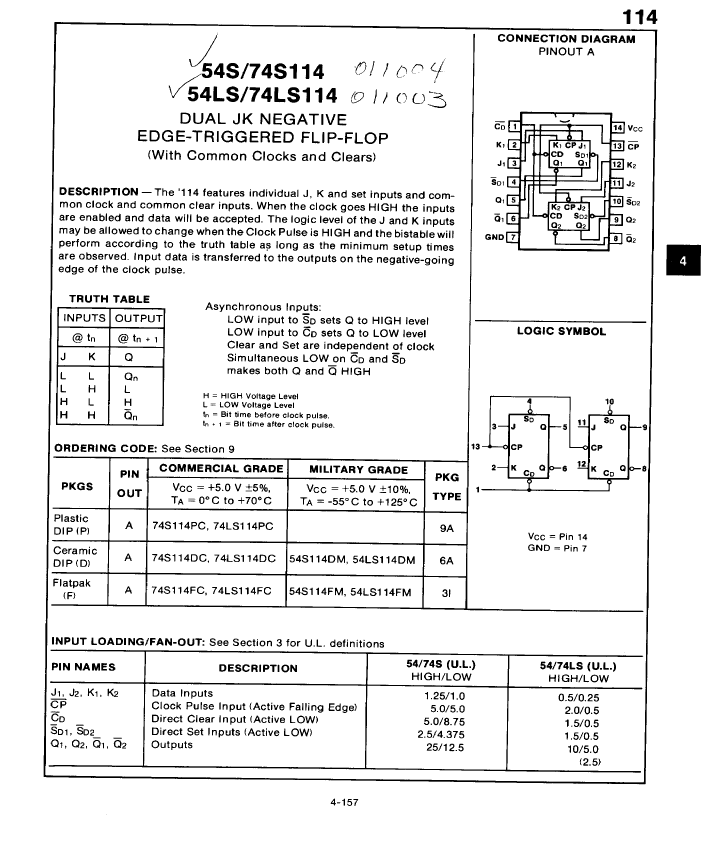

This Material Copyrighted By Its Respective Manufacturer

	54LS114FM	74S114FC	54LS114DM
Description	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14,	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDFP14,	Jbar-Kbar Flip-Flop, 2-Func, Negative Edge Triggered, TTL, CDIP14,
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant
Is Samacsys	N	N	N
JESD-30 code	R-XDFP-F14	R-XDFP-F14	R-XDIP-T14
JESD-609 code	e0	e0	e0
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP
Humidity sensitivity level	2A	2A	2A
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	DFP	DIP
Encapsulate equivalent code	FL14,.3	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
Base Number Matches	1	1	1
