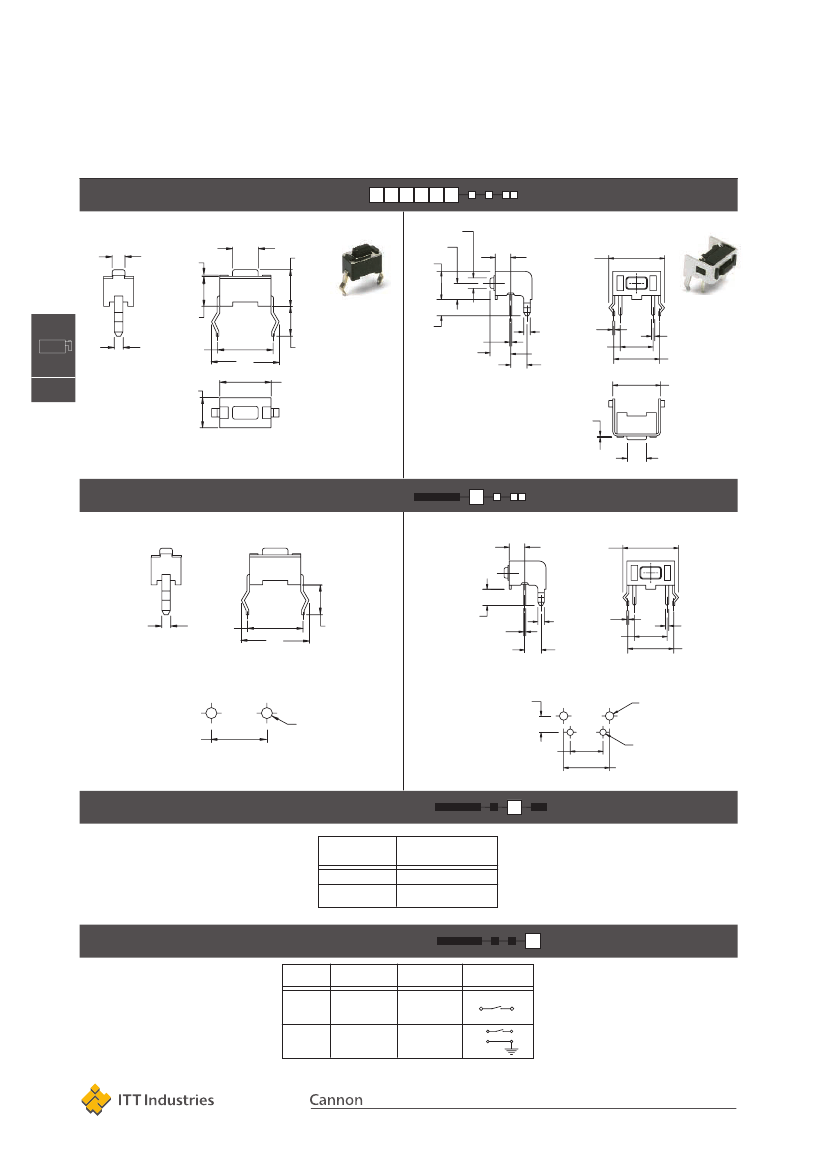

PTS635 Series

3,5 mm Tact Switches

Features/Benefits

•

Compact size 6 x 3.5 mm

•

Variety of switch heights

•

Choice of actuation force

Typical Applications

•

Consumer products

Instrumentation

Computer products

Industrial

Specification

FUNCTION: Momentary action

CONTACT ARRANGEMENT: SPST, N.O.

TERMINALS: PC pins

Process

SOLDERING: Preheating to 100˚C for 45 sec. max. Keep flux

flush with top surface of PCB; do not apply to component side of

PCB and area where terminals are located. Soldering to 255˚C for

5 sec. max. Clean by brushing on solder surface. Do not clean

switch with solvents.

Tactile Switches

Mechanical

ACTUATION FORCE: PTS635L models: 130 grams.

PTS635H models: 200 grams.

LIFE EXPECTANCY: 20,000 operations.

Materials

BASE: 6/6 nylon or glass filled polyester (PBT) (UL 94V-0).

ACTUATOR: 6/6 nylon or polyacetal (UL 94HB).

COVER PLATE: PTS635S and PTS635V models: Tin plated

stainless steel

DOME CONTACTS: Phosphor bronze, silver clad.

STATIONARY CONTACTS: Brass, silver plated.

TERMINALS: Brass, silver plated. Insert molded.

Electrical

CONTACT RATING: 50 mA @ 12 V DC.

DIELECTRIC STRENGTH: 250 V AC min.

CONTACT RESISTANCE: 100 mΩ max. initial.

INSULATION RESISTANCE: 10

Ω

min.

Environmental

OPERATING TEMPERATURE: -40˚C to 60˚C

Packaging

Bulk packaging.

NOTE:

Specifications listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

How To Order

Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired

option from each category and place it in the appropriate box.

Termination

Thru-hole

Vertical

Actuation Force

130 grams

200 grams

Actuator Height to PCB / Ground Pin

4,3 (.169), thru-hole

5,0 (.197), thru-hole

3,15 (.124), vertical

3,85 (.151), vertical

Dimensions are shown: mm (inch)

Dimensions subject to change

B-55

www.ittcannon.com

PTS635 Series

3,5 mm Tact Switches

SERIES

PTS635

1,5

(.059) 0,6 MAX.

(.025) 2x

3,0

(.118)

"H"

1,6

(.063)

2,5

(.098)

4,3

(.169)

8,5±0,5

2,4

(.093) (.335±.020)

3,5

(.138)

1,0 2x

(.039)

6,5

(.256)

3,5 2x

(.138)

PTS635S Model

2,5 4x

(.098)

0,3 2x

(.012)

2,5 2x

(.098)

6,0

(.236)

1,0 2x

(.039)

"L"

0,3 2x

(.012)

5,0

(.197)

PTS635V Model

0,5 2x

(.020)

7,0

(.276)

7,3

(.287)

7,9

(.311)

Tactile Switches

3,5

(.138)

0,6 MAX.

(.025) 2x

3,0

(.118)

TERMINATION

THRU-HOLE

VERTICAL

8,5±0,5

2,4

(.093) (.335±.020)

1,0 2x

6,5

(.039) (.256)

7,9

(.311)

3,5 2x

(.138)

2,5 4x

(.098)

0,3 2x

(.012)

2,5 2x

(.098)

1,0 2x

(.039)

0,3 2x

(.012)

5,0

(.197)

0,5 2x

(.020)

7,0

(.276)

PCB LAYOUT

2,5

(.098)

ø1,3 TYP.

(.051)

6,5

(.256)

5,0

(.197)

PCB LAYOUT

ø1,3 2x

(.051)

ø1,0 2x

(.039)

7,0

(.276)

ACTUATION FORCE

OPTION

CODE

FORCE

130 grams

200 grams

ACTUATOR HEIGHT

OPTION

CODE

HEIGHT “H” or

LENGTH “L”

4,3 (.169)

5,0 (.197)

3,15 (.124)

3,85 (.151)

TERMINATION

Thru-hole

Vertical

SCHEMATIC

Dimensions are shown: mm (inch)

Dimensions subject to change

B-56

www.ittcannon.com
