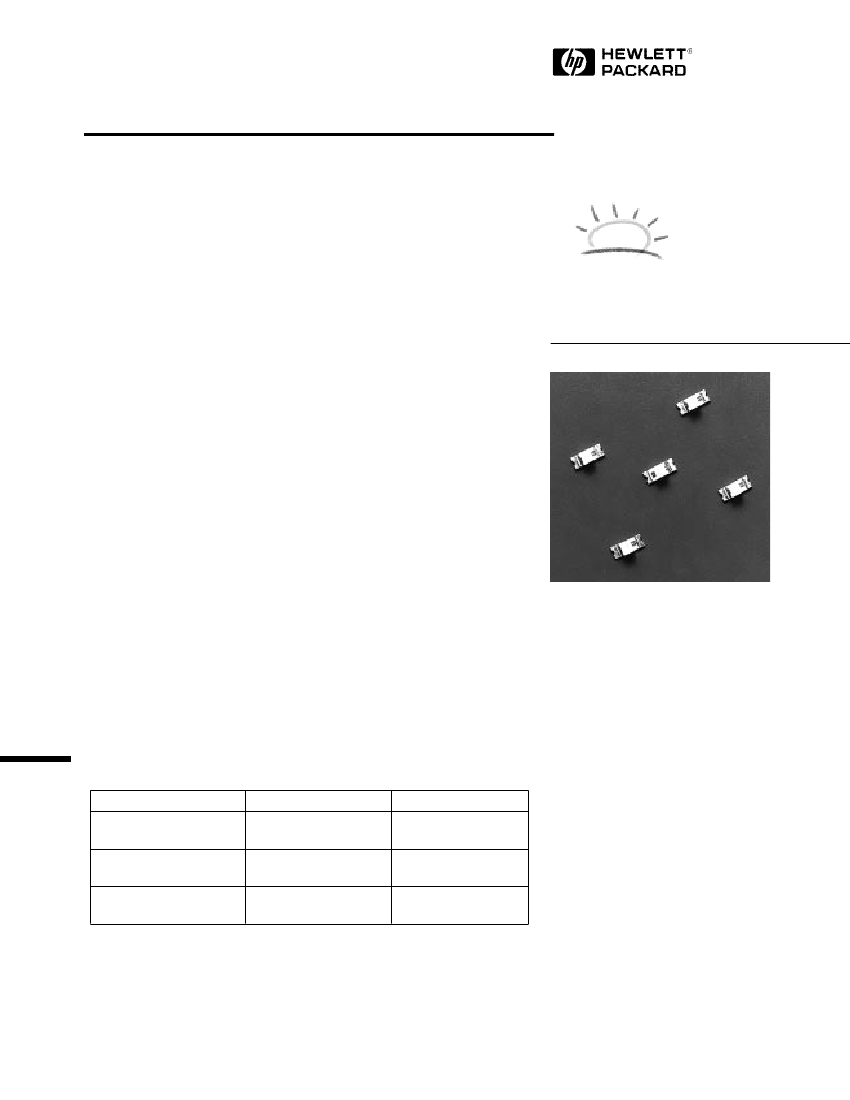

High Performance Reverse
Mount Flip Chip LEDs
Technical Data
HP SunPower Series
HSMA-H630/H730
HSMC-H630/H730
HSML-H630/H730
Features
• High Brightness AlInGaP
Material
• Reverse Mountable Surface
Mount LED
• Breakthrough Reliability
through Elimination of
Internal Wire Bond
• -40
°
C to +85
°
C Operating
Temperature Range
• Small 3.2 x 1.25 mm
Footprint
• Low Profile
• Diffused Optics
• Compatible with Reflow or
Through-the-Wave Solder
Processes
• Available on 7” (178 mm) or
13” (330 mm) Diameter
Reels
Applications
•
•
•
•
Keypad Backlighting
Symbol Backlighting
Status Indication
Front Panel Indicator
Description
The HSMx-H630/H730 is a
reverse mountable chip-type LED
for lighting the non-component
side of a PC board. In this reverse
mounting configuration, this LED
is designed to emit light through
a small hole in the PC board.
The HSMx-H630/H730 uses a flip
chip construction that eliminates
the wire bond between the chip
and substrate. As a result of this
robust construction, product
reliability is greatly improved.
This device is available in three
colors. The small size, narrow
footprint, and low profile make
these LEDs excellent for
backlighting, status indication,
and front panel illumination
applications.
Part Number
HSMA-H630
HSMA-H730
HSMC-H630
HSMC-H730
HSML-H630
HSML-H730
Color
Amber 590 nm
Red 626 nm
Orange 605 nm
Part/Reel
3000
12000
3000
12000
3000
12000
3
Absolute Maximum Ratings at T
A
= 25
°
C
Parameter
DC Forward Current
[1]
Power Dissipation
Reverse Voltage (I
R
= 100
µA)
Operating Temperature Range
Storage Temperature Range
[2]
Notes:
1. Derate Linearly as shown in Figure 4.
2. Maximum temperature for tape and reel packaging is 60°C.
HSMx-H630/H730
20
50
5
- 40 to +85
- 40 to +85
Units
mA
mW
V
°C
°C
Optical Characteristics at T
A
= 25
°
C
Peak
Wavelength
λ
peak
(nm)
Typ.
592
607
638
Color, Dominant
Wavelength
λ
d[3]
(nm)
Typ.
590
605
626
Viewing
Angle 2θ
1/2
(degrees)
[4]
Typ.
165
165
165
Luminous
Efficacy
η
v
(lm/W)
[5]
480
370
197
Part No.
HSMA-H630
HSMA-H730
HSML-H630
HSML-H730
HSMC-H630
HSMC-H730
Color
Amber
Orange
Red
Notes:
3. The dominant wavelength
λ
d
is derived from the CIE chromaticity diagram and represents the perceived color of the device with
respect to standard illumination D56.
4.
θ
1/2
is the off-axis angle where the luminous intensity is
1
/
2
the peak intensity.
5. The luminous efficacy,
η
v
is the ratio of luminous flux to radiant flux,
φ
v
/φ
e
.
Optical Characteristics at T
A
= 25
°
C
(Continued)
Luminous
Intensity
I
v
(mcd)
@I
F
= 5 mA
Min.
Typ.
2.5
7.5
2.5
2.0
7.5
6.5
Luminous
Intensity
I
v
(mcd)
@I
F
= 20 mA
Typ.
35
35
30
Luminous
Intensity
I
v
(mcd)
@I
F
= 2 mA
Typ.
2.5
2.5
2.0
Part No.
HSMA-H630
HSMA-H730
HSML-H630
HSML-H730
HSMC-H630
HSMC-H730
Color
Amber
Orange
Red
5
5
RELATIVE LUMINOUS INTENSITY
(NORMALIZED AT 5 mA)
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
I
F
– FORWARD CURRENT – mA
100
50
20
10
5
2
1
0.5
4
3
2
1
0
0
5
10
15
20
25
V
F
– FORWARD VOLTAGE – V
I
F
– FORWARD CURRENT – mA
Figure 2. Forward Current vs.
Forward Voltage.
Figure 3. Relative I
v
vs. DC Forward
Current (operation below 1 mA not
recommended).
25
I
F
– FORWARD CURRENT – mA
20
Rθ
J-PIN
= 300°C/W
15
10
5
0
0
20
40
60
80
100
T
A
– AMBIENT TEMPERATURE – °C
Figure 4. Maximum DC Current vs.
Ambient Temperature.
