Part Number

Search

54LS257A/BFBJC

Description
IC,LOGIC MUX,QUAD,2-INPUT,LS-TTL,FP,16PIN,CERAMIC
Categorylogic
File Size218KB,5 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

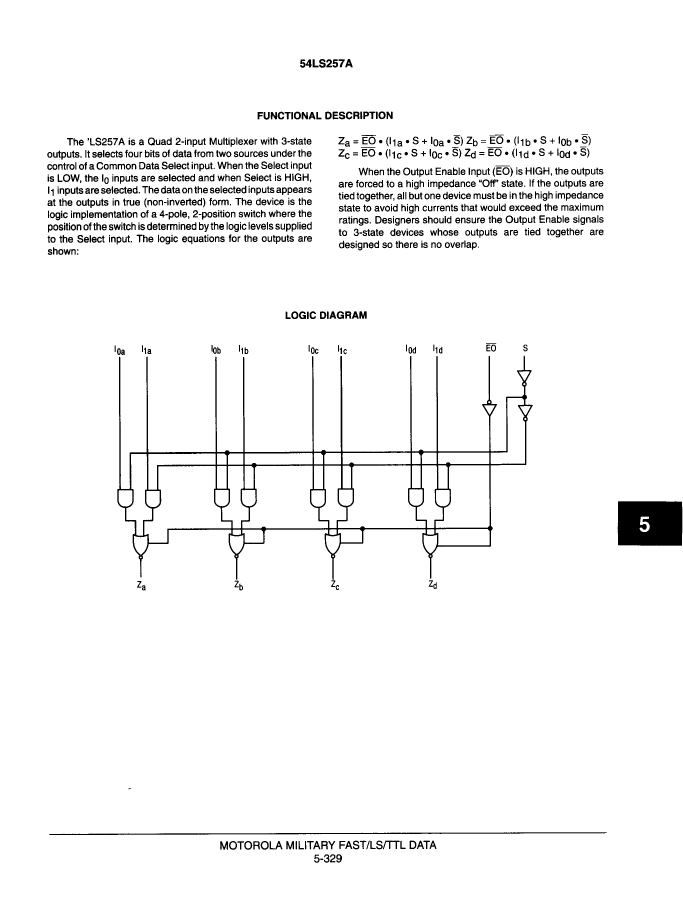

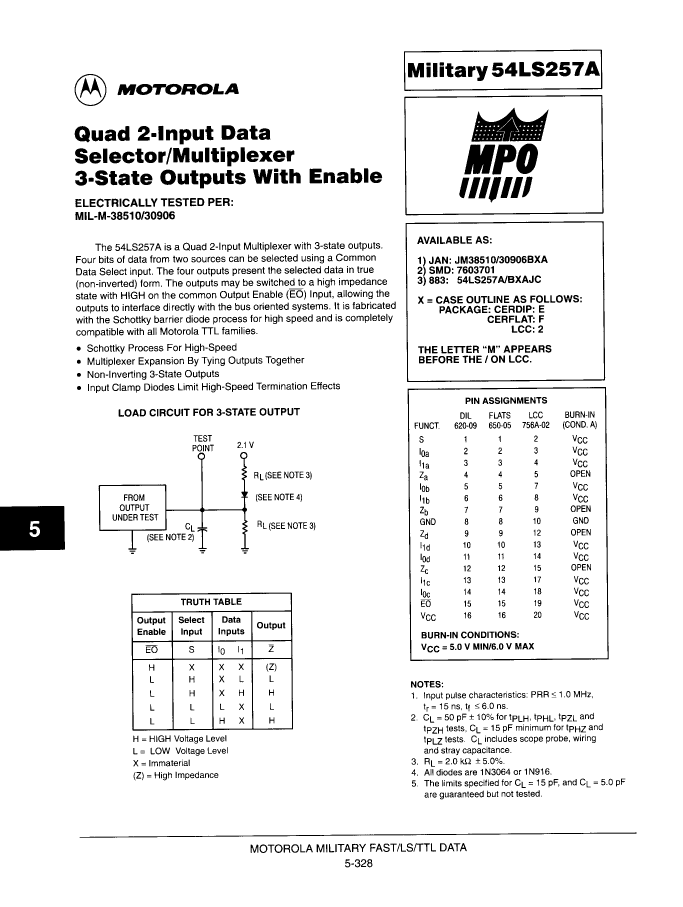

54LS257A/BFBJC Overview

IC,LOGIC MUX,QUAD,2-INPUT,LS-TTL,FP,16PIN,CERAMIC

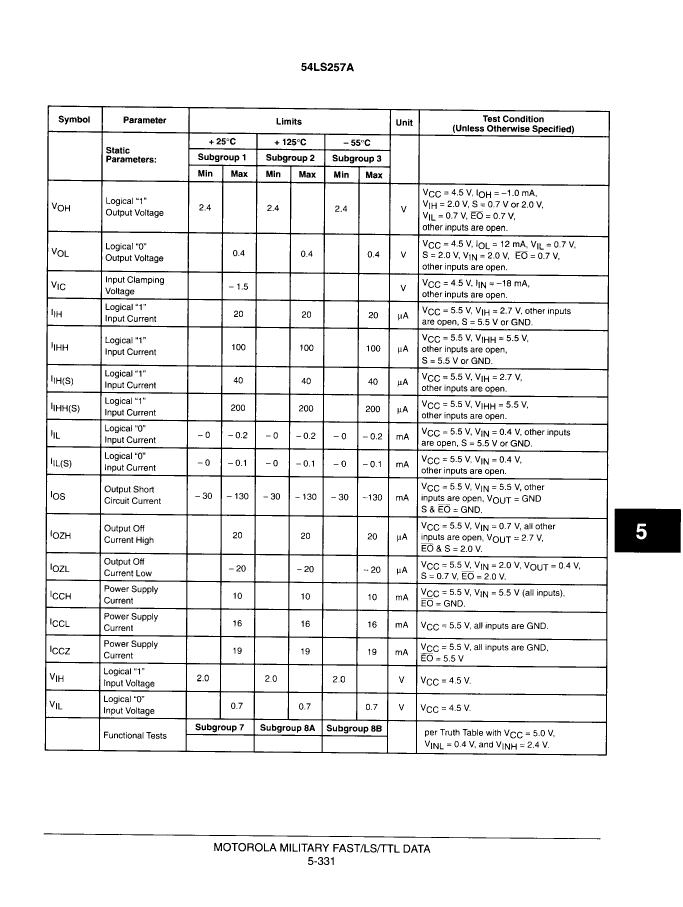

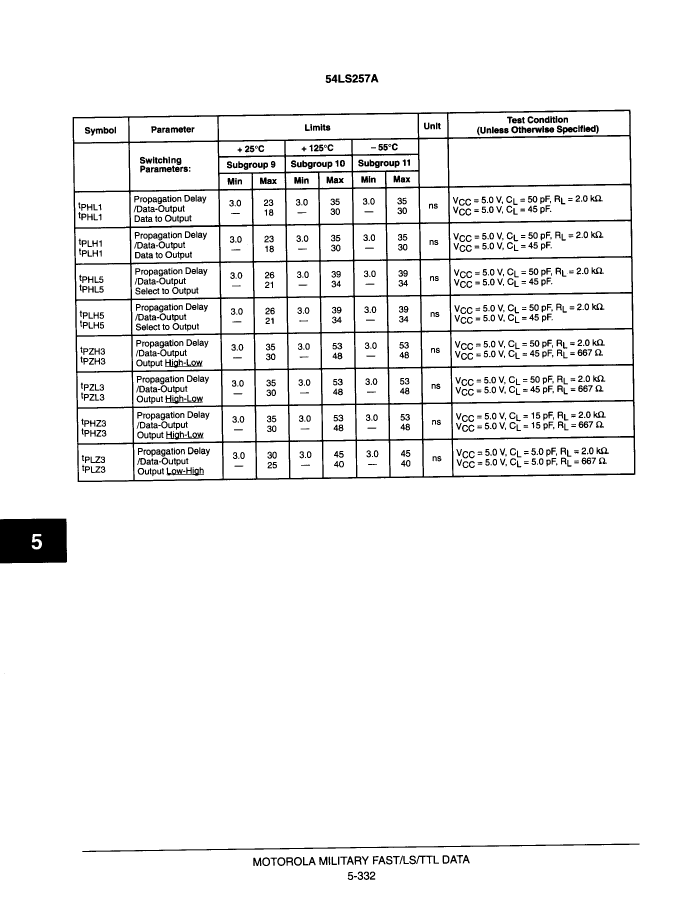

54LS257A/BFBJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNXP
package instructionDFP, FL16,.3
Reach Compliance Codeunknown
Is SamacsysN
JESD-30 codeR-XDFP-F16
JESD-609 codee0
Logic integrated circuit typeMULTIPLEXER
MaximumI(ol)0.012 A
Number of functions4
Number of entries2
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL16,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Base Number Matches1
