HDSP-3533 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > photoelectric> HDSP-3533

HDSP-3533: DescriptionSmart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 7.6mm; Categoryphotoelectric; File Size412KB，8 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/

Download Datasheet Parametric Compare View All

HDSP-3533 Overview

Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 7.6mm

HDSP-3533 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	HP（Keysight）
Reach Compliance Code	unknown
Is Samacsys	N
Other features	IC COMPATIBLE
color	HIGH EFFICIENCY RED
color@wavelength	Red
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	7.6 mm
Maximum forward current	0.04 A
Maximum forward voltage	3.5 V
JESD-609 code	e0
Number of characters	1
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	635 nm
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

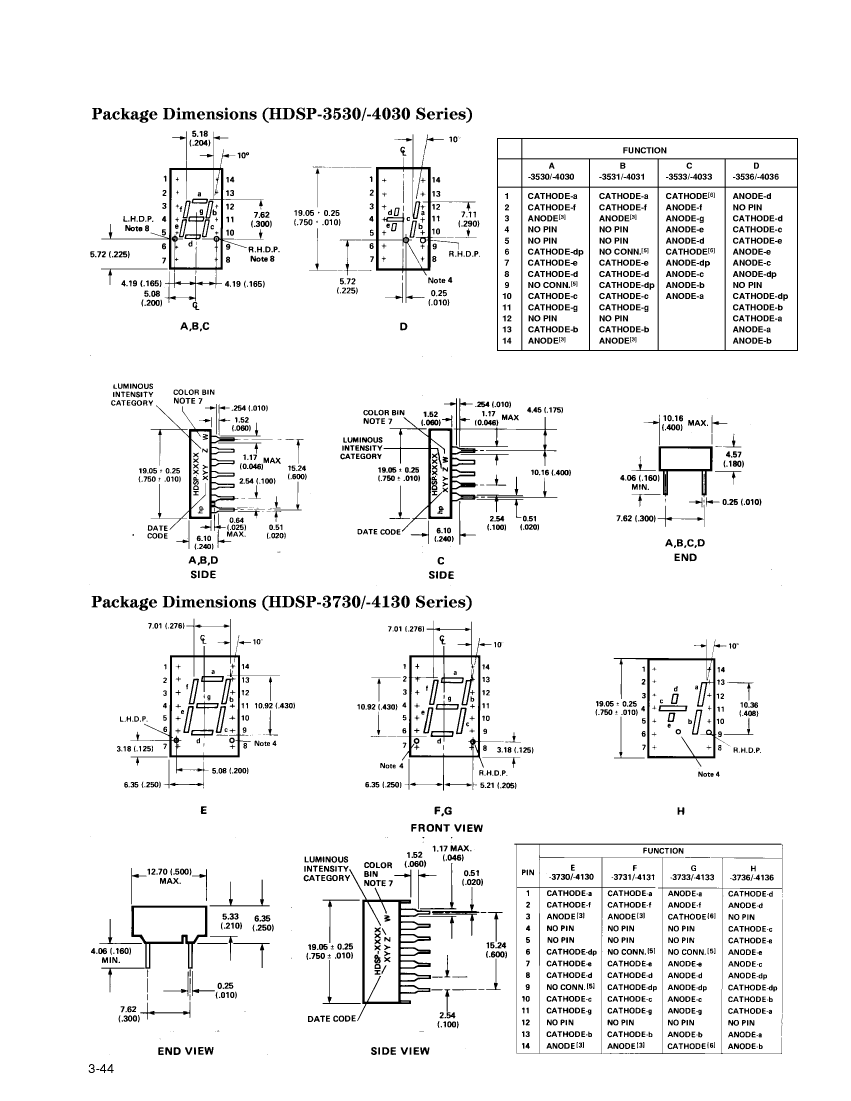

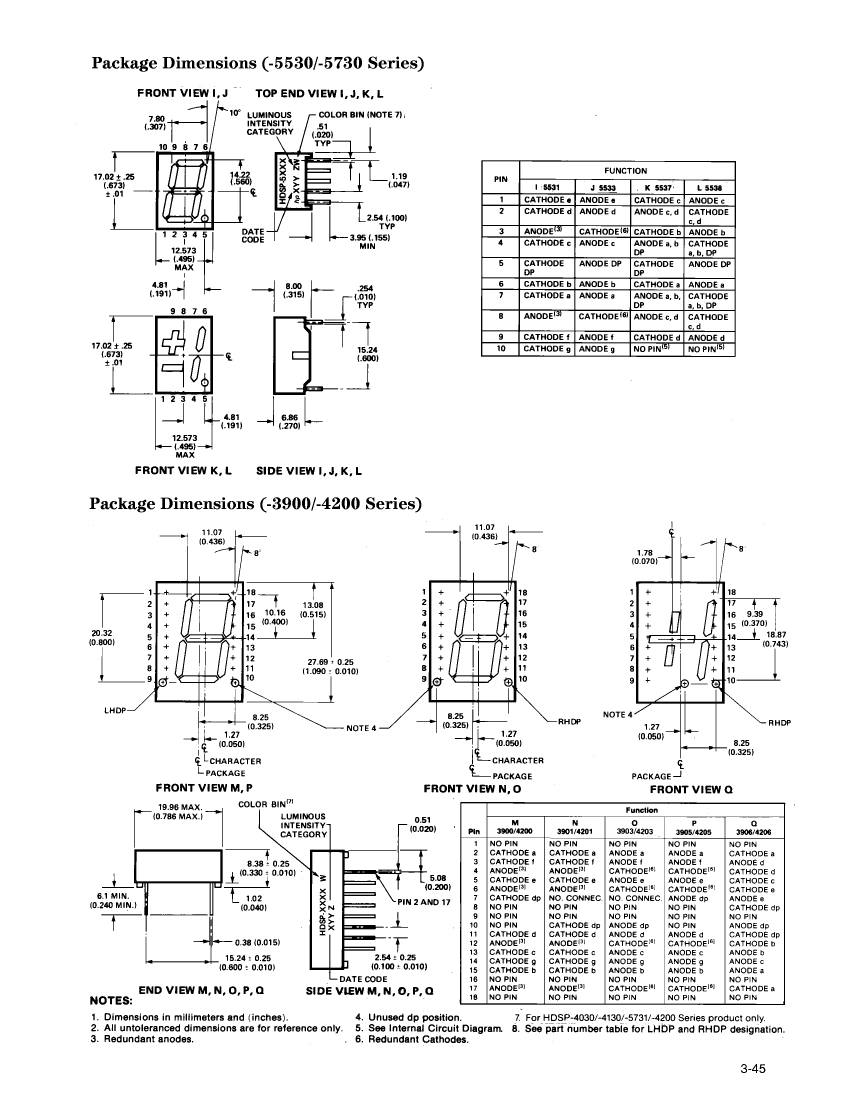

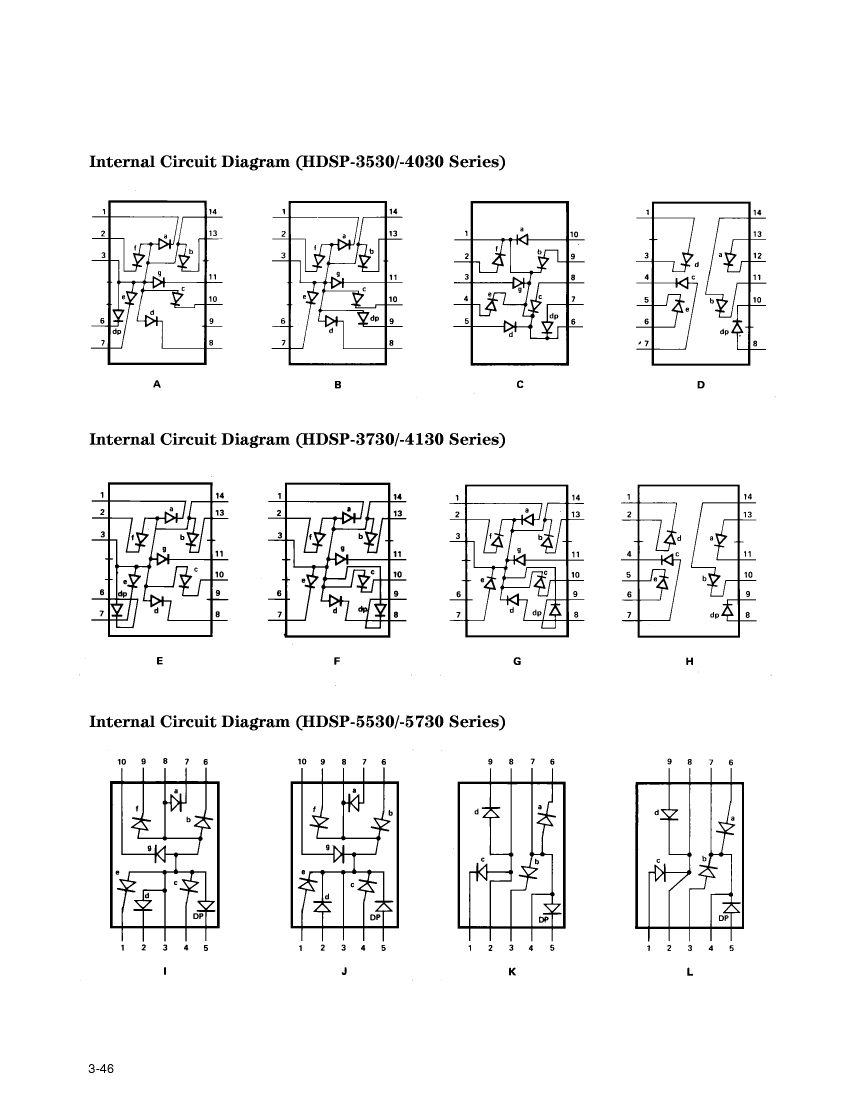

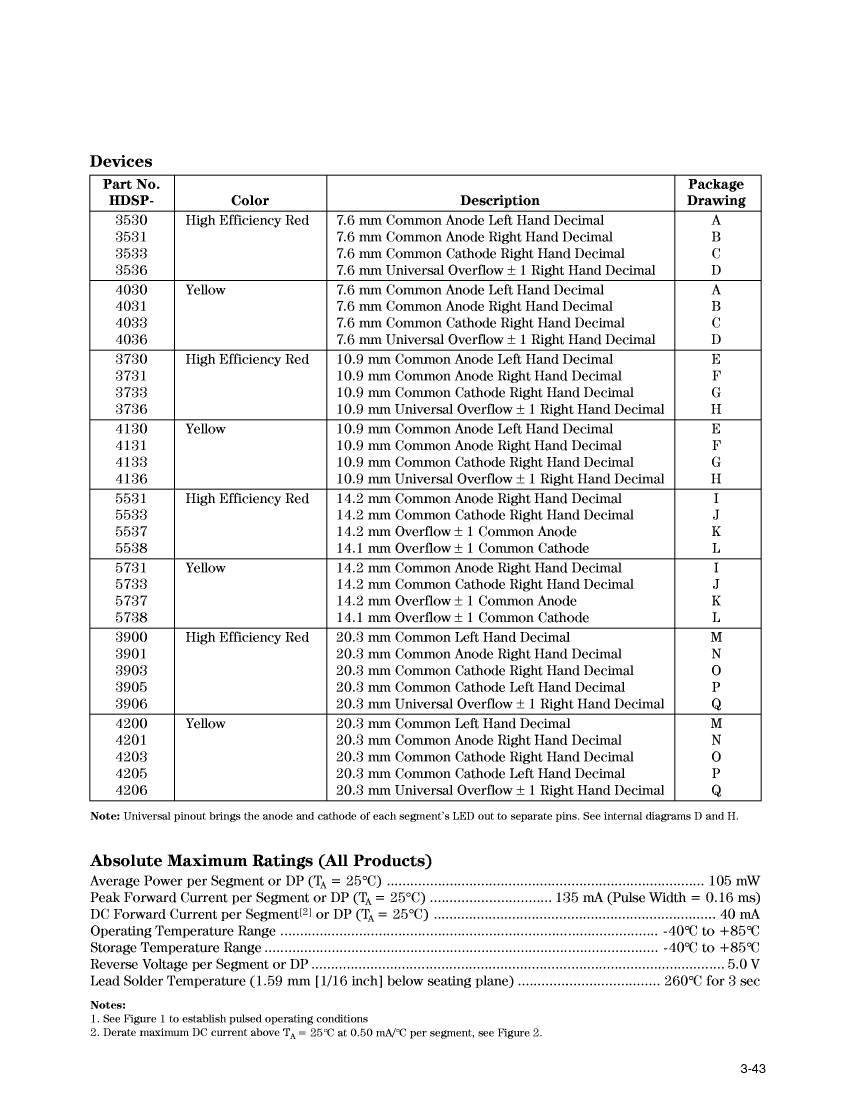

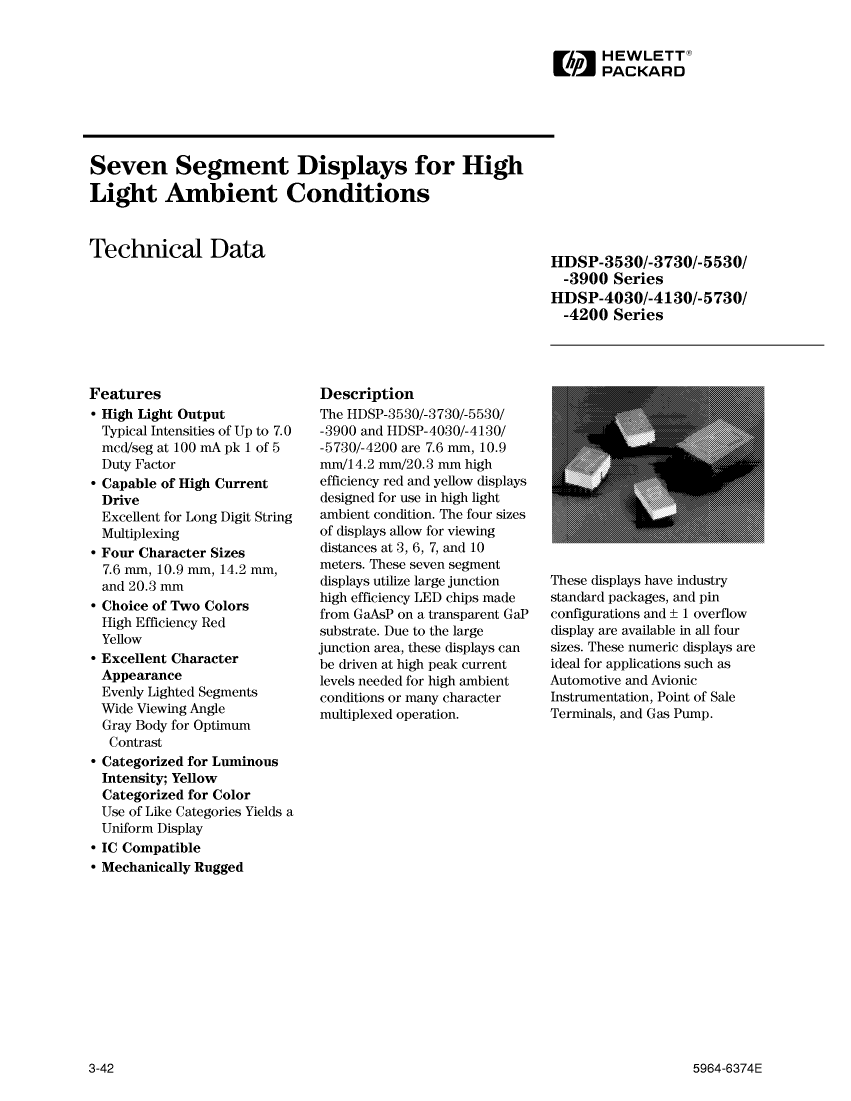

Preview

Download Datasheet

View All

HDSP-3533 Related Products

	HDSP-3533	HDSP-3536	HDSP-5531	HDSP-3736	HDSP-5533	HDSP-3733	HDSP-3531
Description	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 7.6mm	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red, 7.6mm	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 14.2mm	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red, 10.9mm	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 14.2mm	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 10.9mm	Smart/Normal 7 Seg Numeric LED Display, 1-Character, High Efficiency Red, 7.6mm
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED
color@wavelength	Red	Red	Red	Red	Red	Red	Red
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	SEPARATE, 0.5 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	7.6 mm	7.6 mm	14.2 mm	10.9 mm	14.2 mm	10.9 mm	7.6 mm
Maximum forward current	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
Maximum forward voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	0.5	1	0.5	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	635 nm	635 nm	635 nm	635 nm	635 nm	635 nm	635 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	HP（Keysight）	HP（Keysight）	-	-	HP（Keysight）	HP（Keysight）	HP（Keysight）
Other features	IC COMPATIBLE	IC COMPATIBLE	-	IC COMPATIBLE	IC COMPATIBLE	-	IC COMPATIBLE
Number of characters	1	-	1	-	1	1	1
Base Number Matches	1	1	1	1	1	-	-
