ABMM1-14.31818-18-R050-E-3-H-F-T: DescriptionParallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryCrystal/resonator; File Size190KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ABMM1-14.31818-18-R050-E-3-H-F-T Overview

Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-4

ABMM1-14.31818-18-R050-E-3-H-F-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Is Samacsys	N
Other features	TAPE AND REEL; AT-CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0035%
frequency tolerance	25 ppm
load capacitance	18 pF
Manufacturer's serial number	ABMM1
Installation features	SURFACE MOUNT
Nominal operating frequency	14.31818 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L7.2XB5.2XH1.1 (mm)/L0.283XB0.205XH0.043 (inch)
Series resistance	50 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

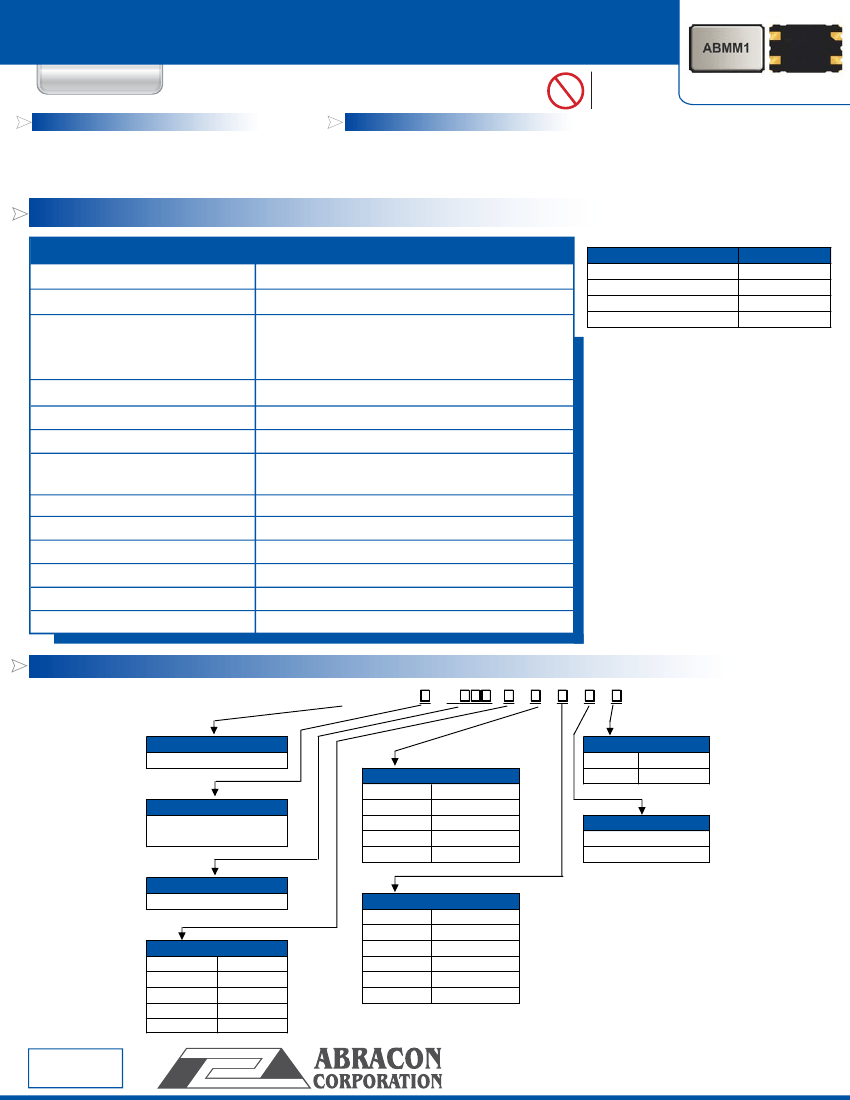

CERAMIC SURFACE MOUNT LOW

PROFILE MICROPROCESSOR CRYSTAL

ABMM1

FEATURES:

• Suitable for reflow

• Low in height - suitable for thin equipment

• AT-strip cut offers a tight tolerance & stability

APPLICATIONS:

• Computers, Modems, Microprocessors

• Communication, Test equipment

• PCMCIA

Pb

RoHS

Compliant

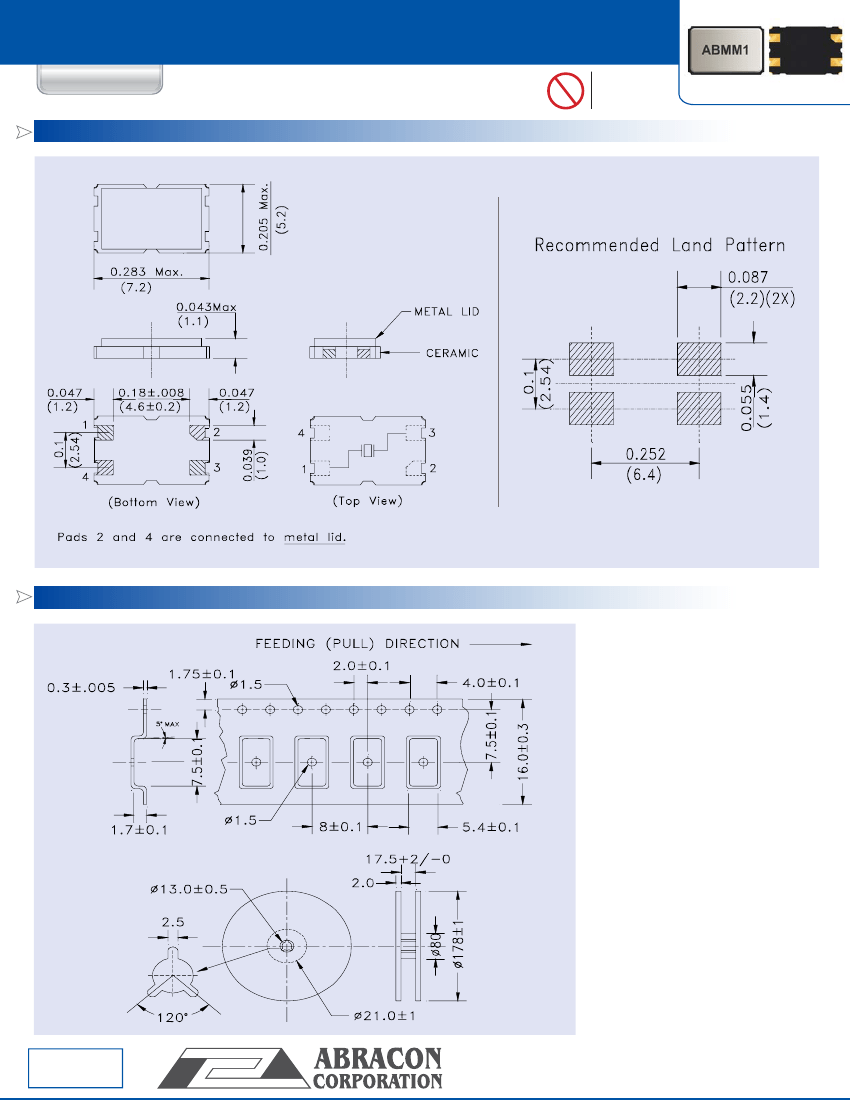

7.2 x 5.2 x 1.1 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operation Mode

ABMM1 Series

8.0 MHz to 125 MHz

AT (see option)

Fundamental 8.0 MHz - 33.0 MHz

Third-Overtone for F ~ 33.01 MHz - 125 MHz

- 10°C to + 60°C (see options)

- 40°C to + 85°C

± 50 ppm max. (see options)

± 50 ppm max. (see Table 1); ± 100 ppm @

-10 °C to + 60° C for Fundamental BT

See Table 1

7pF max.

18pF (see options)

500μW max., 100μW typical

± 5ppm max.

500Mohms min at 100Vdc ± 15V

TABLE 1

Frequency (MHz)

8.000 - 11.999(Fund)

12.000 - 20.000(Fund)

20.000 - 33.000(Fund)

33.000 - 125.00(3rd O/T)

Ω

ESR (Ω)

70

50

40

80

Operating Temperature

Storage Temperature

Frequency Tolerance at +25°C

Frequency Stability over the

Operating Temp. (Ref to +25°C)

Equivalent Series Resistance

Shunt Capacitance C

0

Load Capacitance C

L

Drive Level

Aging at 25°C Per Year

Insulation Resistance

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABMM1 - Frequency -

Frequency

XX.XXXX MHz

-R

-

Packaging

Load Capacitance

Please specify CL in pF or

S for Series

Freq. Tolerance

1

± 10 ppm max.

7

± 15 ppm max.

2

± 20 ppm max.

3

± 25 ppm max.

4

± 30 ppm max.

Blank

T

Bulk

Tape & Reel

Mode

F for Fund. AT>=33MHz

FB for Fund BT*

(*) Note: ±100ppm max stability

from -10ºC to +60ºC only.

ESR

RXXX (Value in

Ω

)

Operating Temp.

E

0°C ~ +70°C

B

-20°C ~ +70°C

C

-30°C ~ +70°C

N

-30°C ~ +85°C

D

-40°C ~ +85°C

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Freq. Stability

U

± 10 ppm max.

G

± 15 ppm max.

X

± 20 ppm max.

W

± 25 ppm max.

Y

± 30 ppm max.

H

± 35 ppm max.

Revised: 07.10.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
