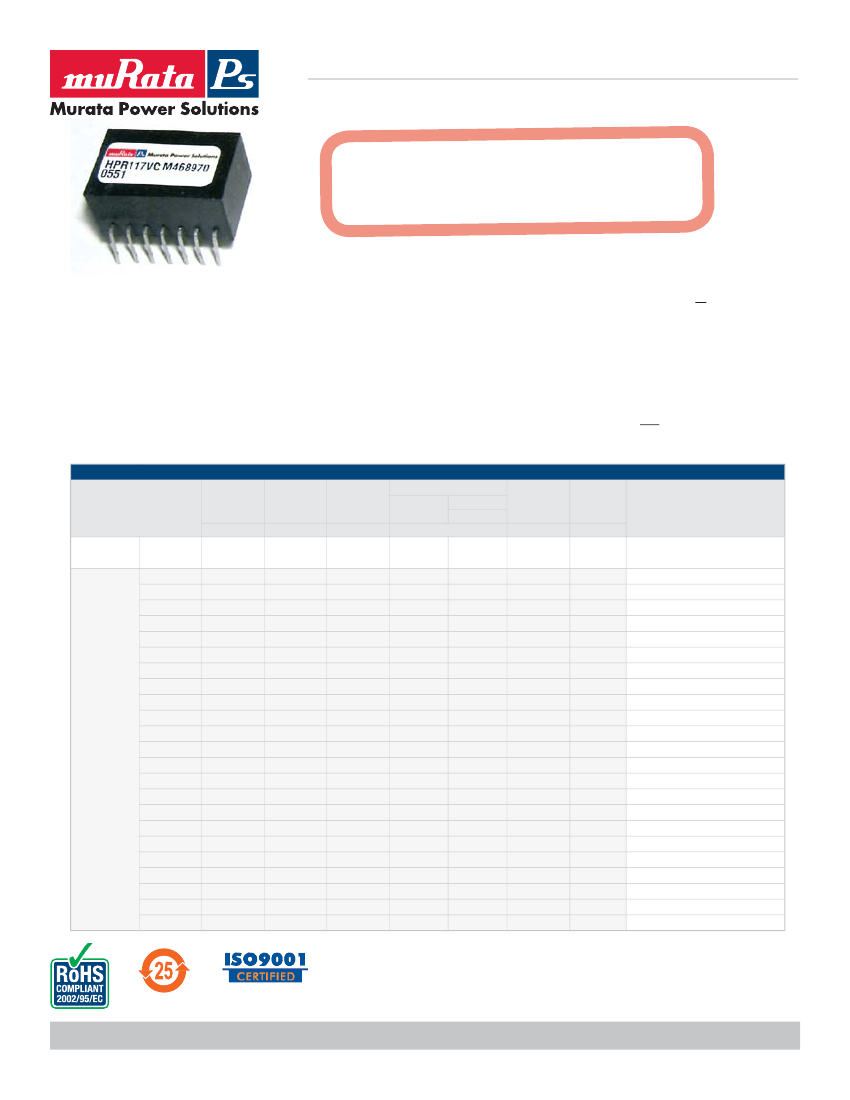

HPR1XXVC
0.75 Watt Single Output DC/DC Converter
NOT RECOMMENDED FOR NEW DESIGNS
See product selection chart
for alternatives
The HPR1XXVC Series uses advanced
circuit design and packaging technol-
ogy to deliver superior reliability and
performance. A 170kHz push-pull
oscillator is used in the input stage. Beat-
frequency oscillation problems are re-
duced when using the HPR1XXVC Series
with high frequency isolation amplifiers.
Reduced parts count and high
efficiency add to the reliability of the
HPR1XXVC Series. The high efficiency of
the HPR1XXVC Series means less internal
power dissipation, as low as 190mW.
With reduced heat dissipation the
HPR1XXVC Series can operate at
higher temperatures with no degradation.
In addition, the high efficiency of the
HPR1XXVC Series means the series is
able to offer greater than 10 W/inch
3
of
output power density. Operation down
to no load will not impact the reliability
of the series, although a >1mA minimum
load is needed to realize published
specifications.
The HPR1XXVC Series provides the
user a low cost converter without sacrific-
ing reliability. The use of surface mounted
devices and advanced manufacturing tech-
nologies make it possible to offer premium
performance and low cost.
SPECIFICATIONS
All specifications are typical at T
A
= +25°C nominal input voltage unless otherwise specified.
PRODUCT SELECTION CHART
Model
NOT
RECOMMENDED
FOR NEW DESIGNS
Nominal
Input
Voltage
V
DC
HPR117VC
HPR100VC
HPR105VC
HPR101VC
HPR102VC
HPR103VC
HPR104VC
HPR106VC
HPR107VC
HPR108VC
HPR109VC
HPR110VC
HPR111VC
HPR112VC
HPR113VC
HPR114VC
HPR115VC
HPR116VC
HPR118VC
HPR119VC
HPR120VC
HPR121VC
HPR122VC
HPR123VC
15
5
5
5
5
5
5
12
12
12
12
12
12
15
15
15
15
15
24
24
24
24
24
24
Rated
Output
Voltage
V
DC
±15
5
±15
12
15
±5
±12
5
12
15
±5
±12
±15
5
12
15
±5
±12
5
12
15
±5
±12
±15
Rated
Output
Current
mA
±25
150
±25
62
50
±72
±30
150
62
50
±72
±30
±25
150
62
50
±72
±30
150
62
50
±72
±30
±25
Input Current
Reflected
Efficiency
Rated Load
Ripple Current
No Load
Typ.
mA
mAp-p
%
8
20
20
20
20
20
20
10
10
10
10
10
10
8
8
8
8
8
8
8
8
8
8
8
63
216
200
212
212
218
212
90
81
81
88
81
81
72
72
72
72
63
48
48
45
45
45
45
5
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
15
15
15
15
15
15
79
69
75
70
71
68
68
69
77
77
71
74
77
69
69
69
69
76
65
65
76
69
67
69
Recommended Alternatives
MEA1D1515DC
NKE0505DC / NME0505DC
NMA0515DC / MEA1D0515DC
NKE0512DC / NME0512DC
NKE0515DC / NME0515DC
NMA0505DC / MEA1D0505DC
NMA0512DC / MEA1D0512DC
NKE1205DC / NME1205DC
NKE1212DC / NME1212DC
NKE1215DC / NME1215DC
NMA1205DC / MEA1D1205DC
NMA1212DC / MEA1D1212DC
NMA1215DC / MEA1D1215DC
MEV1S1505DC
MEV1S1512DC
MEV1S1515DC
MEA1D1505DC
MEA1D1512DC
NME2405DC / MEV1S2405DC
NME2412DC / MEV1S2412DC
NME2412DC / MEV1S2415DC
MEA1D2405DC
MEA1D2412DC
MEA1D2415DC
OBSOLETE
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
2010-10-06 TDC_HPR1XXVC.C01
Page 1 of 4
HPR1XXVC
0.75 Watt Single Output DC/DC Converter
SPECIFICATIONS, ALL MODELS
PARAMETER
INPUT
INPUT
Voltage Range
Specifications are at T
A
= +25°C nominal input voltage unless otherwise specified.
CONDITIONS
MIN
TYP
MAX
UNITS
4.5
5
5.5
VDC
10.8
12
13.2
VDC
13.5
15
16.5
VDC
21.6
24
26.4
VDC
Voltage Rise Time See Typical Performance Curves & Application Notes: “Capacitive Loading Effects on Start-Up of DC/DC Converters”
OUTPUT
Rated Power
750
mW
Voltage Setpoint Accuracy
Rated Load, Nominal V
IN
±5
%
Ripple & Noise
BW = DC to 10MHz
150
200
mVp-p
BW =10Hz to 2MHz
30
40
mVrms
Voltage (Over Input Voltage Range) 1mA to Rated Current, V
OUT
= 5V
4.75
7
VDC
1mA to Rated Current, V
OUT
= 12V
11.40
15
VDC
1mA to Rated Current, V
OUT
= 15V
14.25
18
VDC
Temperature Coefficent
.01
.05
%/ °C
REGULATION
Load Regulation (All other modes)
Rated Load to 1mA Load
3
%
GENERAL
ISOLATION
Rated Voltage
750
VDC
Test Voltage
60 Hz, 10 Seconds
750
Vrms
Resistance
10
GΩ
Capacitance
25
100
pF
Leakage Current
V
ISO
= 240VAC, 60Hz
2
8.5
μArms
Switching Frequency
170
kHz
Frequency Change
Over Line and Load
24
%
Package Weight
3
g
MTTF per MIL-HDBK-217, Rev. F*
Circuit Stress Method
Ground Benign
T
A
= +25°C
7.9
MHr
Fixed Ground
T
A
= +35°C
1.9
MHr
Naval Sheltered
T
A
= +35°C
1.2
MHr
Airborne Uninhabited Fighter
T
A
= +35°C
300
kHr
TEMPERATURE
Specification
-25
+25
+85
°C
Operation
-40
+100
°C
Storage
-40
+110
°C
GENERAL
OUTPUT
SOLDERING INFORMATION
The HPR1XXVC devices are intended for wave soldering or manual soldering.
They are not intended to be subject to surface mount processes under any circumstances.
The normal wave soldering process can be used with these devices where the device is subjected
to a maximum wave temperature of 260°C for a period of no more than 10 seconds. Within this
time and temperature range, the integrity of the device’s plastic body will not be compromised and
internal temperatures within the converter will not exceed 175°C. Care should be taken to control
manual soldering limits identical to that of wave soldering.
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
2010-10-06 TDC_HPR1XXVC.C01
Page 2 of 4
HPR1XXVC
0.75 Watt Single Output DC/DC Converter

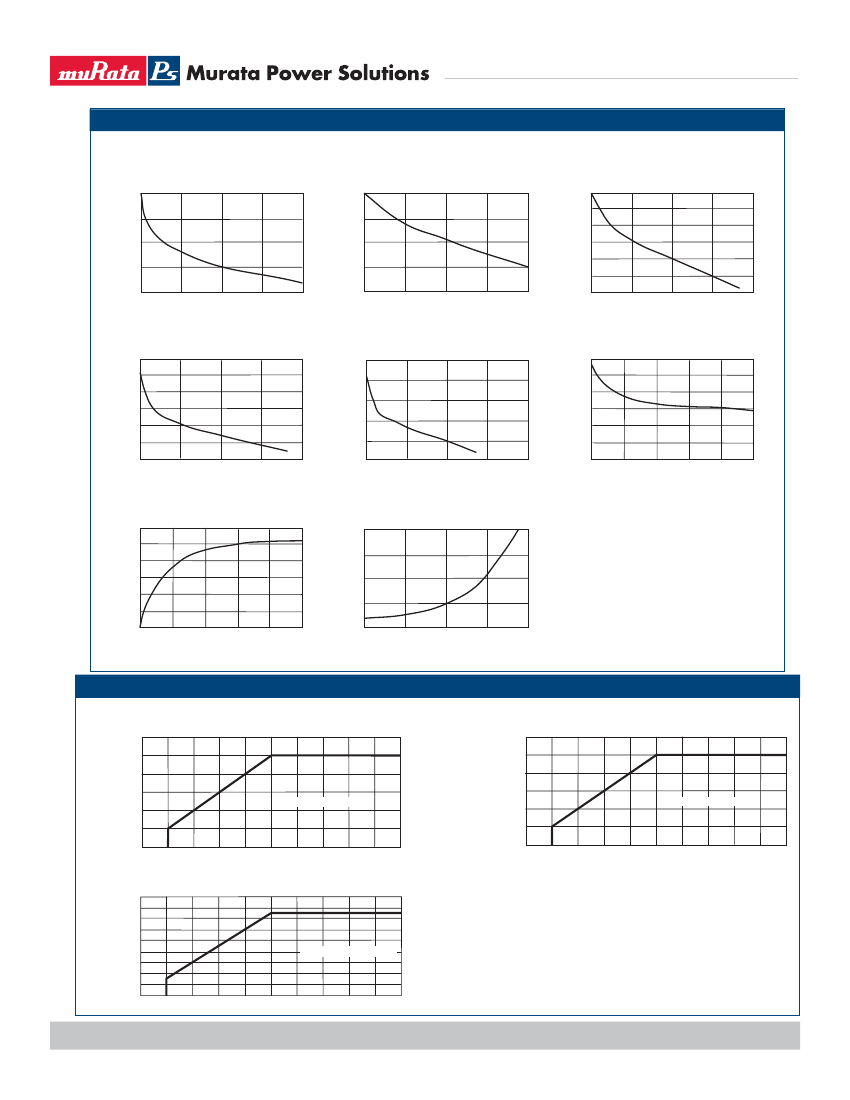

TYPICAL PERFORMANCE CURVES
Specifications are at T
A
= +25°C nominal input voltage and nominal load.
VOUT VS LOAD
(5Vout Models)
5.7
5.5
Vout
Vout
5.3
5.1
4.9
0
40
80
120
160
Output Current (mA)
VOUT VS LOAD
(±12Vout Models)
12.6
12.5
12.4
Vout
12.3
12.2
12.1
12.0
0
10
20
30
40
Output Current each load (mA)
Vout
Vout
15.5
15.3
15.1
14.9
0
20
40
60
80
Output Current each load (mA)
OSCILLATION FREQUENCY VS
TEMPERATURE
220
Frequency (KHz)
200
180
160
140
80
100
-30
0
30
Temperature (°C)
60
90
15.9
15.7
5.4
5.2
Vout
5.0
4.8
12.0
4.6
0
20
40
60
80
Output Current each load (mA)
VOUT VS LOAD
(15Vout Models)
16.5
16.0
15.5
15.0
14.5
14.0
13.5
0
0.2
0.4
0.6
0.8
1.0
Output Power each load (Watts)
11.9
0
20
40
60
80
Output Current each load (mA)
VOUT VS LOAD
(±15Vout Models)
VOUT VS LOAD
(±5Vout Models)
12.5
12.4
12.3
12.2
12.1
VOUT VS LOAD
(12Vout Models)
EFFICIENCY VS LOAD
90
75
Efficiency (%)
60
45
30
15
0
0
20
40
60
% of Rated Load (%)
SAFE OPERATING AREA
600
LOAD CAPACITANCE vs INPUT RISE TIME
(5 Vout models)
60
LOAD CAPACITANCE vs INPUT RISE TIME
(15 Vout models)
500
50
Total Load Capacitance (uF)
Total Load Capacitance (uF)
400
40
300
30
SAFE OPERATING AREA
200
SAFE OPERATING AREA
20
100
10
0
0
5
10
15
20
25
30
35
Rise Time of Input Voltage (mS)
40
45
50
0
0
5
10
15
20
25
30
35
40
45
50
Rise Time of Input Voltage (mS)
LOAD CAPACITANCE vs INPUT RISE TIME
(12 Vout models)
90
NOTES:
1.) When operated within the SAFE OPERATING AREA as defined
by the above curves, the output voltage of HPR1XXC devices is
guaranteed to be within 95% of its steady-state value within 100
milliseconds after the input voltage has reached 95% of its steady-
state value.
2.) For dual output models, total load capacitance is the sum of the
capacitances on the plus and minus outputs.
Total Load Capacitance (uF)
80
70
60
50
40
30
20
10
0
0
5
10
15
20
25
30
35
40
45
50
Rise Time of Input Voltage (mS)
SAFE OPERATING AREA
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
2010-10-06 TDC_HPR1XXVC.C01
Page 3 of 4
HPR1XXVC
0.75 Watt Single Output DC/DC Converter
MECHANICAL
PACKAGE/PINOUT “V”
DIP PACKAGE
0.785±0.010"
(19.94±0.25)
14 13
11 10 9 8
TOP VIEW
0.695±0.015"
(17.65±0.38)
0.525±0.010"
(13.34±0.25)
1 2 3 4 5 6 7
0.375±0.005"
(9.52±0.13)
0.015±0.005"
(0.38±0.13)
0.020±0.002"
(0.51±0.05)
0.100±0.010"
(2.54±0.25)
SIDE VIEW
0°-15°
0.600"
(15.24)
0.125+0.030"
-0.000"
(3.18+0.76)
BOTTOM
(
-0.00)
VIEW
PIN CONNECTIONS
PIN#
1
2
3
4
5
6
SINGLES
+VIN
-VIN
NC
NC
-VOUT
NC
DUALS
+VIN
-VIN
NC
NC
-VOUT
Common
PIN#
7
8
9
10
11
13
14
SINGLES
+VOUT
NC
NC
NC
NC
NC
NC
DUALS
+VOUT
NC
NC
NC
NC
NC
NC
NOTES:
NC = Do Not Connect.
Duplicate pin functions are internally connected.
All dimensions are in inches (millimeters).
GRID: 0.100 inches (2.54 millimeters)
MATERIAL: Lead material is phosphor bronze; lead
finish is 100-300 microinches of matte tin over a
nickel barrier layer of 5-40 microinches.
ABSOLUTE MAXIMUM RATINGS
Internal Power Dissipation ........................................ 450mW
Short Circuit Duration ................................................ Momentary
ORDERING INFORMATION
HPR
Device Family
HPR Indicates DC/DC Converter
Model Number
Selected from Table of Electrical Characteristics
Package Option
V = DIP Package
RoHS Compliant Version
1XX V
C
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2010 Murata Power Solutions, Inc.
www.murata-ps.com/locations
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
2010-10-06 TDC_HPR1XXVC.C01
Page 4 of 4
