A28C-14-B-T-A-B-6-G datasheet, PDF

Datasheet> All Categories > The connector> A28C-14-B-T-A-B-6-G

A28C-14-B-T-A-B-6-G: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal,; CategoryThe connector; File Size232KB，1 Pages; ManufacturerDon Connex Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

A28C-14-B-T-A-B-6-G Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal,

A28C-14-B-T-A-B-6-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Don Connex Electronics Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

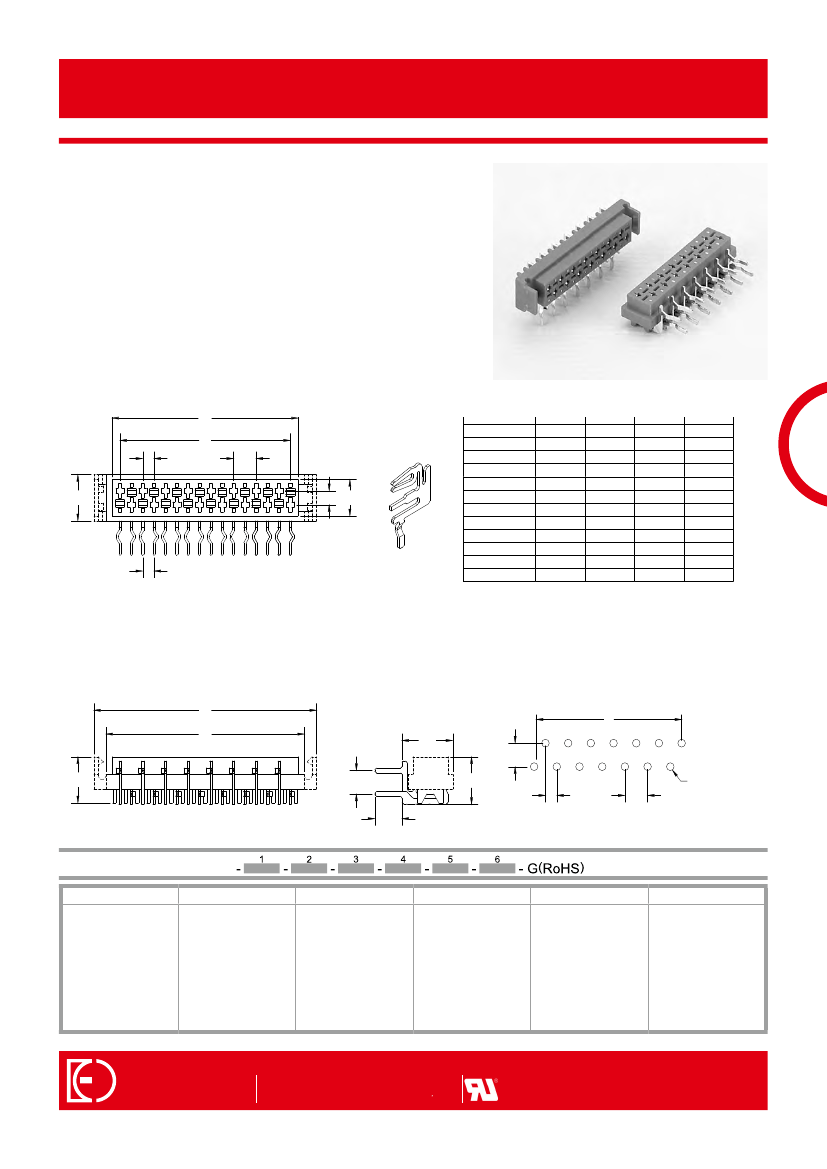

A28c MINI-SIZE CONNECTOR

(FEMALE ON BOARD SIDE ENTRY TYPE)

PITCH: 2.54mm * 1.5mm

SPECIFICATIONS

Material

Insulator : PBT, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze

Electrical

Current Rating : 1 Amp

Contact Resistance : 30 mΩ max.

Insulation Resistance : 3000 MΩ min.

Dielectric Withstanding Voltage : 500V AC for 1minute

Operating Temperature : -40˚C to +105˚C

►Mating

Suggestion : A28, A28e, A28f & A28g series.

1.27

5.1

2.54

1.5 3.95

POSITION

5.59

8.13

10.67

13.21

15.75

18.29

20.83

23.37

25.91

28.45

30.99

33.53

3.81

6.35

8.89

11.43

13.97

16.51

19.05

21.59

24.13

26.67

29.21

31.75

9.68

12.22

14.76

17.30

19.84

22.38

24.92

27.46

30.00

32.54

35.08

37.62

6.98

9.52

12.06

14.60

17.14

19.68

22.22

24.76

27.30

29.84

32.38

34.92

1.27

5.8

2.54

5.0

2.54

3.1

5.15

1.27

Ø0.85±0.05

2.54

RECOMMENDED P.C.B LAYOUT

How to order:

04 06 08 10 12

14 16 18 20 22

24 26

A28c

5.PARTS OPTION

A:WITH LOCKING

B:W/O LOCKING

1.NO. OF CONTACT 2.CONTACT MATERIAL 3.CONTACT PLATING 4.SPECIAL FUNCTION

B: PHOSPHOR BRONZE

T: TIN PLATED

S: SELECTIVE

G: GOLD FLASH

A: 5u'' INCH GOLD

B: 10u'' INCH GOLD

C: 15u'' INCH GOLD

D: 30u'' INCH GOLD

A:W POLARIZATION

B:W/O POLARIZATION

6.INSULATOR COLOR

6. RED

886 2 86483356 | F

886 2 86485885

E LE CTR O NI C S CO . , LTD

e-mail

info@donconnex.com.tw

DON CONNEX

Connector:E163339 | Flat cable:E162690

Wiring Harnesses:E312257
