DBCA33B08BT1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> DBCA33B08BT1

Preview

DBCA33B08BT1: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector; File Size108KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

DBCA33B08BT1 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

DBCA33B08BT1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DUBILIER
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.224 inch
subject depth	0.252 inch
body length	0.549 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	DBCA33B
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

BOARD TO BOARD/WIRE

Compatible with other leading manufacturers

Competitively priced

Tin plated contacts

2.54mm pitch

04-26 contacts

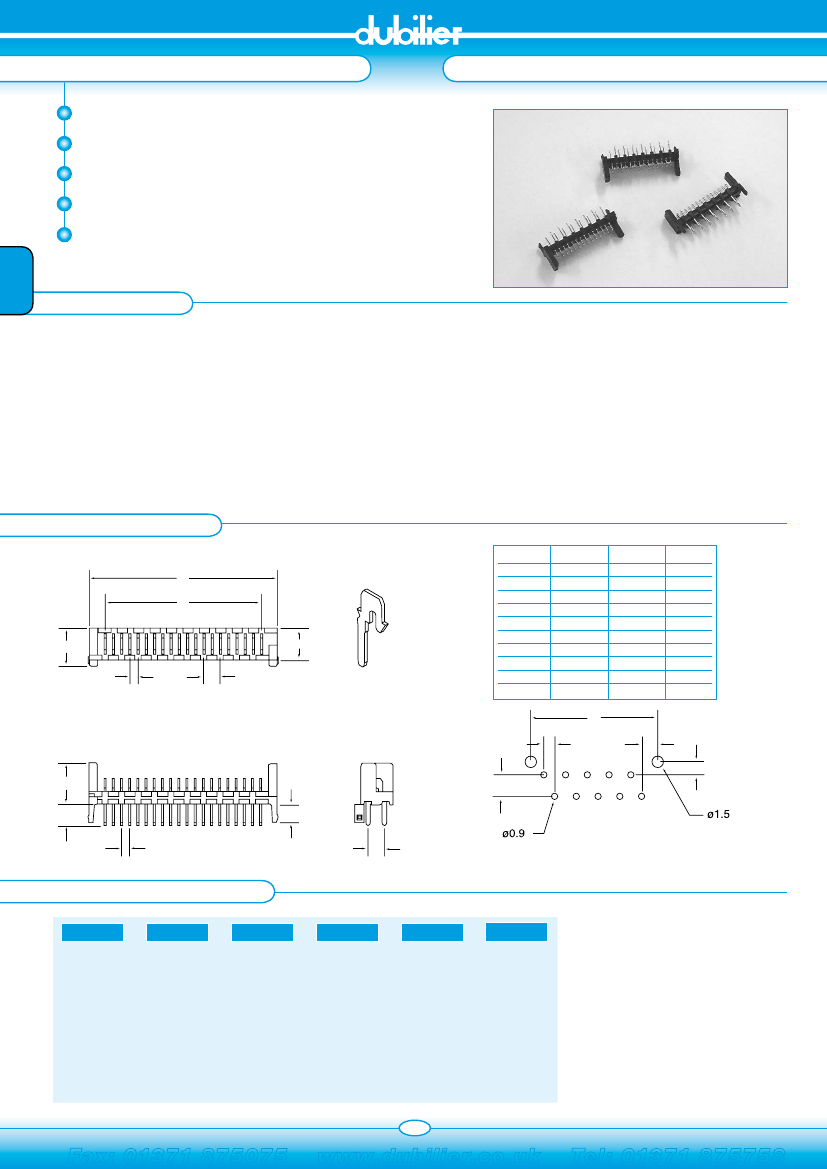

MINIATURE RIBBON CABLE SYSTEM - PCB HEADER VERTICAL

SECTION 8

SPECIFICATION

Material & Finish

Insulator:

Contact:

PTB, glass reinforced , rated UL 9V-0

Phosphor Bronze

Electrical Characteristics

Rating Current:

Contact Resistance:

Insulation Resistance:

Dielectric Voltage:

1 Amp DC

30 mΩ max.

3000 MΩ min.

500v AC for 1 minute

Operating Temperature:

-40°C to +105°C

*Mating suggestion: A33 series.

OUTLINE DRAWING

A

B

5.7

1.27

2.54

5.0

Position

4

6

8

10

12

14

16

18

20

26

A

8.86

11.40

13.94

16.48

19.02

21.56

24.10

26.64

29.18

36.80

B

3.81

6.35

8.89

11.43

13.97

16.51

19.05

21.59

24.13

31.75

C

7.41

9.95

12.49

15.03

17.57

20.11

22.65

25.19

27.73

35.35

C

1.27

6.4

3.3

1.27

2.8

2.54

1.8

1.48

RECOMMENDED PCB LAYOUT

ORDERING INFORMATION

DBC

Dubilier

Connectors

A33B

Series

10

No. of Contacts

04 = 04 way

06 = 06 way

08 = 08 way

10 = 10 way

12 = 12 way

14 = 14 way

16 = 16 way

18 = 18 way

20 = 20 way

26 = 26 way

B

Contact Material

B = Phosphor

Bronze

T

Contact Plating

T = Tin Plating

1

Colour

1 = Black

218

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
