ASEP3-FREQ-F-J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > oscillator> ASEP3-FREQ-F-J

ASEP3-FREQ-F-J: DescriptionHCMOS Output Clock Oscillator, 1MHz Min, 125MHz Max, ROHS COMPLIANT, SMD, 4 PIN; Categoryoscillator; File Size363KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASEP3-FREQ-F-J Overview

HCMOS Output Clock Oscillator, 1MHz Min, 125MHz Max, ROHS COMPLIANT, SMD, 4 PIN

ASEP3-FREQ-F-J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Is Samacsys	N
Other features	BULK
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	ASEP
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.05mm
longest rise time	4 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

HCMOS/TTL SMD PROGRAMMABLE CRYSTAL OSCILLATOR

ASEP SERIES

FEATURES:

• Wide frequency range from 1MHz up to 125MHz

• Miniature size for high density applications

• -40 + 85C industrial operating temperature available

APPLICATIONS:

• Precision clock frequency for a wide range of

emerging technology applications.

RoHS

Compliant

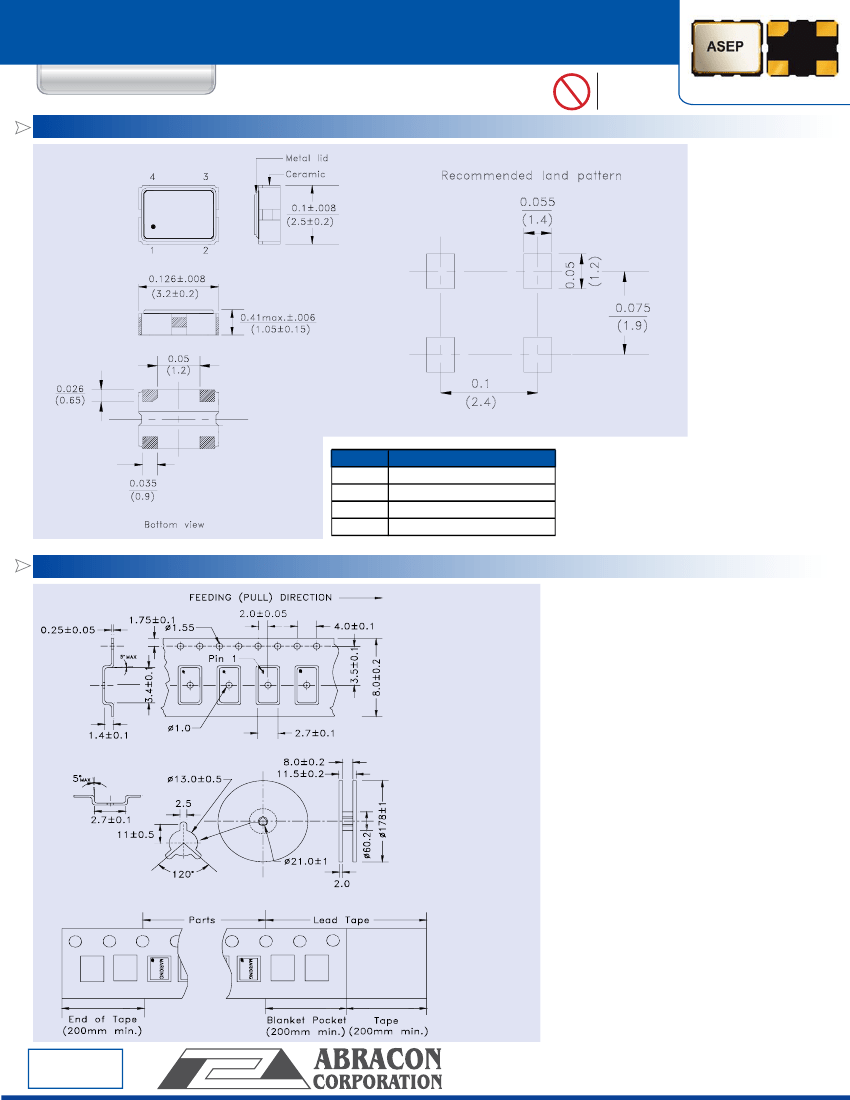

3.2 X 2.5 X 1.05 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Characteristics

Frequency Range

Operating Temp. Range * (See Options)

Storage Temp. Range * (See Options)

Freq. Stability

Over Operating Temp.* (See Options)

For Small

Quantities,

Delivery Time

is 1-5 days

ASEP Series

Unit

MHz

°C

ppm

VDC

Minimum

-20

-55

-50

2.97

4.5

Typical

3.3

5.0

15pF (ASEP3 and ASEP5)

5TTL max. (ASEP5 only)

Maximum

125

3.63

5.5

ASEP3

ASEP5

ASEP3

Supply Current

ASEP5

Disable Current

ASEP3

ASEP5

(See options)

Stand-by Current (See options)

CMOS

Output Load

TTL

CMOS (1/2Vdd)

Symmetry

TTL (1.4V)

Rise Time

Fall Time

CMOS (20%Vdd<=>80%Vdd)

Supply Voltage

(See options)

TTL(0.4V<=>2.4V)

CMOS (20%Vdd<=>80%Vdd)

TTL (0.4V<=>2.4V)

CMOS

Output Voltage

TTL

ASEP3

Input (OE) Voltage

(CMOS)

ASEP5

(CMOS and TTL)

Start-Up time

Output Disable Time

Output Enable Time (OE)

Output Enable Time (ST)

Aging (First Year)

nSec

VOH

VOL

VOH

VOL

VIH

VIL

VIH

VIL

ppm

0.1*Vdd max.

0.4*Vdd max.

0.2*Vdd max.

0.8V max.

-5

0.9*Vdd min.

0.7*Vdd min.

2.0V min.

100

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASEP

Supply Voltage

3.3V±10%

5.0V±10%

Frequency

XX.XXXXMHz

Temp. Range

-10°C to +60°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

- Frequency-

Packaging

Bulk

Tape and Reel

Frequency Stability

Over Operating Temp.

± 20 ppm

± 25 ppm

± 30 ppm

± 35 ppm

± 100 ppm

Blank

OE or Stand-By

Output Enable

Blank

Stand-By

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 07.09.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
