KS88C4208IS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Microcontrollers and processors> KS88C4208IS

KS88C4208IS: DescriptionMicrocontroller, 8-Bit, MROM, CMOS, PDIP42, 0.600 INCH, SDIP-42; CategoryMicrocontrollers and processors; File Size311KB，14 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KS88C4208IS Overview

Microcontroller, 8-Bit, MROM, CMOS, PDIP42, 0.600 INCH, SDIP-42

KS88C4208IS Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	DIP
package instruction	SDIP,
Contacts	42
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	YES
Address bus width	16
bit size	8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T42
length	39.1 mm
Number of I/O lines	34
Number of terminals	42
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	5.08 mm
Maximum slew rate	40 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

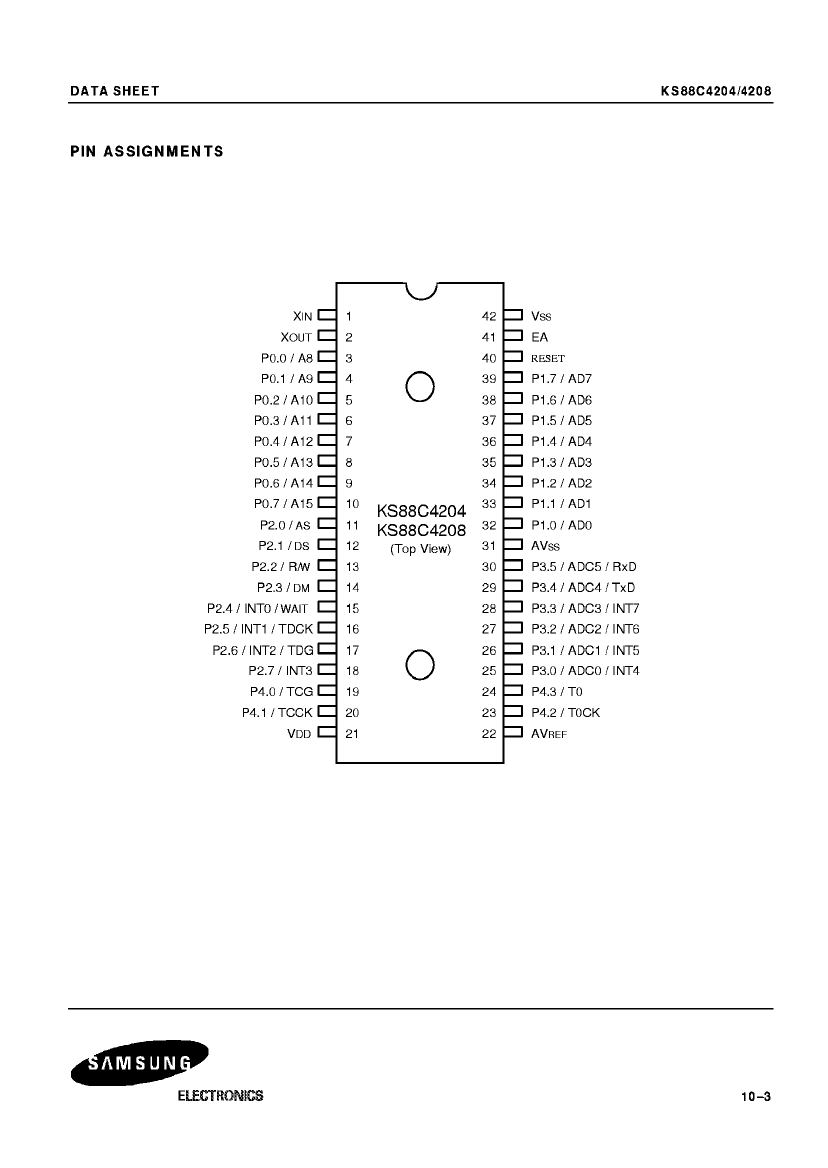

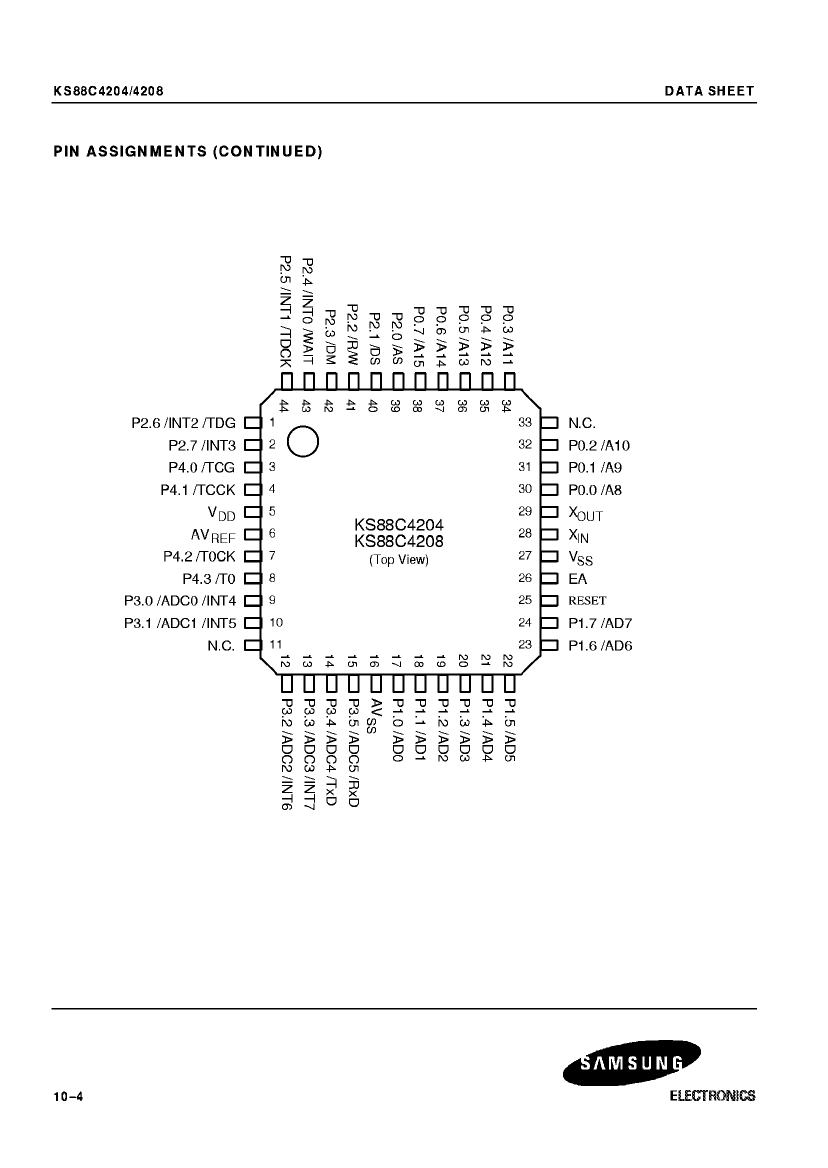

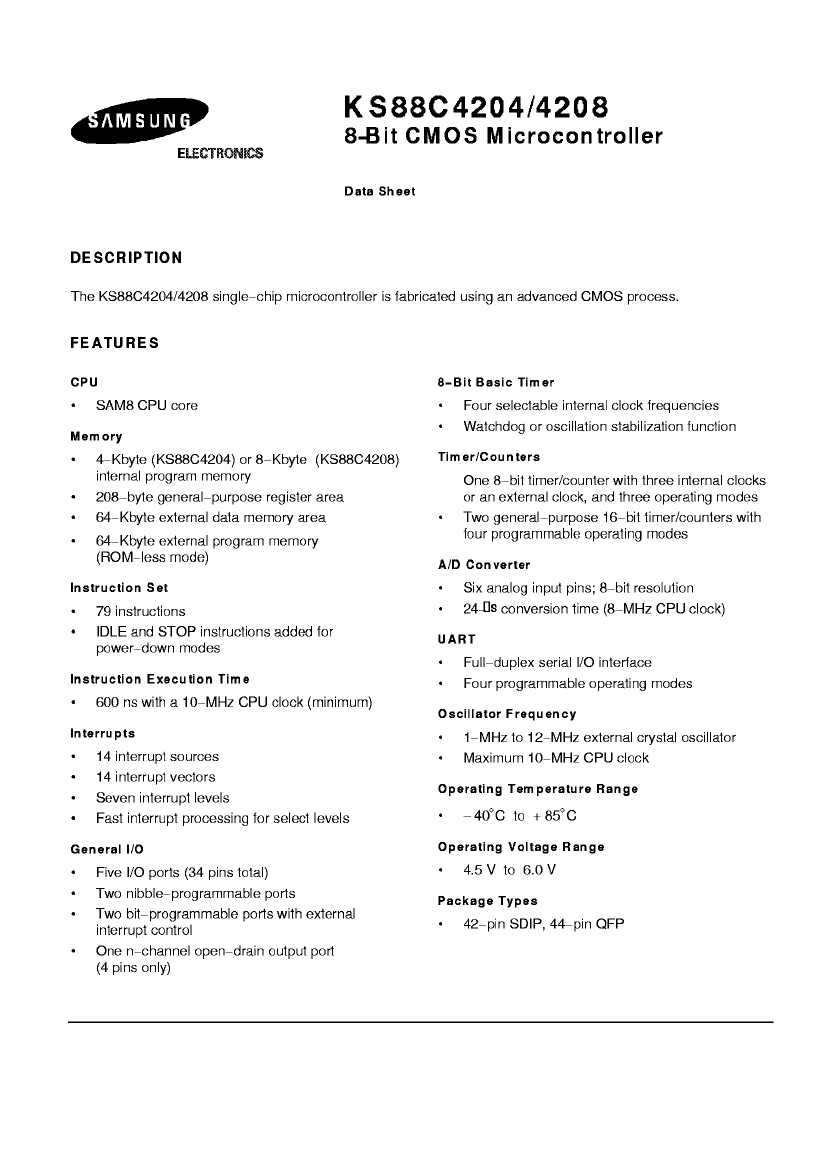

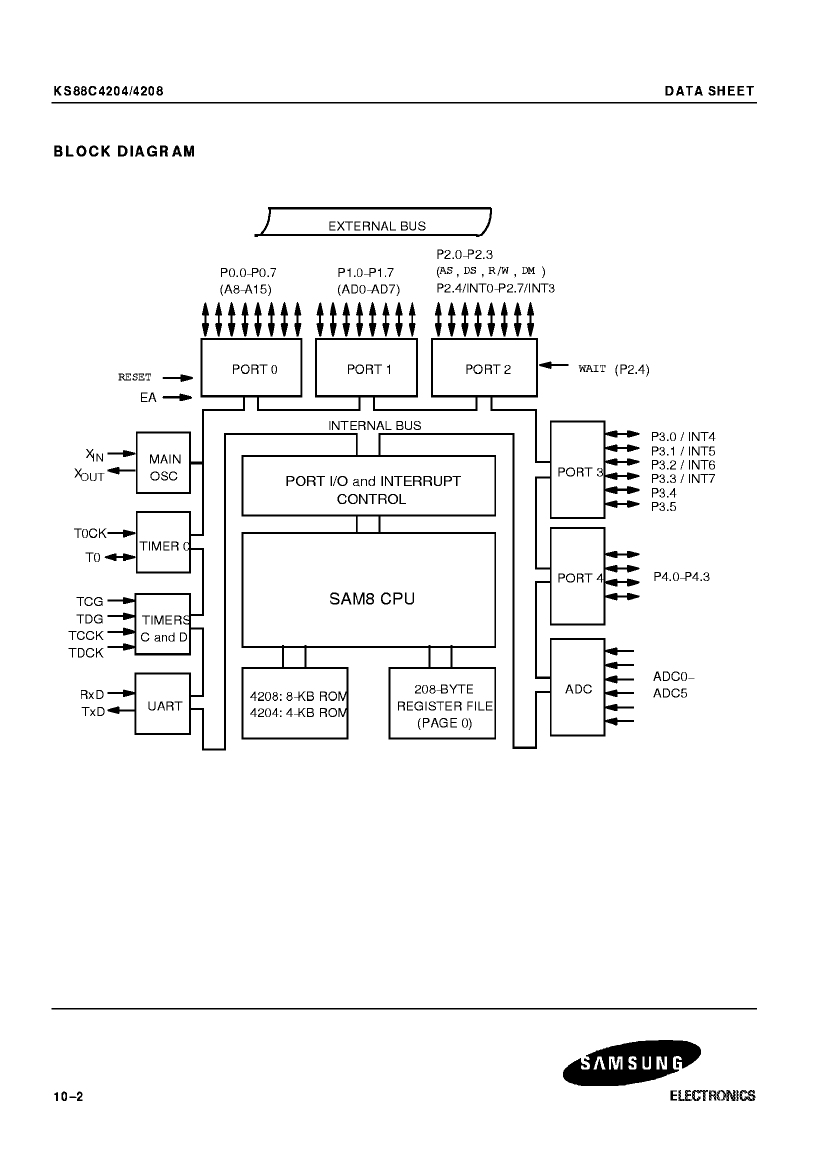

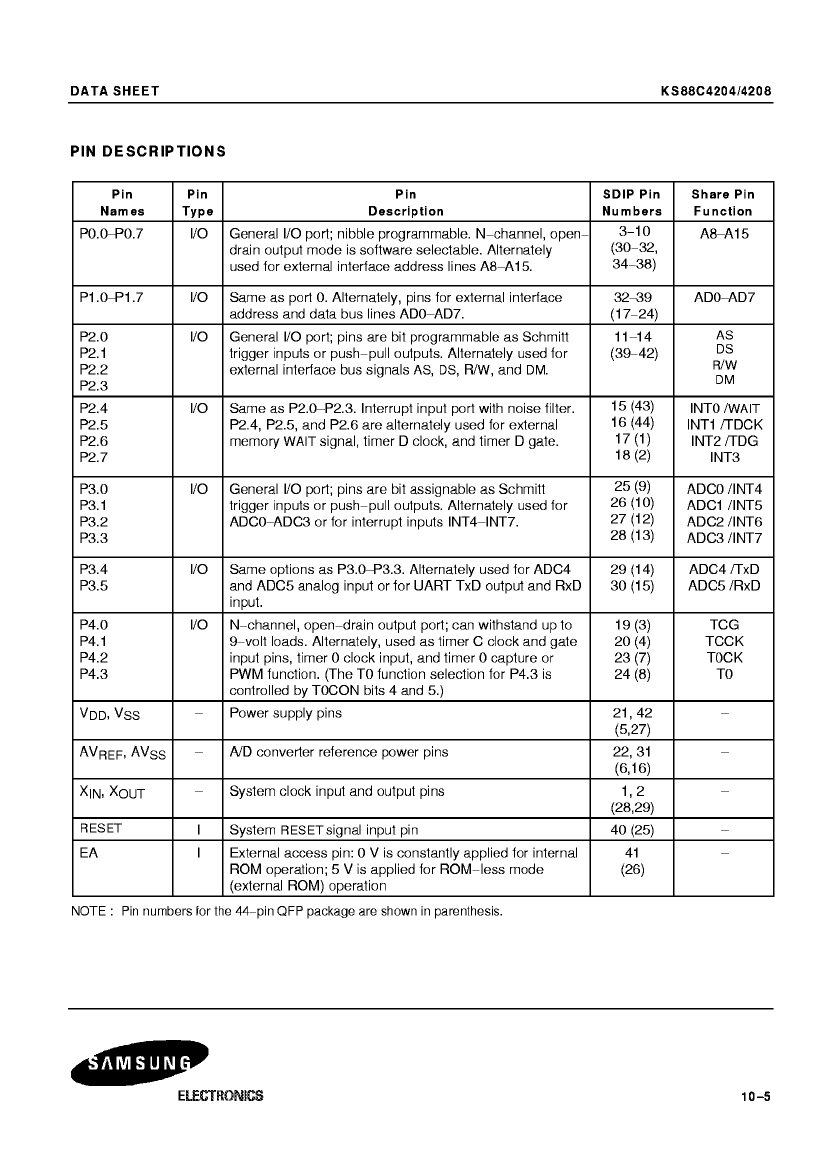

Preview

Download Datasheet

View All

KS88C4208IS Related Products

	KS88C4208IS	KS88C4204IFP	KS88C4208IFP	KS88C4204IS
Description	Microcontroller, 8-Bit, MROM, CMOS, PDIP42, 0.600 INCH, SDIP-42	Microcontroller, 8-Bit, MROM, CMOS, PQFP44, 10 X 10 MM, QFP-44	Microcontroller, 8-Bit, MROM, CMOS, PQFP44, 10 X 10 MM, QFP-44	Microcontroller, 8-Bit, MROM, CMOS, PDIP42, 0.600 INCH, SDIP-42
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	DIP	QFP	QFP	DIP
package instruction	SDIP,	QFP,	QFP,	SDIP,
Contacts	42	44	44	42
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES
Address bus width	16	16	16	16
bit size	8	8	8	8
maximum clock frequency	12 MHz	12 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
JESD-30 code	R-PDIP-T42	S-PQFP-G44	S-PQFP-G44	R-PDIP-T42
length	39.1 mm	10 mm	10 mm	39.1 mm
Number of I/O lines	34	34	34	34
Number of terminals	42	44	44	42
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	QFP	QFP	SDIP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	FLATPACK	FLATPACK	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM
Maximum seat height	5.08 mm	2.3 mm	2.3 mm	5.08 mm
Maximum slew rate	40 mA	40 mA	40 mA	40 mA
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.778 mm	0.8 mm	0.8 mm	1.778 mm
Terminal location	DUAL	QUAD	QUAD	DUAL
width	15.24 mm	10 mm	10 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	-
