KS57C2408 datasheet, PDF - EEWORLD Datasheet

KS57C2408: DescriptionMicrocontroller, 4-Bit, MROM, 1.05MHz, CMOS, PQFP80, 14 X 20 MM, QFP-80; CategoryMicrocontrollers and processors; File Size374KB，12 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

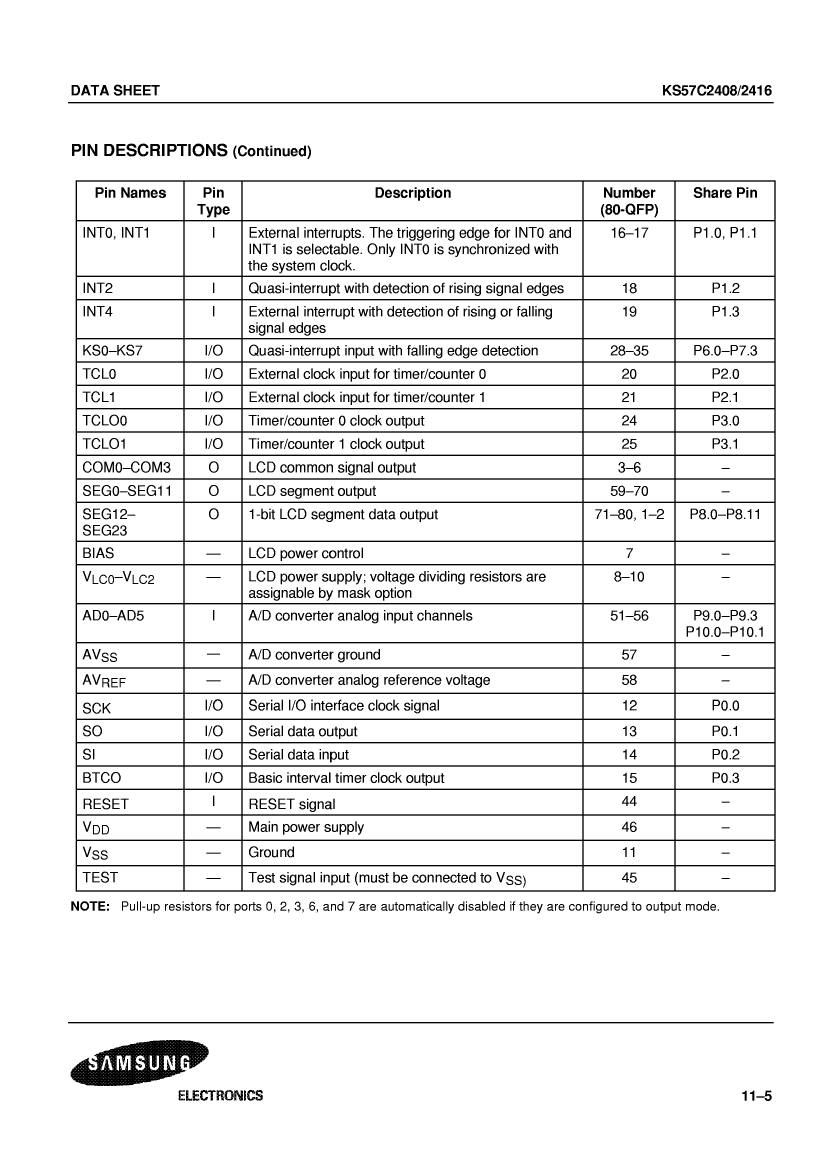

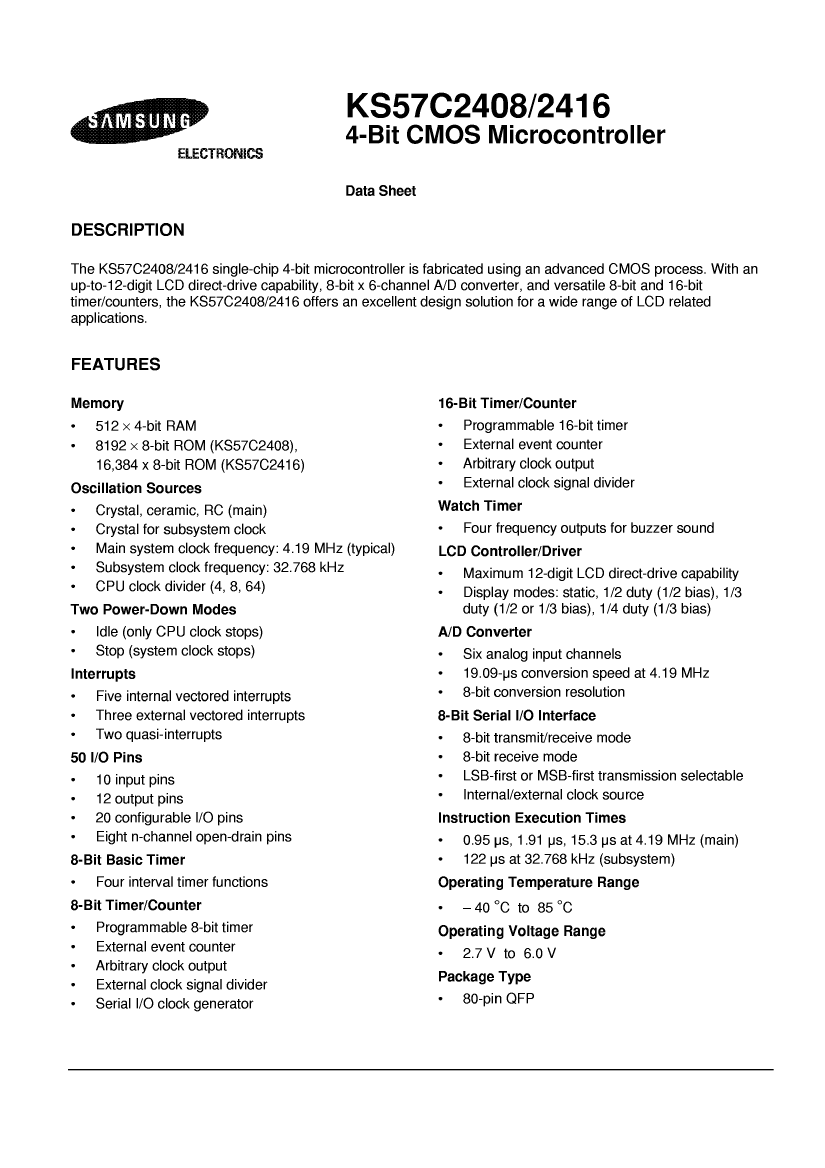

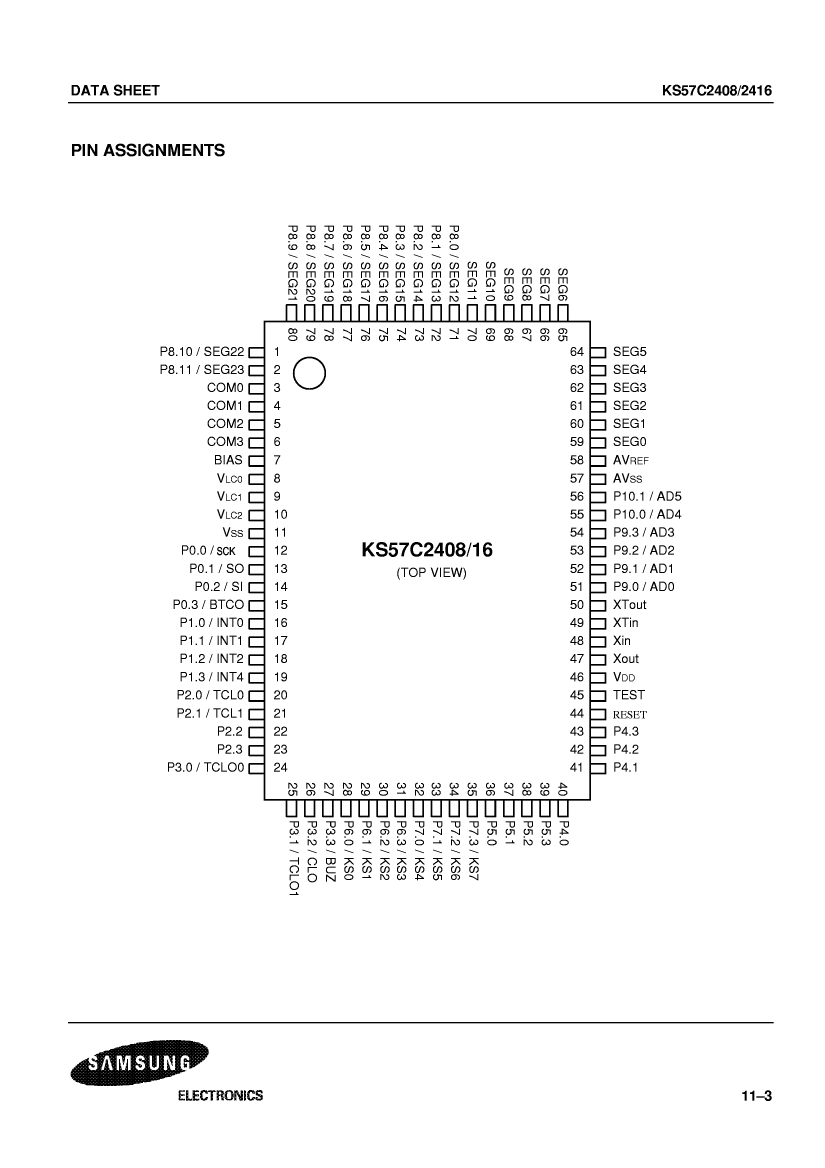

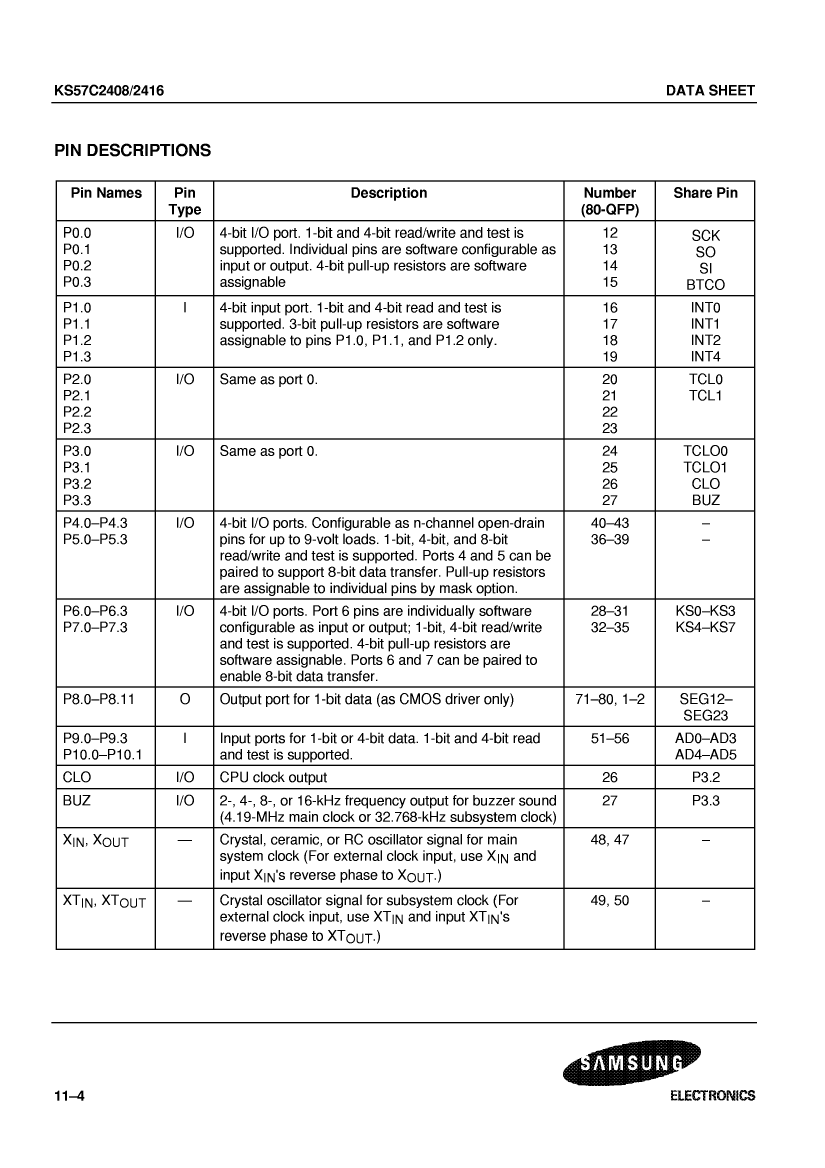

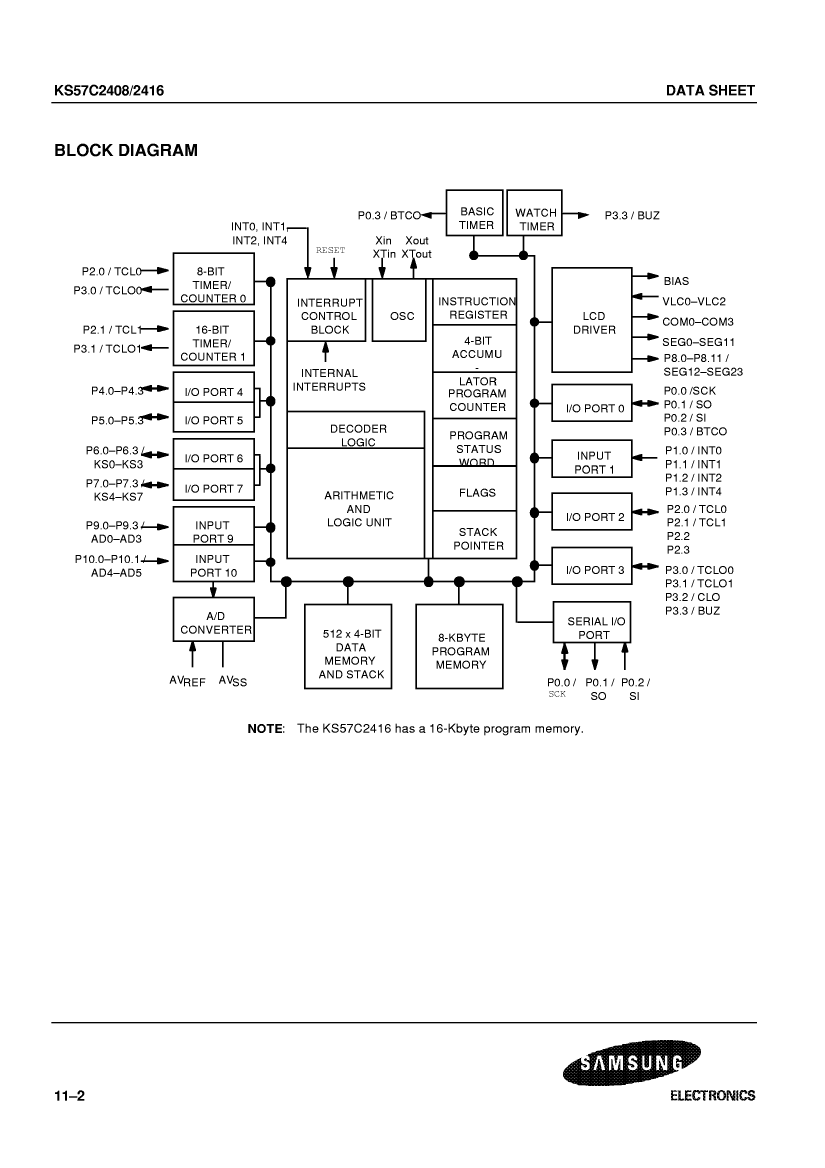

KS57C2408 Overview

Microcontroller, 4-Bit, MROM, 1.05MHz, CMOS, PQFP80, 14 X 20 MM, QFP-80

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	QFP
package instruction	QFP,
Contacts	80
Reach Compliance Code	compliant
Is Samacsys	N
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	4.19 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PQFP-G80
length	20 mm
Number of I/O lines	50
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	3 mm
speed	1.05 MHz
Maximum supply voltage	6 V
Minimum supply voltage	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	KS57C2408	KS57C2416
Description	Microcontroller, 4-Bit, MROM, 1.05MHz, CMOS, PQFP80, 14 X 20 MM, QFP-80	Microcontroller, 4-Bit, MROM, 1.05MHz, CMOS, PQFP80, 14 X 20 MM, QFP-80
Maker	SAMSUNG	SAMSUNG
Parts packaging code	QFP	QFP
package instruction	QFP,	QFP,
Contacts	80	80
Reach Compliance Code	compliant	unknown
Has ADC	YES	YES
bit size	4	4
maximum clock frequency	4.19 MHz	4.19 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PQFP-G80	R-PQFP-G80
length	20 mm	20 mm
Number of I/O lines	50	50
Number of terminals	80	80
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
Maximum seat height	3 mm	3 mm
speed	1.05 MHz	1.05 MHz
Maximum supply voltage	6 V	6 V
Minimum supply voltage	2.7 V	2.7 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD
width	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
