KD80386SX20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Microcontrollers and processors> KD80386SX20

KD80386SX20: DescriptionMicroprocessor, 32-Bit, 20MHz, CMOS, PQFP100, PLASTIC, QFP-100; CategoryMicrocontrollers and processors; File Size4MB，102 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

KD80386SX20 Overview

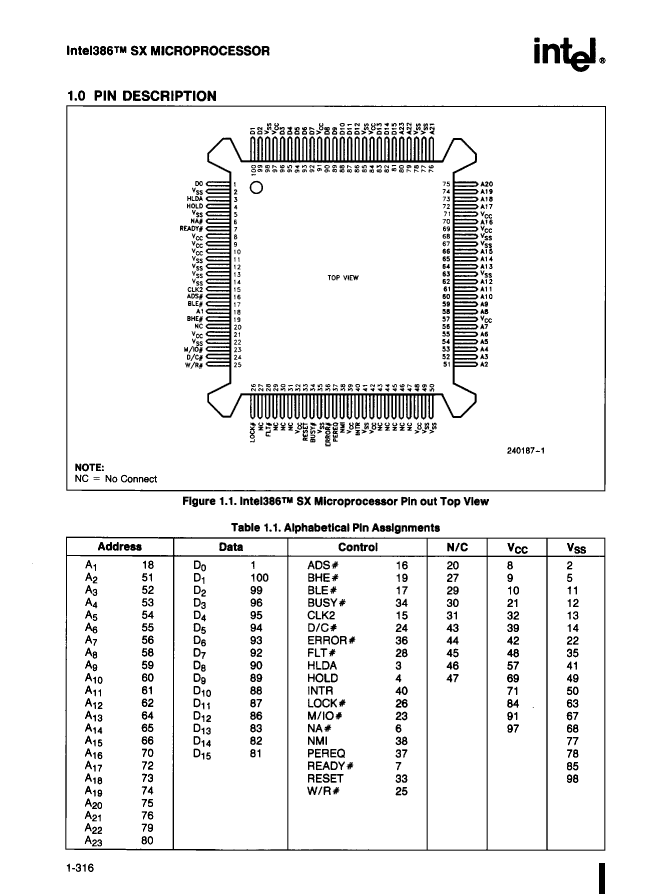

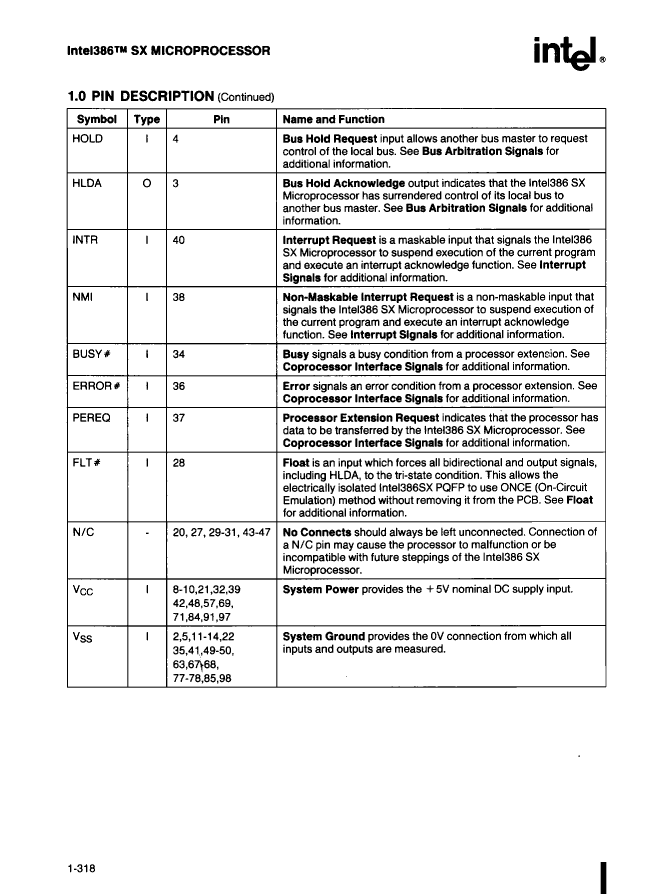

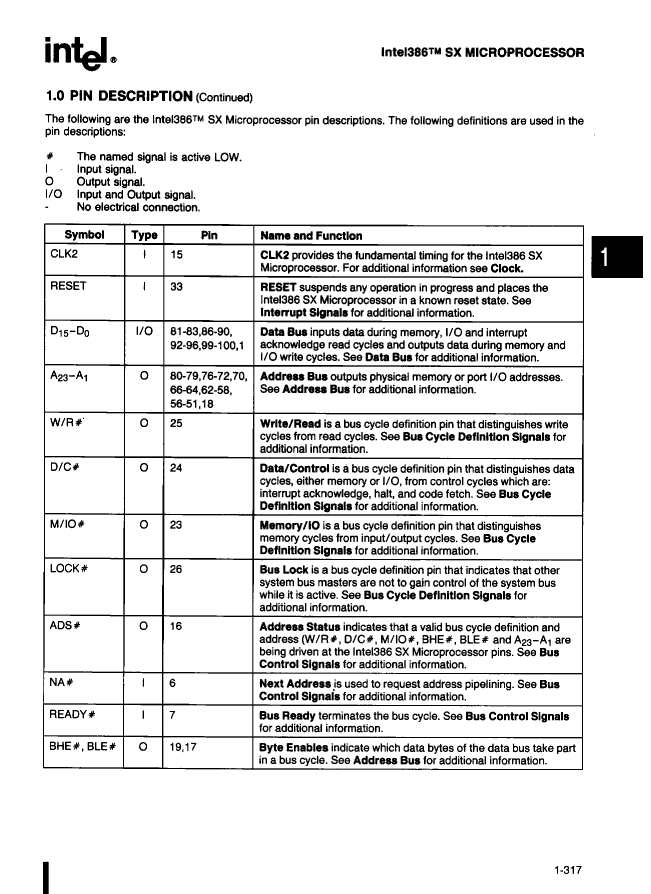

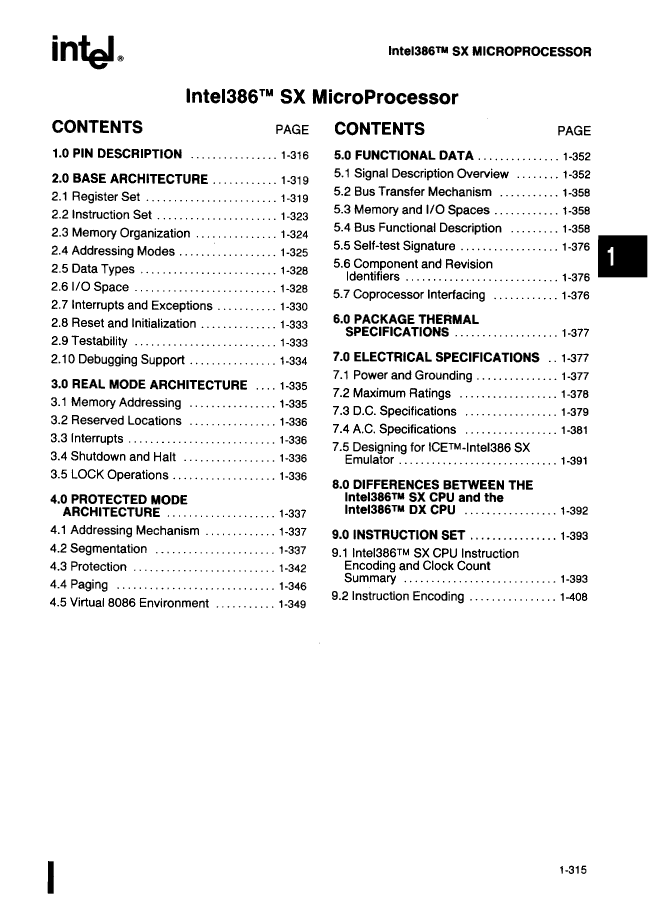

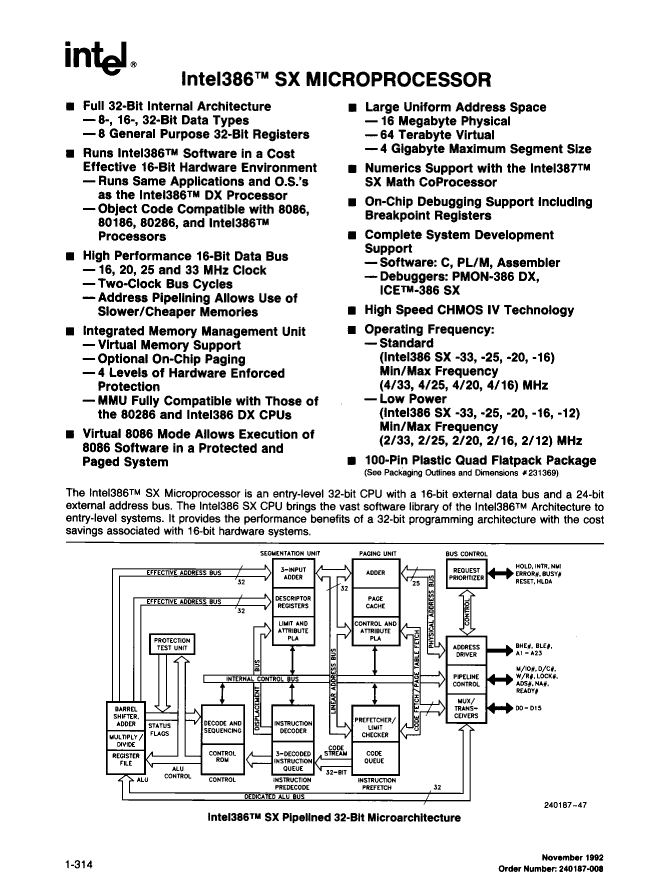

Microprocessor, 32-Bit, 20MHz, CMOS, PQFP100, PLASTIC, QFP-100

KD80386SX20 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	QFP
package instruction	BQFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A991.A.2
Is Samacsys	N
Other features	CONTROL ROM; BARREL SHIFTER
Address bus width	24
bit size	32
boundary scan	NO
maximum clock frequency	40 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G100
length	19.05 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	100
On-chip data RAM width
Maximum operating temperature	100 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BQFP
Package shape	SQUARE
Package form	FLATPACK, BUMPER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
speed	20 MHz
Maximum slew rate	250 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1
