15KP60A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> TVS diode> 15KP60A

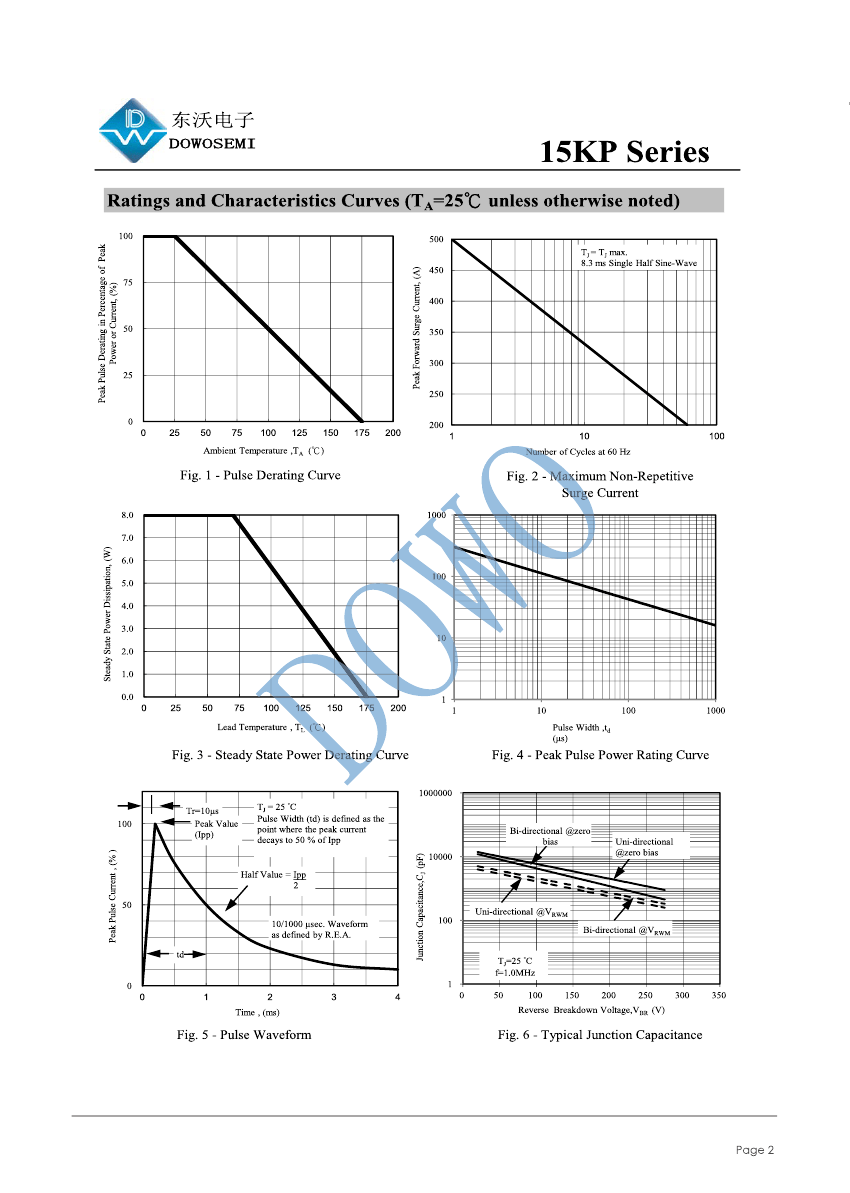

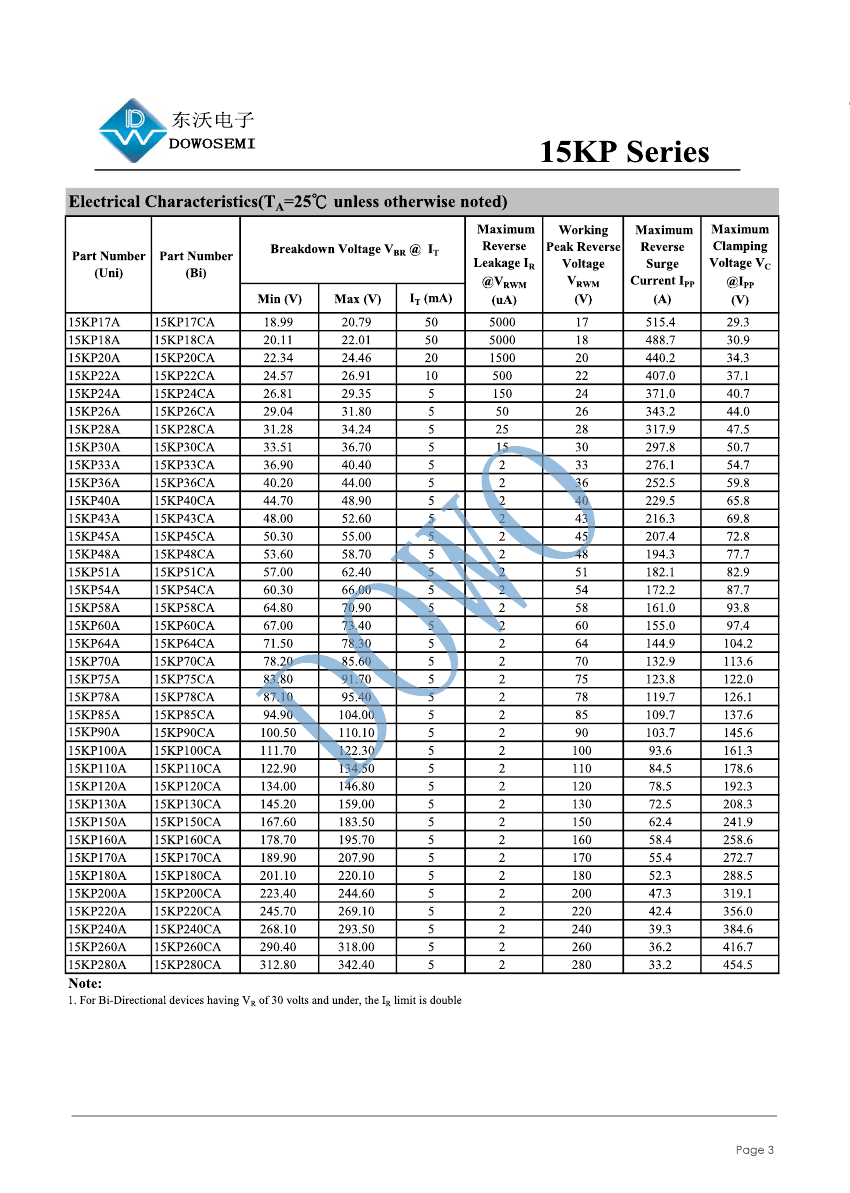

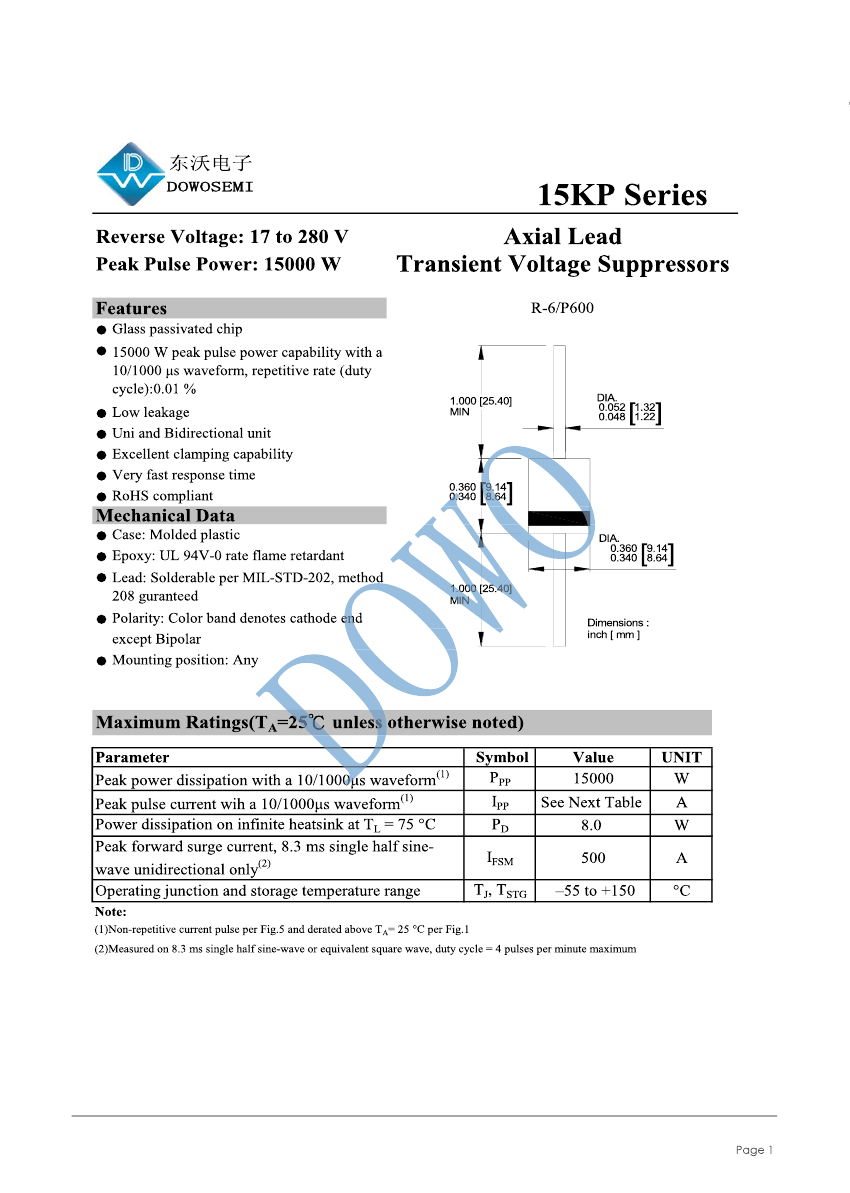

15KP60A: DescriptionPolarity: Unidirectional Peak pulse current (10/1000us): 155A Clamping voltage: 97.4V Breakdown voltage (minimum): 67V Reverse shutdown voltage (typ.): 60V VBR=67V, Vc=97.4V, Ipp =155A; CategoryDiscrete semiconductor TVS diode; File Size2MB，3 Pages; ManufacturerDowosemi; Websitehttp://www.dowosemi.cn

Download Datasheet Parametric Compare View All

15KP60A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	15KP60A	-	-	View	Buy Now

15KP60A Overview

Polarity: Unidirectional Peak pulse current (10/1000us): 155A Clamping voltage: 97.4V Breakdown voltage (minimum): 67V Reverse shutdown voltage (typ.): 60V VBR=67V, Vc=97.4V, Ipp =155A

15KP60A Parametric

Parameter Name	Attribute value
polarity	Unidirectional
Peak pulse current (10/1000us)	155A
clamping voltage	97.4V
Breakdown voltage (minimum value)	67V
Reverse shutdown voltage (typ)	60V

Preview

Download Datasheet

View All

15KP60A Related Products

	15KP60A	15KP33CA	15KP70A	15KP260CA	15KP20A	15KP220CA	15KP33A	15KP280CA	15KP60CA
Description	Polarity: Unidirectional Peak pulse current (10/1000us): 155A Clamping voltage: 97.4V Breakdown voltage (minimum): 67V Reverse shutdown voltage (typ.): 60V VBR=67V, Vc=97.4V, Ipp =155A	Polarity: Bidirectional Peak pulse current (10/1000us): 276.1A Clamping voltage: 54.7V Breakdown voltage (minimum): 36.9V Reverse shutdown voltage (typ.): 33V	Polarity: Unidirectional Peak pulse current (10/1000us): 132.9A Clamping voltage: 113.6V Breakdown voltage (minimum): 78.2V Reverse shutdown voltage (typ.): 70V VBR=78.2V, Vc=113.6 V,Ipp=132.9A	Polarity: Bidirectional Peak pulse current (10/1000us): 36.2A Clamping voltage: 416.7V Breakdown voltage (minimum): 290.4V Reverse shutdown voltage (typ.): 260V VBR=290.4V, Vc=416.7 V,Ipp=36.2A	Polarity: Unidirectional Peak pulse current (10/1000us): 440.2A Clamping voltage: 34.2V Breakdown voltage (minimum): 22.34V Reverse shutdown voltage (typ.): 20V VBR=22.34V, Vc=34.3 V,Ipp=440.2A	Polarity: Bidirectional Peak pulse current (10/1000us): 42.4A Clamping voltage: 356V Breakdown voltage (minimum value): 245.7V Reverse shutdown voltage (typical value): 220V VBR=245.7V, Vc=356V, Ipp=42.4A	Polarity: Unidirectional Peak pulse current (10/1000us): 276.1A Clamping voltage: 54.7V Breakdown voltage (minimum): 36.9V Reverse shutdown voltage (typ.): 33V VBR=36.9V, Vc=54.7 V,Ipp=276.1A	Polarity: Bidirectional Peak pulse current (10/1000us): 33.2A Clamping voltage: 454.5V Breakdown voltage (minimum): 312.8V Reverse shutdown voltage (typ.): 280V VBR=312.8V, Vc=454.5 V,Ipp=33.2A	Polarity: Bidirectional Peak pulse current (10/1000us): 155A Clamping voltage: 97.4V Breakdown voltage (minimum): 67V Reverse shutdown voltage (typ.): 60V VBR=67V, Vc=97.4V, Ipp =155A
polarity	Unidirectional	Bidirectional	Unidirectional	Bidirectional	Unidirectional	Bidirectional	Unidirectional	Bidirectional	Bidirectional
Peak pulse current (10/1000us)	155A	276.1A	132.9A	36.2A	440.2A	42.4A	276.1A	33.2A	155A
clamping voltage	97.4V	54.7V	113.6V	416.7V	34.2V	356V	54.7V	454.5V	97.4V
Breakdown voltage (minimum value)	67V	36.9V	78.2V	290.4V	22.34V	245.7V	36.9V	312.8V	67V
Reverse shutdown voltage (typ)	60V	33V	70V	260V	20V	220V	33V	280V	60V
